The Ultimate Realtek HD Audio Driver Mod for Windows 10

AAF Optimus

Audio Modder
Joined
Mar 1, 2017
Messages
1,215 (0.43/day)
Location
Rio de Janeiro, Brazil
System Name NEW AAF OPTIMUS RIG
Processor AMD Ryzen 5 5600X (6C/12T)
Motherboard ASUS TUF Gaming B550M-Plus
Cooling DEEPCOOL Gammax L120T
Memory CRUCIAL Pro Gaming 32GB DDR4-3200 (2x16GB)
Video Card(s) NVIDIA GeForce RTX 3060 12GB MSI Ventus 2X OC
Storage ADATA Legend 710 PCIe Gen3 x4 256GB; ADATA Legend 800 PCIe Gen4 x4 2TB; GoldenFir SSD 1TB
Display(s) AOC VIPER 27" 165Hz 1ms (27G2SE)
Case DARKFLASH DK100-BK
Audio Device(s) ALC S1200A with AAF Optimus Audio (Sound Blaster + Dolby Audio [Dolby Atmos For Built-In Speakers])
Power Supply REDRAGON RGPS 600W 80 PLUS Bronze Full Modular
Mouse CLAHM CL-MM386 7200DPI
Keyboard MOTOSPEED CK-108 Mechanical Keyboard
Software Windows 11 Pro x64 23H2 (24H2 has many abnormalities)
Joined
Jun 21, 2018
Messages
6 (0.00/day)
@Alan Finote i have installed your driver, unfortunately i have lost the ability to remap my audio jack. i have tried editing the registry to manually edit the PINS but it revert back to original values. any help on how to remap my audio jack at the back of my board.


DruiD

New Member
Joined
Feb 3, 2019
Messages
8 (0.00/day)
@Alan Finote i have installed your driver, unfortunately i have lost the ability to remap my audio jack. i have tried editing the registry to manually edit the PINS but it revert back to original values. any help on how to remap my audio jack at the back of my board.

I also still have the same problem with front audio. Asus\Realtek drivers - when you plug in the front audio ( with the "separate jack \ independent" option turned on) you get ACTUAL separate tabs in the sound manager. So .. still says rear audio .. \5.1 speakers etc.. adn a "front audio" tab.

With all these modded drivers, the "Front" audio" - still takes over the rear audio - doesn't open a new tab - and disables the rear audio sound...irrespective if the option for independent jacks is enabled.

I still have a couple of issues - so will continue posting over in https://www.techpowerup.com/forums/...n10-post-your-mods.250915/page-4#post-3988521 under the new 'All in one' driver thread.

Last edited:

alpharevx

New Member
Joined
Nov 30, 2018
Messages
13 (0.01/day)
Can somone please reupload DJ URKO's latest driver? the link he provided isn't working anymore.


AAF Optimus

Audio Modder
Joined
Mar 1, 2017
Messages
1,215 (0.43/day)
Location
Rio de Janeiro, Brazil
System Name NEW AAF OPTIMUS RIG
Processor AMD Ryzen 5 5600X (6C/12T)
Motherboard ASUS TUF Gaming B550M-Plus
Cooling DEEPCOOL Gammax L120T
Memory CRUCIAL Pro Gaming 32GB DDR4-3200 (2x16GB)
Video Card(s) NVIDIA GeForce RTX 3060 12GB MSI Ventus 2X OC
Storage ADATA Legend 710 PCIe Gen3 x4 256GB; ADATA Legend 800 PCIe Gen4 x4 2TB; GoldenFir SSD 1TB
Display(s) AOC VIPER 27" 165Hz 1ms (27G2SE)
Case DARKFLASH DK100-BK
Audio Device(s) ALC S1200A with AAF Optimus Audio (Sound Blaster + Dolby Audio [Dolby Atmos For Built-In Speakers])
Power Supply REDRAGON RGPS 600W 80 PLUS Bronze Full Modular
Mouse CLAHM CL-MM386 7200DPI
Keyboard MOTOSPEED CK-108 Mechanical Keyboard
Software Windows 11 Pro x64 23H2 (24H2 has many abnormalities)
@Dj Urko why dont try Compsite SFX MFX EFX on Legacy HDA?
You can find them on my DCHU HDA mod.
http://puresoftapps.blogspot.com/2018/12/realtek-modded-driver.html?m=1

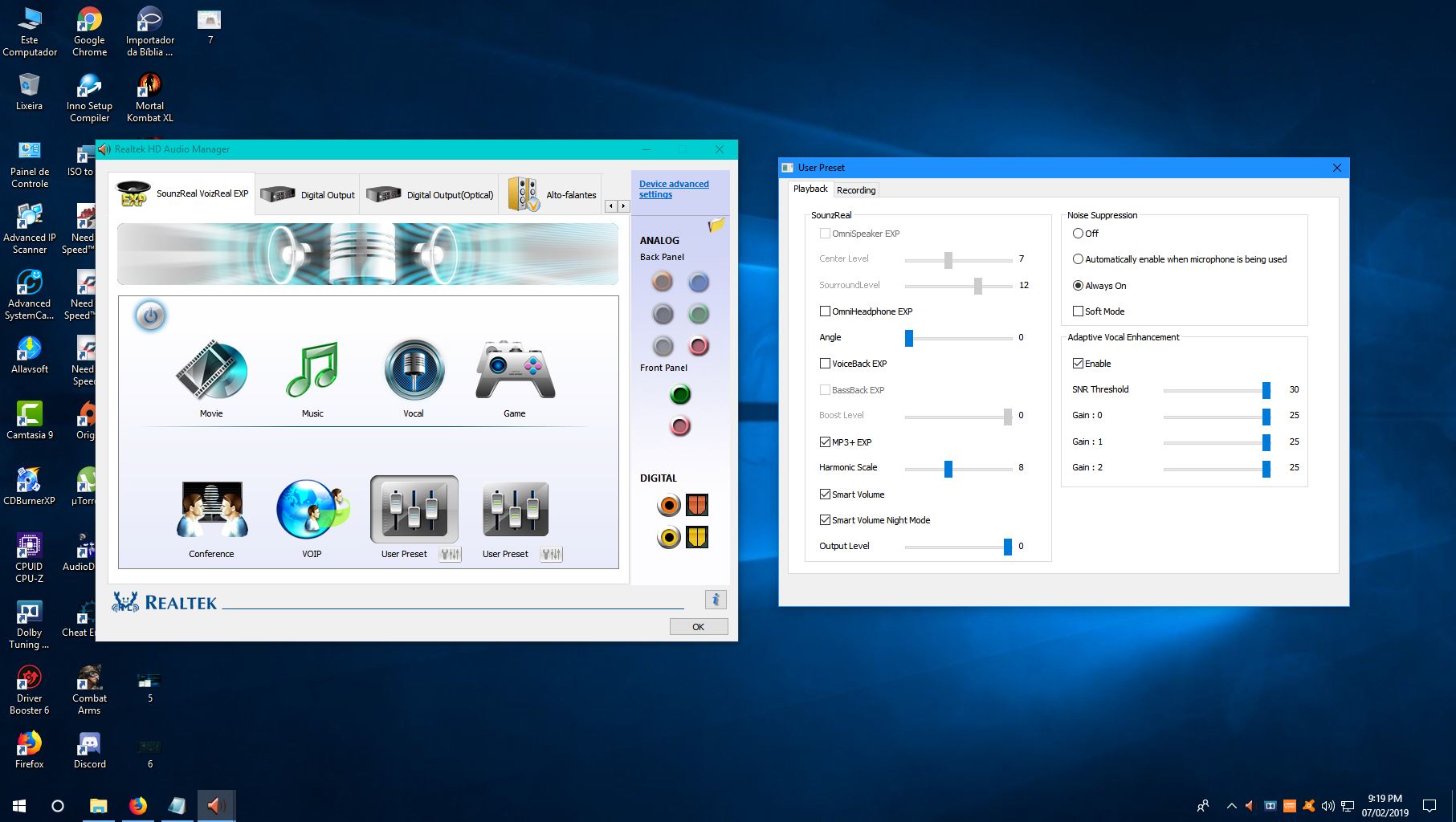

@alanfox2000 SFX, MFX & EFX Composite keys working in Realtek HDA Driver
It's my code:
Creative Chaining values directly in SFX, MFX & EFX Composite keys: works fine
I confess I thought about this for a long time.

Code:
;; SPEAKERS
HKR,"FX\\0",%PKEY_DisplayName%,,%ANYFX_FriendlyName%
HKR,"FX\\0",%PKEY_SYSCompositeFX_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%    ;; Creative Chaining Values directly in System Composite Keys
HKR,"FX\\0",%PKEY_SYSCompositeFX_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%    ;; Creative Chaining Values directly in System Composite Keys
HKR,"FX\\0",%PKEY_SYSCompositeFX_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%    ;; Creative Chaining Values directly in System Composite Keys
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_SFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OSFX%
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_MFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OMFX%
HKR,"FX\\0",%PKEY_SYSFX_Offload_SFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OSFX%
HKR,"FX\\0",%PKEY_SYSFX_Offload_MFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OMFX%
HKR,"FX\\0",%PKEY_SYSFX_UiClsid%,,%PAGE_MASTER_HOST%
HKR,"FX\\0",%PAGE_MASTER_1%,,%GUID_RT_APO_UI%
HKR,"FX\\0",%PAGE_MASTER_2%,,%VIA_USERINTERFACE_CLSID%
HKR,"FX\\0",%PAGE_MASTER_3%,,%SZA_PROPPAGE%
HKR,"FX\\0",%PAGE_MASTER_4%,,%CT_SYSFX_UI_CLSID%
;;============================================== "PAGE MASTER_HOST" with maximum support for 5 (five) simultaneous user interfaces ========
;;=========================================================================================================================================
;; Realtek High Definition Audio Effects ==================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO1%,,%GUID_RT_APO_SFX%
HKR,"FX\\0",%PKEY_MFX_APO1%,,%GUID_RT_APO_MFX%
HKR,"FX\\0",%PKEY_EFX_APO1%,,%GUID_RT_APO_EFX%
;;=========================================================================================================================================
;; VIA High Definition Audio Effects ======================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO2%,,%VIA_ANALOG_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_MFX_APO2%,,%VIA_ANALOG_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_EFX_APO2%,,%VIA_ENDPOINT_CLSID%
;;=========================================================================================================================================
;; Dolby Digital Plus Home Theater Effects ================================================================================================
HKR,"FX\\0",%PKEY_MFX_APO3%,,%GUID_DS1_SYSFX_MFX%
HKR,"FX\\0",%PKEY_UI_APO3%,,%GUID_DS1_SYSFX_UI%
;;=========================================================================================================================================
;; Creative Sound BlasterX 720° Effects ===================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO4%,,%GUID_CT_APO_SFX%
HKR,"FX\\0",%PKEY_MFX_APO4%,,%GUID_CT_APO_MFX%
HKR,"FX\\0",%PKEY_EFX_APO4%,,%GUID_CT_APO_EFX%
;;=========================================================================================================================================
;; A-Volute Nahimic 3 Effects =============================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO5%,,%AVOLUTE_LFX_CLSID%
HKR,"FX\\0",%PKEY_MFX_APO5%,,%AVOLUTE_GFX_CLSID%
HKR,"FX\\0",%PKEY_EFX_APO5%,,%AVOLUTE_GFX_CLSID%
;;=========================================================================================================================================
HKR,"FX\\0",%PKEY_APO_NUM%,0x10001,%NUM_ANALOG_APO_SET%
HKR,"FX\\0",%PKEY_CT_APO_CUSTOM_KEY%,,%CT_APO_CUSTOM_VALUE%
HKR,"EP\\0",%PKEY_MBTHXAPO_RENDER_EFFECTID%,,%GUID_MBTHXAPO_RENDER_EFFECTID%
HKR,"FX\\0",%PKEY_SYSFX_Association%,,%KSNODETYPE_SPEAKER%
HKR,"FX\\0","{7A8B74C8-FA66-4460-8542-D6119C59E9D4},4",%REG_DWORD%,0x100  ;; SRS APO 3 on Realtek
;;=========================================================================================================================================
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4701",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4702",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4705",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4706",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4716",0x00010001,0x1    ;; PKEY_PCEE_HP_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4717",0x00010001,0x1    ;; PKEY_PCEE_HP_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4723",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4724",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4735",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4737",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_71_Surr_Chkbox=0
;;=========================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_APO_SWFallback_ProcessingModes%,%REG_MULTI_SZ%,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
;;=========================================================================================================================================

[Strings]
PKEY_SYSFX_Association          = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},0"
PKEY_SYSFX_PreMixClsid          = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},1"
PKEY_SYSFX_PostMixClsid         = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},2"
PKEY_SYSFX_UiClsid              = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},3"
PKEY_SYSFX_SFXClsid             = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},5"
PKEY_SYSFX_MFXClsid             = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},6"
PKEY_SYSFX_EFXClsid             = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},7"
PKEY_SYSFX_KeywordDetector_SFX  = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},8"
PKEY_SYSFX_KeywordDetector_MFX  = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},9"
PKEY_SYSFX_KeywordDetector_EFX  = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},10"
PKEY_SYSFX_Offload_SFX        = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},11"
PKEY_SYSFX_Offload_MFX          = "{D04E05A6-594B-4FB6-A80D-01AF5EED7D1D},12"
PKEY_SYSCompositeFX_SFX       = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},13"
PKEY_SYSCompositeFX_MFX        = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},14"
PKEY_SYSCompositeFX_EFX     = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},15"
PKEY_SYSCompositeFX_KeywordDetector_SFX   = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},16"
PKEY_SYSCompositeFX_KeywordDetector_MFX   = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},17"
PKEY_SYSCompositeFX_KeywordDetector_EFX   = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},18"
PKEY_SYSCompositeFX_Offload_SFX = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},19"
PKEY_SYSCompositeFX_Offload_MFX = "{D04E05A6-594B-4fb6-A80D-01AF5EED7D1D},20"
PKEY_DisplayName                = "{B725F130-47EF-101A-A5F1-02608C9EEBAC},10"
PKEY_AudioEndpoint_Ext_UiClsid  = "{1DA5D803-D492-4EDD-8C23-E0C0FFEE7F0E},1"
PKEY_AudioEndpoint_Association  = "{1DA5D803-D492-4EDD-8C23-E0C0FFEE7F0E},2"
PKEY_AudioEndpoint_Supports_EventDriven_Mode = "{1DA5D803-D492-4EDD-8C23-E0C0FFEE7F0E},7"
PKEY_AudioEndpoint_Disable_SysFx = "{1DA5D803-D492-4EDD-8C23-E0C0FFEE7F0E},5"
PKEY_APO_SWFallback_ProcessingModes  = "{D3993A3F-99C2-4402-B5EC-A92A0367664B},13"

PAGE_MASTER_HOST        = "{AA747400-B9F8-4D7F-B41C-F8CF3047A0DB}"
PAGE_MASTER_1            = "{AA747400-B9F8-4D7F-B41C-F8CF3047A0DB},0"
PAGE_MASTER_2            = "{AA747400-B9F8-4D7F-B41C-F8CF3047A0DB},1"
PAGE_MASTER_3            = "{AA747400-B9F8-4D7F-B41C-F8CF3047A0DB},2"
PAGE_MASTER_4            = "{AA747400-B9F8-4D7F-B41C-F8CF3047A0DB},3"
PAGE_MASTER_5            = "{AA747400-B9F8-4D7F-B41C-F8CF3047A0DB},4"

SYSFX_TEST_PREMIX_CLSID     = "{563D840D-ABA0-46ce-BE35-86099BAE3763}" ; TEST LFX
SYSFX_TEST_POSTMIX_CLSID = "{6CA5D0E8-F182-4e9c-9BE9-02A3965B0BDB}" ; TEST GFX
SYSFX_TEST_SFX_CLSID     = "{563D840D-ABA0-46ce-BE35-86099BAE3763}" ; TEST SFX
SYSFX_TEST_EFX_CLSID     = "{6CA5D0E8-F182-4e9c-9BE9-02A3965B0BDB}" ; TEST EFX
SYSFX_TEST_UI_CLSID      = "{537AAE06-ED92-416a-86F4-1555ABE60507}" ; TEST Prop Page

;Chaining Property Keys
PKEY_APO_NUM                   = "{d46c4dfd-28b8-4ab8-a45d-70399958ef26},0"
PKEY_GFX_APO1                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},0"
PKEY_LFX_APO1                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},0"
PKEY_SFX_APO1                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},0"
PKEY_MFX_APO1                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},0"
PKEY_EFX_APO1                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},0"
PKEY_UI_APO1                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},0"
PKEY_UPDOWN_MIX_APO1            = "{96E306D0-C3FE-4746-AF60-C131F06A879E},0"
PKEY_GFX_APO2                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},1"
PKEY_LFX_APO2                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},1"
PKEY_SFX_APO2                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},1"
PKEY_MFX_APO2                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},1"
PKEY_EFX_APO2                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},1"
PKEY_UI_APO2                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},1"
PKEY_UPDOWN_MIX_APO2           = "{96E306D0-C3FE-4746-AF60-C131F06A879E},1"
PKEY_GFX_APO3                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},2"
PKEY_LFX_APO3                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},2"
PKEY_SFX_APO3                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},2"
PKEY_MFX_APO3                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},2"
PKEY_EFX_APO3                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},2"
PKEY_UI_APO3                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},2"
PKEY_GFX_APO4                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},3"
PKEY_LFX_APO4                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},3"
PKEY_SFX_APO4                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},3"
PKEY_MFX_APO4                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},3"
PKEY_EFX_APO4                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},3"
PKEY_UI_APO4                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},3"
PKEY_GFX_APO5                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},4"
PKEY_LFX_APO5                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},4"
PKEY_SFX_APO5                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},4"
PKEY_MFX_APO5                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},4"
PKEY_EFX_APO5                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},4"
PKEY_UI_APO5                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},4"
PKEY_GFX_APO6                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},5"
PKEY_LFX_APO6                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},5"
PKEY_SFX_APO6                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},5"
PKEY_MFX_APO6                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},5"
PKEY_EFX_APO6                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},5"
PKEY_UI_APO6                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},5"
PKEY_GFX_APO7                  = "{e1032fc5-ddab-4c4b-9940-8a6be78a4db6},6"
PKEY_LFX_APO7                  = "{3a418faa-93d7-4bd8-a0d3-c784ad25476a},6"
PKEY_SFX_APO7                  = "{7D6BD54C-EFB0-4f53-9598-8C4CF795BEB3},6"
PKEY_MFX_APO7                  = "{734FF22D-BA52-49a7-849D-B352F6C4F456},6"
PKEY_EFX_APO7                  = "{45840A41-6782-44b8-89DB-F6DE1C1AECCC},6"
PKEY_UI_APO7                   = "{9a708e6f-a639-4f1c-9206-62b7018853a4},6"

; Creative APO Custom Key (New)
PKEY_CT_APO_CUSTOM_KEY   = "{35DF8779-6D98-4476-B3D3-F0FAC0E4F5BD},0"
CT_APO_CUSTOM_VALUE = "{2D46BA67-0778-48ef-82AF-BF1DB3E45FFE}"

PKEY_MBAPO_CAPTURE_EFFECTID   = "{F1056047-B091-4d85-A5C0-B13D4D8BAC57},1"
GUID_MBAPO_CAPTURE_EFFECTID   = "{d0d09f5b-08dd-4619-aa88-dc9cd2e794d1}"
PKEY_MBTHXAPO_RENDER_EFFECTID = "{F1056047-B091-4d85-A5C0-B13D4D8BAC57},0"
GUID_MBTHXAPO_RENDER_EFFECTID = "{d0d09f5b-08dd-4619-aa88-dc9cd2e794d1}"

PKEY_APO_REDIRECT = "{91C9BA06-777C-4766-A7F2-C4B3E0CB121B},0"

; Creative GUIDS (New)
CT_SYSFX_FriendlyName  = "Creative System Effect"
CT_SYSFX_PREMIX_CLSID  = "{D8813D24-E801-4a75-9985-30E7CC9DBD93}"
CT_SYSFX_POSTMIX_CLSID = "{53641EC4-4566-4896-919A-2FBB21FD2FCF}"
CT_SYSFX_SFX_CLSID = "{F841F354-41AB-4652-81EF-F879AE87F9FC}"
CT_SYSFX_MFX_CLSID = "{0803F79D-A6CB-42F1-A46C-A1B0F067FEFC}"
CT_SYSFX_EFX_CLSID = "{801F7DFC-E551-4E01-9CAF-29BFC339984E}"
CT_SYSFX_UI_CLSID  = "{74C7569D-ED69-4292-9886-CC89DD455744}"

; Creative GUIDS for chaining (New)
GUID_CT_APO_GFX         = "{25f1de92-f75b-4ef5-b52f-1a6549182286}"
GUID_CT_APO_LFX         = "{17e73a4b-89c0-4b3f-b7a4-183cfed234a6}"
GUID_CT_APO_SFX         = "{0F62DFB3-DB5B-458D-9371-6B45C4582560}"
GUID_CT_APO_MFX         = "{C69FE6AD-9AA8-45DE-BA75-C72117B21C07}"
GUID_CT_APO_EFX         = "{17AB05B2-E3B4-43FE-885B-06B84E251E5D}"
GUID_CT_APO_UI        = "{5E7831EB-451A-45e5-8D14-E2B9DF21396F}"
PKEY_CT_CMSS            = "{EC72F5A4-AC0A-4ec4-80E9-9962DAD4267B},0"

; Realtek GUIDS for chaining
GUID_RT_APO_GFX         = "{A27368B3-D810-42ce-B114-83900258B8EC}"
GUID_RT_APO_LFX         = "{DC253AB8-10DC-483c-AB5F-D6A4E189FD70}"
GUID_RT_APO_SFX         = "{DA2C9ECE-7418-4906-B4FA-0A00B3EB88AA}"
GUID_RT_APO_MFX         = "{A296D363-EE83-4af9-9BE7-729C1296150A}"
GUID_RT_APO_EFX         = "{A29EB043-6CE2-4ee2-B38C-F58719E0D88F}"
GUID_RT_APO_REC_LFX     = "{A51A19D6-80F1-4abf-AB95-AF5215E8B052}"
GUID_RT_APO_REC_SFX    = "{A6EDD1A5-1ACA-4110-9B21-AD7EDC210CA3}"
GUID_RT_APO_REC_MFX     = "{A69C91DC-11C4-414f-A919-4DA8EA3F3CA6}"
GUID_RT_APO_REC_EFX     = "{AB3B404A-B18F-4b4f-B91F-77F2DE95EB18}"
GUID_RT_APO_UI          = "{6861CFDC-0461-49d5-A8DF-BE5ACD02692F}"
PKEY_RT_UPDOWNMIX       = "{A343CD96-6935-4073-991B-5B8086F132BD},1"
GUID_RT_APO_OSFX    = "{71111103-AC62-4939-B476-4BB282B2B42C}"
GUID_RT_APO_OMFX    = "{7121B512-6CC5-4C77-AE3A-823F966CCD3D}"

SZA_PROPPAGE        = "{46D50ACF-34CA-4dfd-ACC8-481F6E686936}"
SZH_PROPPAGE        = "{8951E1EA-98CC-4945-A386-FCEEA7C368B4}"
VZ_PROPPAGE        = "{AD7476AF-BE9F-409a-9A66-FFD991FEC6D2}"

; NAHIMIC 3
AVOLUTE_LFX_CLSID     = "{670173E1-78CF-11E5-A837-0800200C9A66}"
AVOLUTE_GFX_CLSID     = "{670173E2-78CF-11E5-A837-0800200C9A66}"
AVOLUTE_CTRL_CLSID    = "{f3077511-798d-11e5-a837-0800200c9a66}"

; VIA Audio Effects
VIA_ANALOG_POSTMIX_CLSID    = "{34CA6A01-8C65-4a96-914B-C2C0EAF0D1BA}"
VIA_ANALOG_PREMIX_CLSID        = "{AE56B3C0-3465-410b-B4D0-038F6619F13B}"
VIA_DIGITAL_POSTMIX_CLSID    = "{1907EE05-C7ED-4ca6-B806-FACB7E944F7D}"
VIA_DIGITAL_PREMIX_CLSID    = "{0B218E48-0DE8-44ce-8F05-F3077EF3A46C}"
VIA_ENDPOINT_CLSID        = "{6FEAE2D2-FB51-46CC-ACD2-E26B191DBD2D}"
VIA_USERINTERFACE_CLSID        = "{90554E6A-9854-4793-8988-1C1E56350DE7}"

; DDP (LFX & GFX Reversed)
GUID_DS1_SYSFX_UI       = "{DDE20A40-F390-4616-AE98-2BA9E8C70744}"
GUID_DS1_SYSFX_MFX      = "{AE0B08BE-FF0E-4FF6-BEC5-24BFD96B4050}"

NUM_ANALOG_APO_SET = 0x5
NUM_DIGITAL_APO_SET = 0x4

; Realtek GUIDS for chaining for Record endpoints
GUID_RT_REC_APO_LFX    = "{A51A19D6-80F1-4abf-AB95-AF5215E8B052}"
NUM_REC_APO_SET        = 0x4

PKEY_LFX_ProcessingModes_Supported_For_Streaming = "{D3993A3F-99C2-4402-B5EC-A92A0367664B},1"
PKEY_GFX_ProcessingModes_Supported_For_Streaming = "{D3993A3F-99C2-4402-B5EC-A92A0367664B},2"
PKEY_SFX_ProcessingModes_Supported_For_Streaming = "{D3993A3F-99C2-4402-B5EC-A92A0367664B},5"
PKEY_MFX_ProcessingModes_Supported_For_Streaming = "{D3993A3F-99C2-4402-B5EC-A92A0367664B},6"
PKEY_EFX_ProcessingModes_Supported_For_Streaming = "{D3993A3F-99C2-4402-B5EC-A92A0367664B},7"
AUDIO_SIGNALPROCESSINGMODE_DEFAULT = "{C18E2F7E-933D-4965-B7D1-1EEF228D2AF3}"
AUDIO_SIGNALPROCESSINGMODE_MEDIA   = "{4780004E-7133-41D8-8C74-660DADD2C0EE}"
AUDIO_SIGNALPROCESSINGMODE_MOVIE = "{B26FEB0D-EC94-477C-9494-D1AB8E753F6E}"
AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS = "{98951333-B9CD-48B1-A0A3-FF40682D73F7}"

KSNODETYPE_ANY = "{00000000-0000-0000-0000-000000000000}"
KSNODETYPE_SPEAKER = "{DFF21CE1-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_HEADPHONES = "{DFF21CE2-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_SPDIF_INTERFACE = "{DFF21FE5-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_MICROPHONE = "{DFF21BE1-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_HDMI_INTERFACE = "{D1B9CC2A-F519-417f-91C9-55FA65481001}"
KSNODETYPE_PERSONAL_MICROPHONE = "{DFF21BE3-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_LINE_CONNECTOR         = "{DFF21FE3-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_HEADSET_SPEAKERS       = "{DFF21CE6-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_DESKTOP_SPEAKER        = "{DFF21CE4-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_DESKTOP_MICROPHONE     = "{DFF21BE2-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_CD_PLAYER        = "{DFF220E3-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_ANALOG_CONNECTOR = "{DFF21FE1-F70F-11D0-B917-00A0C9223196}"
KSNODETYPE_TV_TUNER_AUDIO   = "{DFF220EC-F70F-11D0-B917-00A0C9223196}"
REG_BINARY = 0x00000001
REG_DWORD = 0x00010001
REG_MULTI_SZ = 0x00010000

Caution: Before they say otherwise, all the code above (effects and etc.) is working perfectly.

I updated my information file:


Attachments

  • HDX.txt
    335.3 KB · Views: 1,021
Last edited:

user78405

New Member
Joined
Feb 6, 2019
Messages
2 (0.00/day)
i been testing with puresoft and your mods, creative mods been great until now, something you did made them look bad now....it seems Nahimic 3 sounds way better when its modded than puresoft apo way...some reason puresoft is tricky to do with dolby atmos ...but your mod fix the problem it seems....i think problem with version 3 is using a-volute config files from motherboard partners and thing is only asus or msi supported a-volute config..while others are stuck with generic config while yours you figure out that i failed to figure it out how force Nahimic3 to marry any realtek UAD drivers than just certain chips by it...but next approach was legacy way...since window 10 used extra software than driver loads all api's into device manager ...windows 10 is more cleaner to do but harder ....if you look at puresoft they made mod with creative app with realtek UAD mode...it shows APO separated from realtek driver as software devices in device manager...not sure how they did it....if you can figure what i am trying to in UAD drivers from realtek...but i believe its same thing for legacy drivers that i see no point doing so but when realtek stop updating legacy any longer ..thats sign we all have to switch to UAD driver some point ...so thank you for effort what i had started since 2010 when i discover how ASUS drivers for their soundcard used dolby pcee4 ...by clever trick i tested...i used registry hack on highend asus gamers sound drivers on any cmedia chip based cards...so my 30 bucks will sound like those 200 bucks cards with Dolby software ...it works but i stop doing so cause everyone wants my little mod so i just open the door what microsoft did in new sound driver stacks....how they load other api and way to fool other than cmedia...thats when realtek used the same method for all codecs

Last edited:
Joined
Jul 9, 2017
Messages
89 (0.03/day)
i been testing with puresoft and your mods, creative mods been great until now, something you did made them look bad now....it seems Nahimic 3 sounds way better when its modded than puresoft apo way...some reason puresoft is tricky to do with dolby atmos ...but your mod fix the problem it seems....i think problem with version 3 is using a-volute config files from motherboard partners and thing is only asus or msi supported a-volute config..while others are stuck with generic config while yours you figure out that i failed to figure it out how force Nahimic3 to marry any realtek UAD drivers than just certain chips by it...but next approach was legacy way...since window 10 used extra software than driver loads all api's into device manager ...windows 10 is more cleaner to do but harder ....if you look at puresoft they made mod with creative app with realtek UAD mode...it shows APO separated from realtek driver as software devices in device manager...not sure how they did it....if you can figure what i am trying to in UAD drivers from realtek...but i believe its same thing for legacy drivers that i see no point doing so but when realtek stop updating legacy any longer ..thats sign we all have to switch to UAD driver some point ...so thank you for effort what i had started since 2010 when i discover how ASUS drivers for their soundcard used dolby pcee4 ...by clever trick i tested...i used registry hack on highend asus gamers sound drivers on any cmedia chip based cards...so my 30 bucks will sound like those 200 bucks cards with Dolby software ...it works but i stop doing so cause everyone wants my little mod so i just open the door what microsoft did in new sound driver stacks....how they load other api and way to fool other than cmedia...thats when realtek used the same method for all codecs
Currently, there are 3 Mod driver methods.
+ Alan Finote is like DJUrko. He edited the Realtek driver so it has more features
+ Alanfox2000: He did not create the driver. This is just a trick on how to get audio utilities on your driver. By interfering with the Registry
+ Dldolby.blogspot.com: He created a driver for all devices. But in fact, it's not a real driver. It is only available when the device is compatible with Microsoft HD Audio.


DruiD

New Member
Joined
Feb 3, 2019
Messages
8 (0.00/day)
Currently, there are 3 Mod driver methods.
+ Alan Finote is like DJUrko. He edited the Realtek driver so it has more features
+ Alanfox2000: He did not create the driver. This is just a trick on how to get audio utilities on your driver. By interfering with the Registry
+ Dldolby.blogspot.com: He created a driver for all devices. But in fact, it's not a real driver. It is only available when the device is compatible with Microsoft HD Audio.

So do we know which one gets the various functionality ?
- Its a little complex to understand what does what, across the multiple threads and different mod files being built.
- eg in my case to retain front audio panel separate to rear, obtain\keep Dolby Live along with DTS Etc. those sort of basic functions, all the enhancers etc are a bonus.

Joined
Nov 1, 2018
Messages
74 (0.03/day)
@alanfox2000 in this mod its like that because pee4 over speakers only work like as shown otherwise you cannot run pcee4 in other combination
these combination dont work i have tryed already

@Dj Urko
If you have this Dolby UWP modded HDXMB3H.inf file and the HDXR T.inf file in the Realtek Mod Suite for Win10 and 7 files, with can you edit and add into the SELECT DRIVER folder in the Creative + Dolby UWP combo. for this file

DTS_Dolby_UWP_SBX720( Realtek Mod Driver original pack )
https://drive.google.com/open?id=15xuaBWdrcAlekNgRmptsPPXduzEUNNIC



Realtek Mod Driver
https://drive.google.com/open?id=1r1XWBlEV1_8ZqV4OGvjONCo0AdsQnVAy

Realtek Mod Suite for Win10,7
https://drive.google.com/open?id=18s2o8g5yIY5Tqys0W7Bbv7-19nDNEDAp

This file originated when you left
This is the best result created by forum users.
It will be great if you edit this.

Last edited:

vestelar

New Member
Joined
Feb 6, 2019
Messages
3 (0.00/day)
I have a question about all these drivers. Correct me if I'm wrong but the idea that I had about this is, if I have a 5.1 sound source uncompressed (Videogame) and I activate the encode to Dolby Digital for example in the optical output. This should send the 5.1 uncompressed from the game compressed thought the optical interface (dobly, dts, etc)? Right now I can see that the output is Dolby in my decoder but the audio is only in the front speakers so it's not working as I thought . I'm wrong? I'm doing something wrong?

Joined
Nov 1, 2018
Messages
74 (0.03/day)
I have a question about all these drivers. Correct me if I'm wrong but the idea that I had about this is, if I have a 5.1 sound source uncompressed (Videogame) and I activate the encode to Dolby Digital for example in the optical output. This should send the 5.1 uncompressed from the game compressed thought the optical interface (dobly, dts, etc)? Right now I can see that the output is Dolby in my decoder but the audio is only in the front speakers so it's not working as I thought . I'm wrong? I'm doing something wrong?

Dolby Digital is lossy compression, real-time encoding.
Dolby Digital Live, DTS Interactive is lossless compressed real time encoding.
https://developer.dolby.com/technology/dolby-audio/dolby-digital-plus/


Currently, there are 3 Mod driver methods.
+ Alan Finote is like DJUrko. He edited the Realtek driver so it has more features
+ Alanfox2000: He did not create the driver. This is just a trick on how to get audio utilities on your driver. By interfering with the Registry
+ Dldolby.blogspot.com: He created a driver for all devices. But in fact, it's not a real driver. It is only available when the device is compatible with Microsoft HD Audio.

Dldolby.blogspot.com
He made it compatible with the realtek audio chipset and other audio chipsets from Via and Sound MAX.
The quality is low but versatile.


AAF Optimus

Audio Modder
Joined
Mar 1, 2017
Messages
1,215 (0.43/day)
Location
Rio de Janeiro, Brazil
System Name NEW AAF OPTIMUS RIG
Processor AMD Ryzen 5 5600X (6C/12T)
Motherboard ASUS TUF Gaming B550M-Plus
Cooling DEEPCOOL Gammax L120T
Memory CRUCIAL Pro Gaming 32GB DDR4-3200 (2x16GB)
Video Card(s) NVIDIA GeForce RTX 3060 12GB MSI Ventus 2X OC
Storage ADATA Legend 710 PCIe Gen3 x4 256GB; ADATA Legend 800 PCIe Gen4 x4 2TB; GoldenFir SSD 1TB
Display(s) AOC VIPER 27" 165Hz 1ms (27G2SE)
Case DARKFLASH DK100-BK
Audio Device(s) ALC S1200A with AAF Optimus Audio (Sound Blaster + Dolby Audio [Dolby Atmos For Built-In Speakers])
Power Supply REDRAGON RGPS 600W 80 PLUS Bronze Full Modular
Mouse CLAHM CL-MM386 7200DPI
Keyboard MOTOSPEED CK-108 Mechanical Keyboard
Software Windows 11 Pro x64 23H2 (24H2 has many abnormalities)
New Realtek Driverpacks Released:
Updated version to 6.0.1.8627

LINK TO DOWNLOAD

WARNING: Although this is a Realtek HDA driver, it will only work on Windows 10.

I confess I thought about it for a long time, but come on:

@alanfox2000 @Dj Urko
Here, another escape in the modification of driver packages:
Were Introduced the COMPOSITE Keys (SFX, MFX, EFX); COMPOSITE OFFLOAD Keys (SFX, MFX); COMPOSITE KEYWORDDETECTOR Keys (SFX, MFX, EFX) in this driver package, and, indeed, with these keys, everything is much easier.

The easiness lies in the fact that, unlike standard SFX, MFX and EFX values, these keys are COMPOSITE, that is, multiple values (REG_MULTI_SZ), and can work with multiple CLSID values in the same positions.

DISABLE_PROTECTED_AUDIO_DG - This value in the registry is optional. Even though it is not present in the system registry, all effects will work normally.

Below, part of the INF code from my driver package, download link above:

Using the Speakers as an example:
Code:
[SysFx.AddReg]
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; SPEAKERS ("FX\\0");;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_DisplayName%,,%ANYFX_FriendlyName%
;;======================================================================================================================================================================================
;; Composite Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%,%GUID_RT_APO_SFX%,%GUID_CT_APO_SFX%,%AVOLUTE_LFX_CLSID%,%SYSFX_TEST_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%,%GUID_RT_APO_MFX%,%GUID_CT_APO_MFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%,%GUID_RT_APO_EFX%,%GUID_CT_APO_EFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
;;======================================================================================================================================================================================
;; Composite Keyword Detector Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%,%GUID_RT_APO_SFX%,%GUID_CT_APO_SFX%,%AVOLUTE_LFX_CLSID%,%SYSFX_TEST_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%,%GUID_RT_APO_MFX%,%GUID_CT_APO_MFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%,%GUID_RT_APO_EFX%,%GUID_CT_APO_EFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
;;======================================================================================================================================================================================
;; Composite Offload Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_SFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OSFX%
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_MFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OMFX%
;;======================================================================================================================================================================================
;; User Interfaces (Speakers)
HKR,"FX\\0",%PKEY_SYSFX_UiClsid%,,%PAGE_MASTER_HOST%
HKR,"FX\\0",%PAGE_MASTER_1%,,%GUID_RT_APO_UI%
HKR,"FX\\0",%PAGE_MASTER_2%,,%VIA_USERINTERFACE_CLSID%
HKR,"FX\\0",%PAGE_MASTER_3%,,%SYSFX_TEST_UI_CLSID%
HKR,"FX\\0",%PAGE_MASTER_4%,,%GUID_DS1_SYSFX_UI%
;;======================================================================================================================================================================================
;; VIA HD Audio Effects ================================================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO1%,,%VIA_ANALOG_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_MFX_APO1%,,%VIA_ANALOG_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_EFX_APO1%,,%VIA_ENDPOINT_CLSID%
;;======================================================================================================================================================================================
;; Dolby Digital Plus Home Theater Effects =============================================================================================================================================
HKR,"FX\\0",%PKEY_MFX_APO2%,,%GUID_DS1_SYSFX_MFX%
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_APO_NUM%,0x10001,%NUM_ANALOG_APO_SET%
HKR,"FX\\0",%PKEY_CT_APO_CUSTOM_KEY%,,%CT_APO_CUSTOM_VALUE%
HKR,"EP\\0",%PKEY_MBTHXAPO_RENDER_EFFECTID%,,%GUID_MBTHXAPO_RENDER_EFFECTID%
HKR,"FX\\0",%PKEY_SYSFX_Association%,,%KSNODETYPE_SPEAKER%
;;======================================================================================================================================================================================
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4701",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4702",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4705",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4706",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4716",0x00010001,0x1    ;; PKEY_PCEE_HP_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4717",0x00010001,0x1    ;; PKEY_PCEE_HP_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4723",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4724",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4735",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4737",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_71_Surr_Chkbox=0
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_SFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_APO_SWFallback_ProcessingModes%,%REG_MULTI_SZ%,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
;;======================================================================================================================================================================================

The result was this, in the images below, using ONLY the COMPOSITE keys mentioned above:










Feel free to try.
I hope everyone in the forum has great advantage.
Oh, I forgot to quote: Dolby Digital encoder enabled on the digital outputs.

Last edited:
D

Deleted member 179922

Guest
New Realtek Driverpacks Released:
Updated version to 6.0.1.8627

LINK TO DOWNLOAD

WARNING: Although this is a Realtek HDA driver, it will only work on Windows 10.

I confess I thought about it for a long time, but come on:

@alanfox2000 @Dj Urko
Here, another escape in the modification of driver packages:
Were Introduced the COMPOSITE Keys (SFX, MFX, EFX); COMPOSITE OFFLOAD Keys (SFX, MFX); COMPOSITE KEYWORDDETECTOR Keys (SFX, MFX, EFX) in this driver package, and, indeed, with these keys, everything is much easier.

The easiness lies in the fact that, unlike standard SFX, MFX and EFX values, these keys are COMPOSITE, that is, multiple values (REG_MULTI_SZ), and can work with multiple CLSID values in the same positions.

DISABLE_PROTECTED_AUDIO_DG - This value in the registry is optional. Even though it is not present in the system registry, all effects will work normally.

Below, part of the INF code from my driver package, download link above:

Using the Speakers as an example:
Code:
[SysFx.AddReg]
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; SPEAKERS ("FX\\0");;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_DisplayName%,,%ANYFX_FriendlyName%
;;======================================================================================================================================================================================
;; Composite Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%,%GUID_RT_APO_SFX%,%GUID_CT_APO_SFX%,%AVOLUTE_LFX_CLSID%,%SYSFX_TEST_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%,%GUID_RT_APO_MFX%,%GUID_CT_APO_MFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%,%GUID_RT_APO_EFX%,%GUID_CT_APO_EFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
;;======================================================================================================================================================================================
;; Composite Keyword Detector Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%,%GUID_RT_APO_SFX%,%GUID_CT_APO_SFX%,%AVOLUTE_LFX_CLSID%,%SYSFX_TEST_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%,%GUID_RT_APO_MFX%,%GUID_CT_APO_MFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%,%GUID_RT_APO_EFX%,%GUID_CT_APO_EFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
;;======================================================================================================================================================================================
;; Composite Offload Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_SFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OSFX%
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_MFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OMFX%
;;======================================================================================================================================================================================
;; User Interfaces (Speakers)
HKR,"FX\\0",%PKEY_SYSFX_UiClsid%,,%PAGE_MASTER_HOST%
HKR,"FX\\0",%PAGE_MASTER_1%,,%GUID_RT_APO_UI%
HKR,"FX\\0",%PAGE_MASTER_2%,,%VIA_USERINTERFACE_CLSID%
HKR,"FX\\0",%PAGE_MASTER_3%,,%SYSFX_TEST_UI_CLSID%
HKR,"FX\\0",%PAGE_MASTER_4%,,%GUID_DS1_SYSFX_UI%
;;======================================================================================================================================================================================
;; VIA HD Audio Effects ================================================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO1%,,%VIA_ANALOG_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_MFX_APO1%,,%VIA_ANALOG_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_EFX_APO1%,,%VIA_ENDPOINT_CLSID%
;;======================================================================================================================================================================================
;; Dolby Digital Plus Home Theater Effects =============================================================================================================================================
HKR,"FX\\0",%PKEY_MFX_APO2%,,%GUID_DS1_SYSFX_MFX%
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_APO_NUM%,0x10001,%NUM_ANALOG_APO_SET%
HKR,"FX\\0",%PKEY_CT_APO_CUSTOM_KEY%,,%CT_APO_CUSTOM_VALUE%
HKR,"EP\\0",%PKEY_MBTHXAPO_RENDER_EFFECTID%,,%GUID_MBTHXAPO_RENDER_EFFECTID%
HKR,"FX\\0",%PKEY_SYSFX_Association%,,%KSNODETYPE_SPEAKER%
;;======================================================================================================================================================================================
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4701",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4702",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4705",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4706",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4716",0x00010001,0x1    ;; PKEY_PCEE_HP_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4717",0x00010001,0x1    ;; PKEY_PCEE_HP_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4723",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4724",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4735",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4737",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_71_Surr_Chkbox=0
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_SFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_APO_SWFallback_ProcessingModes%,%REG_MULTI_SZ%,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
;;======================================================================================================================================================================================

The result was this, in the images below, using ONLY the COMPOSITE keys mentioned above:

View attachment 115994
View attachment 115995
View attachment 115996
View attachment 115997
View attachment 115998
View attachment 115999
View attachment 116000
View attachment 116001

Feel free to try.
I hope everyone in the forum has great advantage.
Oh, I forgot to quote: Dolby Digital encoder enabled on the digital outputs.

Not Working Samsung Galaxy book 10.6..

It seems to be due to Realtek Intel SST Audio Driver, but is it a driver that is not compatible with Realtek Intel SST Audio Driver?
The hardware ID is INTELAUDIO\FNUC_01&VEN_10EC


ScrooW

New Member
Joined
Jan 15, 2019
Messages
20 (0.01/day)
Location
Brasil
New Realtek Driverpacks Released:
Updated version to 6.0.1.8627

LINK TO DOWNLOAD

WARNING: Although this is a Realtek HDA driver, it will only work on Windows 10.

I confess I thought about it for a long time, but come on:

@alanfox2000 @Dj Urko
Here, another escape in the modification of driver packages:
Were Introduced the COMPOSITE Keys (SFX, MFX, EFX); COMPOSITE OFFLOAD Keys (SFX, MFX); COMPOSITE KEYWORDDETECTOR Keys (SFX, MFX, EFX) in this driver package, and, indeed, with these keys, everything is much easier.

The easiness lies in the fact that, unlike standard SFX, MFX and EFX values, these keys are COMPOSITE, that is, multiple values (REG_MULTI_SZ), and can work with multiple CLSID values in the same positions.

DISABLE_PROTECTED_AUDIO_DG - This value in the registry is optional. Even though it is not present in the system registry, all effects will work normally.

Below, part of the INF code from my driver package, download link above:

Using the Speakers as an example:
Code:
[SysFx.AddReg]
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; SPEAKERS ("FX\\0");;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_DisplayName%,,%ANYFX_FriendlyName%
;;======================================================================================================================================================================================
;; Composite Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%,%GUID_RT_APO_SFX%,%GUID_CT_APO_SFX%,%AVOLUTE_LFX_CLSID%,%SYSFX_TEST_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%,%GUID_RT_APO_MFX%,%GUID_CT_APO_MFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%,%GUID_RT_APO_EFX%,%GUID_CT_APO_EFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
;;======================================================================================================================================================================================
;; Composite Keyword Detector Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_SFX%,%REG_MULTI_SZ%,%CT_SYSFX_SFX_CLSID%,%GUID_RT_APO_SFX%,%GUID_CT_APO_SFX%,%AVOLUTE_LFX_CLSID%,%SYSFX_TEST_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_MFX%,%REG_MULTI_SZ%,%CT_SYSFX_MFX_CLSID%,%GUID_RT_APO_MFX%,%GUID_CT_APO_MFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_SYSCompositeFX_KeywordDetector_EFX%,%REG_MULTI_SZ%,%CT_SYSFX_EFX_CLSID%,%GUID_RT_APO_EFX%,%GUID_CT_APO_EFX%,%AVOLUTE_GFX_CLSID%,%SYSFX_TEST_POSTMIX_CLSID%
;;======================================================================================================================================================================================
;; Composite Offload Keys (Works only on Windows 10)
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_SFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OSFX%
HKR,"FX\\0",%PKEY_SYSCompositeFX_Offload_MFX%,%REG_MULTI_SZ%,%GUID_RT_APO_OMFX%
;;======================================================================================================================================================================================
;; User Interfaces (Speakers)
HKR,"FX\\0",%PKEY_SYSFX_UiClsid%,,%PAGE_MASTER_HOST%
HKR,"FX\\0",%PAGE_MASTER_1%,,%GUID_RT_APO_UI%
HKR,"FX\\0",%PAGE_MASTER_2%,,%VIA_USERINTERFACE_CLSID%
HKR,"FX\\0",%PAGE_MASTER_3%,,%SYSFX_TEST_UI_CLSID%
HKR,"FX\\0",%PAGE_MASTER_4%,,%GUID_DS1_SYSFX_UI%
;;======================================================================================================================================================================================
;; VIA HD Audio Effects ================================================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_APO1%,,%VIA_ANALOG_PREMIX_CLSID%
HKR,"FX\\0",%PKEY_MFX_APO1%,,%VIA_ANALOG_POSTMIX_CLSID%
HKR,"FX\\0",%PKEY_EFX_APO1%,,%VIA_ENDPOINT_CLSID%
;;======================================================================================================================================================================================
;; Dolby Digital Plus Home Theater Effects =============================================================================================================================================
HKR,"FX\\0",%PKEY_MFX_APO2%,,%GUID_DS1_SYSFX_MFX%
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_APO_NUM%,0x10001,%NUM_ANALOG_APO_SET%
HKR,"FX\\0",%PKEY_CT_APO_CUSTOM_KEY%,,%CT_APO_CUSTOM_VALUE%
HKR,"EP\\0",%PKEY_MBTHXAPO_RENDER_EFFECTID%,,%GUID_MBTHXAPO_RENDER_EFFECTID%
HKR,"FX\\0",%PKEY_SYSFX_Association%,,%KSNODETYPE_SPEAKER%
;;======================================================================================================================================================================================
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4701",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4702",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4705",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4706",0x00010001,0x1    ;; PKEY_PCEE_IntSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4716",0x00010001,0x1    ;; PKEY_PCEE_HP_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4717",0x00010001,0x1    ;; PKEY_PCEE_HP_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4723",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_AE_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4724",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_20_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4735",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_51_Surr_Chkbox=0
HKR,"FX\\0","{01F0E753-3A7A-4b21-A904-D06826245E43},4737",0x00010001,0x1    ;; PKEY_PCEE_ExtSpkr_71_Surr_Chkbox=0
;;======================================================================================================================================================================================
HKR,"FX\\0",%PKEY_SFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_SFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_MFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_EFX_KeywordDetector_ProcessingModes_Supported_For_Streaming%,0x00010000,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MEDIA%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
HKR,"FX\\0",%PKEY_APO_SWFallback_ProcessingModes%,%REG_MULTI_SZ%,%AUDIO_SIGNALPROCESSINGMODE_DEFAULT%,%AUDIO_SIGNALPROCESSINGMODE_MOVIE%,%AUDIO_SIGNALPROCESSINGMODE_COMMUNICATIONS%
;;======================================================================================================================================================================================

The result was this, in the images below, using ONLY the COMPOSITE keys mentioned above:

View attachment 115994
View attachment 115995
View attachment 115996
View attachment 115997
View attachment 115998
View attachment 115999
View attachment 116000
View attachment 116001

Feel free to try.
I hope everyone in the forum has great advantage.
Oh, I forgot to quote: Dolby Digital encoder enabled on the digital outputs.


Hey Alan, I do not know if you remember but I had a problem with the amplification, with this last driver the problem has been solved, but the XB 720 says that it was not possible to detect my device, I just need to complete the pack and I enjoy it of your driver.


alpharevx

New Member
Joined
Nov 30, 2018
Messages
13 (0.01/day)
@Alan Finote
Does your driver works with ALC1150? tried it on my ASUS Z97 PRO-GAMER, effects are not working, but installed fine (no uwp support on ltsc tho)
Win10 LTSC N x64


AAF Optimus

Audio Modder
Joined
Mar 1, 2017
Messages
1,215 (0.43/day)
Location
Rio de Janeiro, Brazil
System Name NEW AAF OPTIMUS RIG
Processor AMD Ryzen 5 5600X (6C/12T)
Motherboard ASUS TUF Gaming B550M-Plus
Cooling DEEPCOOL Gammax L120T
Memory CRUCIAL Pro Gaming 32GB DDR4-3200 (2x16GB)
Video Card(s) NVIDIA GeForce RTX 3060 12GB MSI Ventus 2X OC
Storage ADATA Legend 710 PCIe Gen3 x4 256GB; ADATA Legend 800 PCIe Gen4 x4 2TB; GoldenFir SSD 1TB
Display(s) AOC VIPER 27" 165Hz 1ms (27G2SE)
Case DARKFLASH DK100-BK
Audio Device(s) ALC S1200A with AAF Optimus Audio (Sound Blaster + Dolby Audio [Dolby Atmos For Built-In Speakers])
Power Supply REDRAGON RGPS 600W 80 PLUS Bronze Full Modular
Mouse CLAHM CL-MM386 7200DPI
Keyboard MOTOSPEED CK-108 Mechanical Keyboard
Software Windows 11 Pro x64 23H2 (24H2 has many abnormalities)
@Alan Finote
Does your driver works with ALC1150? tried it on my ASUS Z97 PRO-GAMER, effects are not working, but installed fine (no uwp support on ltsc tho)
Win10 LTSC N x64
Yes, but I can only guarantee you working in the latest version of Windows 10 (1809).


AAF Optimus

Audio Modder
Joined
Mar 1, 2017
Messages
1,215 (0.43/day)
Location
Rio de Janeiro, Brazil
System Name NEW AAF OPTIMUS RIG
Processor AMD Ryzen 5 5600X (6C/12T)
Motherboard ASUS TUF Gaming B550M-Plus
Cooling DEEPCOOL Gammax L120T
Memory CRUCIAL Pro Gaming 32GB DDR4-3200 (2x16GB)
Video Card(s) NVIDIA GeForce RTX 3060 12GB MSI Ventus 2X OC
Storage ADATA Legend 710 PCIe Gen3 x4 256GB; ADATA Legend 800 PCIe Gen4 x4 2TB; GoldenFir SSD 1TB
Display(s) AOC VIPER 27" 165Hz 1ms (27G2SE)
Case DARKFLASH DK100-BK
Audio Device(s) ALC S1200A with AAF Optimus Audio (Sound Blaster + Dolby Audio [Dolby Atmos For Built-In Speakers])
Power Supply REDRAGON RGPS 600W 80 PLUS Bronze Full Modular
Mouse CLAHM CL-MM386 7200DPI
Keyboard MOTOSPEED CK-108 Mechanical Keyboard
Software Windows 11 Pro x64 23H2 (24H2 has many abnormalities)
Joined
May 20, 2018
Messages
222 (0.09/day)
Location
Germany
System Name Metal-Tom-PC
Processor AMD Ryzen 5 3600
Motherboard ASUS ROG Crosshair VI Extreme
Cooling Boxed with RGB
Memory Mushkin DDR4 32 GB
Video Card(s) Sapphire Radeon RX580 4GB
Storage 1x M2-SSD @256GB/1x Intenso SATA-SSD @120GB/1x Intenso SATA-SSD @240GB/2x WD10EZRX @1TB/1,5 TB HDD
Display(s) 1x Samsung QE43Q60B (TV)/1x Samsung S27B80P/1x Hanns-G FHD
Case Thermaltake Kandalf LCS
Audio Device(s) Realtek ALC1220A
Power Supply Phanteks Revolt Pro Gold 80+ 1000W
Mouse Logitech M210
Keyboard Logitech MX5500 Revolution
Software Win 11 Pro x64 v24H2

AAF Optimus

Audio Modder
Joined
Mar 1, 2017
Messages
1,215 (0.43/day)
Location
Rio de Janeiro, Brazil
System Name NEW AAF OPTIMUS RIG
Processor AMD Ryzen 5 5600X (6C/12T)
Motherboard ASUS TUF Gaming B550M-Plus
Cooling DEEPCOOL Gammax L120T
Memory CRUCIAL Pro Gaming 32GB DDR4-3200 (2x16GB)
Video Card(s) NVIDIA GeForce RTX 3060 12GB MSI Ventus 2X OC
Storage ADATA Legend 710 PCIe Gen3 x4 256GB; ADATA Legend 800 PCIe Gen4 x4 2TB; GoldenFir SSD 1TB
Display(s) AOC VIPER 27" 165Hz 1ms (27G2SE)
Case DARKFLASH DK100-BK
Audio Device(s) ALC S1200A with AAF Optimus Audio (Sound Blaster + Dolby Audio [Dolby Atmos For Built-In Speakers])
Power Supply REDRAGON RGPS 600W 80 PLUS Bronze Full Modular
Mouse CLAHM CL-MM386 7200DPI
Keyboard MOTOSPEED CK-108 Mechanical Keyboard
Software Windows 11 Pro x64 23H2 (24H2 has many abnormalities)
Joined
Jul 9, 2017
Messages
89 (0.03/day)
The reason i'am asking for DTS Audio processing unlocking is becasue it unlocks DTS:X Ultra Sound Unbound, take a look at image below, it is locked uwp app

You can find this app in alanfox's link which i gave you, this is what you have to unlock, it is hardware locked

View attachment 116056
It is a component of Spatial Sound. You just need to wait for the next version of Windows 10. It will be supported. And just install it from Store. Like Dolby Access

https://docs.microsoft.com/en-us/uwp/api/windows.media.audio.spatialaudioformatsubtype

Top
