Thermalright Rolls Out AXP-90 Full Copper CPU Cooler

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
41,474 (8.23/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro

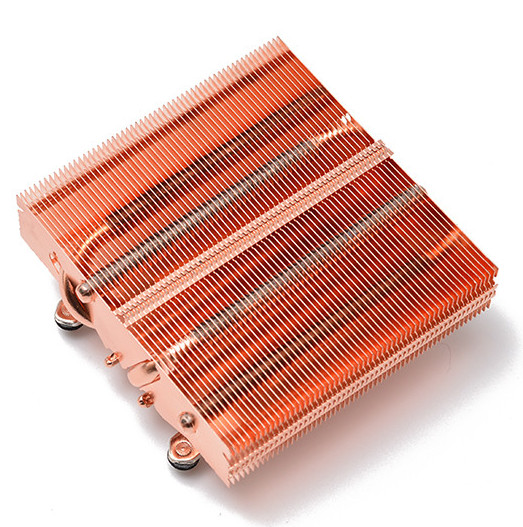

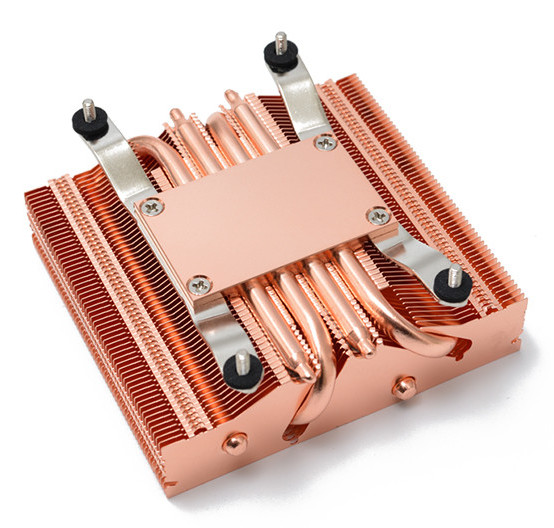

Thermalright rolled out the AXP-90 Full Copper top-flow CPU cooler for low-profile PC builds. A smaller sibling of the AXP-100 Full Copper, and a variant of the aluminium-based original AXP-90, this cooler features a dense copper fin-stack that's arranged along the plane of the motherboard. Four 6 mm-thick copper heat pipes make indirect contact with the CPU over a mirror-finish copper base-plate, pulling heat through the fin-stack. A 15 mm-thick 92 mm TL-9015R fan ventilates the fin-stack. This fan takes in 4-pin PWM input, spins at speeds of up to 2,700 RPM, pushing up to 42.58 CFM of air, with as low as 22.4 dBA of noise output. With the fan in place, the AXP-90 Full Copper measures 97 mm x 92 mm x 47 mm (WxDxH), weighing 490 g. There are two sub-variants of the cooler specific to CPU socket type supported, the AXP-90 Full Copper LGA115X, and AXP-90 Full Copper AM4. Available on Chinese e-tailers such as T-Mall, the AXP-90 Full Copper is priced at RMB 299, or the equivalent of USD $42.70.



View at TechPowerUp Main Site


INSTG8R

Vanguard Beta Tester
Joined
Nov 26, 2004
Messages
7,045 (1.16/day)
Location
Canuck in Norway
System Name Hellbox 4.0(same case new guts)
Processor Ryzen 5 5600X
Motherboard Gigabyte Aorus X570 Pro
Cooling TT Kandalf L.C.S.(Water/Air)EK Velocity CPU Block/Noctua
Memory 2x16GB Gskill Trident Neo Z 3800CL18
Video Card(s) Sapphire 5700XT Nitro+
Storage 970 Evo Plus 500GB WD Caviar Black SATA 3 1TB x2 RAID1 2xSamsung 850 Evo 500GB RAID 0 1TB WD Blue
Display(s) Samsung CGH70 27” 1440 144hz Freesync 2 HDR
Case TT Kandalf L.C.S.
Audio Device(s) Soundblaster ZX/Logitech Z906 5.1
Power Supply Seasonic X-1050W 80+ Gold
Mouse G502 Proteus Spectrum
Keyboard G19s
VR HMD Oculus Quest 2
Software Win 10 Pro x64

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
31,045 (6.04/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Joined
Aug 6, 2017
Messages
7,412 (5.11/day)
Location
Poland
System Name Purple rain
Processor 10.5 thousand 4.2G 1.1v
Motherboard Zee 490 Aorus Elite
Cooling Noctua D15S
Memory 16GB 4133 CL16-16-16-31 Viper Steel
Video Card(s) RTX 2070 Super Gaming X Trio
Storage SU900 128,8200Pro 1TB,850 Pro 512+256+256,860 Evo 500,XPG950 480, Skyhawk 2TB
Display(s) Acer XB241YU+Dell S2716DG
Case P600S Silent w. Alpenfohn wing boost 3 ARGBT+ fans
Audio Device(s) K612 Pro w. FiiO E10k DAC,W830BT wireless
Power Supply Superflower Leadex Gold 850W
Mouse G903 lightspeed+powerplay,G403 wireless + Steelseries DeX + Roccat rest
Keyboard HyperX Alloy SilverSpeed (w.HyperX wrist rest),Razer Deathstalker
Software Windows 10
Benchmark Scores A LOT
Joined
Jun 12, 2017
Messages
95 (0.06/day)
I think this is a much better heatpipe design than Cryorig C7. C7's heat pipe bending cut off a tremendous amount of fin area from heatpipe connectivity, right at the area of strongest airflow. I'll wait and see the performance of this cooler

Joined
Feb 11, 2009
Messages
3,537 (0.78/day)
System Name Cyberline
Processor Intel Core i7 2600k
Motherboard Asus P8P67 LE Rev 3.0
Cooling Tuniq Tower 120
Memory Corsair (4x2) 8gb 1600mhz
Video Card(s) AMD RX480
Storage Samsung 750 Evo 250gb SSD + WD 1tb x 2 + WD 2tb
Display(s) Philips 32inch LPF5605H (television)
Case antec 600
Audio Device(s) Focusrite 2i4 (USB)
Power Supply Seasonic 620watt 80+ Platinum
Mouse Elecom EX-G
Keyboard Rapoo V700
Software Windows 10 Pro 64bit
Swap the fan out for a 92mm Noctua.

ermm is Noctua not the one making their fans to begin with?

on topic, sexy af, reminds me of the Scythe anniversary cooler way back when.

Joined
Aug 13, 2010
Messages
4,829 (1.21/day)
Since full copper heatsink have already proven not to provide much or any extra benefits to CPU temps, that's a meh from me.
As much as those fins like transferring heat, they also really like holding onto it.

Joined
Nov 11, 2019
Messages
60 (0.10/day)
Location
Germany
Processor Ryzen 5 3600
Motherboard MSI B450M Gaming Plus
Cooling EK Supremacy EVO, Bykski N-GV1080TIG1-X (Gigabyte 1080TI Turbo) [280mm front, 240mm top, 120mm back]
Memory 16GiB 3600Mhz CL16 Patriot Viper
Video Card(s) Gigabyte GTX 1080Ti Turbo
Storage 4TiB Seagate Baracuda + 256 GiB Samsung 970 Evo Plus (StoreMI) & 500GiB Intenso SSD
Display(s) MSI Optix MAG271CR
Case CoolerMaster NR600
Power Supply Seagate Focus Plus 650 Watt GOLD
Mouse Sharkoon SHARK Force
Keyboard ReIDEA KM06
I am hoping to see performace that beats the Cryorig C7. It's always good to have alternatives in the SFF area (I hope OptimumTech makes a Video about this one!).

Joined
Jun 27, 2017
Messages
91 (0.06/day)
So, based on packaging this this meant specifically for Dancase A4?

Joined
Aug 24, 2004
Messages
192 (0.03/day)
ermm is Noctua not the one making their fans to begin with?

on topic, sexy af, reminds me of the Scythe anniversary cooler way back when.

I've never seen a Noctua fan that color combo.

Better fan.

Since full copper heatsink have already proven not to provide much or any extra benefits to CPU temps, that's a meh from me.
As much as those fins like transferring heat, they also really like holding onto it.

Not from I learned about copper way back when. Thermal conductivity of copper is almost 60% higher than that of aluminium.

Joined
Aug 13, 2010
Messages
4,829 (1.21/day)
Not from I learned about copper way back when. Thermal conductivity of copper is almost 60% higher than that of aluminium.

And that's exactly why its a double edged sword. I wish these full copper coolers were much better than what reviews showed they are. Best case scenarios ive seen is a very minor upgrade. Something really tiny


1000t

New Member
Joined
Sep 30, 2019
Messages
25 (0.04/day)
Not from I learned about copper way back when. Thermal conductivity of copper is almost 60% higher than that of aluminium.

And that only means heat can spread more easily through the fins. So if Al fins are cold at the most distant edges from heatpipes then Cu could make a difference. But what is also important is heat transfer from fins to air and I don't think there's much difference between Al an Cu.

Joined
Jun 10, 2014
Messages
489 (0.19/day)
Location
Poland
I've never seen a Noctua fan that color combo.

It's not like they can't make OEM fans for other brands.

Better fan.

Not quite. Tr fans are of really good quality and performance.

Not from I learned about copper way back when. Thermal conductivity of copper is almost 60% higher than that of aluminium.
And that only means heat can spread more easily through the fins. So if Al fins are cold at the most distant edges from heatpipes then Cu could make a difference. But what is also important is heat transfer from fins to air and I don't think there's much difference between Al an Cu.

Copper has higher thermal conductivity, but also higher heat capacity - radiator made fully out of Cu will perform better, but it needs decent airflow. So if You put a low RPM fan on it, the difference between alloy fins and copper fins is not gonna be that big.


I love Tr coolers - before I switched to LC, always used their stuff, from SLK-947 up 'till HR-01 Plus. For me this brand, along with Noctua, was always a synonym of high quality

Joined
Nov 20, 2013
Messages
4,933 (1.76/day)
Location
Kiev, Ukraine
System Name WS#1337
Processor Ryzen 7 3800X
Motherboard ASUS X570-PLUS TUF Gaming
Cooling Xigmatek Scylla 240mm AIO
Memory 4x8GB G.Skill Ares OEM DDR4-3200 (B-die)
Video Card(s) GTX 1070 Ti
Storage Adata SX8200 Pro 1TB
Display(s) Samsung U24E590D (4K/UHD)
Case ghetto CM Cosmos RC-1000
Audio Device(s) ALC1220
Power Supply SeaSonic SSR-550FX (80+ GOLD)
Mouse Logitech G603
Keyboard Modecom Volcano Blade (Kailh choc LP)
Software Windows 10, Ubuntu 20.04 LTS
Better fan.
Where did you get that idea from? That's the same sealed fan design, just different color scheme. Speaking of Noctua, I've already replaced a fan on my L9i twice, and it's up for another replacement soon (approx. once every 2 years, which is only 3% of claimed MTBF of 150K hours).


1000t

New Member
Joined
Sep 30, 2019
Messages
25 (0.04/day)
Copper has higher thermal conductivity, but also higher heat capacity - radiator made fully out of Cu will perform better, but it needs decent airflow. So if You put a low RPM fan on it, the difference between alloy fins and copper fins is not gonna be that big.

Thermal conductivity is a material property, how well it transfers heat in itself.
Heat transfer coefficient is dependent on material its shape, surface and surrounding medium, how well can heat get to the environment.
Heat capacity is a material property and not important in steady state.

To cool something, heat must get from the source through the cooler to surrounding medium, air (which itself is a good insulator). If the only change in cooler is Al to Cu fins, it means the heat can better spread through the fins only, but not into the air around them. Higher heat capacity means the heatsink will warm up later, but also stay warmer longer. That's because air is the limiting factor and Al is sufficient for relatively low temperature, low heat flux individual heatsink fins.

Joined
Nov 19, 2018
Messages
160 (0.16/day)
System Name Lovely Milky Milky
Processor 7800X at 4GHz
Motherboard EVGA X299 FTW K
Cooling Custom milky loop
Memory 32GB Crucial Ballistix Sport LT 3200MHz quad channel
Video Card(s) MSI GTX1080Ti SeaHawk EK X
Storage A-DATA 512GB M.2, 750GB Samsung SSD, 2x 1TB Seagate Pipeline HDD's
Display(s) AOC CQ32G1 32" Curved 144Hz 1440p
Case Aerocool Quartz Pro
Audio Device(s) Onboard
Power Supply Seagate Snow Silent 750W
Mouse Fnatic Flick 2
Keyboard Drevo Blademaster TE
Software Windows 10 Pro
it's very pretty reminds me of the late 90's and early 00's :)

Joined
Jun 10, 2014
Messages
489 (0.19/day)
Location
Poland
Higher heat capacity means the heatsink will warm up later, but also stay warmer longer.

Exactly. And that's why materials with higher heat capacity work better with higher airflow - lowering the surrounding temperature (by better removing the heated up air) helps them cool faster.


1000t

New Member
Joined
Sep 30, 2019
Messages
25 (0.04/day)
Exactly. And that's why materials with higher heat capacity work better with higher airflow - lowering the surrounding temperature (by better removing the heated up air) helps them cool faster.
No. What you gain by having higher temperature difference after the heating ends you lose by not having it in the beginning. There are some advantages if the heating is short, but once the total heat capacity is reached at steady state, it's irrelevant.

Also, specific volumetric heat capacity of Cu is ~42% higher than Al. This means a heatsink of the same shape made of Cu is ~230% heavier, but can store only 42% more energy than Al one. If Al heatsink warms up fast, Cu one will heat up only slightly less fast. It looks nice, feels heavy, but it's not that different when cooling with air.

Joined
Oct 5, 2017
Messages
595 (0.43/day)
No. What you gain by having higher temperature difference after the heating ends you lose by not having it in the beginning. There are some advantages if the heating is short, but once the total heat capacity is reached at steady state, it's irrelevant.

Also, specific volumetric heat capacity of Cu is ~42% higher than Al. This means a heatsink of the same shape made of Cu is ~230% heavier, but can store only 42% more energy than Al one. If Al heatsink warms up fast, Cu one will heat up only slightly less fast. It looks nice, feels heavy, but it's not that different when cooling with air.
It *does* result in a performance improvement - it's just not as dramatic an improvement as people often expect. Thermalright are not strangers to this either- the TRUE has been available in both Alu and Full Copper versions for years. The difference was a few C better temps on the TRUE Copper, in exchange for being absurdly heavy and tarnishing more easily.

In a small design like this, the weight is less of an issue than it is for a huge tower cooler, so I imagine there will be a number of people who are more than willing to trade their Alu coolers for this, and gain that small performance advantage and aesthetic boon.

Joined
Dec 20, 2016
Messages
107 (0.06/day)
Location
Italy
System Name Frankenstin 2.0
Processor Ryzen 5 3600 @ 4400mhz, 1,248v fixed
Motherboard Fatal1ty B450 Gaming-ITX/ac
Cooling Swiftech Apogee drive 2 + XSPC x360 + generic GPU Waterblock
Memory 32Gb G.skill 3200 cl16
Video Card(s) Powercolor RX Vega 56, Custom watercooling - @ 64 mod
Storage Sabrent Rocket 1TB NVME
Display(s) Samsung LC27JG500
Case Handmade wooden testbench
Audio Device(s) Integrated + Denon AVR 2800
Power Supply Enermax Revolution SFX 650w
Mouse Trust GXT 152
Keyboard Logitech G413
Software Windows 10 Pro x64
I remember that extending copper to fins in big heatsinks was not bringing Big performance benefits in the past. Did the overall design improve to take better advantage of this feature?


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
31,045 (6.04/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I think this is a much better heatpipe design than Cryorig C7. C7's heat pipe bending cut off a tremendous amount of fin area from heatpipe connectivity, right at the area of strongest airflow. I'll wait and see the performance of this cooler

They went to middle ground or back of pack as far as i see in performance

Joined
Oct 5, 2017
Messages
595 (0.43/day)
I remember that extending copper to fins in big heatsinks was not bringing Big performance benefits in the past. Did the overall design improve to take better advantage of this feature?
It doesn't bring big benefits, no.

There used to be a bunch of voodoo people would spout about aluminium having better "emissivity", and therefore somehow being better. That's complete rubbish and you should ignore anyone spouting it.

The explanation I've always found made the most sense is this one:


If you could magically somehow heat one copper heatsink fin and one alu heatsink fin to exactly the same temperature, say 40C, in an ambient of 21C, and you blew a fan on them, the amount of heat moved off of each fin would be identical. The material used simply doesn't matter in that way. Each molecule of 21C air would pass over something 40C, pick up the same amount of heat while doing so, and then blow away into the room.

Thing is, heatsinks are not heated evenly across their whole surface like that. You can't just poke a heatpipe through a piece of metal and expect it to heat that metal evenly across it's entire surface. The heat will conduct outward from that central point and so the area next to the heatpipe will be hotter than the ends of the fins.

The longer you make the fins, the further it has to be conducted away from that heatpipe. After a certain distance, adding extra length to a fin makes no difference, because the heat simply never gets there before it's dissipated by airflow. You can increase that distance by using a material that conducts heat more quickly along it's length - like copper.

Additionally, if you do this, then the distribution of heat along that fin ends up being more even. By this principle, an all-copper heatsink can have longer fins before that impacts performance.

The greater the delta between ambient temperature, and the temperature of a dissipating element, the faster the transfer of heat between that element and the air moving across it. Since the Cu heatsink will have a greater delta over a greater portion of the fin, it therefore acts similarly to as if the heatsink had more surface area - but, and this is the big but - this is only really a relevant factor if the fin is long enough to start with, that it would have noticably uneven heat distribution due to the difference in conductivity.

For this reason, at least when the medium of heat transfer from the IHS is a heatpipe, large all-copper heatsinks do perform slightly better than large Copper/Alu heatsinks, but small heatsinks will show a smaller difference in performance between these two approaches.

Joined
Dec 20, 2016
Messages
107 (0.06/day)
Location
Italy
System Name Frankenstin 2.0
Processor Ryzen 5 3600 @ 4400mhz, 1,248v fixed
Motherboard Fatal1ty B450 Gaming-ITX/ac
Cooling Swiftech Apogee drive 2 + XSPC x360 + generic GPU Waterblock
Memory 32Gb G.skill 3200 cl16
Video Card(s) Powercolor RX Vega 56, Custom watercooling - @ 64 mod
Storage Sabrent Rocket 1TB NVME
Display(s) Samsung LC27JG500
Case Handmade wooden testbench
Audio Device(s) Integrated + Denon AVR 2800
Power Supply Enermax Revolution SFX 650w
Mouse Trust GXT 152
Keyboard Logitech G413
Software Windows 10 Pro x64
It doesn't bring big benefits, no.

this is only really a relevant factor if the fin is long enough to start with, that it would have noticably uneven heat distribution due to the difference in conductivity.

For this reason, at least when the medium of heat transfer from the IHS is a heatpipe, large all-copper heatsinks do perform slightly better than large Copper/Alu heatsinks, but small heatsinks will show a smaller difference in performance between these two approaches.
So basically the better thermal characteristics of copper are most useful when you use it as a thermal transfer/interface element, to a dissipating element. Which is how copper is currently used in conventional heatsinks. We will see in benchmarks, when compared to famous low profile heatsinks already in the market.

Top
