Now you just need to teach it the three laws and you'll be fine

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x

stinger608

Dedicated TPU Cruncher & Folder
Joined
Nov 11, 2008
Messages
10,849 (2.11/day)
Location
Wyoming
System Name Dean Machine/2020 Ryzenfall
Processor Intel 4790K/AMD Ryzen 3700X
Motherboard MSI 1150 Gaming mATX/Gigabyte AORUS ELITE B550
Cooling Cooler Master Hyper 212 LED/SilverStone AH240 AIO
Memory 16 gigs Crucial Ballistix Tactical Tracer/16 gigs G.Skill TridentZ NEO DDR4
Video Card(s) Gigabyte 1660 Super/Gigabyte GTX 1660
Storage Crucial SSD 256 and 2TB spinner/Dual Samsung 980 Pro M2 NVME 4.0
Display(s) Overlord 27" 2560 x 1440
Case Corsair Air 540
Audio Device(s) On board
Power Supply Seasonic modular 850 watt Platinum/EVGA T2-850 Titanium
Software Windows 10 Pro/Windows 10 Pro
What 3 laws, if I may ask?

Probably the 3 laws of robotics
1: Never harm a human
2: obey humans
3: don't harm itself.

Just guessing LOL.

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Probably the 3 laws of robotics
1: Never harm a human
2: obey humans
3: don't harm itself.

Just guessing LOL.
Ah i see. Reminds me of Robocop directives.

Joined
Jan 31, 2010
Messages
5,012 (1.07/day)
Location
Gougeland (NZ)
System Name Cumquat 2021
Processor AMD RyZen R7 5800X @4750MHz 1.298V
Motherboard Asus Strix x570-F Gaming
Cooling Cryorig R1 Universal + CM MasterGel Pro TP
Memory 16GB GSkill Ripjaws V Black 4000 MTs (2x8GB) @3866MT's
Video Card(s) Sapphire Nitro+ OC RX6800 16GB DDR6 2270Cclk / 2010Mclk
Storage 1x Adata SX8200PRO NVMe gen3 x4 1X Samsung 860 EVO 500GB, 12TB of HDD Storage
Display(s) AOC 24G2 IPS 144Hz FreeSync Premium 1920x1080p
Case SilverStone Raven RV02B-W + 3x SS AP181 + USB3.0 front panel upgrade
Audio Device(s) RX6800 via HDMI + Pioneer VSX-531 amp Technics 100W 5.1 Speaker set
Power Supply EVGA 1000W G5 Gold
Mouse Logitech G502 Proteus Core
Keyboard Logitech G815
Software Windows 11 X64 PRO (build 22H2)
Benchmark Scores it sucks even more less now ;)
Ah i see. Reminds me of Robocop directives.
Actually they come from the author Isaac Asimov

First Law: A robot may not injure a human being or, through inaction, allow a human being to come to harm.
Second Law: A robot must obey the orders given it by human beings except where such orders would conflict with the First Law.
Third Law: A robot must protect its own existence as long as such protection does not conflict with the First or Second Law.

strange as it sounds these have been around since 1942

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Actually they come from the author Isaac Asimov

First Law: A robot may not injure a human being or, through inaction, allow a human being to come to harm.
Second Law: A robot must obey the orders given it by human beings except where such orders would conflict with the First Law.
Third Law: A robot must protect its own existence as long as such protection does not conflict with the First or Second Law.

strange as it sounds these have been around since 1942
Ah i see. Haven't seen that before. Guess I have now.

Joined
Jan 31, 2010
Messages
5,012 (1.07/day)
Location
Gougeland (NZ)
System Name Cumquat 2021
Processor AMD RyZen R7 5800X @4750MHz 1.298V
Motherboard Asus Strix x570-F Gaming
Cooling Cryorig R1 Universal + CM MasterGel Pro TP
Memory 16GB GSkill Ripjaws V Black 4000 MTs (2x8GB) @3866MT's
Video Card(s) Sapphire Nitro+ OC RX6800 16GB DDR6 2270Cclk / 2010Mclk
Storage 1x Adata SX8200PRO NVMe gen3 x4 1X Samsung 860 EVO 500GB, 12TB of HDD Storage
Display(s) AOC 24G2 IPS 144Hz FreeSync Premium 1920x1080p
Case SilverStone Raven RV02B-W + 3x SS AP181 + USB3.0 front panel upgrade
Audio Device(s) RX6800 via HDMI + Pioneer VSX-531 amp Technics 100W 5.1 Speaker set
Power Supply EVGA 1000W G5 Gold
Mouse Logitech G502 Proteus Core
Keyboard Logitech G815
Software Windows 11 X64 PRO (build 22H2)
Benchmark Scores it sucks even more less now ;)

phill

Moderator
Staff member
Joined
Jun 8, 2011
Messages
13,554 (3.23/day)
Location
Somerset, UK
System Name Not so complete or overkill - There are others!! Just no room to put! :D
Processor Ryzen Threadripper 3970X
Motherboard Asus Zenith 2 Extreme Alpha
Cooling Lots!! Dual GTX 560 rads with D5 pumps for each rad. One rad for each component
Memory Viper Steel 4 x 16GB DDR4 3600MHz not sure on the timings... Probably still at 2667!! :(
Video Card(s) Asus Strix 3090 with front and rear active full cover water blocks
Storage I'm bound to forget something here - 250GB OS, 2 x 1TB NVME, 2 x 1TB SSD, 4TB SSD, 2 x 8TB HD etc...
Display(s) 3 x Dell 27" S2721DGFA @ 7680 x 1440P @ 144Hz or 165Hz - working on it!!
Case The big Thermaltake that looks like a Case Mods
Audio Device(s) Onboard
Power Supply EVGA 1600W T2
Mouse Corsair thingy
Keyboard Razer something or other....
VR HMD No headset yet
Software Windows 11 OS... Not a fan!!
Benchmark Scores I've actually never benched it!! Too busy with WCG and FAH and not gaming! :( :( Not OC'd it!! :(
So i´m back with an update and i will tell a little bit of what i have done to make it work with 2 systems and 1 psu and of cause show of the new gpu in the system.

So the problem with the psu is no matter if 1 or bofh systems are turned on. It sends power out to all sata and molex cable. That means bofh my fan controllers will all ways be on and all fans are spinning and the same goes for sata HDD/SSD. That´s not something i can live with as it is waste of power, wear and tear on components.

So here is what i dit to by pass those problems.

First i got my hands on a simple sata controller with on/switch for op to 4 drives and 3 are in use now. This allows me to turn on only the needed drives or no sata drives at all. Saving bofh power and wear and tear at the same time. Also minimisses HDD spin up and down times and making them last longer. So on the image below you seed the little simple controller. Got it on amazone.de if any one would want to know.
View attachment 227609

Here is what i dit to control power to fan controllers. I simply took 2 molex exstention cables and cut the 12 volt wire and made it longer and put a on/off switch be tween that wire so i can cut power to the controller not in use. Home made by me.

View attachment 227611

A look from back of the pc, so the switch´s can be seen on sata controller and my home made solution to fan controllers.
View attachment 227612

For all the Lian Li Uni fan SL120 i use 2 controllers to control the RGB. Yes i know first image has the controller turned down, i had to do it so some cable cut reach the controller and connect properly. The seconds controller is hitten behind a closure normaly to hide wire mess. But here you get it unsesored. The controller is at the buttom of the image.
View attachment 227613View attachment 227614

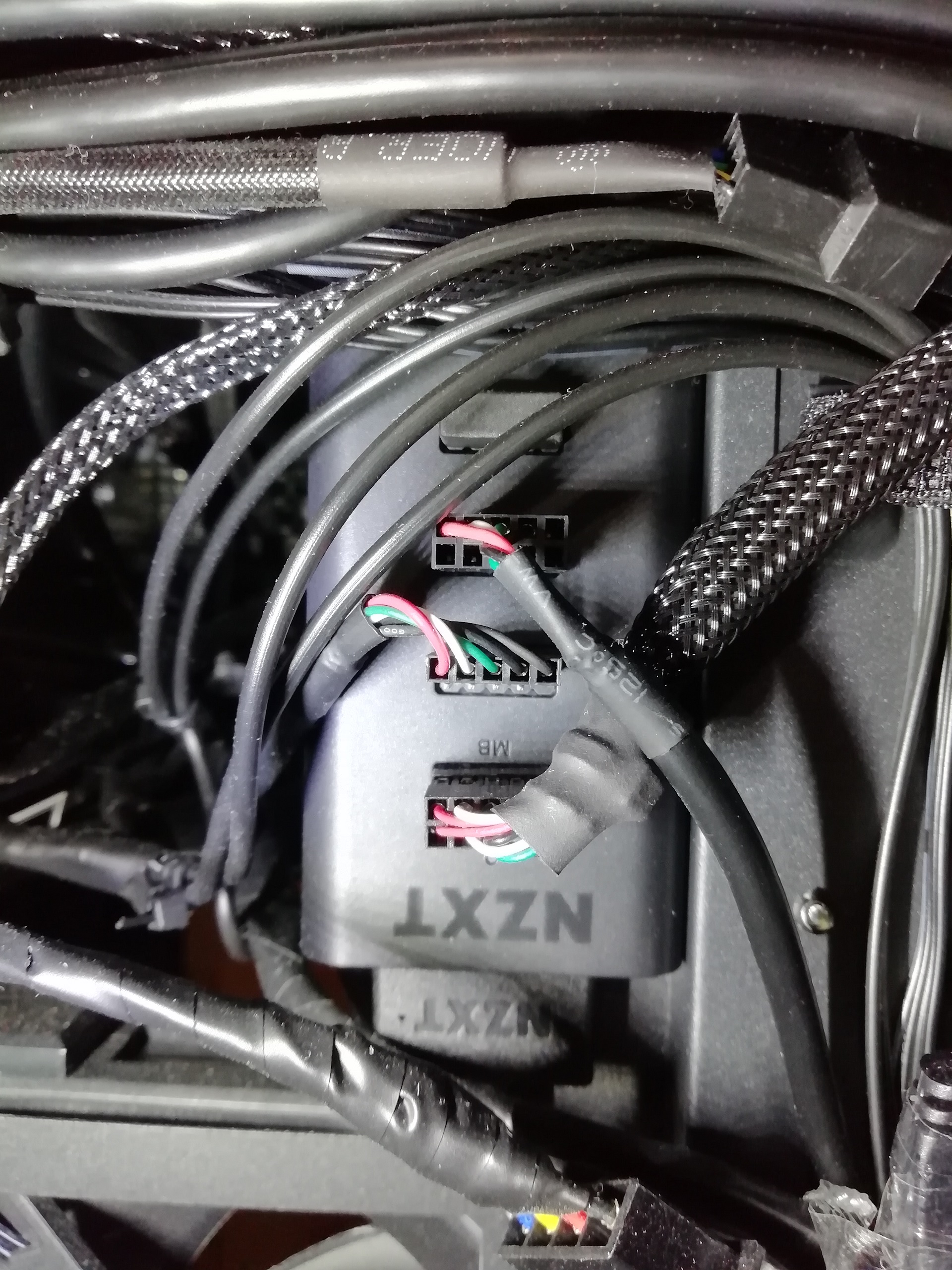

Next up is another problem that needed fixed. Dark Hero only has 2 USB 2.0 headers and i need 3 (2 for the rgb controllers to fans and 1 for the fan controller). So i got a USB 2.0 splitter. Again up side down so cables cut connect properly and there is one left if i feel like to more upgrades in the future.

View attachment 227615

Lastly the new NVMe SSD coolers with fans. The little mini-itx system has one as well, but cant be seen as it is hidden by GPU and a PCIe riser cable.
View attachment 227616

And now for the GPU.

I had to re wire more 8 pins cables as this card needs 3 8 pins. So before and after.
View attachment 227618
View attachment 227619

Rear side with new GPU
View attachment 227620

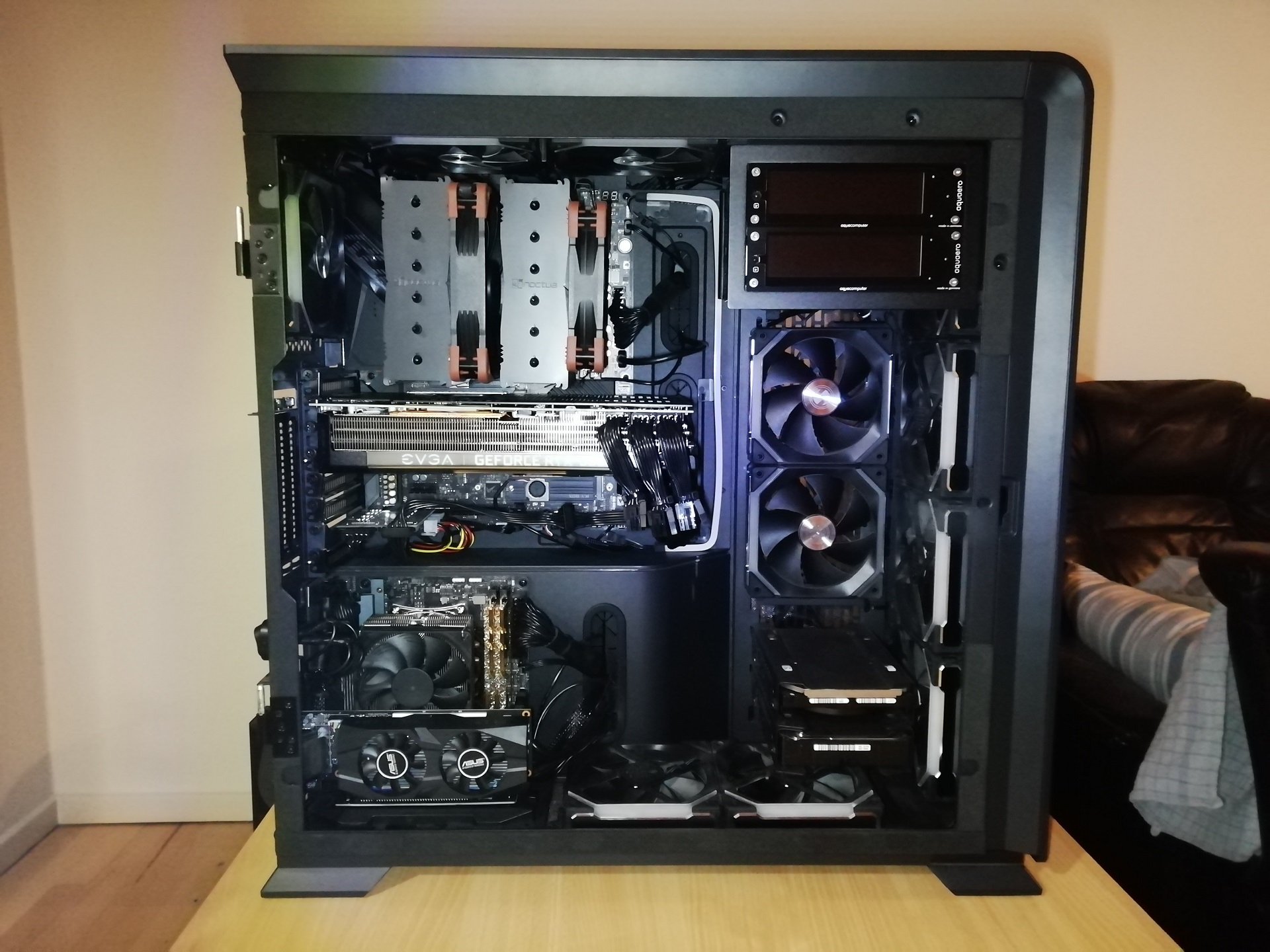

And a few image with the GPU in it.
View attachment 227621
View attachment 227622View attachment 227623View attachment 227624

That was all.
I think the question on everyone's mind and I hope I haven't asked it after someone else has but, Can it really run Crysis??









I'll get my coat.....

I hope its running whatever you game on, buttery smooth!! :D :D


phill

Moderator
Staff member
Joined
Jun 8, 2011
Messages
13,554 (3.23/day)
Location
Somerset, UK
System Name Not so complete or overkill - There are others!! Just no room to put! :D
Processor Ryzen Threadripper 3970X
Motherboard Asus Zenith 2 Extreme Alpha
Cooling Lots!! Dual GTX 560 rads with D5 pumps for each rad. One rad for each component
Memory Viper Steel 4 x 16GB DDR4 3600MHz not sure on the timings... Probably still at 2667!! :(
Video Card(s) Asus Strix 3090 with front and rear active full cover water blocks
Storage I'm bound to forget something here - 250GB OS, 2 x 1TB NVME, 2 x 1TB SSD, 4TB SSD, 2 x 8TB HD etc...
Display(s) 3 x Dell 27" S2721DGFA @ 7680 x 1440P @ 144Hz or 165Hz - working on it!!
Case The big Thermaltake that looks like a Case Mods
Audio Device(s) Onboard
Power Supply EVGA 1600W T2
Mouse Corsair thingy
Keyboard Razer something or other....
VR HMD No headset yet
Software Windows 11 OS... Not a fan!!
Benchmark Scores I've actually never benched it!! Too busy with WCG and FAH and not gaming! :( :( Not OC'd it!! :(
Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Have you ever watched the movie I-Robot with Will Smith in it
Yes I have watched I-robot a long time ago. A good movie, but don't remember if these words where in the movie.

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
I think the question on everyone's mind and I hope I haven't asked it after someone else has but, Can it really run Crysis??









I'll get my coat.....

I hope its running whatever you game on, buttery smooth!! :D :D
No it can't run Crysis as I don't have it. But I'm sure it can run Crysis remastered I do have:p. But haven't tried it yet. Right now it's Far Cry 6 I game and that runs just fine maxed out and I can tell it a noticeable change from gtx 1660 super to rtx 3080.



phill

Moderator
Staff member
Joined
Jun 8, 2011
Messages
13,554 (3.23/day)
Location
Somerset, UK
System Name Not so complete or overkill - There are others!! Just no room to put! :D
Processor Ryzen Threadripper 3970X
Motherboard Asus Zenith 2 Extreme Alpha
Cooling Lots!! Dual GTX 560 rads with D5 pumps for each rad. One rad for each component
Memory Viper Steel 4 x 16GB DDR4 3600MHz not sure on the timings... Probably still at 2667!! :(
Video Card(s) Asus Strix 3090 with front and rear active full cover water blocks
Storage I'm bound to forget something here - 250GB OS, 2 x 1TB NVME, 2 x 1TB SSD, 4TB SSD, 2 x 8TB HD etc...
Display(s) 3 x Dell 27" S2721DGFA @ 7680 x 1440P @ 144Hz or 165Hz - working on it!!
Case The big Thermaltake that looks like a Case Mods
Audio Device(s) Onboard
Power Supply EVGA 1600W T2
Mouse Corsair thingy
Keyboard Razer something or other....
VR HMD No headset yet
Software Windows 11 OS... Not a fan!!
Benchmark Scores I've actually never benched it!! Too busy with WCG and FAH and not gaming! :( :( Not OC'd it!! :(
I'm glad you notice the difference my good sir!! I'm be utterly horrified if you didn't! :) Thanks for the posting of the card, glad you finally have one!!

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
I'm glad you notice the difference my good sir!! I'm be utterly horrified if you didn't! :) Thanks for the posting of the card, glad you finally have one!!
Haha yeah I would be rather disappointed if there was no difference at all.

Yeah its nice to finnally have one. Not gonna upgrade when 4000 series comes. I need my economy to recover from all this speeding freenzy. So 2022 will be a boring year when it comes to spending money. But that's how it is. You can't just use and not save as well or you put your self in dangerous position when you need savings the most.

And you are welcome. You asked for a project thread a while a go. But I think I am finishs now with the system. There is only new second monitor and a new hdd more. That is all that is missing now. But that will take some time before going to happen. Now it's time to recover my economy.

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
With a new GPU, are here a few Time spy/firestrike benchmark. Time spy cpu benchmark scale really bad with all these cores/thread and that has a negative effect on the cpu score. GPU is maxed out while CPU just has PBO on and no other ajustment or fine tuning as CPU score dosent count that much in 3Dmark benches.

Fire strike total score is 39504

Fire strike Extreme total score is 22762

Fire strike ultra total score is 12261

Time spy total score is 18207

Time spy.png

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Now that christmas is fast approaching. I setup my pc for some christmas celebration. Just as all ways, image are in bad quality as my phone sucks. But try look pass that.




A short video of it.


stinger608

Dedicated TPU Cruncher & Folder
Joined
Nov 11, 2008
Messages
10,849 (2.11/day)
Location
Wyoming
System Name Dean Machine/2020 Ryzenfall
Processor Intel 4790K/AMD Ryzen 3700X
Motherboard MSI 1150 Gaming mATX/Gigabyte AORUS ELITE B550
Cooling Cooler Master Hyper 212 LED/SilverStone AH240 AIO
Memory 16 gigs Crucial Ballistix Tactical Tracer/16 gigs G.Skill TridentZ NEO DDR4
Video Card(s) Gigabyte 1660 Super/Gigabyte GTX 1660
Storage Crucial SSD 256 and 2TB spinner/Dual Samsung 980 Pro M2 NVME 4.0
Display(s) Overlord 27" 2560 x 1440
Case Corsair Air 540
Audio Device(s) On board
Power Supply Seasonic modular 850 watt Platinum/EVGA T2-850 Titanium
Software Windows 10 Pro/Windows 10 Pro
Where did you download that fireplace desktop @Tomgang ?

Edit: Okay, never mind, I seen your other post regarding this YouTube video. :p

Pretty damn awesome!

Last edited:
Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Where did you download that fireplace desktop @Tomgang ?

Edit: Okay, never mind, I seen your other post regarding this YouTube video. :p

Pretty damn awesome!
Thanks. I do like how it turned out. RGB rainbow puke, can be used for something that sets a mood up as well.

Might gonna playing with the RGB coluer some more. Like try with some green amorhe red.

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
There is not so much news since last post. Inflation and war in Europe and the nasty economy risk of a recession. Force me to hold back on spending frenzy.

But I got a second Psu as a back up unit for my system. For those wunder why I dit it because it's a unique psu that supports running 2 systems on 1 psu. But this is the only one capable of doing it as far I know. So if my current psu dies and can no longer be buying it again in a few years. It will render my system useless or at least only one system can be used at the time. So I jumped the safe way with a back up unit.

But I played around with my 5950X and I actually got all 16 cores to be able to reach at least 5 ghz and the 3 best cores up to 5.25 ghz and it seems to be stable. While at more heavy load maintaining a clock of around 4.6 ghz on all cores like in prime 95. I think that's desent for an aircooled 5950X. However everything above 5.25 ghz and it crashed with even a light load. It can boot to windows, but crashes as soon I just open a game. All in all I am fairly pleased with my 5950X a. D the combination of cooling. It has taken me way far than I hab hoped for. The downside is the power consumption of 1.2 gigawatts the Flux capacitor need to allow my 5950X to reach these clock speeds. More seriously power consumption at full load seems to be 200 to 210 watt compared to stock 142 watt. But still a Saint compare to what a 12900KS swallows stock:rolleyes:

Prime 95 load it reaches temp of 73 degrees celsius with all core load and up to 78 degrees Celsius with the single core boost. Well what you expect with clocks of up to 5.25 ghz.




I can also say almost a year now after I build it. It has run great with no hiccups or problems besides those that are my own fault with example failed overclocking.

Last edited:
Joined
Mar 17, 2013
Messages
450 (0.13/day)
Location
Earth
System Name Game / Work
Processor Amd 1800X @3900 / Intel 9600kf @ 4600
Motherboard Asus C VI H / Msi z390 A pro
Cooling air atm / liquid
Memory 16gb 4000mhz @3400 / 16 gb 3600 mhz
Video Card(s) Msi 1080ti / Amd Radeon pro w5500
Storage Ocz rd400 512 gb m2 + Seagate Exos 4 tb / 250gb Kingston A2000 + WD 2tb Gold
Display(s) Aoc 32" qhd
Case Working on a new project
Audio Device(s) Beyerdynamics DT 770 pro + Logitech Z 623
Power Supply seasonic 1050 snow white / CM V750 Gold
Mouse Razer Basilisk
Keyboard Gskill Ripjaws KM 780 MX
Software W 10 pro 64 / W 10 pro 64
Benchmark Scores Just checked, the computer still works.
Hi @Tomgang, I have a question if I may,

How do manage to have one keyboard and one mouse and work with two different systems?

Also thanks for sharing your great project,

Subscribed as well.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,980 (1.83/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
@Tomgang just noticed, your Fabric clock is desynced all the way down at 900MHz. 3200 RAM not too fast but the 900MHz IF is leaving a lot of performance on the table

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Hi @Tomgang, I have a question if I may,

How do manage to have one keyboard and one mouse and work with two different systems?

Also thanks for sharing your great project,

Subscribed as well.
I use this switch. Is has a wired button you just push to switch between two systems. It does not switch automatically, it's done manually. But it's cheap and it works well the 10 months I have used it now.


Joined
Feb 20, 2020
Messages
6,044 (5.96/day)
Location
Texas
System Name Ghetto Rigs x299 & z490 & x99
Processor 9940x w/Optimus SigV2 & 10900k w/Optimus Foundation & 5930k w/Noctua D15
Motherboard X299 Rampage VI Apex & z490 Maximus XII Apex & x99 Sabertooth
Cooling D5 combo/280 GTX/ VRM water block copper/280 GTX/ D5 Top/Optimus sigV2/TitanXp/Mora 360x2
Memory Trident-Z 3600C16 4x8gb & Trident-Z Royal 4000c16 2x16gb & Trident-Z 3200c14 4x8gb
Video Card(s) 1080ti FTW3 & Titan Xp & evga 980ti gaming
Storage 970 evo plus 500gb & 970 evo 500gb many sammy 2.5" ssd's and WD BLK hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 second floor for 2nd rad x2/ Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1200P2 & 1000P2 with APC AX1500 & 850P2 with CyberPower-GX1325U & 750P2
Mouse Redragon Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and Linux Cinnamon 20.2x2 & win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Hi,
Nice :cool:

Good luck with that g910 keyboard numbers pad when to shit in short time on mine and I dumped it on craigslist got another g710+.

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
@Tomgang just noticed, your Fabric clock is desynced all the way down at 900MHz. 3200 RAM not too fast but the 900MHz IF is leaving a lot of performance on the table
Hmm the 900 mhz must be a fail read. But you are right, there still are a problem. IF clock is to low. Is 1600 and shut be 1800 mhz. That is now fixed.

IF clock.jpg

Joined
Jan 3, 2015
Messages
2,489 (0.86/day)
System Name The beast and the little runt.
Processor Ryzen 5 5600X - Ryzen 9 5950X
Motherboard ASUS ROG STRIX B550-I GAMING - ASUS ROG Crosshair VIII Dark Hero X570
Cooling Noctua NH-L9x65 SE-AM4a - NH-D15 chromax.black with IPPC Industrial 3000 RPM 120/140 MM fans.
Memory G.SKILL TRIDENT Z ROYAL GOLD/SILVER 32 GB (2 x 16 GB and 4 x 8 GB) 3600 MHz CL14-15-15-35 1.45 volts
Video Card(s) RTX A2000 6 GB - GIGABYTE RTX 4090 GAMING OC
Storage 2 x Samsung 980 PRO 1 TB + 1 x 2 TB - Samsung 870 EVO 4 TB - WD RED PRO 16 GB + WD GOLD 14 TB HDD
Display(s) Asus 27" TUF VG27AQL1A and a Dell 24" for dual setup
Case Phanteks Enthoo 719/LUXE 2 BLACK
Audio Device(s) ONBOARD on both boards
Power Supply Phanteks Revolt X 1200W
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard Logitech G910 Orion Spectrum
Software WINDOWS 10 PRO 64 BITS on both systems
Benchmark Scores Se more about my 2 in 1 system here: kortlink.dk/2ca4x
Hi,
Nice :cool:

Good luck with that g910 keyboard numbers pad when to shit in short time on mine and I dumped it on craigslist got another g710+.
Thanks. So far after nearly a year of use. No problems to report with G910 keyboard. Infact i am happy with it.

Joined
Feb 20, 2020
Messages
6,044 (5.96/day)
Location
Texas
System Name Ghetto Rigs x299 & z490 & x99
Processor 9940x w/Optimus SigV2 & 10900k w/Optimus Foundation & 5930k w/Noctua D15
Motherboard X299 Rampage VI Apex & z490 Maximus XII Apex & x99 Sabertooth
Cooling D5 combo/280 GTX/ VRM water block copper/280 GTX/ D5 Top/Optimus sigV2/TitanXp/Mora 360x2
Memory Trident-Z 3600C16 4x8gb & Trident-Z Royal 4000c16 2x16gb & Trident-Z 3200c14 4x8gb
Video Card(s) 1080ti FTW3 & Titan Xp & evga 980ti gaming
Storage 970 evo plus 500gb & 970 evo 500gb many sammy 2.5" ssd's and WD BLK hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 second floor for 2nd rad x2/ Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1200P2 & 1000P2 with APC AX1500 & 850P2 with CyberPower-GX1325U & 750P2
Mouse Redragon Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and Linux Cinnamon 20.2x2 & win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Thanks. So far after nearly a year of use. No problems to report with G910 keyboard. Infact i am happy with it.
Hi,
Yeah mine took a couple years before it started messing up
Weight/ size wise 910 is a giant feather compared to 710+ logi.. must of cut a lot of build corners it seems to me.

Top
