Which DRAM timings should I tighten at 3800Mhz?

Joined
Jun 12, 2007
Messages
12 (0.00/day)
I have a pretty good B-die kit, but it's 64GB, and the IMC cannot keep it stable past 3800Mhz.

So, I'd like to tighten my timings instead to improve performance. My current configuration is:

Auros Master B550
SOC: 1.2V with "Low" LLC. I think this is 25% although the BIOS doesn't explicitly say that
DRAM: 1.4V
Timings: 16-16-16-16-36 28-52
Leaving everything else to be set by "Auto" gives these voltages and timings:



This RAM will boot at 3866, but it will fail large Prime after a few minutes, so I think there is a little more room in it.

Joined
Dec 29, 2010
Messages
2,092 (0.56/day)
Processor AMD 5900x
Motherboard Asus x570 Strix-E
Cooling Hardware Labs
Memory G.Skill 4000c17 2x16gb
Video Card(s) RTX 3090
Storage Sabrent
Display(s) Samsung G9
Case Phanteks 719
Audio Device(s) Fiio K5 Pro
Power Supply EVGA 1300 G2
Mouse Logitech G600
Keyboard Corsair K95
I assume those 16gb sticks so you're already ahead with being able to run them at 3800 on the FCLK. I threw specs for typical b-die at that density into dram calc. You can try targeting these timings but I'd target slightly higher than 1.4v on dram voltage. G.Skill recommended voltage for kits at this speed are 1.4v-1.45v fyi. Oh I should add as far as the settings, I don't touch PDM, GDM or manually set command rate, leave those on auto. You can go manual on those for a slight decrease in latency but you'll have to make a trade off with moar voltage.


Joined
Dec 19, 2019
Messages
88 (0.18/day)
System Name A bomb
Processor AMD Ryzen 7 3700X
Motherboard MSI B450 Gaming Plus
Cooling Corsair H115i PRO + 4x Noiseblocker eLoop push-pull
Memory 2x8GB G.Skill TridentZ 3600MHz 19CL @ 16-20-20-36
Video Card(s) MSI GTX1060 3GB Gaming X
Storage Intel 660p 1TB QLC NVMe SSD (yeah, it's really that slow) + Seagate Exos 10TB HDD
Display(s) AOC C24G1 24" FullHD 144Hz VA
Case Phanteks P400S + P400A mesh panel + 2x140mm & 1x120mm be quiet! Shadow Wings 3 + 1x120mm Noctua NF-F
Audio Device(s) Corsair HS50
Power Supply Corsair RMx v2 (2018) 750W
Mouse Corsair Harpoon RGB Wireless in wired mode (wireless mode is bugged ...)
Keyboard A4Tech generic-ish membrane office keyboard (yikes)
Software Windows 10 x64 1909
Benchmark Scores OVER 9000
SOC: 1.2V with "Low" LLC
Isn't that a bit high ? Also, are you sure that 1.9GHz Fclk is stable on you ? Have you tested it extensively enough (like a few days or so of normal usage mixed with occasional stress tests).

Joined
Jun 12, 2007
Messages
12 (0.00/day)
Isn't that a bit high ? Also, are you sure that 1.9GHz Fclk is stable on you ? Have you tested it extensively enough (like a few days or so of normal usage mixed with occasional stress tests).

The stock SOC is 1.2 for the 5950x on B550. That comes out of the motherboard. So, perhaps this has been increased for Zen3?

I have tested 1900fclk with many hours of Prime95 tests, and it seems stable to me. 1933 fails Prime load tests.

Joined
Sep 27, 2019
Messages
442 (0.78/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 3600x
Motherboard MSI MEG x570 ACE
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS
Memory 32gb G.Skill F4-4000C18D-32GVK
Video Card(s) EVGA GeForce RTX 2080 FTW3 Ultra Gaming
Storage 9.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, G602, M705
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
tras 32
trc 48
tfaw 16

Those might not work but should, the biggest boost you can give it is from trfc but idk how low you can go with 64gb, I would start with 300-400 and if it boots try lowering it until it crashes workers as soon as you start P95 and add 50 to that value and you should have stability.

Here's what someone else was running stable with 16gb at 1.45v on a ryzen 5000



PaulieG

Moderator
Staff member
Joined
Feb 19, 2007
Messages
12,247 (2.37/day)
Location
Lost in the Mountains of East TN
Processor Ryzen 5900x/Ryzen 3900xt/i9 10850k x2
Motherboard Asus ROG Strix B550-F/Asrock z590 Steel Legend/MSI MAG z590 Tomahawk/MSI MPG B550 Carbon
Cooling EK AIO 360/EK AIO 240 in two systems/Alphacool Eisbaer 360
Memory 32 GB Ballistix Elite/32 GB Gskill TridentZ/32GB Mushkin Redline Black
Video Card(s) 3060ti FE/HIS 5700xt/Asus 750 ti
Storage Samsung 970 EVO M.2 NVMe 500GB/WD Black M.2 NVMe 500GB/Adata 500gb NVMe
Display(s) Acer 1080p 22"/ (3) Samsung 22" 1080p
Case Lian Li Lancool II Mesh/Corsair 4000D/Phanteks Eclipse 500a/Test bench from the bones of HAF
Power Supply EVGA Supernova 850G/Phantek Amps 750w/Seasonic Focus 750w/Enermax Marblebron 650w
Mouse Generic Black wireless
Keyboard Generic Black wireless
Software Win 10/Ubuntu
I've found there is significant diminishing returns when running your infinity clock past 1900. In fact, even though I have a Rev. B set that is rock stable at 4000/2000, all of my benchmarks score better at 3800/1900. So honestly, you have good timings at 3800. I'd just leave it at that if you are talking about daily use. Timings...maybe get your TRFC down a bit.

Last edited:
Joined
Nov 11, 2004
Messages
7,891 (1.31/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
I have a pretty good B-die kit, but it's 64GB, and the IMC cannot keep it stable past 3800Mhz.

So, I'd like to tighten my timings instead to improve performance. My current configuration is:

Auros Master B550
SOC: 1.2V with "Low" LLC. I think this is 25% although the BIOS doesn't explicitly say that
DRAM: 1.4V
Timings: 16-16-16-16-36 28-52
Leaving everything else to be set by "Auto" gives these voltages and timings:

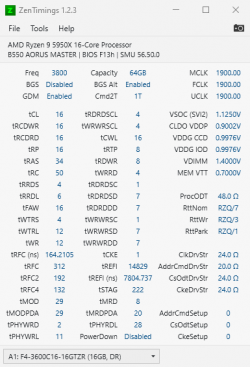

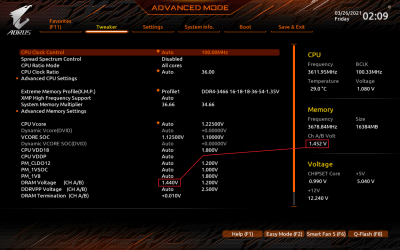

View attachment 195550

This RAM will boot at 3866, but it will fail large Prime after a few minutes, so I think there is a little more room in it.
If those are B-dies, then your tRFC is way high and should be the first thing to address.

Joined
Sep 3, 2019
Messages
2,192 (3.70/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3667MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
I assume those 16gb sticks so you're already ahead with being able to run them at 3800 on the FCLK. I threw specs for typical b-die at that density into dram calc. You can try targeting these timings but I'd target slightly higher than 1.4v on dram voltage. G.Skill recommended voltage for kits at this speed are 1.4v-1.45v fyi. Oh I should add as far as the settings, I don't touch PDM, GDM or manually set command rate, leave those on auto. You can go manual on those for a slight decrease in latency but you'll have to make a trade off with moar voltage.

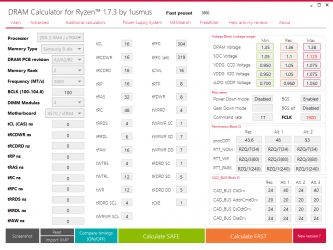

View attachment 195559
I would go with this set of timings as Calculator suggests.
Keep DRAM voltage 1.4V or maybe increase it to 1.45V if it’s not stable. b-dies dont care about voltage as long as you can keep it cool, around 40C ideally.

SoC voltage on the other hand seems a bit high. It’s not about increased voltage for the 5000 series. Some boards are feeding unnecessary high voltage to SoC. I would try around 1.10~1.12V.

tFAW and tRFC are way to high for your sticks.

In order to run above 1900MHz you must first determine if CPU subsystems can do that (UMC and IF). That is UCLK and FCLK.
You must loose timings a lot and test it. If it’s ok then you start tighten timings.

According to some experienced users the following power saving settings should be disabled when MCLK/UCLK/FCLK are OCed.

PowerDownMode: Disabled
DF C-States: Disabled
SoC/Uncore OC Mode: Enabled

Joined
Dec 19, 2019
Messages
88 (0.18/day)
System Name A bomb
Processor AMD Ryzen 7 3700X
Motherboard MSI B450 Gaming Plus
Cooling Corsair H115i PRO + 4x Noiseblocker eLoop push-pull
Memory 2x8GB G.Skill TridentZ 3600MHz 19CL @ 16-20-20-36
Video Card(s) MSI GTX1060 3GB Gaming X
Storage Intel 660p 1TB QLC NVMe SSD (yeah, it's really that slow) + Seagate Exos 10TB HDD
Display(s) AOC C24G1 24" FullHD 144Hz VA
Case Phanteks P400S + P400A mesh panel + 2x140mm & 1x120mm be quiet! Shadow Wings 3 + 1x120mm Noctua NF-F
Audio Device(s) Corsair HS50
Power Supply Corsair RMx v2 (2018) 750W
Mouse Corsair Harpoon RGB Wireless in wired mode (wireless mode is bugged ...)
Keyboard A4Tech generic-ish membrane office keyboard (yikes)
Software Windows 10 x64 1909
Benchmark Scores OVER 9000
I have tested 1900fclk with many hours of Prime95 tests, and it seems stable to me. 1933 fails Prime load tests.
In my experience, stress tests don't catch up IF instability, you need to use the PC a few days normally, it may pass all and any stress tests for hours and then randomly crash when you browse internet or play a game.


PaulieG

Moderator
Staff member
Joined
Feb 19, 2007
Messages
12,247 (2.37/day)
Location
Lost in the Mountains of East TN
Processor Ryzen 5900x/Ryzen 3900xt/i9 10850k x2
Motherboard Asus ROG Strix B550-F/Asrock z590 Steel Legend/MSI MAG z590 Tomahawk/MSI MPG B550 Carbon
Cooling EK AIO 360/EK AIO 240 in two systems/Alphacool Eisbaer 360
Memory 32 GB Ballistix Elite/32 GB Gskill TridentZ/32GB Mushkin Redline Black
Video Card(s) 3060ti FE/HIS 5700xt/Asus 750 ti
Storage Samsung 970 EVO M.2 NVMe 500GB/WD Black M.2 NVMe 500GB/Adata 500gb NVMe
Display(s) Acer 1080p 22"/ (3) Samsung 22" 1080p
Case Lian Li Lancool II Mesh/Corsair 4000D/Phanteks Eclipse 500a/Test bench from the bones of HAF
Power Supply EVGA Supernova 850G/Phantek Amps 750w/Seasonic Focus 750w/Enermax Marblebron 650w
Mouse Generic Black wireless
Keyboard Generic Black wireless
Software Win 10/Ubuntu
In my experience, stress tests don't catch up IF instability, you need to use the PC a few days normally, it may pass all and any stress tests for hours and then randomly crash when you browse internet or play a game.
A little trick I've found that tends to catch IF instability quickly is to run a loop of Realbench benchmark with endless youtube videos playing at the same time. If a system is going to crash because of IF, it WILL happen within a couple of hours of doing this.

Joined
Jun 12, 2007
Messages
12 (0.00/day)
I would go with this set of timings as Calculator suggests.
Keep DRAM voltage 1.4V or maybe increase it to 1.45V if it’s not stable. b-dies dont care about voltage as long as you can keep it cool, around 40C ideally.

SoC voltage on the other hand seems a bit high. It’s not about increased voltage for the 5000 series. Some boards are feeding unnecessary high voltage to SoC. I would try around 1.10~1.12V.

tFAW and tRFC are way to high for your sticks.

In order to run above 1900MHz you must first determine if CPU subsystems can do that (UMC and IF). That is UCLK and FCLK.
You must loose timings a lot and test it. If it’s ok then you start tighten timings.

According to some experienced users the following power saving settings should be disabled when MCLK/UCLK/FCLK are OCed.

PowerDownMode: Disabled
DF C-States: Disabled
SoC/Uncore OC Mode: Enabled

Thank you for the detailed suggestions. I tried to utilize all of these settings.

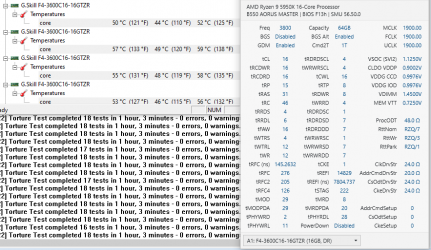

I have tested the new configuration a lot. Here are the current timings that appear to be stable. I'd still like to improve if I can.

Attachments

  • dram2.png
    47.1 KB · Views: 34
Joined
Jun 24, 2015
Messages
2,675 (1.26/day)
Location
Western Canada
System Name Austere Box R1.4
Processor 5900X
Motherboard B550M TUF Wifi (2006)
Cooling NH-C14S iPPC
Memory 32GB 3600 16-19-19
Video Card(s) RTX 2060 Super FE (0.981V)
Storage 3TB SX8200/SN750/Blue3D
Display(s) S2721DGF/GW2765HT
Case Sliger Cerberus
Audio Device(s) Scarlett Solo Gen3
Power Supply Seasonic SGX-650
Thank you for the detailed suggestions. I tried to utilize all of these settings.

I have tested the new configuration a lot. Here are the current timings that appear to be stable. I'd still like to improve if I can.

What exactly are you after?

1. If it's a reasonably fast daily that's not too hard on VDIMM, the Infinity Fabric, and the UMC, then you've already got it. Those settings look just fine. Ideally, that tRFC should be 140ns-150ns, but below 4000MT/s it can be hard to stabilize tRFC at 140ns without a pretty well-binned kit given how a kit's lower limit for tRFC doesn't change yet tRFC is always in relation to memory speed. So as long as you can bring tRFC down somewhere below 160ns you're just peachy.

If your goal with this PC remains to game and not to delve into the world of B-die overclocking, then stay right where you are, verify it in HCI (to at the very least 1000%) or TM5 (3 or more runs on anta777), and go about your day.

2. If your ego is wanting more because you've seen some Tom, Dick and Harry on the internet run 3800CL14, then I'm sorry, B-die can always "improve". And there's always a lot of room to "improve" if you're chasing numbers. Question is, how much time and effort are you willing to put in to personally learn how the timings behave and do the HCI / Karhu / TM5 testing day in and day out?

Let's not forget that you're running 4 x 16GB dual rank sticks. If you want to get the most out of your kit, you're going to need to go straight to 1.5V VDIMM. But if you do, you will need to put a small fan in there dedicated to blasting air at your sticks if you're running anything more power hungry than a RTX 3060 Ti and still want your mems to remain stable. So if you're ready to go there, we can easily try for CL14 and tighter secondaries, just be aware that it may not be feasible below 1.55V.

Last edited:
Joined
Aug 9, 2019
Messages
388 (0.63/day)
Processor Ryzen 5600X
Motherboard Gigabyte B550m S2H
Cooling BeQuiet dark rock slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tuned subs
Video Card(s) Palit 3060ti dual OC
Storage WD green 480GB m.2 + 2TB hdd
Display(s) Lenovo G24-10 144Hz
Case Cooler master Q300L
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 51.4ns 4.8GHz+4000cl16 tuned ram
I have a pretty good B-die kit, but it's 64GB, and the IMC cannot keep it stable past 3800Mhz.

So, I'd like to tighten my timings instead to improve performance. My current configuration is:

Auros Master B550
SOC: 1.2V with "Low" LLC. I think this is 25% although the BIOS doesn't explicitly say that
DRAM: 1.4V
Timings: 16-16-16-16-36 28-52
Leaving everything else to be set by "Auto" gives these voltages and timings:

View attachment 195550

This RAM will boot at 3866, but it will fail large Prime after a few minutes, so I think there is a little more room in it.
You already got some good tips, a few I can share is lower tRP, 15 or 14 is probably okay, tCL+tRCD=tRAS so 32 and tRAS+tRP=tRC so 46 or 47, tRC*6=tRFC. Try tWR 12 and tRTP 6. I would lower soc voltage a bit, 1.2 is not necissary, even at 4000/2000 I don't need over 1.12V on my 5600X.

Joined
Jun 12, 2007
Messages
12 (0.00/day)
What exactly are you after?

I know I can get more performance out of this kit if I work on it. What I really wanted was to get my fclk higher, but the IMC does not seem to be able to support this capacity at a higher frequency, so instead I'd like to lower my timings. I'm very happy to increase DRAM voltage to 1.5 or 1.55, and I intend to put more time into this machine.

I'm already going to look more at the tRFC setting. Thank you for the information about the 140-150ns latency goal.

Joined
Jun 24, 2015
Messages
2,675 (1.26/day)
Location
Western Canada
System Name Austere Box R1.4
Processor 5900X
Motherboard B550M TUF Wifi (2006)
Cooling NH-C14S iPPC
Memory 32GB 3600 16-19-19
Video Card(s) RTX 2060 Super FE (0.981V)
Storage 3TB SX8200/SN750/Blue3D
Display(s) S2721DGF/GW2765HT
Case Sliger Cerberus
Audio Device(s) Scarlett Solo Gen3
Power Supply Seasonic SGX-650
I know I can get more performance out of this kit if I work on it. What I really wanted was to get my fclk higher, but the IMC does not seem to be able to support this capacity at a higher frequency, so instead I'd like to lower my timings. I'm very happy to increase DRAM voltage to 1.5 or 1.55, and I intend to put more time into this machine.

I'm already going to look more at the tRFC setting. Thank you for the information about the 140-150ns latency goal.

The issue with running 1.5V or 1.55V is not with the B-die itself. It'll take it like a champ. The problem is when you try to game, all of your GPU dumps all its heat directly onto your RAM. B-die is a temp sensitive IC and freaks the fk out when it gets over 50-55C. You're running an extremely high density configuration, and 1.5V is a lot of volts for 4x16GB with no spacing in between the sticks.

The tRFC recommendations were more for a set and forget daily. If that's not what you're after, go to 140ns and first make it stable, and see about getting into the 130s. tRFC is the only timing that scales as much if not more with VDIMM as tCL does, and affects your performance just as much.

Okay. First things first, almost all Gigabyte boards feature a software-visible (in HWinfo) DRAM voltage sensor that is overvolted 0.03-0.06V over what you set in BIOS. Generally people take it as being more accurate, but it's up to you which one to believe - pretty important as 1.55V is definitely up there in terms of VDIMM and you don't want to be setting "1.55V" when you're really getting 1.6V+.

Do you want to try for CL14? If so, leave your subtimings as they currently are and try for 14-16-16 to start. tCL of 14, tRCDRD of 16, tRP of 16. Make tRCDWR 14 to start. tRAS and tRC probably don't need to be ideal right off the bat, leave at something like 32 and 50 to start to make sure they aren't getting in the way. See how much VDIMM you need to boot that and be reasonably stable in something like AIDA or Geekbench 3, guessing vaguely somewhere between 1.45-1.6V.

Joined
Jun 12, 2007
Messages
12 (0.00/day)
The tRFC recommendations were more for a set and forget daily. If that's not what you're after, go to 140ns and first make it stable, and see about getting into the 130s. tRFC is the only timing that scales as much if not more with VDIMM as tCL does, and affects your performance just as much.

Do you want to try for CL14? If so, leave your subtimings as they currently are and try for 14-16-16 to start. tCL of 14, tRCDRD of 16, tRP of 16. Make tRCDWR 14 to start. tRAS and tRC probably don't need to be ideal right off the bat, leave at something like 32 and 50 to start to make sure they aren't getting in the way. See how much VDIMM you need to boot that and be reasonably stable in something like AIDA or Geekbench 3, guessing vaguely somewhere between 1.45-1.6V.

I decided to adjust the tRFC first before moving onto trying to lower CAS. I noticed that my system seems to benefit from GDM, which may make it difficult for me to get CAS 15 stable.

I was able to get a first attempt at a lower tRFC in a few different configurations with hours of stability tests. I will come back to this after I work on CAS. Here is one configuration after 1hr of Prime Large, where I was able to get tRFC 276:


Attachments

  • 1hrtest.png
    65 KB · Views: 17
Joined
Sep 3, 2019
Messages
2,192 (3.70/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3667MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
Its true about Gigabyte boards feeding a little more voltage to DRAM from what the setting is. Auto or manual. Having my XMP profile ON with auto Vdimm would not feed it with 1.35V but 1.36+V. I now have it on 1.44V and DRAM voltage fluctuates between 1.44~1.452V. Actually you can see it in BIOS if you re-enter it after setting it.


HWiNFO reports the same


@Machinus you should cool your dimms further. As @tabascosauz said 4 populated dimms cant circulate air around them too well. Active cooling upon them would be nice.
Also HWiNFO can report your dimm temps as well and its a more modern tool from the obsolete HWMonitor.


PaulieG

Moderator
Staff member
Joined
Feb 19, 2007
Messages
12,247 (2.37/day)
Location
Lost in the Mountains of East TN
Processor Ryzen 5900x/Ryzen 3900xt/i9 10850k x2
Motherboard Asus ROG Strix B550-F/Asrock z590 Steel Legend/MSI MAG z590 Tomahawk/MSI MPG B550 Carbon
Cooling EK AIO 360/EK AIO 240 in two systems/Alphacool Eisbaer 360
Memory 32 GB Ballistix Elite/32 GB Gskill TridentZ/32GB Mushkin Redline Black
Video Card(s) 3060ti FE/HIS 5700xt/Asus 750 ti
Storage Samsung 970 EVO M.2 NVMe 500GB/WD Black M.2 NVMe 500GB/Adata 500gb NVMe
Display(s) Acer 1080p 22"/ (3) Samsung 22" 1080p
Case Lian Li Lancool II Mesh/Corsair 4000D/Phanteks Eclipse 500a/Test bench from the bones of HAF
Power Supply EVGA Supernova 850G/Phantek Amps 750w/Seasonic Focus 750w/Enermax Marblebron 650w
Mouse Generic Black wireless
Keyboard Generic Black wireless
Software Win 10/Ubuntu
What exactly are you after?

1. If it's a reasonably fast daily that's not too hard on VDIMM, the Infinity Fabric, and the UMC, then you've already got it. Those settings look just fine. Ideally, that tRFC should be 140ns-150ns, but below 4000MT/s it can be hard to stabilize tRFC at 140ns without a pretty well-binned kit given how a kit's lower limit for tRFC doesn't change yet tRFC is always in relation to memory speed. So as long as you can bring tRFC down somewhere below 160ns you're just peachy.

If your goal with this PC remains to game and not to delve into the world of B-die overclocking, then stay right where you are, verify it in HCI (to at the very least 1000%) or TM5 (3 or more runs on anta777), and go about your day.

2. If your ego is wanting more because you've seen some Tom, Dick and Harry on the internet run 3800CL14, then I'm sorry, B-die can always "improve". And there's always a lot of room to "improve" if you're chasing numbers. Question is, how much time and effort are you willing to put in to personally learn how the timings behave and do the HCI / Karhu / TM5 testing day in and day out?

Let's not forget that you're running 4 x 16GB dual rank sticks. If you want to get the most out of your kit, you're going to need to go straight to 1.5V VDIMM. But if you do, you will need to put a small fan in there dedicated to blasting air at your sticks if you're running anything more power hungry than a RTX 3060 Ti and still want your mems to remain stable. So if you're ready to go there, we can easily try for CL14 and tighter secondaries, just be aware that it may not be feasible below 1.55V.

I know I can get more performance out of this kit if I work on it. What I really wanted was to get my fclk higher, but the IMC does not seem to be able to support this capacity at a higher frequency, so instead I'd like to lower my timings. I'm very happy to increase DRAM voltage to 1.5 or 1.55, and I intend to put more time into this machine.

I'm already going to look more at the tRFC setting. Thank you for the information about the 140-150ns latency goal.

I understand wanting to see what the memory is capable of, as my hobby is overclocking and benchmarking. I literally don't game on PC or do anything so cpu or memory hungry to justify the hours and hours I spend tweaking cpu/gpu/memory. It just makes me happy to see what I can squeeze out of hardware. If this is you too, I totally get it. However, if you are looking for significant gains for real world application from adjusting secondary timings, you will be sorely disappointed. Once you get a decent overclock and tighten primary timings there is nothing really noticeable beyond that. Just be aware of why you are doing it and if it's time spent wisely or not.

Last edited:
Joined
Jun 24, 2015
Messages
2,675 (1.26/day)
Location
Western Canada
System Name Austere Box R1.4
Processor 5900X
Motherboard B550M TUF Wifi (2006)
Cooling NH-C14S iPPC
Memory 32GB 3600 16-19-19
Video Card(s) RTX 2060 Super FE (0.981V)
Storage 3TB SX8200/SN750/Blue3D
Display(s) S2721DGF/GW2765HT
Case Sliger Cerberus
Audio Device(s) Scarlett Solo Gen3
Power Supply Seasonic SGX-650
I decided to adjust the tRFC first before moving onto trying to lower CAS. I noticed that my system seems to benefit from GDM, which may make it difficult for me to get CAS 15 stable.

I was able to get a first attempt at a lower tRFC in a few different configurations with hours of stability tests. I will come back to this after I work on CAS. Here is one configuration after 1hr of Prime Large, where I was able to get tRFC 276:

So you already can see what I mean when I say that you're going to be thermally limited. It wasn't even gaming and your sticks are already exceeding 55C. You're also going to have to provide some feedback on that VDRAM sensor like I said, at this point I have no idea what your 1.45V VDIMM is actually turning into. HWInfo will provide it under the motherboard sensors group.

Also, stop using HWMonitor and install HWInfo. For testing just use HCI Memtest to start. P95 Large is good as a UMC stressor, but it's not a first line memtest.

145ns tRFC is fine from a performance perspective. If you want to chase numbers then you can go lower, but looking at your temps I'm afraid you already have no wiggle room.

If you want to run CL15 as a compromise, you will be running 2T command rate as I just don't see a way you'll have the VDIMM headroom to push 1T without GDM. So you'll just have to benchmark it (AIDA64, membench in DRAM calc, Geekbench 3, etc) to see if it's worth it over CL16.

Also, get thar tRP back to 16. No point lowering it below tCL, you're not in balls-to-the-wall territory to warrant that yet. You're just costing yourself VDIMM.

Joined
Dec 29, 2010
Messages
2,092 (0.56/day)
Processor AMD 5900x
Motherboard Asus x570 Strix-E
Cooling Hardware Labs
Memory G.Skill 4000c17 2x16gb
Video Card(s) RTX 3090
Storage Sabrent
Display(s) Samsung G9
Case Phanteks 719
Audio Device(s) Fiio K5 Pro
Power Supply EVGA 1300 G2
Mouse Logitech G600
Keyboard Corsair K95
He's still using hwmonitor.... geeze at this? And your temps are getting out of hand.

Joined
Jun 12, 2007
Messages
12 (0.00/day)
So you already can see what I mean when I say that you're going to be thermally limited. It wasn't even gaming and your sticks are already exceeding 55C. You're also going to have to provide some feedback on that VDRAM sensor like I said, at this point I have no idea what your 1.45V VDIMM is actually turning into. HWInfo will provide it under the motherboard sensors group.

The temperatures slowly climb to mid 50s because the airflow is good, but not directly over the DIMMs. I have to get some new hardware to add to give adequate cooling to my RAM. That will be an interesting project.

In the meantime, I am doing shorter stability tests.

Right now, I am stable for about an hour with these settings:
DRAM 1.488V (from HWiNFO)
3800Mhz
15-15-15-15-30
tRC 45
tRFC 270
Most of the other settings are "Auto," including 2T command rate.

So, I was able to get CAS 15 at 3800, although it does produce a lot of heat. Since it's a very gradual temperature increase, I think adding active cooling will really help.

He's still using hwmonitor.... geeze at this? And your temps are getting out of hand.
I have changed to HWiNFO. I apologize.

Joined
Nov 11, 2004
Messages
7,891 (1.31/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
The temperatures slowly climb to mid 50s because the airflow is good, but not directly over the DIMMs. I have to get some new hardware to add to give adequate cooling to my RAM. That will be an interesting project.

In the meantime, I am doing shorter stability tests.

Right now, I am stable for about an hour with these settings:
DRAM 1.488V (from HWiNFO)
3800Mhz
15-15-15-15-30
tRC 45
tRFC 270
Most of the other settings are "Auto," including 2T command rate.

So, I was able to get CAS 15 at 3800, although it does produce a lot of heat. Since it's a very gradual temperature increase, I think adding active cooling will really help.


I have changed to HWiNFO. I apologize.
So by going to 2T command rate, you just wasted everything you gained by going from CAS16 to CAS15.

Joined
Dec 29, 2010
Messages
2,092 (0.56/day)
Processor AMD 5900x
Motherboard Asus x570 Strix-E
Cooling Hardware Labs
Memory G.Skill 4000c17 2x16gb
Video Card(s) RTX 3090
Storage Sabrent
Display(s) Samsung G9
Case Phanteks 719
Audio Device(s) Fiio K5 Pro
Power Supply EVGA 1300 G2
Mouse Logitech G600
Keyboard Corsair K95
So by going to 2T command rate, you just wasted everything you gained by going from CAS16 to CAS15.
Nah, he wrote its on auto. Auto = 1T. A lot of settings are fine on auto contrary to what a lot of posters think.

Joined
Nov 11, 2004
Messages
7,891 (1.31/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
Nah, he wrote its on auto. Auto = 1T. A lot of settings are fine on auto contrary to what a lot of posters think.
Not on Ryzen systems, it's 2T or gear down.
