XFX RX 580 8GB 1386 OC+ BIOS required

jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
hi
I have XFX Rx 580 (Rx-580P8DFD6) 8GB Model number RX-580P8D. I bought it second hand online but later find out that its both bios has been modified by the crypto miner so basically no gaming bios i have checked it online and i am 100% sure. on tech power up same BIOS is available but memory manufacturer is different mine is micron and available one is Samsung and only two bios of that specific model is available one is for mining and one is for gaming. so can anyone provide me the gaming bios compatible with micron memory ?
VGA Bios Collection: XFX RX 580 8 GB | TechPowerUp

Joined
Aug 15, 2016
Messages
287 (0.17/day)
Processor Intel i7 4770k @ 4.5 GHz 1.294V
Motherboard ASUS Sabertooth Z87
Cooling Corsair H100i
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64

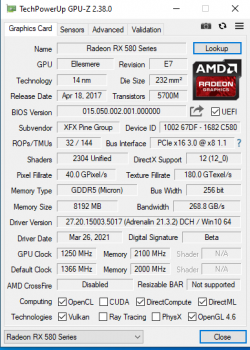

Post a GPU-Z screenshot first.


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)

Attachments

  • Capture.PNG
    45.1 KB · Views: 33
  • Capture.PNG
    45.1 KB · Views: 35
Joined
Aug 15, 2016
Messages
287 (0.17/day)
Processor Intel i7 4770k @ 4.5 GHz 1.294V
Motherboard ASUS Sabertooth Z87
Cooling Corsair H100i
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64
This BIOS supports Samsung and Micron memory, but it runs a little bit slower. Device ID matches so it should work for your card. It would be best to remove the heatsink and check for memory part numbers before flashing.


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
This BIOS supports Samsung and Micron memory, but it runs a little bit slower. Device ID matches so it should work for your card. It would be best to remove the heatsink and check for memory part numbers before flashing.
ok i will try it thanks


JeffF

New Member
Joined
Mar 23, 2021
Messages
25 (0.46/day)


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
This BIOS supports Samsung and Micron memory, but it runs a little bit slower. Device ID matches so it should work for your card. It would be best to remove the heatsink and check for memory part numbers before flashing.
i am getting this
this bios version is already installed

by the way how can i check if my memory manufacturer is correct without gpu z

cant find the specific one

Joined
Aug 15, 2016
Messages
287 (0.17/day)
Processor Intel i7 4770k @ 4.5 GHz 1.294V
Motherboard ASUS Sabertooth Z87
Cooling Corsair H100i
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64
i am getting this
this bios version is already installed

by the way how can i check if my memory manufacturer is correct without gpu z
Are you sure you have problems with that BIOS in games?
by the way how can i check if my memory manufacturer is correct without gpu z
Remove the card's heatsink and inspect visually. It's most likely Micron anyway.


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
Are you sure you have problems with that BIOS in games?

Remove the card's heatsink and inspect visually. It's most likely Micron anyway.
yes i am getting stuttering and my clocks are 1250 and 2100 on memory and voltages are also high

i will check my memory manufacturer by removing heatsink i thinks stuttering is due to the memory timing and gpu z is showing micron but in physical i have different ones.


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
Hello,
Here is the original BIOS
The .W90 file for the right BIOS (the BIOS switch flipped to the position near the PCI-E power connector) and the .M80 file for the left.
Please note that driver reinstallation may be necessary after flashing the BIOS.
Thanks.
i got both bios version from xfx.

you need to force flash the bios using cmd.
can you link the procedure please. and i have checked my memory manufacturer by removing the heatsink and it is indeed micron.

ok by using the xfx provided bios i bricked my 1 bios. but fixed it by re-flashing the backup bios. xfx wtf

Last edited:
Joined
Mar 21, 2021
Messages
89 (1.59/day)
Hello,
Here is the original BIOS
The .W90 file for the right BIOS (the BIOS switch flipped to the position near the PCI-E power connector) and the .M80 file for the left.
Please note that driver reinstallation may be necessary after flashing the BIOS.
Thanks.
i got both bios version from xfx.


can you link the procedure please. and i have checked my memory manufacturer by removing the heatsink and it is indeed micron.

ok by using the xfx provided bios i bricked my 1 bios. but fixed it by re-flashing the backup bios. xfx wtf
because these bios are for hynix/samsung cards.
you sure XFX send you these. lol

to force flash type in cmd / command prompt
atiwinflash -p -f 0 biosfilename

correct file was shared above and this is the mining bios / slower side. but its from unverified files.

VGA Bios Collection: XFX RX 580 8 GB | TechPowerUp


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
Yes these are shared by xfx. But i found out something, that the person from whom i bought this graphic card provided me different box so serial numbers are different on both. So i text xfx the original serial number and o. There website its showing me this model number RX-580P8DFDB

Joined
Mar 21, 2021
Messages
89 (1.59/day)
Yes these are shared by xfx. But i found out something, that the person from whom i bought this graphic card provided me different box so serial numbers are different on both. So i text xfx the original serial number and o. There website its showing me this model number RX-580P8DFDB
don't have to do so much.. bios files have been shared with you above, just flash and forget it.

also remember if your supply has only 6 pin connectors try to get original or good quality two 6 to one 8 pin connector. the random simple 6 to 8 adapter doesn't provide enough power and your games will suffer.


jawaid khan

New Member
Joined
Apr 17, 2021
Messages
9 (0.31/day)
don't have to do so much.. bios files have been shared with you above, just flash and forget it.

also remember if your supply has only 6 pin connectors try to get original or good quality two 6 to one 8 pin connector. the random simple 6 to 8 adapter doesn't provide enough power and your games will suffer.
Yes my power supply have 2 6 pin connectors but I'm using only one. And yes i have flashed the above given one and I'm not going to change a thing. But will sure buy a new power supply

Joined
Mar 21, 2021
Messages
89 (1.59/day)
Yes my power supply have 2 6 pin connectors but I'm using only one. And yes i have flashed the above given one and I'm not going to change a thing. But will sure buy a new power supply
one 6 pin will not provide enough power to the card, if you have a good supply no need to change just buy two 6 pin to one 8 pin adapter.
these are provided in the box. pretty sure your box must be empty :p


Darkmese

New Member
Joined
May 1, 2021
Messages
1 (0.07/day)
Hello, i need 580p8dfd6 (Xfx Rx 580 8 Gb GTS XXX Hynix ram) bios (modded) file. Thank you
