Your PC ATM

erocker · Aug 4, 2022

Veseleilo said:
Show us more of that audio gear.

Sure!

Old pixel 3 hooked into a Loxji P20 hybrid tube amp. Bunch of Koss KPH30i's, PortaPro's and Beyerdynamic DT990 Pro's. Hifiman HE400i 2020 versions with some Aliexpress Hifiman knockoff headband.

For my computer:

Goes from Computer to Modius DAC, RCA's go to the SYS preamp/splitter that go to the Presonus 4.5"monitors. The other channel from the SYS goes to the tube preamp, which then goes to the SMSL SP200 amp. There's also balanced XLR's going from the Modius directly to the SMSL amp for XLR balanced out. The Atari is 3d printed with a Raspberry Pi in it.

Oh, I also have the 3.5" Presonus speakers at work and I can't recommend them enough for really good sounding smaller desktop speakers.
:toast:

lexluthermiester · Aug 4, 2022

erocker said:
Sure!
View attachment 256939
Old pixel 3 hooked into a Loxji P20 hybrid tube amp. Bunch of Koss KPH30i's, PortaPro's and Beyerdynamic DT990 Pro's. Hifiman HE400i 2020 versions with some Aliexpress Hifiman knockoff headband.

For my computer:
View attachment 256940
Goes from Computer to Modius DAC, RCA's go to the SYS preamp/splitter that go to the Presonus 4.5"monitors. The other channel from the SYS goes to the tube preamp, which then goes to the SMSL SP200 amp. There's also balanced XLR's going from the Modius directly to the SMSL amp for XLR balanced out. The Atari is 3d printed with a Raspberry Pi in it.

Oh, I also have the 3.5" Presonus speakers at work and I can't recommend them enough for really good sounding smaller desktop speakers.

Wow! You sir are very serious about your sound! BTW, nice little mini-Atari 2600 there. RPi4 case?

erocker · Aug 4, 2022

lexluthermiester said:
Wow! You sir are very serious about your sound! BTW, nice little mini-Atari 2600 there. RPi4 case?

It was for a Pi 3, but I just took a cutter to the back and made it work for a 4. It's been glued back together many times! I'd print a new one, but the printer is down... that's the next project I suppose. I also need to find another "atari" sticker for the front, it's missing half the insignia and it just says "ATAR" now lol.

jallenlabs · Aug 4, 2022

erocker said:
Sure!
View attachment 256939
Old pixel 3 hooked into a Loxji P20 hybrid tube amp. Bunch of Koss KPH30i's, PortaPro's and Beyerdynamic DT990 Pro's. Hifiman HE400i 2020 versions with some Aliexpress Hifiman knockoff headband.

For my computer:
View attachment 256940
Goes from Computer to Modius DAC, RCA's go to the SYS preamp/splitter that go to the Presonus 4.5"monitors. The other channel from the SYS goes to the tube preamp, which then goes to the SMSL SP200 amp. There's also balanced XLR's going from the Modius directly to the SMSL amp for XLR balanced out. The Atari is 3d printed with a Raspberry Pi in it.

Oh, I also have the 3.5" Presonus speakers at work and I can't recommend them enough for really good sounding smaller desktop speakers.

Love me some Schiit too! Ive got their DACs at both my stations. Just upgraded my cables to locking RCAs with nice braided coverings. My setup is a bit simpler than yours, PC's optical>Schiit DAC>Yamaha Amp/SUB Amp>Klipsch RP500M Speakers/KEF subwoofer. Thinking of adding a Schiit EQ...

HQi88 · Aug 6, 2022

Time for an overhaul. Case was changed from the old Lancool PC-K65 to a probably equally old CM 690 III

GPU got upgraded from an R9 290 to a GTX 1070. Kinda wish the red parts were either black or blue though

Now with two Arctic P12's blowing cold air directly over the GPU

And Filters

Not fully done yet with this case though, there is still room on top to mount two Arctic F14s and on the bottom I can mount my old ML120 that's laying around. Just need a fan grille for it
Airflow go whoosh

freeagent · Aug 7, 2022

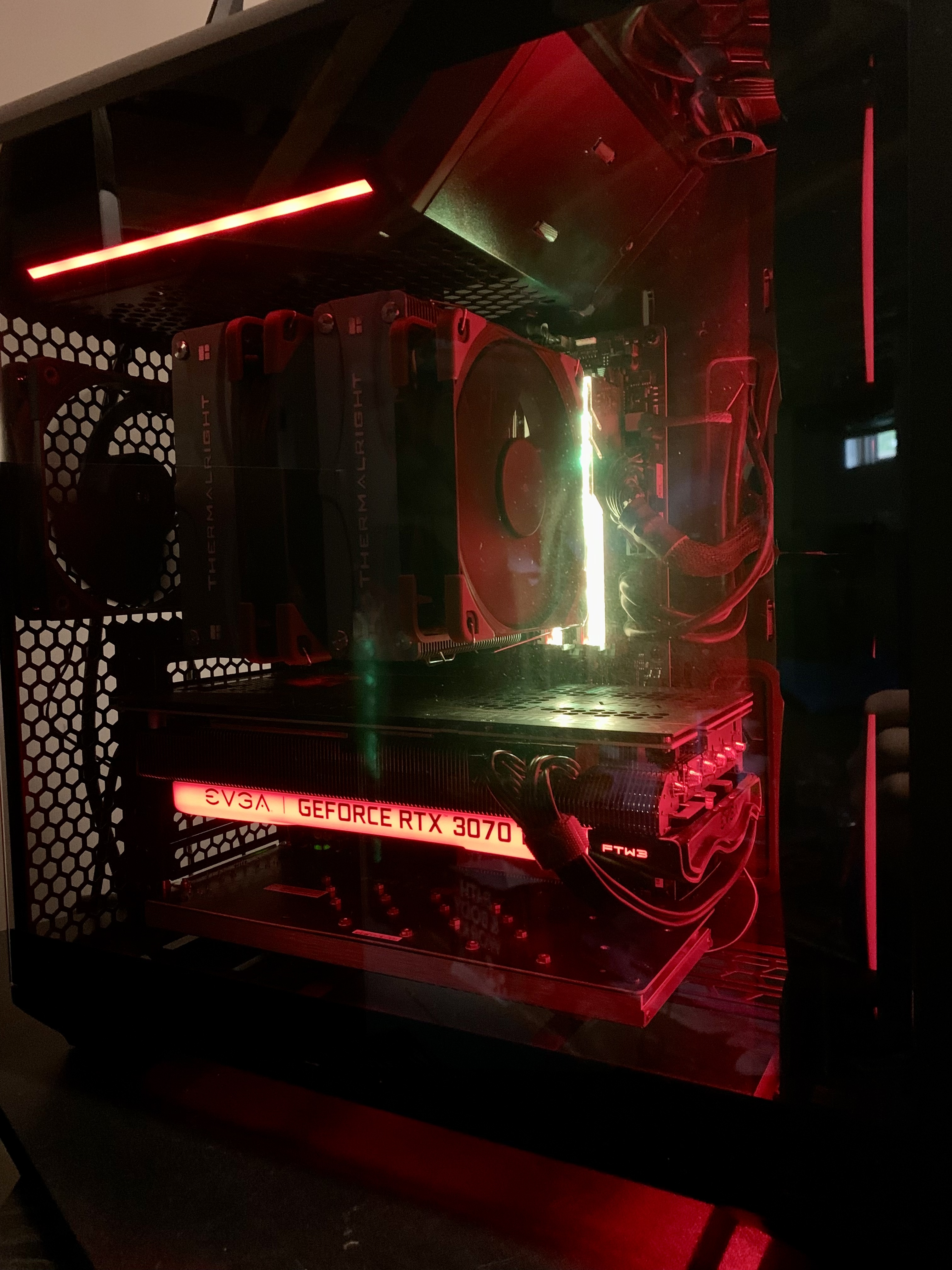

Just playing with lights..

Edit:

On the bigger screen she is lookin a bit dusty..

:laugh:

lexluthermiester · Aug 7, 2022

freeagent said:
Just playing with lights..

View attachment 257271 View attachment 257272

Edit:

On the bigger screen she is lookin a bit dusty..

To my eyes, the red looks better, but the white looks good too, if a bit bright.

xtreemchaos · Aug 7, 2022

+1 for the red "it matches my eyes after 5 hours in skyrim vr

" na i like red after black but black dont work on RBG unless someone knows better. good looking rigg bud well done.

jallenlabs · Aug 9, 2022

So I did a thing. Newegg had the 11700k on sale, with two Asrock boards as a combo. Basically got the boards for free, lol. Anyway, upgraded my lab rig with the 11700k and an ASRock Steel Legend z590 from the previous 11400 and ASRock Pro4M Z590. Benching a OCing now. Hot chip. Still have to activate windows...

lexluthermiester · Aug 9, 2022

jallenlabs said:
Still have to activate windows...

If you need a product key;

KeysFan Software Holiday Sale: Arm Your Summer PC Build with the Latest Software

KeysFan is a international merchant of genuine, globally-valid software, today introducing the Software Holiday Sale. Give your Summer PC build the latest Genuine software, including your preferred editions of Windows 11 and Office 2021. There are also deals on multi-packs of various Windows and...

www.techpowerup.com

freeagent · Aug 12, 2022

Well, I pulled my kids 5600X system out of the old Define R4 and into my old Meshify C. I have 2x 120x38 Panaflo’s and a TY-147B underneath it up front. Since this is on the main floor, it has to be quiet.. it should be.. haven’t turned it on yet but this used to be my system

Its a little more forgiving with cabling than Torrent C lol..

freeagent · Aug 14, 2022

Moar airflow!1

Works good even with all of the filters installed

Animalpak · Aug 17, 2022

New fan's !

Cooler Master MasterFan SF120M, with switchable speed range.

Very very silent !

phill · Aug 20, 2022

I'll let the pic do the talking but here's a starter for 10 I guess for the upgrade project......

My 'little' girl Isabelle is turning 10 in a few days, so time we taught and showed her to get everything installed properly......

And here's a bit of a project for me when I can get around to it... Among with all the rest... An 'upgrade' (possibly side grade??) for myself.....

Well, wonder how well this will all go........

At least Isabelle managed to get her PC tested this evening and that's all working... Now tomorrow will be getting it installed in her case and tested...... Best get to bed soon or I'll be trying to plug something in the wrong place!!

Feel free to pop into my project thread, I'll put a bit more detail in there

Loving the thread as always everyone, loving the hardware!!

SN2716057 · Aug 20, 2022

Congrats to Isabelle in a few days.

freeagent · Aug 21, 2022

I managed to squeeze a 140mm fan into the back of the case :rockout:

I tried with my TL-D14X but the newer impeller would collide under the squeeze. My TY-143 is squeezed in nicely and secured using the stock 120mm mounting location :cool:

If you need an airflow orientated case for a simple, high performance system.. this one is ridiculous :laugh:

Edit:

Added a couple of drives.. extra RGB would suck right now lol..

Chicken Patty · Aug 25, 2022

How my PC currently sits. Although I get a new case Friday to play around with

stinger608 · Aug 25, 2022

Wow, @Chicken Patty , it's great to see you posting again!!!!!!!!!!

Chicken Patty · Aug 25, 2022

stinger608 said:
Wow, @Chicken Patty , it's great to see you posting again!!!!!!!!!!

Stinger what's going on? Yeah man, one way or another was snooping around TPU was just focused on other things. But trying to get back into it man. Community here is second to none. Glad to see you still around!

khemist · Aug 25, 2022

After spending loads on cases over the years, maybe my new setup is no case at all, just some tabletop standoffs.

I will have to watch out with spilling drinks, might place it in my tv unit.

Chicken Patty · Aug 25, 2022

khemist said:
After spending loads on cases over the years, maybe my new setup is no case at all, just some tabletop standoffs.

I will have to watch out with spilling drinks, might place it in my tv unit.

You like to live dangerously I see hehehe

HammerON · Aug 25, 2022

Chicken Patty said:
How my PC currently sits. Although I get a new case Friday to play around with

View attachment 259307

The infamous @Chicken Patty :toast:

Nice to hear from you again!!!

Chicken Patty · Aug 25, 2022

HammerON said:
The infamous @Chicken Patty
Nice to hear from you again!!!

What is up my dude? So many of you peeps are still around. This is awesome. As you see I still fiddled and blew up computers all this time. Made a build thread if you wanna check it out. Not much of a build, but gave a bit more info on why I was gone.

Yraggul666 · Aug 31, 2022

HELL->o everyone!
Finally made time to post some better pics.
Last thing left to do now is put on 140mm Noctua Industrials on the D15; if those don't help with the cooling...nothing will.
I do suspect that nothing will help because the problem is not the cooler itself, it's the thermal transfer inside the cpu because of the added L3 cache but hey, this is my last try.
My chair also arrived a few weeks ago, i expect my frame rate and skill to go up tenfold with this one...

phill · Sep 2, 2022

Apologies for these pics taking so long to get uploaded... Here's some of the builds I've been working on with my girls and for me over the last week or so... I'll keep quiet and let the pics do the talking....

So Isabelle's rig up and running....

Then Sophia's.....

They've been getting into Plants Vs Zombies and Isabelle tried out Sim City as well.... And we had to do a bit of a Heaven 4 test run just to check the temps

Then the girl friends (Rosie's) rig -

Then I thought, I'll try something different for a change....

And here they are altogether.....

And here's a bit of an insight to my upgrade.... Meet the case the two girls fit into lol

And my 5950X to my 3970X....

Had to get that done today as it was driving me nuts and whilst I needed to get to bed, I had to put these up

The 3970X system needs a little more work done to it, cable management and configuring in Windows and setting up Steam and so on, but otherwise

Then the big problem, trying to fit them all in the damn PC room..... :laugh:

I'll do a bit more in depth run through in my project log but hope these are a good starter

I'll do a spec list as well whilst I remember!!

Processor	AMD Ryzen 5900x
Motherboard	MSI x570s Carbon Max WiFi
Cooling	EK AIO 360. Phantek T30 fans.
Memory	32GB G.Skill 3600Mhz CL14
Video Card(s)	Zotac RTX 3070 Ti Trinity OC Watercooled
Storage	Samsung 980 SSD's
Display(s)	MSI MAG322CQR
Case	Lian Li PC 011 Dynamic Evo
Audio Device(s)	Schiit Modius DAC, SMSL SP200 amp. HiFiMan Sundara Headphones, PreSonus Eris 4.5" powered monitors.
Power Supply	Corsair H1000i
Mouse	Razer Viper V2 Pro
Keyboard	Fantech Maxfit 67
Software	Windows 11

Processor	AMD Ryzen 5900x
Motherboard	MSI x570s Carbon Max WiFi
Cooling	EK AIO 360. Phantek T30 fans.
Memory	32GB G.Skill 3600Mhz CL14
Video Card(s)	Zotac RTX 3070 Ti Trinity OC Watercooled
Storage	Samsung 980 SSD's
Display(s)	MSI MAG322CQR
Case	Lian Li PC 011 Dynamic Evo
Audio Device(s)	Schiit Modius DAC, SMSL SP200 amp. HiFiMan Sundara Headphones, PreSonus Eris 4.5" powered monitors.
Power Supply	Corsair H1000i
Mouse	Razer Viper V2 Pro
Keyboard	Fantech Maxfit 67
Software	Windows 11

System Name	Core
Processor	Intel 12700k
Motherboard	ASRock z690 Steel Legend
Cooling	CoolerMaster ML280 AIO H2O All Noctua Chromax fans
Memory	GSkill 64gb 3200mhz Cas 14
Video Card(s)	PNY Nvidia GTX 1660 Super
Storage	Optan 900p x3, 2x Crucial M500
Display(s)	Lenovo 32" 1440p 75hz
Case	Corsair Carbide
Audio Device(s)	Presonus Studio Monitors and Presonus Subwoofer fed by Schiit DaC
Power Supply	Seasonic 850w platinum, Custom sleeved cables by cable mod
Mouse	Razer
Keyboard	Gskill Mech.
VR HMD	Oculus Quest 2
Software	Win 10 Pro
Benchmark Scores	7339 PCMark 10

System Name	Black Box II
Processor	Ryzen 7 5800X
Motherboard	ASUS TUF Gaming X570-Plus Wifi
Cooling	Chromax Noctua NH-D15
Memory	32GB (4 x 8GB) TeamGroup 3200MHz
Video Card(s)	AMD Reference RX 6800
Storage	Crucial P1 (1TB) + Toshiba GX5 (256GB)
Display(s)	LG 34UC79G-B, BenQ GL2760-B
Case	CoolerMaster CM 690 III
Power Supply	ToughPower GF1 750W
Mouse	Logitech M705

System Name	Street Meat
Processor	AMD R7 5900X
Motherboard	Asus Strix B550-XE
Cooling	Thermalright Frost Commander 140 White
Memory	2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s)	EVGA RTX 3070 Ti FTW3 Ultra
Storage	WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s)	LG 50UP7100
Case	Fractal Torrent Compact RGB
Audio Device(s)	JBL 2.1 Deep Bass
Power Supply	EVGA G+ 750, Monster HDP1800
Mouse	Zowie EC2 Evo
Keyboard	Logitech G213
Software	Yes
Benchmark Scores	Yes
