ZOTAC Expands Silent ZONE Edition Lineup with GeForce GT 220 Model

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,518 (9.18/day)
Likes
17,526
Location
Hyderabad, India
System Name MRE-grade Potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 2x 8GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x ZOTAC GeForce GTX 970
Storage ADATA SU800 512GB + Intel SSD320 120GB + Patriot WildFire 120GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Cooler Master CM690 1st Gen
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
#1

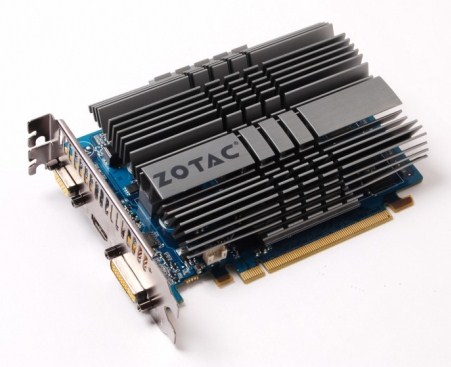

Powered by a high-performance NVIDIA GT 220 graphics processor with 48 CUDA cores and 1GB of high-speed DDR2 memory, the ZOTAC GeForce GT 220 ZONE Edition packs plenty of performance ready to take on the latest Microsoft DirectX 10.1, DirectCompute, OpenGL 3.2 and NVIDIA CUDA powered games and applications for lightning-fast video conversion, precise GPU-accelerated image editing and immersive gaming.

“ZOTAC is one of the leading manufacturers of silent graphics cards. Our lineup of ZOTAC GeForce ZONE Edition graphics cards has won many awards for the combination of performance and silent operation,” said Carsten Berger, marketing director, ZOTAC International. “The ZOTAC GeForce GT 220 ZONE Edition is the latest addition to our award-winning lineup that also brings support for Microsoft DirectX 10.1 and HDMI 1.3a technology for the best quiet computing experience for the price, whether you’re gaming or using it for a home theater PC.”



HDMI 1.3a with xvYCC, DeepColor, digital 8-channel LPCM audio output and NVIDIA PureVideo HD technologies transform the ZOTAC GeForce GT 220 ZONE Edition graphics card into the ultimate graphics card for home theater PCs by delivering richer colors, crystal clear multi-channel audio from loss-less Dolby TrueHD and DTS-HD: Master Audio tracks and GPU-accelerated high-definition video playback for VC-1, H.264, MPEG-2 and WMV video formats.

General details
  • New passive ZOTAC GeForce GT 220 ZONE Edition
  • Core clock: 625 MHz
  • 48 CUDA cores
  • Shader clock: 1360 MHz
  • 1GB DDR2 memory
  • 128-bit memory interface
  • Memory clock: 800 MHz
  • Dual-link DVI output
  • HDMI output (w/8-channel LPCM audio)
  • VGA output
  • PCI Express 2.0 interface (Compatible with 1.1)
  • HDMI 1.3a technology with xvYCC and DeepColor support
  • DirectX 10.1 with Shader Model 4.1 compatible
  • OpenGL 3.2 compatible
  • NVIDIA CUDA & PhysX ready
  • NVIDIA PureVideo HD technology
Source: Zotac


Easy Rhino

Linux Advocate
Joined
Nov 13, 2006
Messages
14,415 (3.52/day)
Likes
4,277
System Name VHOST01 | Desktop
Processor i7 980x | i5 7500 Kaby Lake
Motherboard Gigabyte x58 Extreme | AsRock MicroATX Z170M Exteme4
Cooling Prolimatech Megahelams | Stock
Memory 6x4 GB @ 1333 | 2x 8G Gskill Aegis DDR4 2400
Video Card(s) Nvidia GT 210 | Nvidia GTX 970 FTW+
Storage 4x2 TB Enterprise RAID5 |Corsair mForce nvme 250G
Display(s) N/A | Dell 27" 1440p 8bit GSYNC
Case Lian Li ATX Mid Tower | Corsair Carbide 400C
Audio Device(s) NA | On Board
Power Supply SeaSonic 500W Gold | Seasonic SSR-650GD Flagship Prime Series 650W Gold
Mouse N/A | Logitech G900 Chaos Spectrum
Keyboard N/A | Posiden Z RGB Cherry MX Brown
Software Centos 7 | Windows 10
#2
i dont see any way to connect hd audio to it so that the hdmi can pass dts-ma or true-hd ...

Joined
Aug 30, 2009
Messages
4,001 (1.30/day)
Likes
1,652
Location
Sarasota, Florida, USA
System Name Awesomesauce 4.3 | Laptop (MSI GE72VR 6RF Apache Pro-023)
Processor Intel Core i7-5820K 4.16GHz 1.28v/3GHz 1.05v uncore | Intel Core i7-6700HQ @ 3.1GHz
Motherboard Gigabyte GA-X99-UD5 WiFi LGA2011-v3| Stock
Cooling Corsair H100i v2 w/ 2x EK Vardar F4-120ER + various 120/140mm case fans | Stock
Memory G.Skill RJ-4 16GB DDR4-2666 CL15 quad channel | 12GB DDR4-2133
Video Card(s) ASUS ROG Strix A8G Gaming GTX 1080 @ 2075/1368 boost | NVIDIA GTX 1060 6GB +200/+500 + Intel 530
Storage Samsung 840 EVO 500GB + Seagate 3TB 7200RPM + others | Kingston 256GB M.2 SATA + 1TB 7200RPM
Display(s) Acer G257HU 1440p 60Hz AH-IPS 4ms | 17.3" 1920*1080 60Hz wide angle TN notebook panel
Case Fractal Design Define XL R2 | MSI
Audio Device(s) Creative Sound Blaster Z | Realtek with quad stereo speakers and subwoofer
Power Supply Corsair HX850i Platinum | 19.5v 180w Delta brick
Software Windows 10 Pro x64 | Windows 10 Home x64
Benchmark Scores GTX 1080 please?
#3
1GB of high-speed DDR2 memory
Any DDR3 GT220 card would probably beat this. DDR2 is just too slow for a 128bit bus for 48 shaders. 8600GT had 32 shaders and 256bit GDDR3.

Woot 555 posts. :D


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,518 (9.18/day)
Likes
17,526
Location
Hyderabad, India
System Name MRE-grade Potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 2x 8GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x ZOTAC GeForce GTX 970
Storage ADATA SU800 512GB + Intel SSD320 120GB + Patriot WildFire 120GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Cooler Master CM690 1st Gen
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
#4
Joined
Nov 8, 2008
Messages
626 (0.19/day)
Likes
88
Location
Finland (northern)
System Name Getting old!
Processor AMD Phenom II X4 965 @ 3,9Ghz
Motherboard Gigabyte GA-MA790GP-UD4H
Cooling About sufficient air cooling
Memory 4GB Dominator DDR2 1066 @1040Mhz
Video Card(s) Club 3D Radeon HD6950 1GB
Storage 120GB Kingston SSDNow 200V+, 1TB Samsung Spinpoint F3
Display(s) Crossover 27Q LED-P (lovely!)
Case Antec Three Hundred
Audio Device(s) Integrated -> optical -> HELIX P DSP
Power Supply Corsair HX620W
Software Win7 64-bit
Benchmark Scores 3DMark11 P5285 WPrime 1.55 10,15 sec Super Pi Mod 1.5 17,920 sec
#5
Looks like old car amplifier on a pci-e board :p

Joined
Jan 2, 2009
Messages
731 (0.22/day)
Likes
102
Processor Intel Core i5-3470 3.2 GHz Quad-core Ivy Bridge
Motherboard ASUS P8Z77-M Z77
Cooling ID-COOLING IS-50 TDP 130W
Memory Kingston HyperX Genesis 2x4 GB DDR3 @ 1866MHz 9-11-9-27-1T
Video Card(s) ZOTAC GeForce® GTX 1070 AMP Edition (ZT-P10700C-10P)
Storage WD SiliconEdge Blue 64 GB SSD, Kingston SSDNow! 240 GB SSD, WD RE4 1 TB HDD
Display(s) LN-T4065F FullHD LCD TV
Power Supply Raidmax RX-1000AE 1000W 80 Plus Gold
Mouse Logitech G402 Hyperion Fury FPS Gaming Mouse (Defective MOUSE3)
Keyboard Logitech K120
Software Windows 10 Pro 64-bit
#6
Any DDR3 GT220 card would probably beat this. DDR2 is just too slow for a 128bit bus for 48 shaders. 8600GT had 32 shaders and 256bit GDDR3.
Actually, it had a 128-bit GDDR3 bus, not 256bit.


Easy Rhino

Linux Advocate
Joined
Nov 13, 2006
Messages
14,415 (3.52/day)
Likes
4,277
System Name VHOST01 | Desktop
Processor i7 980x | i5 7500 Kaby Lake
Motherboard Gigabyte x58 Extreme | AsRock MicroATX Z170M Exteme4
Cooling Prolimatech Megahelams | Stock
Memory 6x4 GB @ 1333 | 2x 8G Gskill Aegis DDR4 2400
Video Card(s) Nvidia GT 210 | Nvidia GTX 970 FTW+
Storage 4x2 TB Enterprise RAID5 |Corsair mForce nvme 250G
Display(s) N/A | Dell 27" 1440p 8bit GSYNC
Case Lian Li ATX Mid Tower | Corsair Carbide 400C
Audio Device(s) NA | On Board
Power Supply SeaSonic 500W Gold | Seasonic SSR-650GD Flagship Prime Series 650W Gold
Mouse N/A | Logitech G900 Chaos Spectrum
Keyboard N/A | Posiden Z RGB Cherry MX Brown
Software Centos 7 | Windows 10
#7
It's done over PCI-Express.
that is if the motherboard can decode dts-ma and true-hd which is doubtful. which means software has to do it and that would be pretty slow.
