ZOTAC H67-ITX WiFi Combines LGA1155 Socket Processors with Mini-ITX Form Factor

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,484 (9.19/day)
Likes
17,515
Location
Hyderabad, India
#1
ZOTAC International, a leading innovator and the world’s largest channel manufacturer of graphics cards, today kicks off the 2011 Consumer Electronics Show with the H67-ITX WiFi – a miniature 2nd Generation Intel Core platform. The ZOTAC H67-ITX WiFi takes the mini-ITX form factor to new heights of performance, energy-efficiency and integrated graphics capabilities.

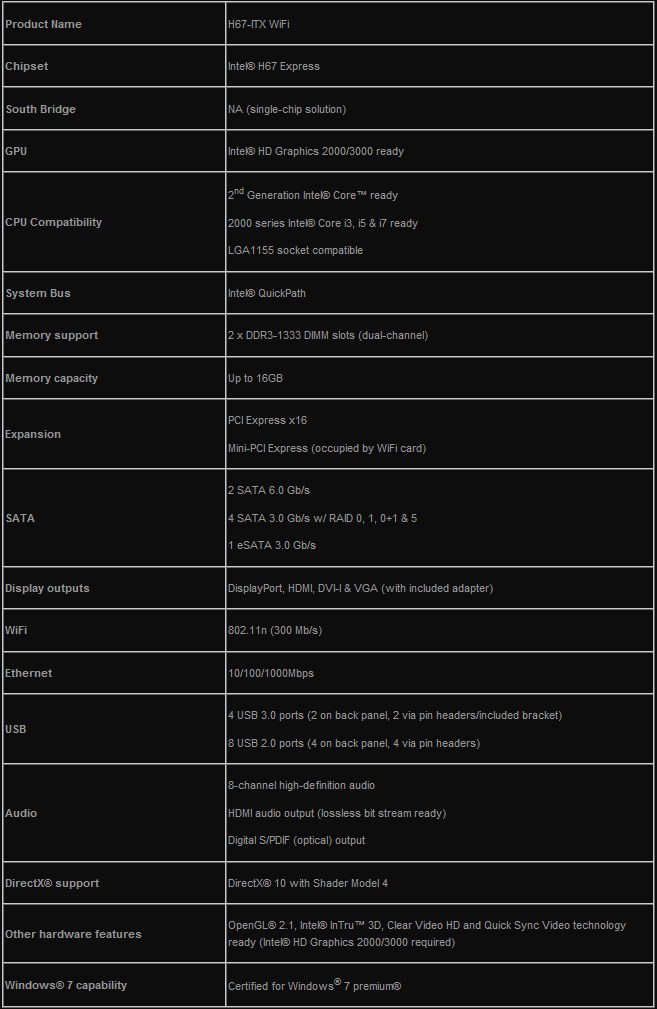

Equipped with the Intel H67 Express chipset, the ZOTAC H67-ITX WiFi supports the latest LGA1155 2nd Generation Intel Core family processors including 2000 series Core i3, i5 and i7 processors. The ZOTAC H67-ITX WiFi goes beyond the capabilities of the 2nd Generation Intel Core platform and accommodates processors up to 130-watt TDP – above the 95-watts required by the fastest Intel Core i7 processor – for additional overclocking headroom that appeals to the most demanding enthusiasts.



“ZOTAC has a broad line-up of mini-ITX platforms and continues to push the limits of what is possible in such a small form factor,” said Carsten Berger, marketing director, ZOTAC International. “The H67-ITX WiFi is our new flagship and the perfect scalable platform that lets users select their ideal level of performance needs – whether it is dual or quad-core processing, integrated Intel HD Graphics 2000/3000 or a high-performance ZOTAC GeForce series graphics card – the H67-ITX WiFi supports it all.”

Integrated Intel HD Graphics 2000/3000 is supported on the ZOTAC H67-ITX WiFi via DisplayPort, HDMI, DVI-I and VGA [with the included adapter] for connectivity with the latest digital and legacy analogue displays.

Intel HD Graphics 2000/3000 with InTru 3D technology is capable of decoding two simultaneous 1080p video streams for flawless Blu-ray 3D playback when connecting the ZOTAC H67-ITX WiFi to a compatible HDMI 1.4a display. Accompanying Dolby TrueHD and DTS-HD Master Audio formats on Blu-ray and Blu-ray 3D movies can be sent directly to home theatre receivers in its raw state from the ZOTAC H67-ITX WiFi for crystal clear surround sound audio that delivers an outstanding digital entertainment experience pleasing to your eyes and ears.

Expansion is plentiful with the ZOTAC H67-ITX WiFi, including 2 SATA 6.0 Gb/s, 4 SATA 3.0 Gb/s with support for RAID 0, 1, 0+1 and 5, eSATA, up to 4 USB 3.0 ports and a PCI Express x16 expansion slot. On-board 802.11n WiFi and Gigabit Ethernet deliver network transfers up to 300 Mb/s wirelessly or 1000 Mb/s wired for lightning-fast network connectivity.


Joined
Mar 11, 2008
Messages
346 (0.10/day)
Likes
24
System Name Kincsem
Processor Core i7 3820
Motherboard GA-X79S-UP5-WIFI
Cooling Scythe Ashura
Memory Kingston 4×4GB 2133 cl11
Video Card(s) Powercolor 7970
Storage 96GB SSD +750+2000+1500
Display(s) Samsung 26" T260 + Dell 23" U2312HM
Case Cooler Master Centurion 590
Power Supply Corsair TX750
Software Windows7-64
Benchmark Scores http://valid.canardpc.com/rwh6sq https://www.dropbox.com/s/prcc36lhyxxw6j4/Intel%20i7%203820.png
#2
Joined
May 4, 2009
Messages
1,940 (0.61/day)
Likes
409
Location
Singapore
System Name penguin
Processor i3-4160
Motherboard Asus H81 Mini-ITX
Cooling Stock
Memory 2x4GB Kingston 1600MHz
Video Card(s) Saphire Radeon 7850 2GB
Storage Plextor M5S 120GB+1TB Seagate
Display(s) 23' Dell
Case CM Elite 130
Audio Device(s) stock
Power Supply Corsair CX430m
Software W7/Lubuntu
#3
the hardware is not capable but apparently intel are working a software solution that negates the flicker.

Joined
Sep 23, 2009
Messages
154 (0.05/day)
Likes
23
Location
Belgium
System Name Orange_box
Processor i5-3570K (@ 4.4 Jiggahurtz ;)
Motherboard P8Z77-I DELUXE
Cooling Thermalright Archon with 2 TY-140
Memory 16GB Corsair Vengence LP (1600)
Video Card(s) Asus GTX 1060 6G
Storage Samsung 850 EVO + Samsung 840 EVO + 4TB WD
Display(s) Samsung 24''
Case Bitfenix Prodigy (orange)
Audio Device(s) Asus Xonar U3
Power Supply Corsair 750 W
Mouse Roccat Kone
Keyboard Logitech (el cheapo)
Software W10pro x64 / Manjaro XFCE x64
Benchmark Scores who cares...
#4
Well, I think the time for a very small yet very capable machine has come... I mean not just HTPC but also SFF big gaming :cool:
It will be very interesting to see what the other player are cooking for mini-ITX format, but definitely mini-ITX for my next build...

Joined
Apr 29, 2008
Messages
742 (0.21/day)
Likes
134
Location
Auckland
System Name PBD
Processor Core i5 760 @ 4.0GHz
Motherboard Asus Maximus III Gene
Cooling Corsair H-50-1
Memory 4 x 4096mb G.Skill Ripjaws 1600 Cas7
Video Card(s) ASUS GTX 670 DirectCU TOP
Storage Crucial 256GB SSD (system) + 2x Samsung F3 1TB (storage) + 2x 2TB Raid-1 NAS (backup)
Display(s) Dell SP2309w 23" 2048x1152
Case Antec Max Fusion Remote
Power Supply Corsair AX750W
Software Win 7 Pro x64
#5
A gaming HTPC this way cometh.


Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
46,202 (9.52/day)
Likes
13,686
Location
Australalalalalaia.
System Name Daddy Long Legs
Processor Ryzen R7 1700, 3.9GHz 1.375v
Motherboard MSI X370 Gaming PRO carbon
Cooling Fractal Celsius S24 (Silent fans, meh pump)
Memory 16GB 2133 generic @ 2800
Video Card(s) MSI GTX 1080 Gaming X (BIOS modded to Gaming Z - faster and solved black screen bugs!)
Storage 1TB Intel SSD Pro 6000p (60TB USB3 storage)
Display(s) Samsung 4K 40" HDTV (UA40KU6000WXXY) / 27" Qnix 2K 110Hz
Case Fractal Design R5. So much room, so quiet...
Audio Device(s) Pioneer VSX-519V + Yamaha YHT-270 / sennheiser HD595/518 + Corsair Void RGB
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G403 + KKmoon desk-sized mousepad
Keyboard Corsair K65 Rapidfire
Software Windows 10 pro x64 (all systems)
Benchmark Scores Laptops: i7-4510U + 840M 2GB (touchscreen) 275GB SSD + 16GB i7-2630QM + GT 540M + 8GB
#6
the hardware is not capable but apparently intel are working a software solution that negates the flicker.
which means you'd have to use either intel codecs to decode the video, or intel software to play it back with. both are poor solutions.


$immond$

New Member
Joined
Nov 30, 2009
Messages
394 (0.13/day)
Likes
22
Location
Edmonton
Processor AMD 1055t 2.8Ghz
Motherboard ZOTAC 890GXITX-A-E AM3 (Mini ITX)
Cooling Asus Stock cooler
Memory 8Gb DDR3 1600Mhz
Storage 120 Gb Pheonix Sandforce 2 / WD 640 Gb Sata 3
Case Thermalrock Eclipse
Power Supply 500 Watt OCZ (Modular)
Software Windows 7 64 Pro
#7
Finally decent RAID support on an ITX platform!

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#8
Now we just need to see the Gigabyte version.


wolf

Performance Enthusiast
Joined
May 7, 2007
Messages
5,576 (1.43/day)
Likes
864
System Name MightyX (MITX)
Processor Core i7 4770K @ 4.2ghz
Motherboard Asus Z87i-Pro
Cooling Noctua NH-L12
Memory 16gb DDR3 1600 LP
Video Card(s) Gigabyte GTX1080 G1 OC
Storage Lots of SSD's
Display(s) AOC AGON AG352QCX
Case Raven RVZ-01
Power Supply SFX 450 G
Mouse Razer Mamba Tournament Chroma
Keyboard Razer Blackwidow X Chroma
#9
this is a fantastic improvement on the H55 mini ITX boards we have seen already, and will make for one kickass micro rig!

a 2500k or 2600k with anything around a GTX460/HD6850 would be an awesomely chop gaming rig for the size.

I cant wait for my first mini ITX build, it will be sometime this year for sure, but I want to see where gigabyte go with mini ITX and this chipset.

Joined
Nov 22, 2008
Messages
3,779 (1.13/day)
Likes
567
Location
Latin America, Uruguay
System Name The Lizard v2.4
Processor Intel Celeron G1840 (for the time being
Motherboard Gigabyte GA-H81-S2PH
Cooling Intel Stock Fan
Memory 16GB Kingston HyperX 1600
Video Card(s) MSI Gaming GTX 750Ti (For the time being)
Storage 500GB Samsung F1, 160GB Maxtor "Older than god"
Display(s) AOC 28' LCD
Case Coolermaster N200
Audio Device(s) Onboard
Power Supply Antec VP500P
Software Windows 7 Ultimate x64
Benchmark Scores No crashes in the last 24 minutes.
#10
im surprised it only has 7 capacitors ON THE WHOLE BOARD!. wouldn't that affect reliability?


JerryTsao

New Member
Joined
Apr 13, 2009
Messages
22 (0.01/day)
Likes
3
#11
Only 7 phases PSU on this motherboad in total, 3 for processor, 2 for DIMM and only 1 for PCIE, I'm worried about the thermal performance and the stability when installed 2 memories + a independent graphics card.

Joined
Jan 2, 2008
Messages
3,248 (0.89/day)
Likes
396
System Name Thakk
Processor i7 6700k @ 4.5Ghz
Motherboard Gigabyte G1 Z170N ITX
Cooling Deepcool Maelstrom 120k / H55
Memory 16GB Corsair LPX DDR4 2400
Video Card(s) GTX1080ti Founders Ed. AIO Cooled
Storage Corsair Force GT 120GB SSD / Intel 250GB SSD / Samsung Pro 512 SSD / 3TB Seagate SV32
Display(s) Acer Predator X34 100hz IPS Gsync / HTC Vive
Case Cougar QBX mini itx
Audio Device(s) Realtek ALC1150 > Creative Gigaworks T40 > AKG Q701
Power Supply Thermaltake 600w 140mm
Mouse Logitech G900
Keyboard Ducky Shine TKL MX Blue + Vortex PBT Doubleshots
Software Windows 10 64bit
Benchmark Scores http://www.3dmark.com/fs/12108888
#12
Hope they OC well. Been eyeing an sff setup lately. Asus' solution is crossed out for me due to it using weak laptop rams. Am going mini itx gaming as well (SG05 or 07). Those things fit in the bag lol
