Zotac Officially Launches the GeForce GTX 285 Infinity Edition Video Card


New Member
Nov 7, 2004
5,422 (1.12/day)
Processor Intel Core 2 Quad Q6600 G0 VID: 1.2125
Motherboard GIGABYTE GA-P35-DS3P rev.2.0
Cooling Thermalright Ultra-120 eXtreme + Noctua NF-S12 Fan
Memory 4x1 GB PQI DDR2 PC2-6400
Video Card(s) Colorful iGame Radeon HD 4890 1 GB GDDR5
Storage 2x 500 GB Seagate Barracuda 7200.11 32 MB RAID0
Display(s) BenQ G2400W 24-inch WideScreen LCD
Case Cooler Master COSMOS RC-1000 (sold), Cooler Master HAF-932 (delivered)
Audio Device(s) Creative X-Fi XtremeMusic + Logitech Z-5500 Digital THX
Power Supply Chieftec CFT-1000G-DF 1kW
Software Laptop: Lenovo 3000 N200 C2DT2310/3GB/120GB/GF7300/15.4"/Razer

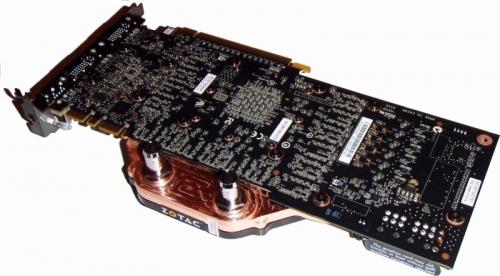

ZOTAC International, an award-winning manufacturer of graphics cards and motherboards, today unleashes the latest addition to its water-cooling ready Infinity Edition graphics card lineup – the ZOTAC GeForce GTX 285 Infinity Edition. The new ZOTAC GeForce GTX 285 Infinity Edition pairs the world’s fastest single graphics processor with a high-performance water-block for extreme performance and cooling. Cooled by a custom all-copper water-block, the ZOTAC GeForce GTX 285 Infinity Edition is able to operate at higher clock frequencies while maintaining lower operating temperatures than the existing award-winning ZOTAC GeForce GTX 200 series graphics cards. The ZOTAC GeForce GTX 285 Infinity Edition ships with a water-block preinstalled with standard fittings that enable users to integrate the card with existing or new water-cooling systems.

“We saw that high-end enthusiasts were using water-cooling systems increase overclocking performance and lower operating temperatures. With our ZOTAC GeForce GTX 285 Infinity Edition, we’re able to offer a water-cooling ready high-performance graphics card that integrates well with existing water-cooling components at a relatively low cost,” said Carsten Berger, marketing director, ZOTAC International.

Underneath the water-block is a slightly tweaked GeForce GTX 285 graphics processor with 240 overclocked stream processors and 1GB of screaming-fast GDDR3 video memory. The high-speed video memory connects to the graphics processor via an ultra-wide 512-bit memory bus for speedy communications that enable the GeForce GTX 285 Infinity Edition to render games with ultra quality settings at high-resolutions.

NVIDIA CUDA and PhysX technologies enables the ZOTAC GeForce GTX 285 Infinity Edition to go beyond gaming. CUDA technology enables the ZOTAC GeForce GTX 285 Infinity Edition to accelerate complex mathematical calculations. With CUDA technology, the ZOTAC GeForce GTX 285 Infinity Edition can manipulate and process high-resolution images and high-definition video faster than a quad-core processor.

“We’re moving beyond the traditional thought that graphics processors are just for games. With CUDA technology, application developers have been able to take advantage of the high-powered processing capabilities GPUs have. Companies such as Adobe and Elemental Technologies have released CUDA-enabled applications that take advantage of the graphics processor for image and video editing.” Mr. Berger added. “PhysX technology is also gaining traction with game developers, allowing realistic physics effects in the latest games and applications.”

The ZOTAC GeForce GTX 285 Infinity Edition supports NVIDIA SLI technology for users who demand more than one graphics card. Up to three ZOTAC GeForce GTX 285 series graphics cards can be installed in a single system for up to 2.8x the performance improvement of a single card.

To take advantage of the high-performance of the ZOTAC GeForce GTX 285 Infinity Edition, the card ships with a full copy of Race Driver GRID. Race Driver GRID puts gamers in the driver’s seat of various different cars from tuners, destruction derby, touring cars and muscle cars in real racetracks around the world for a driving experience that’s immersive and realistic.

ZOTAC is confident in the long-term reliability of the ZOTAC GeForce GTX 285 Infinity Edition and backs it with a ZOTAC Extended Warranty, with user registration. With the ZOTAC Extended Warranty, ZOTAC goes beyond the standard 2-year warranty to provide support for the ZOTAC GeForce GTX 285 Infinity Edition.

General details
  • New ZOTAC GeForce GTX 285 Infinity Edition
  • GeForce GTX 285 graphics processor
  • Custom water-block (3/8” fittings) (requires separate water cooling system)
  • Core clock: 722 MHz
  • 1GB of GDDR3 memory
  • 512-bit memory bus
  • Memory clock: 2700 MHz
  • 240 stream processors
  • Shader clock: 1584 MHz
  • Dual-link DVI
  • HDTV output
  • S/PDIF audio input
  • Bundled DVI-to-HDMI adapter & S/PDIF audio input cable
  • PCI Express 2.0 interface (Compatible with 1.1)
  • DirectX 10 with Shader Model 4.0 compatible
  • OpenGL 2.1 compatible
  • NVIDIA CUDA, PhysX, and PureVideo HD technology
  • Race Driver GRID Game Bundle
  • Extended Warranty
Source: Zotac
Dec 23, 2007
16,919 (4.60/day)
Omaha, NE
System Name The ShadowFold Draconis (Ordering soon)
Processor AMD Phenom II X6 1055T 2.8ghz
Motherboard ASUS M4A87TD EVO AM3 AMD 870
Cooling Stock
Memory Kingston ValueRAM 4GB DDR3-1333
Video Card(s) XFX ATi Radeon HD 5850 1gb
Storage Western Digital 640gb
Display(s) Acer 21.5" 5ms Full HD 1920x1080P
Case Antec Nine-Hundred
Audio Device(s) Onboard + Creative "Fatal1ty" Headset
Power Supply Antec Earthwatts 650w
Software Windows 7 Home Premium 64bit
Benchmark Scores -❶-❸-❸-❼-
I'm loving these pre-waterblock'd cards.
Oct 20, 2006
455 (0.11/day)
Hereford, England
Processor Intel Core i5 750
Motherboard Maximus III Formula P55
Cooling Ultima 90i
Memory 4GB Kingston HyperX
Video Card(s) PNY GTX465 @ GTX470 w/ 1280MB vRAM
Storage OCZ Vertex 2E 60GB + 2x1TB Samsung F1
Display(s) Samsung 245B
Case Black Cosmos S
Audio Device(s) Creative Audigy 2ZS
Power Supply Antec NeoHE 550W
Software 7 Ultimate 64bit, OSX
Zotac is getting better and better IMO!


Overclocking Surrealism
Sep 15, 2008
6,979 (2.04/day)
System Name Molly
Processor i5 3570K
Motherboard Z77 ASRock
Cooling CooliT Eco
Memory 2x4GB Mushkin Redline Ridgebacks
Video Card(s) Gigabyte GTX 680
Case Coolermaster CM690 II Advanced
Power Supply Corsair HX-1000
looks like a danger den block.


Performance Enthusiast
May 7, 2007
5,576 (1.43/day)
System Name MightyX (MITX)
Processor Core i7 4770K @ 4.2ghz
Motherboard Asus Z87i-Pro
Cooling Noctua NH-L12
Memory 16gb DDR3 1600 LP
Video Card(s) Gigabyte GTX1080 G1 OC
Storage Lots of SSD's
Display(s) AOC AGON AG352QCX
Case Raven RVZ-01
Power Supply SFX 450 G
Mouse Razer Mamba Tournament Chroma
Keyboard Razer Blackwidow X Chroma
