ZOTAC Unleashes Graphics Plus Mini-ITX Platform, the GeForce 8200-ITX WiFi

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,335 (9.23/day)
Likes
17,427
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#1

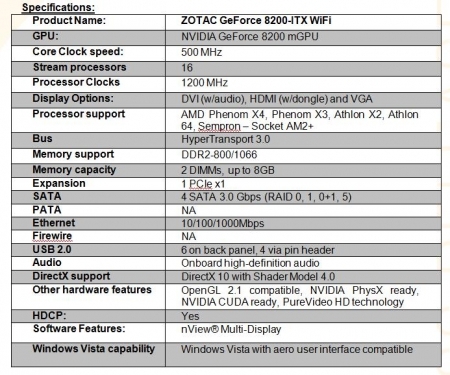

ZOTAC International, a leading manufacturer of NVIDIA-based motherboards and graphics cards, today unleashes its first Graphics Plus capable mini-ITX motherboard – the ZOTAC GeForce 8200-ITX WiFi. Powered by an NVIDIA GeForce 8200 mGPU, the ZOTAC GeForce 8200-ITX WiFi delivers NVIDIA unified architecture, NVIDIA CUDA, NVIDIA PureVideo HD and integrated WiFi technologies rolled up into a miniature 170mm x 170mm platform.

Show full news post

Joined
May 31, 2007
Messages
1,051 (0.27/day)
Likes
71
Location
Port Fairy, Victoria, Australia
System Name Rampage 3.0
Processor i7 3770K 4.2Ghz
Motherboard ASRock Z77 Extreme 4
Cooling Corsair 110 (280mm rad)
Memory 16GB G.Skill Sniper F3-1866 10-11-10 CR1
Video Card(s) 2 X gigabyte 7970 ghz edition @1100mhz / 6000mhz
Storage samsung 500 GB + 128GM crucial M4 ssd
Display(s) LG IPS235P 23in IPS 1080p
Case corsair vengance c70 - white
Audio Device(s) On Board
Power Supply Corsair HX-750w
Software Windows 7 Ultimate 64 bit
#2
very nice, if i dint have my htpc machine already i would be looking at getting this

all we need to know now is how much is it ?

Joined
Jul 29, 2008
Messages
326 (0.10/day)
Likes
37
Location
Kansas City, MO
System Name Thermaltake V3 Black
Processor i5 750 @ 4.0Ghz
Motherboard MSI P55-GD65
Cooling Prolimatech Megahalems Rev. B
Memory 4x2GB Dominator 1600Mhz
Video Card(s) HIS HD 5850 1GB
Storage Samsung 500GB Spinpoint F3 RAID 0
Display(s) Samsung 24" 245BW
Case Thermaltake V3 Black Edition
Audio Device(s) On Board
Power Supply PC P&C 610W
Software Windows 7 64-bit
#3
I have been sooo waiting for something like this. Hmmm, price around $140 maybe?


Pinchy

New Member
Joined
Apr 29, 2006
Messages
5,105 (1.20/day)
Likes
270
Location
Sydney, Australia
System Name UltraPC
Processor E8500 Core 2 Duo, 1333Mhz FSB, 3.16Ghz @ 4.5GHz (got into Windows @ 4.75GHz)
Motherboard ASUS P5Q-e
Cooling CPU Cooler - TT V14 Pro, 2x120mm CM Blue LED fans, 1x90mm CM Blue LED fan
Memory G.Skill Pi 4GB (2x2GB) Dual Channel DDR2 PC8000 (1000MHz), 5-5-5-15
Video Card(s) Sapphire HD4850 512mb with ASUS EAH4850 BIOS
Storage 2x 500GB Seagate 7200.12 Raid 0
Display(s) Acer AL1912, 19" LCD screen
Case Thermaltake Soprano Black ATX case
Audio Device(s) Onboard 7.1, Speakers - 5 + Sub + Monitor speakers
Power Supply Thermaltake 850W Toughpower Cable Management - Quad (2x18A and 2x30A) 12V rails
Software Win 7 Pro x64, MSN, CS:Source, etc etc
#4
Well their 7100 ITX board is like $60, so it shouldnt be that expensive.

I wish they were sold around here :(


erocker

Senior Moderator
Staff member
Joined
Jul 19, 2006
Messages
42,381 (10.17/day)
Likes
18,023
Processor Intel i7 8700k
Motherboard Gigabyte z370 AORUS Gaming 7
Cooling Water
Memory 16gb G.Skill 4000 MHz DDR4
Video Card(s) Evga GTX 1080
Storage 3 x Samsung Evo 850 500GB, 1 x 250GB, 2 x 2TB HDD
Display(s) Nixeus EDG27
Case Thermaltake X5
Power Supply Corsair HX1000i
Mouse Zowie EC1-B
Software Windows 10
#5
HDMI would be nice.:ohwell:


DarkMatter

New Member
Joined
Oct 5, 2007
Messages
1,714 (0.46/day)
Likes
182
Processor Intel C2Q Q6600 @ Stock (for now)
Motherboard Asus P5Q-E
Cooling Proc: Scythe Mine, Graphics: Zalman VF900 Cu
Memory 4 GB (2x2GB) DDR2 Corsair Dominator 1066Mhz 5-5-5-15
Video Card(s) GigaByte 8800GT Stock Clocks: 700Mhz Core, 1700 Shader, 1940 Memory
Storage 74 GB WD Raptor 10000rpm, 2x250 GB Seagate Raid 0
Display(s) HP p1130, 21" Trinitron
Case Antec p180
Audio Device(s) Creative X-Fi PLatinum
Power Supply 700W FSP Group 85% Efficiency
Software Windows XP
#7
What would be nice is a 16x pci-e slot :pimp:
Most video cards are longer than that mobo, I think. At least any card that would be a real upgrade over that integrated 8200 anyway.


Pinchy

New Member
Joined
Apr 29, 2006
Messages
5,105 (1.20/day)
Likes
270
Location
Sydney, Australia
System Name UltraPC
Processor E8500 Core 2 Duo, 1333Mhz FSB, 3.16Ghz @ 4.5GHz (got into Windows @ 4.75GHz)
Motherboard ASUS P5Q-e
Cooling CPU Cooler - TT V14 Pro, 2x120mm CM Blue LED fans, 1x90mm CM Blue LED fan
Memory G.Skill Pi 4GB (2x2GB) Dual Channel DDR2 PC8000 (1000MHz), 5-5-5-15
Video Card(s) Sapphire HD4850 512mb with ASUS EAH4850 BIOS
Storage 2x 500GB Seagate 7200.12 Raid 0
Display(s) Acer AL1912, 19" LCD screen
Case Thermaltake Soprano Black ATX case
Audio Device(s) Onboard 7.1, Speakers - 5 + Sub + Monitor speakers
Power Supply Thermaltake 850W Toughpower Cable Management - Quad (2x18A and 2x30A) 12V rails
Software Win 7 Pro x64, MSN, CS:Source, etc etc
#8
Most video cards are longer than that mobo, I think. At least any card that would be a real upgrade over that integrated 8200 anyway.
HD4670 isnt, and has the performance of an HD3850 :)


DarkMatter

New Member
Joined
Oct 5, 2007
Messages
1,714 (0.46/day)
Likes
182
Processor Intel C2Q Q6600 @ Stock (for now)
Motherboard Asus P5Q-E
Cooling Proc: Scythe Mine, Graphics: Zalman VF900 Cu
Memory 4 GB (2x2GB) DDR2 Corsair Dominator 1066Mhz 5-5-5-15
Video Card(s) GigaByte 8800GT Stock Clocks: 700Mhz Core, 1700 Shader, 1940 Memory
Storage 74 GB WD Raptor 10000rpm, 2x250 GB Seagate Raid 0
Display(s) HP p1130, 21" Trinitron
Case Antec p180
Audio Device(s) Creative X-Fi PLatinum
Power Supply 700W FSP Group 85% Efficiency
Software Windows XP
#9
Well, you missed the point. Maybe you can put some cards there, but they would be very tall too. I said long just to not say big (because the area would not be bigger) and thought that the idea would be understood. I personally wouldn't want my small build to be as tall as its footprint. Anyway, I don't have one at hand but:

http://www.overclockercafe.com/Reviews/VGA/HIS_HD4670_Turbo/pg2.htm

According to them the IceQ card is 188mm long, while this mobo is 170x170. Yes, the IceQ cooler exceeds the PCB, but how much? I would say the PCB is in fact 170mm long, so even if you could essentially put one there, it would be very difficult.

TBH I said long just to not say all the things that would not be OK with a "powerful" card in such a setup. Nevermind:

- Space: you need a place to put the slot and in a place that doesn't get in the way of the CPU cooler or other parts, etc. The mobo has to be bigger.
- Power. That moherboard can't feed a PCI-E card, I'm sure. The required circuitry to do so would make it even bigger.
- CPU, more power and size: to take advantage of a more powerful card you would require more powerful CPUs than the ones this mobo was probably designed for, and the CPU would require a bigger cooler. That if the mobo supports fast CPUs. I know it says it supports Phenom, but this looks like the kind of motherboard that claims support for all CPUs and more, and then has severe TDP limitations, which is normal after all.
- PSU, more power and size again: all of the above means a bigger PSU, that at the same time means higher power consumtion. That could not matter, but IMO size and price, yes. What would be the point of creating a small and cheap mobo that requires a normal PSU or very powerful and expensive small ones to run?


Pinchy

New Member
Joined
Apr 29, 2006
Messages
5,105 (1.20/day)
Likes
270
Location
Sydney, Australia
System Name UltraPC
Processor E8500 Core 2 Duo, 1333Mhz FSB, 3.16Ghz @ 4.5GHz (got into Windows @ 4.75GHz)
Motherboard ASUS P5Q-e
Cooling CPU Cooler - TT V14 Pro, 2x120mm CM Blue LED fans, 1x90mm CM Blue LED fan
Memory G.Skill Pi 4GB (2x2GB) Dual Channel DDR2 PC8000 (1000MHz), 5-5-5-15
Video Card(s) Sapphire HD4850 512mb with ASUS EAH4850 BIOS
Storage 2x 500GB Seagate 7200.12 Raid 0
Display(s) Acer AL1912, 19" LCD screen
Case Thermaltake Soprano Black ATX case
Audio Device(s) Onboard 7.1, Speakers - 5 + Sub + Monitor speakers
Power Supply Thermaltake 850W Toughpower Cable Management - Quad (2x18A and 2x30A) 12V rails
Software Win 7 Pro x64, MSN, CS:Source, etc etc
#10
Well, you missed the point. Maybe you can put some cards there, but they would be very tall too. I said long just to not say big (because the area would not be bigger) and thought that the idea would be understood. I personally wouldn't want my small build to be as tall as its footprint. Anyway, I don't have one at hand but:

http://www.overclockercafe.com/Reviews/VGA/HIS_HD4670_Turbo/pg2.htm

According to them the IceQ card is 188mm long, while this mobo is 170x170. Yes, the IceQ cooler exceeds the PCB, but how much? I would say the PCB is in fact 170mm long, so even if you could essentially put one there, it would be very difficult.

TBH I said long just to not say all the things that would not be OK with a "powerful" card in such a setup. Nevermind:

- Space: you need a place to put the slot and in a place that doesn't get in the way of the CPU cooler or other parts, etc. The mobo has to be bigger.
- Power. That moherboard can't feed a PCI-E card, I'm sure. The required circuitry to do so would make it even bigger.
- CPU, more power and size: to take advantage of a more powerful card you would require more powerful CPUs than the ones this mobo was probably designed for, and the CPU would require a bigger cooler. That if the mobo supports fast CPUs. I know it says it supports Phenom, but this looks like the kind of motherboard that claims support for all CPUs and more, and then has severe TDP limitations, which is normal after all.
- PSU, more power and size again: all of the above means a bigger PSU, that at the same time means higher power consumtion. That could not matter, but IMO size and price, yes. What would be the point of creating a small and cheap mobo that requires a normal PSU or very powerful and expensive small ones to run?
The height of the card wont matter if you get a case that mounts the HDD's/optical drive straight on top of the CPU. Only thing you will need to worry about is that most ITX cases have half height brackets, but im sure you can do a little mod.

Stock CPU cooler wouldnt affect the PCIe card

If you put an AMD 4850e in there, there should be enough power to cover the PCIe slot. Ie, 4850e has a TDP of 45W, PCIe has a TDP of 75W; 120W combined. Less than the 125W TDP of certain phenoms.

A 4850e wont bottleneck an HD4670

The 4670 doesnt have an external power connector, so it doesnt use that much power. You can pick up 200W ITX PSU's for pretty cheap, so it shouldnt be too much of a problem.

Also as you said an HD4670 is around 17cm long, and looking at that picture, there is nothing in the way of a gfx card that goes all the way across the board.

EDIT - here is a case that should be good for it :): http://www.sunbeamtech.com/PRODUCTS/MINI-ITX/MINI-ITX.html

Last edited:

DarkMatter

New Member
Joined
Oct 5, 2007
Messages
1,714 (0.46/day)
Likes
182
Processor Intel C2Q Q6600 @ Stock (for now)
Motherboard Asus P5Q-E
Cooling Proc: Scythe Mine, Graphics: Zalman VF900 Cu
Memory 4 GB (2x2GB) DDR2 Corsair Dominator 1066Mhz 5-5-5-15
Video Card(s) GigaByte 8800GT Stock Clocks: 700Mhz Core, 1700 Shader, 1940 Memory
Storage 74 GB WD Raptor 10000rpm, 2x250 GB Seagate Raid 0
Display(s) HP p1130, 21" Trinitron
Case Antec p180
Audio Device(s) Creative X-Fi PLatinum
Power Supply 700W FSP Group 85% Efficiency
Software Windows XP
#11
The height of the card wont matter if you get a case that mounts the HDD's/optical drive straight on top of the CPU. Only thing you will need to worry about is that most ITX cases have half height brackets, but im sure you can do a little mod.

Stock CPU cooler wouldnt affect the PCIe card

If you put an AMD 4850e in there, there should be enough power to cover the PCIe slot. Ie, 4850e has a TDP of 45W, PCIe has a TDP of 75W; 120W combined. Less than the 125W TDP of certain phenoms.

A 4850e wont bottleneck an HD4670

The 4670 doesnt have an external power connector, so it doesnt use that much power. You can pick up 200W ITX PSU's for pretty cheap, so it shouldnt be too much of a problem.

Also as you said an HD4670 is around 17cm long, and looking at that picture, there is nothing in the way of a gfx card that goes all the way across the board.

EDIT - here is a case that should be good for it :): http://www.sunbeamtech.com/PRODUCTS/MINI-ITX/MINI-ITX.html
First of all that case seems big to me for a mini-itx PC. The fact that it supports micro-atx PSUs kind of confirm that to me. I took as granted that the whole point of these boards was to create even smaller builds with really low power consumption. 200w is not low enough, you have micro-itx for that.

Second, I don't see where you see space in that board for a PCI-E slot, as there's no one, put one and it no longer will be mini-itx. It would make it more like a mini-dtx.

Third, as I said the fact that it supports Phenoms, does not mean that it supports higher-end higher TDP Phenoms. Probably it supports 95w Phenoms but no more. So there it goes your theory down the window. But's let's imagine it supports and can deliver 125W.

So finally, yeah those are some pretty numbers you posted. Thing is that both the 4850e and the HD4670 consume every bit of their TDP and we want to run our machine isn't it? Let's start by forgetting that common mini-itx PSUs deliver 110W, maybe up to 150w and only high-end ones deliver more, and take the 200w one you mentioned. Let's just not forget about efficiency because in these low power envelopes we will be moving in it does matter. A typical 80% efficiency puts our PSU at 160W maximum.

Ok so we have the CPU+GPU for 125w.
What about the chipset? And memory? Add 25w (at least) to your figure, thanks (125+25=150w). Want storage? Yeah, off course, one of those SSDs, they consume very little... Yeah, very little but realistically 5w (155w).
Are we really going to put that cards into such a small case with passive cooling? Taking into account the cooler can't be too big , obviously not. A pair of fans, one for the CPU, will suck around 5w (160w). <<-- We already broke the point of mini-itx versus micro-itx by using fans BTW.

We want a keyboard and mouse right, and want the USB devices in general to work when we plug them in so all that will probably take another 10W. So we surpassed those 160W to a point that would probably make our system unstable, but let's go back to reality: no way the mobo only consumes 25w, especially when we are using wi-fi.

All in all, yeah, we can fit a card by making it a little bit longer, we can use more powerful PSUs than the ones proposed for mini-itx and we can add a "fast" CPU by adding the required cooling. BUT you know what? You no longer are building a mini-itx PC and definately you don't want one. If at all you want one of the smallest micro-itx boards that could support better all those things at the expense of being more expensive, noisy and hungry.


Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
46,122 (9.57/day)
Likes
13,550
Location
Australalalalalaia.
System Name Daddy Long Legs
Processor Ryzen R7 1700, 3.9GHz 1.375v
Motherboard MSI X370 Gaming PRO carbon
Cooling Fractal Celsius S24 (Silent fans, meh pump)
Memory 16GB 2133 generic @ 2800
Video Card(s) MSI GTX 1080 Gaming X (BIOS modded to Gaming Z - faster and solved black screen bugs!)
Storage 1TB Intel SSD Pro 6000p (60TB USB3 storage)
Display(s) Samsung 4K 40" HDTV (UA40KU6000WXXY) / 27" Qnix 2K 110Hz
Case Fractal Design R5. So much room, so quiet...
Audio Device(s) Pioneer VSX-519V + Yamaha YHT-270 / sennheiser HD595/518 + bob marley zion's
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G403 + KKmoon desk-sized mousepad
Keyboard Corsair K65 Rapidfire
Software Windows 10 pro x64 (all systems)
Benchmark Scores Laptops: i7-4510U + 840M 2GB (touchscreen) 275GB SSD + 16GB i7-2630QM + GT 540M + 8GB
#12
another nice ITX board. now we just need ITX cases available at a decent price.

location of the wireless card is bad, it might block airflow to the heatsink.

Joined
Apr 7, 2006
Messages
7,404 (1.73/day)
Likes
663
#13
Who fucking cares about how big it is and how much juice it takes man...A little ingenuity is all ya' need.

There are 16x pci-e ribbon riser, so you can lay the card flat...either on top or bottom of the mitx board.


Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
46,122 (9.57/day)
Likes
13,550
Location
Australalalalalaia.
System Name Daddy Long Legs
Processor Ryzen R7 1700, 3.9GHz 1.375v
Motherboard MSI X370 Gaming PRO carbon
Cooling Fractal Celsius S24 (Silent fans, meh pump)
Memory 16GB 2133 generic @ 2800
Video Card(s) MSI GTX 1080 Gaming X (BIOS modded to Gaming Z - faster and solved black screen bugs!)
Storage 1TB Intel SSD Pro 6000p (60TB USB3 storage)
Display(s) Samsung 4K 40" HDTV (UA40KU6000WXXY) / 27" Qnix 2K 110Hz
Case Fractal Design R5. So much room, so quiet...
Audio Device(s) Pioneer VSX-519V + Yamaha YHT-270 / sennheiser HD595/518 + bob marley zion's
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G403 + KKmoon desk-sized mousepad
Keyboard Corsair K65 Rapidfire
Software Windows 10 pro x64 (all systems)
Benchmark Scores Laptops: i7-4510U + 840M 2GB (touchscreen) 275GB SSD + 16GB i7-2630QM + GT 540M + 8GB
#14
hmm i just read other comments... guys, i've got my media PC (2.1Ghz A64 4000+ and radeon HD3200) using 50W at load. you can get half heigh 9600GT's, so you could quite possibly make a powerful media PC using these boards.


Pinchy

New Member
Joined
Apr 29, 2006
Messages
5,105 (1.20/day)
Likes
270
Location
Sydney, Australia
System Name UltraPC
Processor E8500 Core 2 Duo, 1333Mhz FSB, 3.16Ghz @ 4.5GHz (got into Windows @ 4.75GHz)
Motherboard ASUS P5Q-e
Cooling CPU Cooler - TT V14 Pro, 2x120mm CM Blue LED fans, 1x90mm CM Blue LED fan
Memory G.Skill Pi 4GB (2x2GB) Dual Channel DDR2 PC8000 (1000MHz), 5-5-5-15
Video Card(s) Sapphire HD4850 512mb with ASUS EAH4850 BIOS
Storage 2x 500GB Seagate 7200.12 Raid 0
Display(s) Acer AL1912, 19" LCD screen
Case Thermaltake Soprano Black ATX case
Audio Device(s) Onboard 7.1, Speakers - 5 + Sub + Monitor speakers
Power Supply Thermaltake 850W Toughpower Cable Management - Quad (2x18A and 2x30A) 12V rails
Software Win 7 Pro x64, MSN, CS:Source, etc etc
#15
First of all that case seems big to me for a mini-itx PC. The fact that it supports micro-atx PSUs kind of confirm that to me. I took as granted that the whole point of these boards was to create even smaller builds with really low power consumption.
I'm pretty sure those case dimensions and a 200W PSU is a lot smaller and less powerful than most mATX HTPC's. Your saying that they only make these boards for low powered extremely small systems...im sure its not illegal for people who want an HTPC smaller than a mATX or micro ITX to go mini-ITX.

200w is not low enough, you have micro-itx for that.
So I am going to get a larger board because I want to use a larger power supply :wtf:

Second, I don't see where you see space in that board for a PCI-E slot, as there's no one, put one and it no longer will be mini-itx. It would make it more like a mini-dtx.
Where the PCIe 1x slot is?

Third, as I said the fact that it supports Phenoms, does not mean that it supports higher-end higher TDP Phenoms. Probably it supports 95w Phenoms but no more. So there it goes your theory down the window. But's let's imagine it supports and can deliver 125W.

So finally, yeah those are some pretty numbers you posted. Thing is that both the 4850e and the HD4670 consume every bit of their TDP and we want to run our machine isn't it? Let's start by forgetting that common mini-itx PSUs deliver 110W, maybe up to 150w and only high-end ones deliver more, and take the 200w one you mentioned. Let's just not forget about efficiency because in these low power envelopes we will be moving in it does matter. A typical 80% efficiency puts our PSU at 160W maximum.

Ok so we have the CPU+GPU for 125w.
What about the chipset? And memory? Add 25w (at least) to your figure, thanks (125+25=150w). Want storage? Yeah, off course, one of those SSDs, they consume very little... Yeah, very little but realistically 5w (155w).
Are we really going to put that cards into such a small case with passive cooling? Taking into account the cooler can't be too big , obviously not. A pair of fans, one for the CPU, will suck around 5w (160w). <<-- We already broke the point of mini-itx versus micro-itx by using fans BTW.

We want a keyboard and mouse right, and want the USB devices in general to work when we plug them in so all that will probably take another 10W. So we surpassed those 160W to a point that would probably make our system unstable, but let's go back to reality: no way the mobo only consumes 25w, especially when we are using wi-fi.
You got some extremely pretty numbers there, all of which I would like to see accounted for with some proof.

http://www.techpowerup.com/reviews/HIS/HD_4670_IceQ_Turbo/24.html

Please tell me that a 4850e is going to use more power than an e8400 @ 3.6GHz under full load.

Oh, and that review doesnt even use an SSD.

We already broke the point of mini-itx versus micro-itx by using fans BTW.
I don't understand what your trying to get at here. Your saying we should stick to standards by not using fans and following guidelines. Your trying to tell me we can't use a fan in a computer system because it will break the rules of "mini-ITX"?

I don't know about you, but if I can fit a fan into my mini-ITX build I will put it there, even if it breaks the "point of the system".


All in all, yeah, we can fit a card by making it a little bit longer, we can use more powerful PSUs than the ones proposed for mini-itx and we can add a "fast" CPU by adding the required cooling. BUT you know what? You no longer are building a mini-itx PC and definately you don't want one. If at all you want one of the smallest micro-itx boards that could support better all those things at the expense of being more expensive, noisy and hungry.
Oh surely we are not allowed to use bigger PSU's than whats proposed. That might break the "point" of a mini-ITX board.


No offence mate, but you sound like your writing directly out of a textbook.

I mean, what if I want a computer that is just as powerful as my HTPC but smaller? I don't care about power consumption because I just want it to be smaller. Are you saying I shouldn't do this because it will break the point of a mini-ITX setup? Your telling me I should just suck it up and go micro-ITX/mATX because my power supply is above 100w?

Joined
Apr 17, 2008
Messages
75 (0.02/day)
Likes
2
Location
Jogja, Indonesia Republic
System Name d2eamachine
Processor i5 2500k
Motherboard asrock z68 ext3
Cooling custom watercooling
Memory corsair vengeance 2x8GB
Video Card(s) msi gtx480 lightning
Storage 60GBssd, 2x320GB, 2TB, 1TB
Display(s) ViewSonic VX2250 series + LG 22"
Case thermaltake v4 black
Audio Device(s) onboard
Power Supply pcp n cooling silencer 750watt
Software Windows 7 build 7600
#16
sounds great, can build home miniserver with this mobo...


DarkMatter

New Member
Joined
Oct 5, 2007
Messages
1,714 (0.46/day)
Likes
182
Processor Intel C2Q Q6600 @ Stock (for now)
Motherboard Asus P5Q-E
Cooling Proc: Scythe Mine, Graphics: Zalman VF900 Cu
Memory 4 GB (2x2GB) DDR2 Corsair Dominator 1066Mhz 5-5-5-15
Video Card(s) GigaByte 8800GT Stock Clocks: 700Mhz Core, 1700 Shader, 1940 Memory
Storage 74 GB WD Raptor 10000rpm, 2x250 GB Seagate Raid 0
Display(s) HP p1130, 21" Trinitron
Case Antec p180
Audio Device(s) Creative X-Fi PLatinum
Power Supply 700W FSP Group 85% Efficiency
Software Windows XP
#17
I'm pretty sure those case dimensions and a 200W PSU is a lot smaller and less powerful than most mATX HTPC's. Your saying that they only make these boards for low powered extremely small systems...im sure its not illegal for people who want an HTPC smaller than a mATX or micro ITX to go mini-ITX.



So I am going to get a larger board because I want to use a larger power supply :wtf:
There are micro-itx boards as small as 171x171 that do include greater power envelopes. It was designed for that, unlike mini-itx that was designed for even lower consumtion, noise and size.

Where the PCIe 1x slot is?
Hmm I suppose I didn't take into account the possibility of getting rid of the only expansion slot in order to fit a graphics card. My bad. Whatever.

You got some extremely pretty numbers there, all of which I would like to see accounted for with some proof.

http://www.techpowerup.com/reviews/HIS/HD_4670_IceQ_Turbo/24.html

Please tell me that a 4850e is going to use more power than an e8400 @ 3.6GHz under full load.

Oh, and that review doesnt even use an SSD.
And yet we use and actively recommend power supplies with twice that ammount of output, the companies themselves recommend using much higher PSUs than that etc. Just because a system draws xx ammount of power during a bland benchmark doesn't mean that your complete system will not draw MUCH more power when GPU+CPU+CHIPSET*+HDD+WIFI+Pheripherals+... are all being used at the same time. Not to mention what a voltage rise would do to the above proposed PC...

*The entire one, not only the part that takes part in a rendering situation like benchmarks. HDD memory accesses does take computing time, mouse and keyboard the same, not to mention WAN accesses.

EDIT: Alternative answer: NO, no I'm not going to say anything myself, because I'm an ignorant, but let's see what Tweaktown has to say:

http://www.tweaktown.com/articles/1400/11/amd_athlon_4850e_780g_as_htpc_platform/index.html

or maybe: http://www.silentpcreview.com/article807-page9.html - Add 50+ W for the HD4670 under load and...

780G is suposedly more efficient than 8200 BTW.

I don't understand what your trying to get at here. Your saying we should stick to standards by not using fans and following guidelines. Your trying to tell me we can't use a fan in a computer system because it will break the rules of "mini-ITX"?

I don't know about you, but if I can fit a fan into my mini-ITX build I will put it there, even if it breaks the "point of the system".

Oh surely we are not allowed to use bigger PSU's than whats proposed. That might break the "point" of a mini-ITX board.

No offence mate, but you sound like your writing directly out of a textbook.

I mean, what if I want a computer that is just as powerful as my HTPC but smaller? I don't care about power consumption because I just want it to be smaller. Are you saying I shouldn't do this because it will break the point of a mini-ITX setup? Your telling me I should just suck it up and go micro-ITX/mATX because my power supply is above 100w?
I'm not saying we should stick to standards, but there are a lot of them with similar size constraints yet more open to changes, that still keep a higher power envelopes and everything you want, that at the same time doesn't have into it's propositions the complete lack of fans as a way of making it completely silent. Namely micro-itx, as I said. I don't see the point of incresing all the specs of a mini-itx, just to convert it into one of the others. JUST USE THE OTHERS!

Last edited:
Joined
Aug 10, 2007
Messages
4,059 (1.07/day)
Likes
1,123
Location
Geneva, FL, USA
Processor Intel i5-6600
Motherboard ASRock H170M-ITX
Cooling Cooler Master Geminii S524
Memory G.Skill DDR4-2133 16GB (8GB x 2)
Video Card(s) Gigabyte R9-380X 4GB
Storage Samsung 950 EVO 250GB (mSATA)
Display(s) LG 29UM69G-B 2560x1080 IPS
Case Lian Li PC-Q25
Audio Device(s) Realtek ALC892
Power Supply Seasonic SS-460FL2
Mouse Logitech G700s
Keyboard Logitech G110
Software Windows 10 Pro
#18
another nice ITX board. now we just need ITX cases available at a decent price.
I have a case,



Now I just need a store that's selling the board, anyone seen it for sale?

Originally I was going to grab Intel's Atom 330 board, as it was enough power for all the Nintendo emulators, but this board has every thing I want without having to use an expansion card (wireless, DVI/HDMI).
