AMD FirePro W9100

Graphics Processor
Hawaii
Cores
2816
TMUs
176
ROPs
64
Memory Size
16 GB
Memory Type
GDDR5
Bus Width
512 bit
The FirePro W9100 was a professional graphics card by AMD, launched in March 2014. Built on the 28 nm process, and based on the Hawaii graphics processor, in its Hawaii GL44 variant, the card supports DirectX 12.0. The Hawaii graphics processor is a large chip with a die area of 438 mm² and 6,200 million transistors. It features 2816 shading units, 176 texture mapping units and 64 ROPs. AMD has placed 16,384 MB GDDR5 memory on the card, which are connected using a 512-bit memory interface. The GPU is operating at a frequency of 930 MHz, memory is running at 1250 MHz.

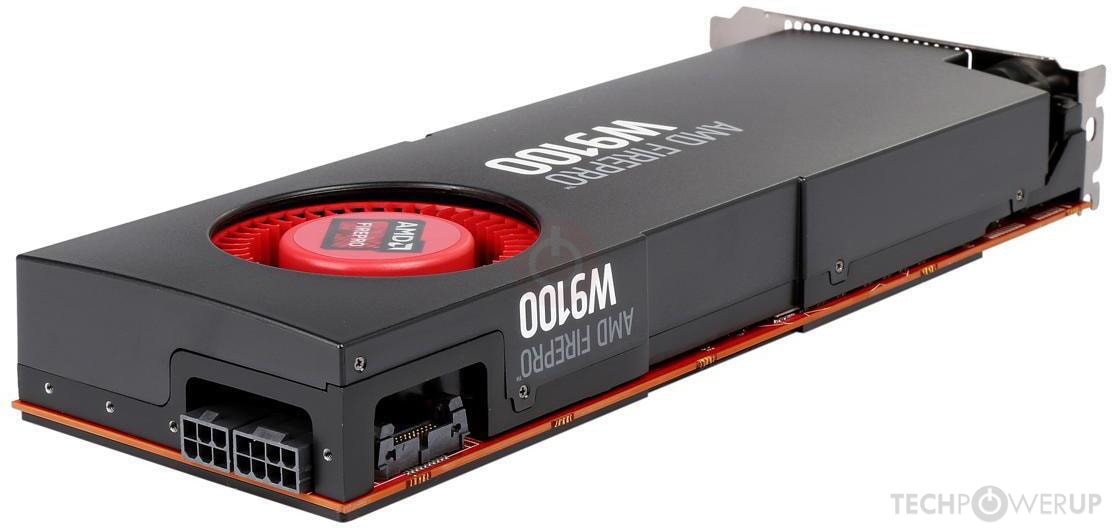

Being a dual-slot card, the AMD FirePro W9100 draws power from 1x 6-pin + 1x 8-pin power connectors, with power draw rated at 275 W maximum. Display outputs include: 6x mini-DisplayPort, 1x S-Video. FirePro W9100 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 275 mm in length, and features a dual-slot cooling solution.

Graphics Processor

GPU Name
Hawaii
GPU Variant
Hawaii GL44
Architecture
GCN 2.0
Foundry
TSMC
Process Size
28 nm
Transistors
6,200 million
Die Size
438 mm²

Graphics Card

Release Date
Mar 26th, 2014
Generation
FirePro
(Wx100)
Production
End-of-life
Bus Interface
PCIe 3.0 x16

Relative Performance

2%
GeForce 210
3%
GeForce 9400 GT
4%
Radeon HD 4550
5%
Radeon HD 5450
6%
Radeon HD 6450
6%
GeForce GT 520
8%
GeForce GT 220
10%
GeForce GT 430
10%
Radeon HD 5570
11%
Radeon HD 4670
11%
GeForce GT 440
12%
GeForce GT 240
13%
GeForce 9600 GT
14%
Radeon HD 5670
15%
GeForce GT 640
16%
GeForce 9800 GT
16%
Radeon HD 6670
17%
Radeon HD 4830
18%
Radeon HD 4770
19%
Radeon HD 4850
19%
GeForce GTS 250
20%
GeForce GTS 450
21%
Radeon HD 5750
24%
Radeon HD 7750
24%
Radeon HD 5770
24%
GeForce GTX 260
25%
Radeon HD 4870
25%
Radeon Vega 8
25%
GeForce GTX 550 Ti
25%
GeForce GTX 650
27%
Radeon HD 5830
28%
Radeon HD 6790
28%
Radeon HD 4890
30%
GeForce GTX 460
30%
Radeon RX Vega 11
30%
GeForce GT 1030
30%
GeForce GTX 275
30%
Radeon HD 7770 GHz Edition
30%
GeForce GTX 280
31%
GeForce GTX 465
33%
Radeon HD 6850
33%
GeForce GTX 285
36%
Radeon HD 5850
36%
GeForce GTX 650 Ti
36%
Radeon HD 7790
38%
Radeon RX 550
38%
GeForce GTX 470
39%
Radeon HD 6870
42%
Radeon HD 5870
43%
GeForce GTX 560 Ti
43%
Radeon HD 4870 X2
44%
GeForce GTX 750 Ti
44%
Radeon HD 6950
46%
GeForce GTX 295
47%
GeForce GTX 650 Ti Boost
47%
Radeon HD 7850
48%
GeForce GTX 480
50%
Radeon HD 6970
51%
Radeon R7 265
52%
Radeon RX 460
52%
Radeon R7 370
52%
GeForce GTX 660
52%
GeForce GTX 570
53%
Radeon RX 560
56%
GeForce GTX 950
57%
Radeon HD 7870 GHz Edition
58%
Radeon R9 270X
59%
GeForce GTX 660 Ti
59%
GeForce GTX 580
59%
GeForce GTX 1050
60%
Radeon HD 7950
61%
Radeon HD 5970
62%
GeForce GTX 760
67%
GeForce GTX 670
69%
GeForce GTX 960
71%
Radeon R9 380
71%
Radeon R9 285
72%
Radeon HD 7970
73%
GeForce GTX 680
74%
GeForce GTX 1050 Ti
76%
GeForce GTX 770
78%
Radeon HD 6990
80%
Radeon R9 280X
81%
GeForce GTX 590
81%
Radeon HD 7970 GHz Edition
90%
GeForce GTX 780
93%
GeForce GTX 1650
99%
Radeon RX 470
100%
FirePro W9100
100%
Radeon R9 290
106%
Radeon RX 570
107%
Radeon R9 390
108%
Radeon R9 290X
109%
GeForce GTX 970
110%
GeForce GTX TITAN
112%
GeForce GTX 780 Ti
113%
Radeon R9 390X
114%
Radeon HD 7990
115%
Radeon RX 480
115%
GeForce GTX 690
119%
GeForce GTX 1060 6 GB
120%
Radeon RX 5500
122%
Radeon RX 580
124%
GeForce GTX 980
125%
GeForce GTX 1650 SUPER
126%
Radeon R9 FURY
131%
Radeon RX 590
138%
Radeon R9 295X2
139%
GeForce GTX 1660
141%
Radeon R9 FURY X
143%
GeForce GTX 980 Ti
147%
GeForce GTX TITAN X
156%
GeForce GTX 1660 SUPER
160%
GeForce GTX 1660 Ti
160%
GeForce GTX 1070
170%
Radeon RX Vega 56
180%
GeForce GTX 1070 Ti
186%
Radeon RX Vega 64
188%
GeForce RTX 2060
188%
GeForce GTX 1080
196%
Radeon RX 5700
211%
GeForce RTX 2060 SUPER
219%
GeForce RTX 2070
224%
Radeon RX 5700 XT
227%
Radeon VII
233%
TITAN X Pascal
240%
GeForce GTX 1080 Ti
242%
GeForce RTX 2070 SUPER
258%
GeForce RTX 2080
273%
GeForce RTX 2080 SUPER
302%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
930 MHz
Memory Clock
1250 MHz
5000 MHz effective

Memory

Memory Size
16 GB
Memory Type
GDDR5
Memory Bus
512 bit
Bandwidth
320.0 GB/s

Render Config

Shading Units
2816
TMUs
176
ROPs
64
Compute Units
44
L1 Cache
16 KB (per CU)
L2 Cache
1024 KB

Theoretical Performance

Pixel Rate
59.52 GPixel/s
Texture Rate
163.7 GTexel/s
FP32 (float) performance
5.238 TFLOPS
FP64 (double) performance
2.619 TFLOPS (1:2)

Board Design

Slot Width
Dual-slot
Length
10.83 inches
275 mm
TDP
275 W
Suggested PSU
600 W
Outputs
6x mini-DisplayPort
1x S-Video
Power Connectors
1x 6-pin + 1x 8-pin
Board Number
C676-01

Graphics Features

DirectX
12.0 (12_0)
OpenGL
4.6
OpenCL
2.0
Vulkan
1.1.101
Shader Model
6.3

Hawaii GPU Notes

Architecture Codename: Volcanic Islands
Codename: Ibiza
CLRX Version: GCN 1.1
Graphics/Compute: GFX7 (gfx701 GL) / (gfx702)
Display Core Engine: 8.5
Unified Video Decoder: 4.2
Video Compression Engine: 2.0
