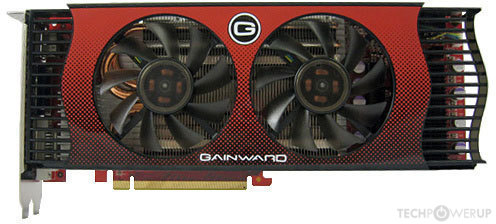

Gainward GTX 275 GS

426018336-0582

Graphics Processor

GT200B

Cores

240

TMUs

ROPs

Memory Size

896 MB

Memory Type

GDDR3

Bus Width

448 bit

GPU

Graphics Processor

GPU Name: GT200B

GPU Variant: G200-105-B3

Architecture: Tesla 2.0

Foundry: TSMC

Process Size: 55 nm

Transistors: 1,400 million

Density: 3.0M / mm²

Die Size: 470 mm²

Chip Package: BGA-1981

Graphics Card

Release Date: ~~Jan 15th, 2009~~
Jul 3rd, 2009

Generation: GeForce 200

Predecessor: GeForce 9

Successor: GeForce 400

Production: End-of-life

Bus Interface: PCIe 2.0 x16

Clock Speeds

GPU Clock: ~~633 MHz~~
648 MHz (+2%)

Shader Clock: ~~1404 MHz~~
1420 MHz (+1%)

Memory Clock: ~~1134 MHz~~
1185 MHz (+4%)
~~2.3 Gbps effective~~
2.4 Gbps effective

Memory

Memory Size: 896 MB

Memory Type: GDDR3

Memory Bus: 448 bit

Bandwidth: ~~127.0 GB/s~~
132.7 GB/s

Render Config

Shading Units: 240

TMUs: 80

ROPs: 28

SM Count: 30

L2 Cache: 224 KB

Theoretical Performance

Pixel Rate: ~~17.72 GPixel/s~~
18.14 GPixel/s

Texture Rate: ~~50.64 GTexel/s~~
51.84 GTexel/s

FP32 (float): ~~673.9 GFLOPS~~
681.6 GFLOPS

FP64 (double): ~~84.24 GFLOPS~~
85.20 GFLOPS (1:8)

Board Design

Slot Width: Dual-slot

Length: ~~267 mm~~
270 mm
~~10.5 inches~~
10.6 inches

TDP: 219 W

Suggested PSU: 550 W

Outputs: ~~2x DVI~~
1x DVI
1x HDMI
1x VGA

Power Connectors: 2x 6-pin

Board Number: P897 SKU 54

Graphics Features

DirectX: 11.1 (10_0)

OpenGL: 3.3

OpenCL: 1.1

Vulkan: N/A

CUDA: 1.3

Shader Model: 4.0

GT200B GPU Notes

PureVideo HD: VP2
VDPAU: Feature Set A

GT200B, commonly printed on the chip package as G200-xxx-Bx is an optical shrink of the G200 core to the newer 55 manufacturing process of TSMC. It helped shrink the core's energy and thermal footprints to a level that even facilitated building a dual-GPU accelerator

Latest Drivers:
Windows 2000:
Quadro Release 261.19

Windows XP / Server 2003 x64:
GeForce Release 185.81 (Notebooks)
GeForce Release 340.52
Quadro Release R319 U2 (321.01)
Tesla Release 258.96

Windows Vista:
GeForce Release 307.83 (Notebooks)
GeForce Release 342.01
Quadro Release R340 U15 (342.01)
Tesla Release 258.96

Windows 7 / 8 / 8.1 / 10:
GeForce Release 342.01
Quadro Release R340 U15 (342.01)
Tesla Release 258.96

Other retail boards based on this design (5)

Name	GPU Clock	Memory Clock	Other Changes
Gainward GTX 275 GS	648 MHz	1185 MHz	270 mm/10.6 inches, 1x DVI 1x HDMI 1x VGA
GIGABYTE GTX 275 SOC	715 MHz	1260 MHz	1792 MB, 1x DVI 1x mini-HDMI 1x VGA
MSI GTX 275 Lightning	700 MHz	1150 MHz	1792 MB, 270 mm/10.6 inches, 1x DVI 1x HDMI 1x VGA
MSI GTX 275 Twin Frozr OC	666 MHz	1161 MHz	2x DVI 1x S-Video
ZOTAC GTX 275 AMP! Edition	702 MHz	1260 MHz	2x DVI 1x S-Video
