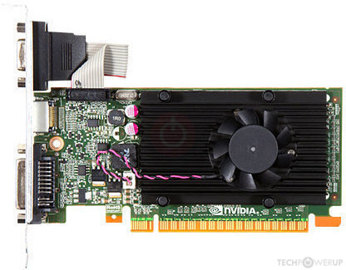

NVIDIA GeForce 510 OEM

Graphics Processor
GF119
Cores
48
TMUs
8
ROPs
4
Memory Size
1024 MB
Memory Type
DDR3
Bus Width
64 bit
The GeForce 510 OEM was a graphics card by NVIDIA, launched in September 2011. Built on the 40 nm process, and based on the GF119 graphics processor, the card supports DirectX 12.0. The GF119 graphics processor is a relatively small chip with a die area of only 79 mm² and 292 million transistors. Unlike the fully unlocked GeForce GT 520 OEM, which uses the same GPU but has all 96 shaders enabled, NVIDIA has disabled some shading units on the GeForce 510 OEM to reach the product's target shader count. It features 48 shading units, 8 texture mapping units and 4 ROPs. NVIDIA has placed 1,024 MB DDR3 memory on the card, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 523 MHz, memory is running at 898 MHz.
Being a single-slot card, the NVIDIA GeForce 510 OEM does not require any additional power connector, its power draw is rated at 25 W maximum. Display outputs include: 1x DVI, 1x HDMI, 1x VGA. GeForce 510 OEM is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 145 mm in length, and features a single-slot cooling solution.

Graphics Processor

GPU Name
GF119
Architecture
Fermi 2.0
Foundry
TSMC
Process Size
40 nm
Transistors
292 million
Die Size
79 mm²

Graphics Card

Release Date
Sep 29th, 2011
Generation
GeForce 500
Production
End-of-life
Bus Interface
PCIe 2.0 x16

Relative Performance

62%
GeForce 210
79%
GeForce 9400 GT
98%
Radeon HD 4550
100%
GeForce 510 OEM
125%
Radeon HD 5450
147%
Radeon HD 6450
155%
GeForce GT 520
192%
GeForce GT 220
250%
GeForce GT 430
253%
Radeon HD 5570
276%
Radeon HD 4670
290%
GeForce GT 440
297%
GeForce GT 240
340%
GeForce 9600 GT
362%
Radeon HD 5670
388%
GeForce GT 640
401%
GeForce 9800 GT
417%
Radeon HD 6670
431%
Radeon HD 4830
460%
Radeon HD 4770
485%
Radeon HD 4850
496%
GeForce GTS 250
510%
GeForce GTS 450
528%
Radeon HD 5750
603%
Radeon HD 7750
608%
Radeon HD 5770
619%
GeForce GTX 260
626%
Radeon HD 4870
628%
Radeon Vega 8
634%
GeForce GTX 550 Ti
640%
GeForce GTX 650
677%
Radeon HD 5830
712%
Radeon HD 6790
724%
Radeon HD 4890
750%
GeForce GTX 460
756%
Radeon RX Vega 11
764%
GeForce GT 1030
771%
GeForce GTX 275
773%
Radeon HD 7770 GHz Edition
774%
GeForce GTX 280
790%
GeForce GTX 465
828%
Radeon HD 6850
844%
GeForce GTX 285
905%
Radeon HD 5850
922%
GeForce GTX 650 Ti
922%
Radeon HD 7790
961%
Radeon RX 550
963%
GeForce GTX 470
998%
Radeon HD 6870
1064%
Radeon HD 5870
1098%
GeForce GTX 560 Ti
1104%
Radeon HD 4870 X2
1124%
GeForce GTX 750 Ti
1129%
Radeon HD 6950
1169%
GeForce GTX 295
1183%
GeForce GTX 650 Ti Boost
1191%
Radeon HD 7850
1212%
GeForce GTX 480
1268%
Radeon HD 6970
1293%
Radeon R7 265
1314%
Radeon R7 370
1315%
Radeon RX 560
1319%
GeForce GTX 660
1323%
GeForce GTX 570
1428%
GeForce GTX 950
1441%
Radeon HD 7870 GHz Edition
1475%
Radeon R9 270X
1493%
GeForce GTX 660 Ti
1500%
GeForce GTX 580
1512%
GeForce GTX 1050
1516%
Radeon HD 7950
1542%
Radeon RX 460
1546%
Radeon HD 5970
1589%
GeForce GTX 760
1710%
GeForce GTX 670
1755%
GeForce GTX 960
1800%
Radeon R9 380
1810%
Radeon R9 285
1828%
Radeon HD 7970
1847%
GeForce GTX 680
1890%
GeForce GTX 1050 Ti
1940%
GeForce GTX 770
1985%
Radeon HD 6990
2032%
Radeon R9 280X
2061%
GeForce GTX 590
2062%
Radeon HD 7970 GHz Edition
2285%
GeForce GTX 780
2514%
Radeon RX 470
2549%
Radeon R9 290
2719%
Radeon R9 390
2734%
Radeon R9 290X
2771%
GeForce GTX 970
2807%
GeForce GTX TITAN
2831%
Radeon RX 570
2845%
GeForce GTX 780 Ti
2885%
Radeon R9 390X
2898%
Radeon HD 7990
2912%
Radeon RX 480
2937%
GeForce GTX 690
3094%
Radeon RX 580
3159%
GeForce GTX 980
3199%
GeForce GTX 1060 6 GB
3199%
Radeon R9 FURY
3216%
Radeon RX 590
3519%
Radeon R9 295X2
3580%
Radeon R9 FURY X
3640%
GeForce GTX 980 Ti
3913%
GeForce GTX TITAN X
4105%
GeForce GTX 1660 Ti
4126%
GeForce GTX 1070
4308%
Radeon RX Vega 56
4672%
GeForce GTX 1070 Ti
4793%
Radeon RX Vega 64
4793%
GeForce RTX 2060
4914%
GeForce GTX 1080
5642%
Radeon VII
5642%
GeForce RTX 2070
5915%
TITAN X Pascal
6067%
GeForce GTX 1080 Ti
6552%
GeForce RTX 2080
7584%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
523 MHz
Shader Clock
1046 MHz
Memory Clock
898 MHz
1796 MHz effective

Memory

Memory Size
1024 MB
Memory Type
DDR3
Memory Bus
64 bit
Bandwidth
14.37 GB/s

Render Config

Shading Units
48
TMUs
8
ROPs
4
SM Count
1
L1 Cache
64 KB (per SM)
L2 Cache
128 KB

Theoretical Performance

Pixel Rate
1.046 GPixel/s
Texture Rate
4.184 GTexel/s
FP32 (float) performance
100.4 GFLOPS
FP64 (double) performance
8.368 GFLOPS (1:12)

Board Design

Slot Width
Single-slot
Length
5.7 inches
145 mm
TDP
25 W
Outputs
1x DVI
1x HDMI
1x VGA
Power Connectors
None
Board Number
P1310

Graphics Features

DirectX
12.0 (11_0)
OpenGL
4.6
OpenCL
1.1
Vulkan
N/A
CUDA
2.1
Shader Model
5.1

Card Notes

Variant Memory: 2048MB
