NVIDIA GeForce 8600M GS

Graphics Processor
G86
Cores
16
TMUs
8
ROPs
4
Memory Size
512 MB
Memory Type
DDR2
Bus Width
128 bit

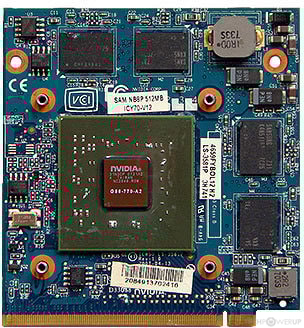

The GeForce 8600M GS was a graphics card by NVIDIA, launched in May 2007. Built on the 80 nm process, and based on the G86 graphics processor, in its G86-770-A2 variant, the card supports DirectX 11.1. The G86 graphics processor is an average sized chip with a die area of 127 mm² and 210 million transistors. It features 16 shading units, 8 texture mapping units and 4 ROPs. NVIDIA has placed 512 MB DDR2 memory on the card, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 450 MHz, memory is running at 400 MHz.
Being a mxm module card, its power draw is rated at 20 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it.

Graphics Processor

GPU Name
G86
GPU Variant
G86-770-A2
Architecture
Tesla
Foundry
TSMC
Process Size
80 nm
Transistors
210 million
Die Size
127 mm²

Graphics Card

Release Date
May 1st, 2007
Generation
GeForce 8M
(8000M)
Production
End-of-life
Bus Interface
MXM-II

Relative Performance

79%
GeForce 210
100%
GeForce 8600M GS
102%
GeForce 9400 GT
125%
Radeon HD 4550
160%
Radeon HD 5450
189%
Radeon HD 6450
199%
GeForce GT 520
246%
GeForce GT 220
322%
GeForce GT 430
326%
Radeon HD 5570
354%
Radeon HD 4670
373%
GeForce GT 440
381%
GeForce GT 240
438%
GeForce 9600 GT
465%
Radeon HD 5670
499%
GeForce GT 640
516%
GeForce 9800 GT
537%
Radeon HD 6670
554%
Radeon HD 4830
591%
Radeon HD 4770
623%
Radeon HD 4850
637%
GeForce GTS 250
656%
GeForce GTS 450
679%
Radeon HD 5750
775%
Radeon HD 7750
781%
Radeon HD 5770
795%
GeForce GTX 260
805%
Radeon HD 4870
807%
Radeon Vega 8
815%
GeForce GTX 550 Ti
822%
GeForce GTX 650
870%
Radeon HD 5830
915%
Radeon HD 6790
930%
Radeon HD 4890
965%
GeForce GTX 460
972%
Radeon RX Vega 11
982%
GeForce GT 1030
991%
GeForce GTX 275
994%
Radeon HD 7770 GHz Edition
995%
GeForce GTX 280
1015%
GeForce GTX 465
1064%
Radeon HD 6850
1084%
GeForce GTX 285
1163%
Radeon HD 5850
1185%
GeForce GTX 650 Ti
1185%
Radeon HD 7790
1235%
Radeon RX 550
1237%
GeForce GTX 470
1282%
Radeon HD 6870
1368%
Radeon HD 5870
1411%
GeForce GTX 560 Ti
1419%
Radeon HD 4870 X2
1445%
GeForce GTX 750 Ti
1452%
Radeon HD 6950
1503%
GeForce GTX 295
1521%
GeForce GTX 650 Ti Boost
1531%
Radeon HD 7850
1558%
GeForce GTX 480
1630%
Radeon HD 6970
1662%
Radeon R7 265
1689%
Radeon RX 460
1689%
Radeon R7 370
1695%
GeForce GTX 660
1700%
GeForce GTX 570
1728%
Radeon RX 560
1836%
GeForce GTX 950
1852%
Radeon HD 7870 GHz Edition
1897%
Radeon R9 270X
1920%
GeForce GTX 660 Ti
1929%
GeForce GTX 580
1944%
GeForce GTX 1050
1948%
Radeon HD 7950
1987%
Radeon HD 5970
2042%
GeForce GTX 760
2199%
GeForce GTX 670
2256%
GeForce GTX 960
2313%
Radeon R9 380
2327%
Radeon R9 285
2350%
Radeon HD 7970
2375%
GeForce GTX 680
2430%
GeForce GTX 1050 Ti
2493%
GeForce GTX 770
2551%
Radeon HD 6990
2612%
Radeon R9 280X
2649%
GeForce GTX 590
2651%
Radeon HD 7970 GHz Edition
2937%
GeForce GTX 780
3042%
GeForce GTX 1650
3232%
Radeon RX 470
3276%
Radeon R9 290
3453%
Radeon RX 570
3495%
Radeon R9 390
3514%
Radeon R9 290X
3561%
GeForce GTX 970
3608%
GeForce GTX TITAN
3657%
GeForce GTX 780 Ti
3709%
Radeon R9 390X
3725%
Radeon HD 7990
3743%
Radeon RX 480
3775%
GeForce GTX 690
3977%
Radeon RX 580
4060%
GeForce GTX 980
4112%
Radeon R9 FURY
4112%
GeForce GTX 1060 6 GB
4296%
Radeon RX 590
4523%
Radeon R9 295X2
4548%
GeForce GTX 1660
4601%
Radeon R9 FURY X
4679%
GeForce GTX 980 Ti
4801%
GeForce GTX TITAN X
5222%
GeForce GTX 1660 Ti
5222%
GeForce GTX 1070
5559%
Radeon RX Vega 56
5896%
GeForce GTX 1070 Ti
6064%
Radeon RX Vega 64
6149%
GeForce GTX 1080
6149%
GeForce RTX 2060
6401%
Radeon RX 5700
6907%
GeForce RTX 2060 SUPER
7159%
GeForce RTX 2070
7328%
Radeon RX 5700 XT
7412%
Radeon VII
7604%
TITAN X Pascal
7833%
GeForce GTX 1080 Ti
7917%
GeForce RTX 2070 SUPER
8423%
GeForce RTX 2080
9855%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
450 MHz
Shader Clock
900 MHz
Memory Clock
400 MHz
800 MHz effective

Memory

Memory Size
512 MB
Memory Type
DDR2
Memory Bus
128 bit
Bandwidth
12.80 GB/s

Render Config

Shading Units
16
TMUs
8
ROPs
4
SM Count
1
L2 Cache
32 KB

Theoretical Performance

Pixel Rate
1.800 GPixel/s
Texture Rate
3.600 GTexel/s
FP32 (float) performance
28.80 GFLOPS

Board Design

Slot Width
MXM Module
TDP
20 W
Outputs
No outputs

Graphics Features

DirectX
11.1 (10_0)
OpenGL
3.3
OpenCL
1.1
Vulkan
N/A
CUDA
1.1
Shader Model
4.0
