NVIDIA GeForce GT 220

Graphics Processor
G94
Cores
48
TMUs
24
ROPs
16
Memory Size
1024 MB
Memory Type
GDDR3
Bus Width
256 bit

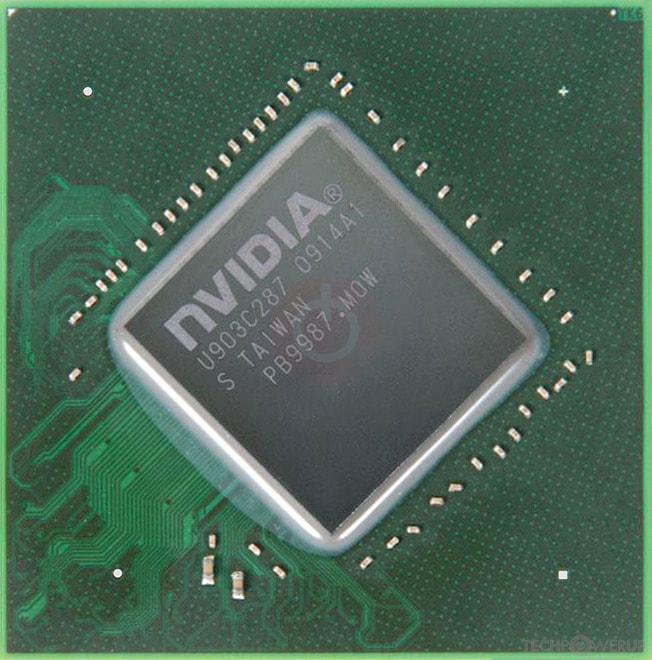

The GeForce GT 220 was a graphics card by NVIDIA, launched in January 2010. Built on the 65 nm process, and based on the G94 graphics processor, the card supports DirectX 10.0. The G94 graphics processor is an average sized chip with a die area of 240 mm² and 505 million transistors. Unlike the fully unlocked GeForce 9600 GT Mac Edition, which uses the same GPU but has all 64 shaders enabled, NVIDIA has disabled some shading units on the GeForce GT 220 to reach the product's target shader count. It features 48 shading units, 24 texture mapping units and 16 ROPs. NVIDIA has placed 1,024 MB GDDR3 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 600 MHz, memory is running at 700 MHz.

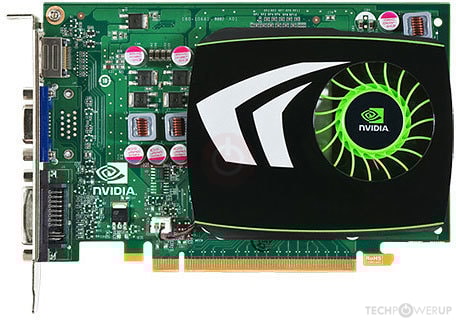

Being a single-slot card, its power draw is rated at 58 W maximum. Display outputs include: 1x DVI, 1x HDMI, 1x VGA. GeForce GT 220 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 168 mm in length, and features a single-slot cooling solution.

Graphics Processor

GPU Name
G94
Architecture
Tesla
Foundry
TSMC
Process Size
65 nm
Transistors
505 million
Die Size
240 mm²

Graphics Card

Release Date
Jan 26th, 2010
Generation
GeForce 200
Production
End-of-life
Bus Interface
PCIe 2.0 x16

Relative Performance

32%
GeForce 210
41%
GeForce 9400 GT
51%
Radeon HD 4550
65%
Radeon HD 5450
77%
Radeon HD 6450
81%
GeForce GT 520
100%
GeForce GT 220
131%
GeForce GT 430
132%
Radeon HD 5570
144%
Radeon HD 4670
152%
GeForce GT 440
155%
GeForce GT 240
178%
GeForce 9600 GT
189%
Radeon HD 5670
203%
GeForce GT 640
209%
GeForce 9800 GT
218%
Radeon HD 6670
225%
Radeon HD 4830
240%
Radeon HD 4770
253%
Radeon HD 4850
259%
GeForce GTS 250
266%
GeForce GTS 450
276%
Radeon HD 5750
315%
Radeon HD 7750
317%
Radeon HD 5770
323%
GeForce GTX 260
327%
Radeon HD 4870
328%
Radeon Vega 8
331%
GeForce GTX 550 Ti
334%
GeForce GTX 650
353%
Radeon HD 5830
372%
Radeon HD 6790
378%
Radeon HD 4890
392%
GeForce GTX 460
395%
Radeon RX Vega 11
399%
GeForce GT 1030
402%
GeForce GTX 275
404%
Radeon HD 7770 GHz Edition
404%
GeForce GTX 280
412%
GeForce GTX 465
432%
Radeon HD 6850
440%
GeForce GTX 285
472%
Radeon HD 5850
481%
Radeon HD 7790
481%
GeForce GTX 650 Ti
501%
Radeon RX 550
502%
GeForce GTX 470
521%
Radeon HD 6870
556%
Radeon HD 5870
573%
GeForce GTX 560 Ti
576%
Radeon HD 4870 X2
587%
GeForce GTX 750 Ti
589%
Radeon HD 6950
610%
GeForce GTX 295
617%
GeForce GTX 650 Ti Boost
622%
Radeon HD 7850
633%
GeForce GTX 480
662%
Radeon HD 6970
675%
Radeon R7 265
686%
Radeon R7 370
686%
Radeon RX 560
688%
GeForce GTX 660
690%
GeForce GTX 570
745%
GeForce GTX 950
752%
Radeon HD 7870 GHz Edition
770%
Radeon R9 270X
779%
GeForce GTX 660 Ti
783%
GeForce GTX 580
789%
GeForce GTX 1050
791%
Radeon HD 7950
805%
Radeon RX 460
807%
Radeon HD 5970
829%
GeForce GTX 760
893%
GeForce GTX 670
916%
GeForce GTX 960
939%
Radeon R9 380
945%
Radeon R9 285
954%
Radeon HD 7970
964%
GeForce GTX 680
987%
GeForce GTX 1050 Ti
1012%
GeForce GTX 770
1036%
Radeon HD 6990
1061%
Radeon R9 280X
1076%
GeForce GTX 590
1076%
Radeon HD 7970 GHz Edition
1192%
GeForce GTX 780
1312%
Radeon RX 470
1330%
Radeon R9 290
1419%
Radeon R9 390
1427%
Radeon R9 290X
1446%
GeForce GTX 970
1465%
GeForce GTX TITAN
1478%
Radeon RX 570
1485%
GeForce GTX 780 Ti
1506%
Radeon R9 390X
1513%
Radeon HD 7990
1520%
Radeon RX 480
1533%
GeForce GTX 690
1615%
Radeon RX 580
1649%
GeForce GTX 980
1670%
Radeon R9 FURY
1670%
GeForce GTX 1060 6 GB
1837%
Radeon R9 295X2
1868%
Radeon R9 FURY X
1900%
GeForce GTX 980 Ti
2042%
GeForce GTX TITAN X
2243%
GeForce GTX 1070
2322%
Radeon RX Vega 56
2502%
GeForce GTX 1070 Ti
2502%
Radeon RX Vega 64
2639%
GeForce GTX 1080
2945%
GeForce RTX 2070
3087%
TITAN X Pascal
3167%
GeForce GTX 1080 Ti
3452%
GeForce RTX 2080
3927%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

GPU Clock
600 MHz
Shader Clock
1500 MHz
Memory Clock
700 MHz
1400 MHz effective

Memory

Memory Size
1024 MB
Memory Type
GDDR3
Memory Bus
256 bit
Bandwidth
44.80 GB/s

Render Config

Shading Units
48
TMUs
24
ROPs
16
SM Count
2

Theoretical Performance

Pixel Rate
9.600 GPixel/s
Texture Rate
14.40 GTexel/s
FP32 (float) performance
144.0 GFLOPS

Board Design

Slot Width
Single-slot
Length
6.6 inches
168 mm
TDP
58 W
Outputs
1x DVI
1x HDMI
1x VGA

Graphics Features

DirectX
10.0
OpenGL
3.3
OpenCL
1.1
Vulkan
N/A
CUDA
1.1
Shader Model
4.0

G94 GPU Notes

Codename: NV94
PureVideo HD: VP2
VDPAU: Feature Set A
