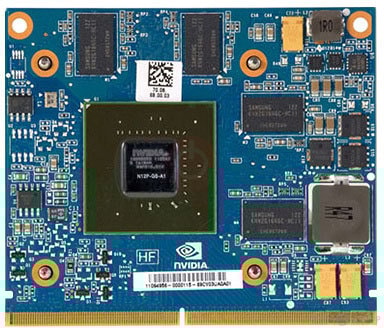

NVIDIA GeForce GT 540M

Graphics Processor
GF108
Cores
96
TMUs
16
ROPs
4
Memory Size
1024 MB
Memory Type
DDR3
Bus Width
128 bit
GPU Chip
GPU
The GeForce GT 540M was a mobile graphics chip by NVIDIA, launched on January 5th, 2011. Built on the 40 nm process, and based on the GF108 graphics processor, in its N12P-GS-A1 variant, the chip supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_0, which can be problematic with newer DirectX 12 titles. The GF108 graphics processor is an average sized chip with a die area of 116 mm² and 585 million transistors. It features 96 shading units, 16 texture mapping units, and 4 ROPs. NVIDIA has paired 1,024 MB DDR3 memory with the GeForce GT 540M, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 672 MHz, memory is running at 900 MHz.
Being a mxm module card, the NVIDIA GeForce GT 540M does not require any additional power connector, its power draw is rated at 35 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device.

Graphics Processor

GPU Name
GF108
GPU Variant
N12P-GS-A1
Architecture
Fermi
Foundry
TSMC
Process Size
40 nm
Transistors
585 million
Density
5.0M / mm²
Die Size
116 mm²
Chip Package
BGA-973

Mobile Graphics

Release Date
Jan 5th, 2011
Generation
GeForce 500M
Predecessor
GeForce 400M
Successor
GeForce 600M
Production
End-of-life
Bus Interface
MXM-A (3.0)

Relative Performance

GeForce RTX 5090
11704%
GeForce RTX 4090
8927%
GeForce RTX 5080
7713%
GeForce RTX 4080 SUPER
6886%
GeForce RTX 4080
6828%
Radeon RX 7900 XTX
6824%
GeForce RTX 5070 Ti
6726%
Radeon RX 9070 XT
6426%
Radeon RX 7900 XT
5876%
GeForce RTX 3090 Ti
5769%
GeForce RTX 4070 Ti SUPER
5763%
Radeon RX 9070
5757%
GeForce RTX 4070 Ti
5275%
GeForce RTX 5070
5222%
GeForce RTX 3090
5146%
GeForce RTX 3080 Ti
5078%
GeForce RTX 4070 SUPER
4915%
Radeon RX 7900 GRE
4840%
Radeon RX 6950 XT
4760%
GeForce RTX 4070
4695%
Radeon RX 6900 XT
4648%
GeForce RTX 3080
4574%
Radeon RX 7800 XT
4560%
Radeon RX 6800 XT
4399%
GeForce RTX 5060 Ti 16 GB
4084%
GeForce RTX 5060 Ti 8 GB
4059%
Radeon RX 7700 XT
3999%
Radeon RX 9060 XT 16 GB
3876%
GeForce RTX 3070 Ti
3869%
Radeon RX 6800
3739%
Radeon RX 9060 XT 8 GB
3659%
GeForce RTX 3070
3620%
GeForce RTX 2080 Ti
3589%
GeForce RTX 4060 Ti 8 GB
3573%
GeForce RTX 5060
3518%
Radeon RX 6750 XT
3432%
GeForce RTX 3060 Ti
3169%
Radeon RX 6700 XT
3112%
GeForce RTX 2080 SUPER
2892%
Radeon RX 7600 XT
2866%
GeForce RTX 4060
2858%
Arc B580
2853%
GeForce RTX 5050
2780%
GeForce RTX 2080
2758%
Radeon RX 6650 XT
2697%
Radeon RX 7600
2694%
GeForce RTX 2070 SUPER
2564%
GeForce GTX 1080 Ti
2537%
Arc A770
2534%
GeForce RTX 3060 12 GB
2443%
Radeon RX 6600 XT
2407%
Radeon VII
2401%
Arc A750
2353%
Radeon RX 5700 XT
2300%
GeForce RTX 2070
2266%
Radeon RX 6600
2164%
Arc A580
2102%
GeForce RTX 2060 SUPER
2100%
Radeon RX Vega 64
2010%
GeForce RTX 2060
1946%
Radeon RX 5700
1936%
GeForce GTX 1080
1900%
GeForce GTX 1070 Ti
1864%
Radeon RX 5600 XT
1847%
Radeon RX Vega 56
1755%
GeForce GTX 1070
1691%
GeForce GTX 1660 SUPER
1602%
GeForce GTX 1660 Ti
1600%
GeForce GTX 980 Ti
1516%
GeForce RTX 3050 8 GB
1508%
Radeon R9 FURY X
1490%
GeForce GTX 1660
1473%
Radeon RX 590
1391%
Radeon R9 FURY
1356%
GeForce GTX 980
1339%
GeForce GTX 1650 SUPER
1326%
Radeon RX 6500 XT
1309%
Radeon RX 5500 XT
1298%
Radeon RX 580
1288%
GeForce GTX 1060 6 GB
1255%
Radeon R9 390X
1238%
GeForce GTX 690
1223%
Radeon RX 480
1212%
Radeon HD 7990
1207%
GeForce GTX 780 Ti
1184%
GeForce GTX 970
1154%
Radeon R9 290X
1150%
Radeon R9 390
1132%
Radeon RX 570
1118%
Radeon R9 290
1061%
Radeon RX 470
1047%
GeForce GTX 1650
985%
Radeon RX 6400
966%
Arc A380
953%
GeForce GTX 780
951%
Radeon HD 7970 GHz Edition
859%
GeForce GTX 590
858%
Radeon R9 280X
846%
Radeon HD 6990
826%
GeForce GTX 1050 Ti
787%
GeForce GTX 680
769%
Radeon R9 380
761%
Radeon HD 7970
761%
GeForce GTX 770
759%
Radeon R9 285
754%
GeForce GTX 960
731%
GeForce GTX 670
712%
Radeon HD 5970
643%
GeForce GTX 1630
643%
Radeon HD 7950
631%
GeForce GTX 1050
630%
GeForce GTX 760
625%
GeForce GTX 580
625%
GeForce GTX 660 Ti
622%
Radeon R9 270X
614%
Radeon HD 7870 GHz Edition
600%
GeForce GTX 950
594%
Radeon RX 560
560%
GeForce GTX 570
551%
GeForce GTX 660
549%
Radeon RX 460
547%
Radeon R7 370
547%
Radeon HD 6970
528%
GeForce GTX 480
505%
Radeon HD 7850
496%
GeForce GTX 295
487%
Radeon HD 6950
470%
GeForce GTX 750 Ti
468%
Radeon HD 4870 X2
459%
GeForce GTX 560 Ti
457%
Radeon HD 5870
443%
Radeon HD 6870
415%
GeForce GTX 470
401%
GeForce GTX 650 Ti
384%
Radeon HD 5850
377%
GeForce GTX 285
351%
Radeon HD 6850
345%
GeForce GTX 280
322%
Radeon HD 7770 GHz Edition
322%
GeForce GTX 275
321%
GeForce GT 1030
318%
GeForce GTX 460
313%
Radeon HD 4890
301%
Radeon HD 6790
296%
Radeon HD 5830
282%
GeForce GTX 650
266%
GeForce GTX 550 Ti
264%
Radeon HD 4870
261%
GeForce GTX 260
258%
Radeon HD 5770
253%
Radeon HD 7750
251%
Radeon HD 5750
220%
GeForce GTS 450
212%
GeForce GTS 250
206%
Radeon HD 4850
202%
Radeon HD 4770
191%
Radeon HD 4830
179%
Radeon HD 6670
174%
GeForce 9800 GT
167%
GeForce GT 640
161%
Radeon HD 5670
151%
GeForce 9600 GT
142%
GeForce GT 240
124%
GeForce GT 440
121%
Radeon HD 4670
115%
Radeon HD 5570
106%
GeForce GT 430
104%
GeForce GT 540M
100%
GeForce GT 220
80%
GeForce GT 520
65%
Radeon HD 6450
61%
Radeon HD 5450
52%
Radeon HD 4550
41%
GeForce 9400 GT
33%
GeForce 210
26%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
672 MHz
Shader Clock
1344 MHz
Memory Clock
900 MHz
1800 Mbps effective

Memory

Memory Size
1024 MB
Memory Type
DDR3
Memory Bus
128 bit
Bandwidth
28.80 GB/s

Render Config

Shading Units
96
TMUs
16
ROPs
4
SM Count
2
L1 Cache
64 KB (per SM)
L2 Cache
256 KB

Theoretical Performance

Pixel Rate
2.688 GPixel/s
Texture Rate
10.75 GTexel/s
FP32 (float)
258.0 GFLOPS
FP64 (double)
21.50 GFLOPS (1:12)

Board Design

Slot Width
MXM Module
TDP
35 W
Outputs
Portable Device Dependent
Power Connectors
None
Board Number
P1077 SKU 13,
E1079 SKU 7

Graphics Features

DirectX
12 (11_0)
OpenGL
4.6
OpenCL
1.1
Vulkan
N/A
CUDA
2.1
Shader Model
5.1

GF108 GPU Notes

PureVideo HD: VP4
VDPAU: Feature Set C

Latest Drivers:
Windows 2000:
Quadro Release 261.19

Windows XP / Server 2003 x64:
GeForce Release 368.81
Quadro Release R319 U2 (321.01)

Windows Vista:
GeForce Release 365.19
Quadro Release R346 U7 (348.40)

Windows 7 / 8 / 8.1 / 10:
GeForce Release 391.35
Quadro Release R375 U11 (377.83)

Devices based on this design (3)

Name GPU Clock Memory Clock Other Changes
672 MHz 900 MHz 2 GB
672 MHz 900 MHz 2 GB
672 MHz 900 MHz 2 GB
