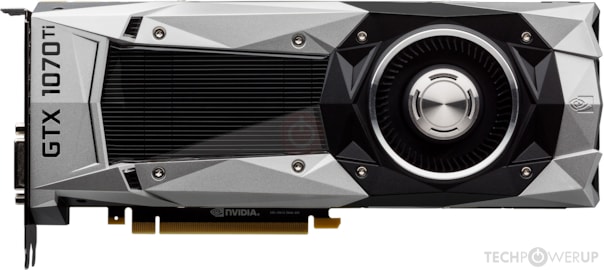

NVIDIA GeForce GTX 1070 Ti

Graphics Processor
GP104
Cores
2432
TMUs
152
ROPs
64
Memory Size
8 GB
Memory Type
GDDR5
Bus Width
256 bit

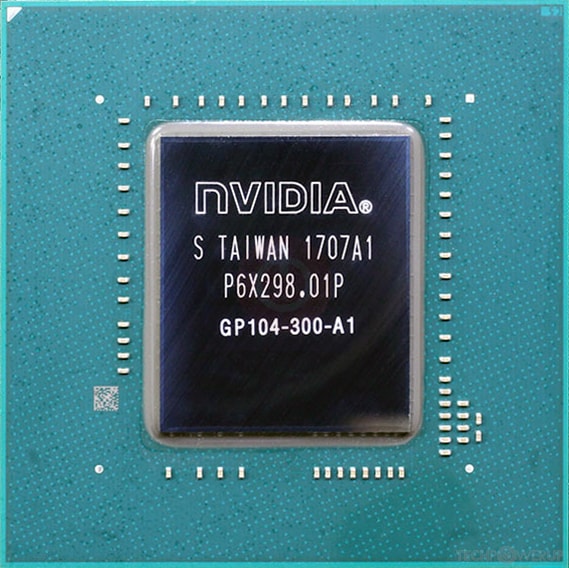

GPU Chip
GPU
PCB Front
PCB Front
PCB Back
PCB Back
The GeForce GTX 1070 Ti is a high-end graphics card by NVIDIA, launched in November 2017. Built on the 16 nm process, and based on the GP104 graphics processor, in its GP104-300-A1 variant, the card supports DirectX 12.0. The GP104 graphics processor is a large chip with a die area of 314 mm² and 7,200 million transistors. Unlike the fully unlocked GeForce GTX 1080, which uses the same GPU but has all 2560 shaders enabled, NVIDIA has disabled some shading units on the GeForce GTX 1070 Ti to reach the product's target shader count. It features 2432 shading units, 152 texture mapping units and 64 ROPs. NVIDIA has placed 8,192 MB GDDR5 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1607 MHz, which can be boosted up to 1683 MHz, memory is running at 2002 MHz.
Being a dual-slot card, the NVIDIA GeForce GTX 1070 Ti draws power from 1x 8-pin power connectors, with power draw rated at 180 W maximum. Display outputs include: 1x DVI, 1x HDMI, 3x DisplayPort. GeForce GTX 1070 Ti is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 267 mm in length, and features a dual-slot cooling solution. Its price at launch was 399 US Dollars.

Graphics Processor

GPU Name
GP104
GPU Variant
GP104-300-A1
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
7,200 million
Die Size
314 mm²

Graphics Card

Release Date
Nov 2nd, 2017
Generation
GeForce 10
Predecessor
GeForce 900
Successor
GeForce 20
Production
Active
Launch Price
399 USD
Bus Interface
PCIe 3.0 x16
Reviews
81 in our database

Relative Performance

1%
GeForce 210
2%
GeForce 9400 GT
2%
Radeon HD 4550
3%
Radeon HD 5450
3%
Radeon HD 6450
3%
GeForce GT 520
4%
GeForce GT 220
5%
GeForce GT 430
6%
Radeon HD 5570
6%
Radeon HD 4670
6%
GeForce GT 440
6%
GeForce GT 240
7%
GeForce 9600 GT
8%
Radeon HD 5670
8%
GeForce GT 640
9%
GeForce 9800 GT
9%
Radeon HD 6670
9%
Radeon HD 4830
10%
Radeon HD 4770
11%
Radeon HD 4850
11%
GeForce GTS 250
11%
GeForce GTS 450
12%
Radeon HD 5750
13%
Radeon HD 7750
13%
Radeon HD 5770
13%
GeForce GTX 260
14%
Radeon HD 4870
14%
Radeon Vega 8
14%
GeForce GTX 550 Ti
14%
GeForce GTX 650
15%
Radeon HD 5830
16%
Radeon HD 6790
16%
Radeon HD 4890
16%
GeForce GTX 460
16%
Radeon RX Vega 11
17%
GeForce GT 1030
17%
GeForce GTX 275
17%
Radeon HD 7770 GHz Edition
17%
GeForce GTX 280
17%
GeForce GTX 465
18%
Radeon HD 6850
18%
GeForce GTX 285
20%
Radeon HD 5850
20%
GeForce GTX 650 Ti
20%
Radeon HD 7790
21%
Radeon RX 550
21%
GeForce GTX 470
22%
Radeon HD 6870
23%
Radeon HD 5870
24%
GeForce GTX 560 Ti
24%
Radeon HD 4870 X2
25%
GeForce GTX 750 Ti
25%
Radeon HD 6950
25%
GeForce GTX 295
26%
GeForce GTX 650 Ti Boost
26%
Radeon HD 7850
26%
GeForce GTX 480
28%
Radeon HD 6970
28%
Radeon R7 265
29%
Radeon RX 460
29%
Radeon R7 370
29%
GeForce GTX 660
29%
GeForce GTX 570
29%
Radeon RX 560
31%
GeForce GTX 950
31%
Radeon HD 7870 GHz Edition
32%
Radeon R9 270X
33%
GeForce GTX 660 Ti
33%
GeForce GTX 580
33%
GeForce GTX 1050
33%
Radeon HD 7950
34%
Radeon HD 5970
35%
GeForce GTX 760
37%
GeForce GTX 670
38%
GeForce GTX 960
39%
Radeon R9 380
39%
Radeon R9 285
40%
Radeon HD 7970
40%
GeForce GTX 680
41%
GeForce GTX 1050 Ti
42%
GeForce GTX 770
43%
Radeon HD 6990
44%
Radeon R9 280X
45%
GeForce GTX 590
45%
Radeon HD 7970 GHz Edition
50%
GeForce GTX 780
52%
GeForce GTX 1650
55%
Radeon RX 470
56%
Radeon R9 290
59%
Radeon RX 570
59%
Radeon R9 390
60%
Radeon R9 290X
60%
GeForce GTX 970
61%
GeForce GTX TITAN
62%
GeForce GTX 780 Ti
63%
Radeon R9 390X
63%
Radeon HD 7990
63%
Radeon RX 480
64%
GeForce GTX 690
67%
Radeon RX 580
69%
GeForce GTX 980
70%
Radeon R9 FURY
70%
GeForce GTX 1060 6 GB
73%
Radeon RX 590
77%
Radeon R9 295X2
77%
GeForce GTX 1660
78%
Radeon R9 FURY X
79%
GeForce GTX 980 Ti
81%
GeForce GTX TITAN X
89%
GeForce GTX 1660 Ti
89%
GeForce GTX 1070
94%
Radeon RX Vega 56
100%
GeForce GTX 1070 Ti
103%
Radeon RX Vega 64
104%
GeForce GTX 1080
104%
GeForce RTX 2060
109%
Radeon RX 5700
117%
GeForce RTX 2060 SUPER
121%
GeForce RTX 2070
124%
Radeon RX 5700 XT
126%
Radeon VII
129%
TITAN X Pascal
133%
GeForce GTX 1080 Ti
134%
GeForce RTX 2070 SUPER
143%
GeForce RTX 2080
151%
GeForce RTX 2080 SUPER
167%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

Base Clock
1607 MHz
Boost Clock
1683 MHz
Memory Clock
2002 MHz
8008 MHz effective

Memory

Memory Size
8 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
256.3 GB/s

Render Config

Shading Units
2432
TMUs
152
ROPs
64
SM Count
19
L1 Cache
48 KB (per SM)
L2 Cache
2 MB

Theoretical Performance

Pixel Rate
107.7 GPixel/s
Texture Rate
255.8 GTexel/s
FP16 (half) performance
127.9 GFLOPS (1:64)
FP32 (float) performance
8.186 TFLOPS
FP64 (double) performance
255.8 GFLOPS (1:32)

Board Design

Slot Width
Dual-slot
Length
10.5 inches
267 mm
TDP
180 W
Suggested PSU
450 W
Outputs
1x DVI
1x HDMI
3x DisplayPort
Power Connectors
1x 8-pin
Board Number
PG411

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.122
CUDA
6.1
Shader Model
6.4

Retail boards based on this design (79)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASL GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz
ASL GTX 1070 Ti God of War 1607 MHz 1683 MHz 2002 MHz 12.09 inches/307 mm
ASUS CERBERUS GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz 10.63 inches/270 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS CERBERUS GTX 1070 Ti ADVANCED 1607 MHz 1683 MHz 2002 MHz 10.63 inches/270 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS TURBO GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz
ASUS ROG STRIX GTX 1070 Ti GAMING 1607 MHz 1683 MHz 2002 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS ROG STRIX GTX 1070 Ti GAMING ADVANCED 1607 MHz 1683 MHz 2002 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
Colorful GTX 1070 Ti GAMING 1607 MHz 1683 MHz 2002 MHz
Colorful iGame GTX 1070 Ti JD JOY Edition 1607 MHz 1683 MHz 2002 MHz
Colorful iGame GTX 1070 Ti RNG Edition 1607 MHz 1683 MHz 2002 MHz
Colorful iGame GTX 1070 Ti Vulcan AD 1607 MHz 1683 MHz 2002 MHz
Colorful iGame GTX 1070 Ti Vulcan U-TOP 1607 MHz 1683 MHz 2002 MHz
Colorful iGame GTX 1070 Ti Vulcan X 1607 MHz 1683 MHz 2002 MHz
Colorful iGame GTX 1070 Ti Vulcan X-TOP 1607 MHz 1683 MHz 2002 MHz
Digital Alliance GTX 1070 Ti Super JetStream 1607 MHz 1683 MHz 2002 MHz 11.22 inches/285 mm
ELSA GTX 1070 Ti ST 1607 MHz 1683 MHz 2002 MHz
EMTEK HV GTX 1070 Ti GAMER 1607 MHz 1683 MHz 2002 MHz 10.63 inches/270 mm
EMTEK XENON GTX 1070 Ti Dual X 1607 MHz 1683 MHz 2002 MHz 9.92 inches/252 mm
EMTEK XENON GTX 1070 Ti JetStream 1607 MHz 1683 MHz 2002 MHz 11.22 inches/285 mm
EVGA GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz
EVGA GTX 1070 Ti FTW Ultra Silent ACX 3.0 1607 MHz 1683 MHz 2002 MHz Triple-slot
EVGA GTX 1070 Ti FTW2 w/ iCX Cooling 1607 MHz 1683 MHz 2002 MHz
EVGA GTX 1070 Ti SC Black Edition ACX 3.0 1607 MHz 1683 MHz 2002 MHz
EVGA GTX 1070 Ti SC HYBRID 1607 MHz 1683 MHz 2002 MHz
Gainward GameSoul GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz
Gainward GameSoul GTX 1070 Ti Geek Edition 1607 MHz 1683 MHz 2002 MHz
Gainward GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz 9.92 inches/252 mm
Gainward GTX 1070 Ti Herd 1607 MHz 1683 MHz 2002 MHz
Gainward GTX 1070 Ti Herd 2.0 1607 MHz 1683 MHz 2002 MHz
Gainward GTX 1070 Ti Phoenix 1607 MHz 1683 MHz 2002 MHz 11.22 inches/285 mm
GALAX GTX 1070 Ti EX 1607 MHz 1683 MHz 2002 MHz 11.65 inches/296 mm
GALAX GTX 1070 Ti EX-SNPR WHITE 1607 MHz 1683 MHz 2002 MHz 11.65 inches/296 mm
GALAX GTX 1070 Ti GAMER 1607 MHz 1683 MHz 2002 MHz 12.2 inches/310 mm
GALAX GTX 1070 Ti GENERAL 1607 MHz 1683 MHz 2002 MHz 11.53 inches/293 mm
GALAX GTX 1070 Ti HOF 1607 MHz 1683 MHz 2002 MHz 13 inches/330 mm
GALAX GTX 1070 Ti Virtual Edition 1607 MHz 1683 MHz 2002 MHz 11.06 inches/281 mm
GeIL GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz 11.41 inches/290 mm
GIGABYTE AORUS GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz 11.024 inches/280 mm
GIGABYTE GTX 1070 Ti GAMING 1607 MHz 1683 MHz 2002 MHz 11 inches/279 mm
GIGABYTE GTX 1070 Ti GAMING OC 1620 MHz 1709 MHz 2002 MHz 11 inches/279 mm
GIGABYTE GTX 1070 Ti WindForce 2X 1607 MHz 1683 MHz 2002 MHz 11.024 inches/280 mm
Inno3D GTX 1070 Ti Jet-Fan 1607 MHz 1683 MHz 2002 MHz
Inno3D GTX 1070 Ti X2 1607 MHz 1683 MHz 2002 MHz 10.47 inches/266 mm
Inno3D GTX 1070 Ti X2 V2 1607 MHz 1683 MHz 2002 MHz 7.87 inches/200 mm, 2x DVI 1x HDMI 1x DisplayPort
Inno3D iChill GTX 1070 Ti X3 1607 MHz 1683 MHz 2002 MHz 11.9 inches/302 mm
Inno3D iChill GTX 1070 Ti X3 V2 1607 MHz 1683 MHz 2002 MHz 11.9 inches/302 mm, 2x DVI 1x HDMI 1x DisplayPort
Inno3D iChill GTX 1070 Ti X4 1607 MHz 1683 MHz 2002 MHz 11.9 inches/302 mm
KFA2 GTX 1070 Ti EX 1607 MHz 1683 MHz 2002 MHz 11.65 inches/296 mm
KFA2 GTX 1070 Ti EX-SNRP WHITE 1607 MHz 1683 MHz 2002 MHz 11.65 inches/296 mm
KFA2 GTX 1070 Ti Red Edition 1607 MHz 1683 MHz 2002 MHz 11.1 inches/282 mm
KUROTOSHIKOU GTX 1070 Ti GALAKURO WHITE 1607 MHz 1683 MHz 2002 MHz 11.65 inches/296 mm
Leadtek WinFast GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz
Leadtek WinFast GTX 1070 Ti HURRICANE 1607 MHz 1683 MHz 2002 MHz 11.57 inches/294 mm
Manli GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz
Manli GTX 1070 Ti F378 1607 MHz 1683 MHz 2002 MHz
Manli GTX 1070 Ti Hydro 1607 MHz 1683 MHz 2002 MHz
MAXSUN GTX 1070 Ti Big Mac 1607 MHz 1683 MHz 2002 MHz 9.84 inches/250 mm
MAXSUN GTX 1070 Ti JetStream 1607 MHz 1683 MHz 2002 MHz
MAXSUN GTX 1070 Ti JetStream M.1 1607 MHz 1683 MHz 2002 MHz
MAXSUN GTX 1070 Ti JetStream M.2 1607 MHz 1683 MHz 2002 MHz
MAXSUN GTX 1070 Ti Turbo 1607 MHz 1683 MHz 2002 MHz
MSI GTX 1070 Ti AERO 1607 MHz 1683 MHz 2002 MHz 10.63 inches/270 mm
MSI GTX 1070 Ti ARMOR 1607 MHz 1683 MHz 2002 MHz 10.98 inches/279 mm
MSI GTX 1070 Ti DUKE 1607 MHz 1683 MHz 2002 MHz 12.28 inches/312 mm
MSI GTX 1070 Ti GAMING 1607 MHz 1683 MHz 2002 MHz 10.98 inches/279 mm
MSI GTX 1070 Ti TITANIUM 1607 MHz 1683 MHz 2002 MHz 10.98 inches/279 mm
Palit GTX 1070 Ti Dual 1607 MHz 1683 MHz 2002 MHz 9.92 inches/252 mm
Palit GTX 1070 Ti JetStream 1607 MHz 1683 MHz 2002 MHz 11.22 inches/285 mm
Palit GTX 1070 Ti Super JetStream 1607 MHz 1683 MHz 2002 MHz 11.22 inches/285 mm
PNY GTX 1070 Ti 1607 MHz 1683 MHz 2002 MHz 9.92 inches/252 mm
PNY GTX 1070 Ti Blower 1607 MHz 1683 MHz 2002 MHz 11.02 inches/280 mm
PNY GTX 1070 Ti Blower 2 1607 MHz 1683 MHz 2002 MHz 1x HDMI 3x DisplayPort
ZOTAC GTX 1070 Ti AMP! 1607 MHz 1683 MHz 2002 MHz 11.81 inches/300 mm
ZOTAC GTX 1070 Ti AMP! Extreme 1607 MHz 1683 MHz 2002 MHz 12.8 inches/325 mm
ZOTAC GTX 1070 Ti Extreme Plus 1607 MHz 1683 MHz 2002 MHz 11.81 inches/300 mm
ZOTAC GTX 1070 Ti Mini 1607 MHz 1683 MHz 2002 MHz 8.7 inches/221 mm
ZOTAC GTX 1070 Ti PGF 1607 MHz 1683 MHz 2002 MHz 12.2 inches/310 mm
ZOTAC GTX 1070 Ti PGF UA 1607 MHz 1683 MHz 2002 MHz 12.2 inches/310 mm
ZOTAC GTX 1070 Ti TYLOO Custom 1607 MHz 1683 MHz 2002 MHz 11.81 inches/300 mm, 1x HDMI 3x DisplayPort
