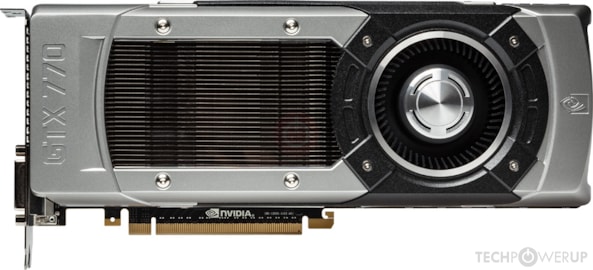

NVIDIA GeForce GTX 770

Graphics Processor
GK104
Cores
1536
TMUs
128
ROPs
32
Memory Size
2 GB
Memory Type
GDDR5
Bus Width
256 bit
GPU Chip
GPU
Top
Top
I/O
I/O
PCB Front
PCB Front
PCB Back
PCB Back
The GeForce GTX 770 was a high-end graphics card by NVIDIA, launched in May 2013. Built on the 28 nm process, and based on the GK104 graphics processor, in its GK104-425-A2 variant, the card supports DirectX 12.0. The GK104 graphics processor is an average sized chip with a die area of 294 mm² and 3,540 million transistors. It features 1536 shading units, 128 texture mapping units and 32 ROPs. NVIDIA has placed 2,048 MB GDDR5 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1046 MHz, which can be boosted up to 1085 MHz, memory is running at 1753 MHz.
Being a dual-slot card, the NVIDIA GeForce GTX 770 draws power from 1x 6-pin + 1x 8-pin power connectors, with power draw rated at 230 W maximum. Display outputs include: 2x DVI, 1x HDMI, 1x DisplayPort. GeForce GTX 770 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 267 mm in length, and features a dual-slot cooling solution. Its price at launch was 399 US Dollars.

Graphics Processor

GPU Name
GK104
GPU Variant
GK104-425-A2
Architecture
Kepler
Foundry
TSMC
Process Size
28 nm
Transistors
3,540 million
Die Size
294 mm²

Graphics Card

Release Date
May 30th, 2013
Generation
GeForce 700
Production
End-of-life
Launch Price
399 USD
Bus Interface
PCIe 3.0 x16
Reviews
112 in our database

Relative Performance

3%
GeForce 210
4%
GeForce 9400 GT
5%
Radeon HD 4550
6%
Radeon HD 5450
8%
Radeon HD 6450
8%
GeForce GT 520
10%
GeForce GT 220
13%
GeForce GT 430
13%
Radeon HD 5570
14%
Radeon HD 4670
15%
GeForce GT 440
15%
GeForce GT 240
18%
GeForce 9600 GT
19%
Radeon HD 5670
20%
GeForce GT 640
21%
GeForce 9800 GT
22%
Radeon HD 6670
22%
Radeon HD 4830
24%
Radeon HD 4770
25%
Radeon HD 4850
26%
GeForce GTS 250
26%
GeForce GTS 450
27%
Radeon HD 5750
31%
Radeon HD 7750
31%
Radeon HD 5770
32%
GeForce GTX 260
32%
Radeon HD 4870
32%
Radeon Vega 8
33%
GeForce GTX 550 Ti
33%
GeForce GTX 650
35%
Radeon HD 5830
37%
Radeon HD 6790
37%
Radeon HD 4890
39%
GeForce GTX 460
39%
Radeon RX Vega 11
39%
GeForce GT 1030
40%
GeForce GTX 275
40%
Radeon HD 7770 GHz Edition
40%
GeForce GTX 280
41%
GeForce GTX 465
43%
Radeon HD 6850
43%
GeForce GTX 285
47%
Radeon HD 5850
48%
GeForce GTX 650 Ti
48%
Radeon HD 7790
50%
Radeon RX 550
50%
GeForce GTX 470
51%
Radeon HD 6870
55%
Radeon HD 5870
57%
GeForce GTX 560 Ti
57%
Radeon HD 4870 X2
58%
GeForce GTX 750 Ti
58%
Radeon HD 6950
60%
GeForce GTX 295
61%
GeForce GTX 650 Ti Boost
61%
Radeon HD 7850
62%
GeForce GTX 480
65%
Radeon HD 6970
67%
Radeon R7 265
68%
Radeon RX 460
68%
Radeon R7 370
68%
GeForce GTX 660
68%
GeForce GTX 570
69%
Radeon RX 560
74%
GeForce GTX 950
74%
Radeon HD 7870 GHz Edition
76%
Radeon R9 270X
77%
GeForce GTX 660 Ti
77%
GeForce GTX 580
78%
GeForce GTX 1050
78%
Radeon HD 7950
80%
Radeon HD 5970
82%
GeForce GTX 760
88%
GeForce GTX 670
90%
GeForce GTX 960
93%
Radeon R9 380
93%
Radeon R9 285
94%
Radeon HD 7970
95%
GeForce GTX 680
97%
GeForce GTX 1050 Ti
100%
GeForce GTX 770
102%
Radeon HD 6990
105%
Radeon R9 280X
106%
GeForce GTX 590
106%
Radeon HD 7970 GHz Edition
118%
GeForce GTX 780
122%
GeForce GTX 1650
130%
Radeon RX 470
131%
Radeon R9 290
138%
Radeon RX 570
140%
Radeon R9 390
141%
Radeon R9 290X
143%
GeForce GTX 970
145%
GeForce GTX TITAN
147%
GeForce GTX 780 Ti
149%
Radeon R9 390X
149%
Radeon HD 7990
150%
Radeon RX 480
151%
GeForce GTX 690
155%
GeForce GTX 1060 6 GB
158%
Radeon RX 5500
160%
Radeon RX 580
163%
GeForce GTX 980
164%
GeForce GTX 1650 SUPER
165%
Radeon R9 FURY
172%
Radeon RX 590
181%
Radeon R9 295X2
182%
GeForce GTX 1660
185%
Radeon R9 FURY X
188%
GeForce GTX 980 Ti
193%
GeForce GTX TITAN X
205%
GeForce GTX 1660 SUPER
209%
GeForce GTX 1660 Ti
209%
GeForce GTX 1070
223%
Radeon RX Vega 56
236%
GeForce GTX 1070 Ti
243%
Radeon RX Vega 64
247%
GeForce RTX 2060
247%
GeForce GTX 1080
257%
Radeon RX 5700
277%
GeForce RTX 2060 SUPER
287%
GeForce RTX 2070
294%
Radeon RX 5700 XT
297%
Radeon VII
305%
TITAN X Pascal
314%
GeForce GTX 1080 Ti
318%
GeForce RTX 2070 SUPER
338%
GeForce RTX 2080
358%
GeForce RTX 2080 SUPER
395%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

Base Clock
1046 MHz
Boost Clock
1085 MHz
Memory Clock
1753 MHz
7012 MHz effective

Memory

Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
224.4 GB/s

Render Config

Shading Units
1536
TMUs
128
ROPs
32
SMX Count
8
L1 Cache
16 KB (per SMX)
L2 Cache
512 KB

Theoretical Performance

Pixel Rate
34.72 GPixel/s
Texture Rate
138.9 GTexel/s
FP32 (float) performance
3.333 TFLOPS
FP64 (double) performance
138.9 GFLOPS (1:24)

Board Design

Slot Width
Dual-slot
Length
10.5 inches
267 mm
TDP
230 W
Suggested PSU
550 W
Outputs
2x DVI
1x HDMI
1x DisplayPort
Power Connectors
1x 6-pin + 1x 8-pin
Board Number
P2005

Graphics Features

DirectX
12.0 (11_0)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.103
CUDA
3.0
Shader Model
5.1

GK104 GPU Notes

L1 Cache is configurable from 16 KB up to 48 KB per SMX

Retail boards based on this design (83)

Name GPU Clock Boost Clock Memory Clock Other Changes
AFOX GTX 770 1058 MHz 1110 MHz 1753 MHz 10 inches/254 mm
ASUS GTX 770 DirectCU II 1046 MHz 1085 MHz 1753 MHz 10.7 inches/272 mm
ASUS GTX 770 DirectCU II 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB, 10.7 inches/272 mm
ASUS GTX 770 DirectCU II OC 1058 MHz 1110 MHz 1753 MHz 10.7 inches/272 mm
ASUS GTX 770 DirectCU II OC 4 GB 1058 MHz 1110 MHz 1753 MHz 4 GB, 10.7 inches/272 mm
ASUS ROG Poseidon 1165 MHz 1215 MHz 1753 MHz
Colorful iGame GTX 770 1110 MHz 1163 MHz 1753 MHz
Colorful iGame GTX 770 w/ Air-Kit 1176 MHz 1229 MHz 1800 MHz
ELSA GTX 770 HYBRID 1163 MHz 1202 MHz 1820 MHz 4 GB, 10 inches/254 mm
ELSA GTX 770 S.A.C 1070 MHz 1100 MHz 1753 MHz
ELSA GTX 770 S.A.C 4 GB 1070 MHz 1100 MHz 1753 MHz 4 GB
EVGA GTX 770 1046 MHz 1085 MHz 1753 MHz
EVGA GTX 770 Dual Classified Hydro Copper 1165 MHz 1215 MHz 1753 MHz 4 GB, 11 inches/279 mm
EVGA GTX 770 Dual Classified w/ ACX Cooler 1150 MHz 1202 MHz 1753 MHz 4 GB
EVGA GTX 770 Dual Classified w/ EVGA Cooler 1150 MHz 1202 MHz 1753 MHz 4 GB
EVGA GTX 770 Dual FTW w/ ACX Cooler 4 GB 1137 MHz 1189 MHz 1753 MHz 4 GB
EVGA GTX 770 Dual SC w/ ACX Cooler 1110 MHz 1163 MHz 1753 MHz
EVGA GTX 770 Dual SC w/ ACX Cooler 4 GB 1110 MHz 1163 MHz 1753 MHz 4 GB
EVGA GTX 770 Dual w/ ACX Cooler 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB
EVGA GTX 770 FTW w/ ACX Cooler 1085 MHz 1137 MHz 1753 MHz
EVGA GTX 770 SC 1085 MHz 1137 MHz 1753 MHz
EVGA GTX 770 SC w/ ACX Cooler 1110 MHz 1163 MHz 1753 MHz
EVGA GTX 770 SC w/ EVGA Cooler 1085 MHz 1137 MHz 1753 MHz
EVGA GTX 770 w/ ACX Cooler 1046 MHz 1085 MHz 1753 MHz
EVGA GTX 770 w/ EVGA Cooler 1046 MHz 1085 MHz 1753 MHz
EVGA GTX 770 w/ EVGA Cooler 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB
Gainward GTX 770 1046 MHz 1085 MHz 1753 MHz 11.02 inches/280 mm
Gainward GTX 770 GS 1085 MHz 1137 MHz 1753 MHz 11.024 inches/280 mm
Gainward GTX 770 Phantom 1150 MHz 1202 MHz 1753 MHz 10.8 inches/274 mm
Gainward GTX 770 Phantom 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB
Galaxy GTX 770 GC 1110 MHz 1163 MHz 1753 MHz 10.55 inches/268 mm
Galaxy GTX 770 GC 4 GB 1110 MHz 1163 MHz 1753 MHz 4 GB, 10.55 inches/268 mm
Galaxy GTX 770 Hall of Fame 1202 MHz 1254 MHz 1753 MHz 11.37 inches/289 mm, 1x DisplayPort 3x mini-HDMI
Galaxy GTX 770 Hall of Fame V2 1150 MHz 1202 MHz 1753 MHz 11.37 inches/289 mm, 1x DisplayPort 3x mini-HDMI
GIGABYTE GTX 770 WindForce 3X 1046 MHz 1085 MHz 1753 MHz 11.5 inches/292 mm
GIGABYTE GTX 770 WindForce 3X 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB, 11.5 inches/292 mm
GIGABYTE GTX 770 WindForce 3X 4 GB Rev. 2 1046 MHz 1085 MHz 1753 MHz 4 GB, 11.5 inches/292 mm
GIGABYTE GTX 770 WindForce 3X OC 1137 MHz 1189 MHz 1753 MHz 11.5 inches/292 mm
GIGABYTE GTX 770 WindForce 3X OC 4 GB 1137 MHz 1189 MHz 1753 MHz 4 GB, 11.5 inches/292 mm
GIGABYTE GTX 770 WindForce 3X OC 4 GB Rev. 2 1137 MHz 1189 MHz 1753 MHz 4 GB, 11.5 inches/292 mm
HV GTX 770 OverClock Edition 1110 MHz 1163 MHz 1753 MHz 10.04 inches/255 mm
Inno3D GTX 770 1046 MHz 1085 MHz 1753 MHz
Inno3D GTX 770 HerculeZ 2000 1072 MHz 1110 MHz 1753 MHz 10.04 inches/255 mm
Inno3D GTX 770 HerculeZ 2000 4 GB 1072 MHz 1110 MHz 1753 MHz 4 GB, 10.04 inches/255 mm
Inno3D iChill GTX 770 Accelero Hybrid 1163 MHz 1215 MHz 1820 MHz
Inno3D iChill GTX 770 Accelero Hybrid 4 GB 1163 MHz 1215 MHz 1820 MHz 4 GB
Inno3D iChill GTX 770 HerculeZ X3 Ultra 1150 MHz 1202 MHz 1800 MHz 11.34 inches/288 mm
Inno3D iChill GTX 770 HerculeZ X3 Ultra 4 GB 1150 MHz 1202 MHz 1800 MHz 4 GB, 11.34 inches/288 mm
KFA2 GTX 770 EX OC 1110 MHz 1163 MHz 1753 MHz 10.55 inches/268 mm
KFA2 GTX 770 LTD OC 1202 MHz 1254 MHz 1753 MHz
Leadtek WinFast GTX 770 Hurricane III 1058 MHz 1110 MHz 1753 MHz 10.63 inches/270 mm
Leadtek WinFast GTX 770 Hurricane III 4 GB 1058 MHz 1110 MHz 1753 MHz 4 GB, 10.63 inches/270 mm
MAXSUN GTX 770 1046 MHz 1085 MHz 1753 MHz 11.024 inches/280 mm
MAXSUN GTX 770 JetStream 1150 MHz 1202 MHz 1753 MHz 11.024 inches/280 mm
MAXSUN GTX 770 JetStream 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB, 10.7 inches/272 mm
MSI GTX 770 1046 MHz 1085 MHz 1753 MHz 10.55 inches/268 mm
MSI GTX 770 Gaming 1072 MHz 1124 MHz 1753 MHz 10.24 inches/260 mm
MSI GTX 770 Gaming 4 GB 1072 MHz 1124 MHz 1753 MHz 4 GB, 10.24 inches/260 mm
MSI GTX 770 Gaming OC 1098 MHz 1150 MHz 1753 MHz 10.24 inches/260 mm
MSI GTX 770 Gaming OC 4 GB 1137 MHz 1189 MHz 1753 MHz 4 GB, 10.24 inches/260 mm
MSI GTX 770 Lightning 1150 MHz 1202 MHz 1753 MHz 11.024 inches/280 mm
MSI GTX 770 OC 1072 MHz 1124 MHz 1753 MHz 10.55 inches/268 mm
Palit GTX 770 1046 MHz 1085 MHz 1753 MHz 11.024 inches/280 mm
Palit GTX 770 JetStream 1150 MHz 1202 MHz 1753 MHz 11.024 inches/280 mm
Palit GTX 770 JetStream 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB, 10.7 inches/272 mm
Palit GTX 770 OC 1085 MHz 1137 MHz 1753 MHz 11.024 inches/280 mm
PNY XLR8 GTX 770 Enthusiast Edition 1046 MHz 1085 MHz 1753 MHz 11.024 inches/280 mm
PNY XLR8 GTX 770 Enthusiast Edition 1046 MHz 1085 MHz 1753 MHz
PNY XLR8 GTX 770 Enthusiast Edition OC 1150 MHz 1202 MHz 1800 MHz 10.63 inches/270 mm
PNY XLR8 GTX 770 Enthusiast Edition OC 4 GB 1058 MHz 1110 MHz 1753 MHz 4 GB, 10.63 inches/270 mm
PNY XLR8 GTX 770 Enthusiast Edition OC2 4 GB 1150 MHz 1202 MHz 1753 MHz 4 GB, 10.63 inches/270 mm
Point of View GTX 770 Trooper AMMO 1058 MHz 1110 MHz 1750 MHz 10.63 inches/270 mm
Point of View GTX 770 Trooper MAG 1150 MHz 1202 MHz 1800 MHz 10.63 inches/270 mm
SPARKLE Calibre GTX 770 OC 1058 MHz 1110 MHz 1753 MHz
XENON GTX 770 JetStream 1150 MHz 1202 MHz 1753 MHz 11.024 inches/280 mm
XENON GTX 770 JetStream 4 GB 1046 MHz 1085 MHz 1753 MHz 4 GB, 10.7 inches/272 mm
ZOGIS GTX 770 1058 MHz 1110 MHz 1753 MHz
ZOGIS GTX 770 Superclock 1150 MHz 1202 MHz 1800 MHz
ZOGIS GTX 770 Superclock 4 GB 1150 MHz 1202 MHz 1753 MHz 4 GB
ZOTAC GTX 770 1058 MHz 1110 MHz 1753 MHz
ZOTAC GTX 770 4 GB 1058 MHz 1110 MHz 1753 MHz 4 GB
ZOTAC GTX 770 AMP! Edition 1150 MHz 1202 MHz 1800 MHz
ZOTAC GTX 770 Extreme Edition 1150 MHz 1202 MHz 1800 MHz
