NVIDIA GeForce RTX 3080 Ti

Graphics Processor
GA102
Cores
10240
TMUs
320
ROPs
112
Memory Size
12 GB
Memory Type
GDDR6X
Bus Width
384 bit

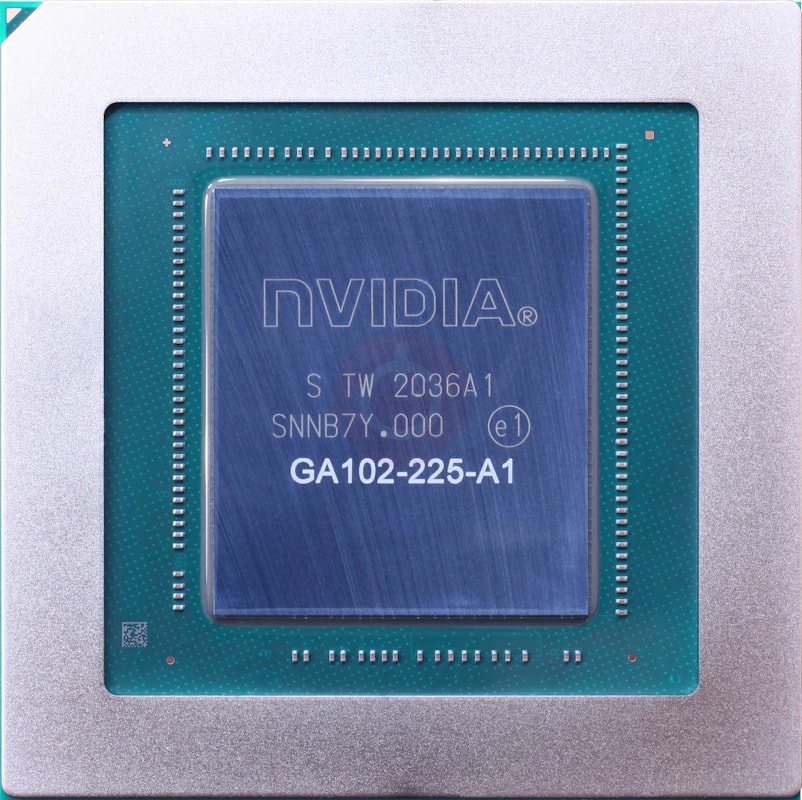

GPU Chip
GPU

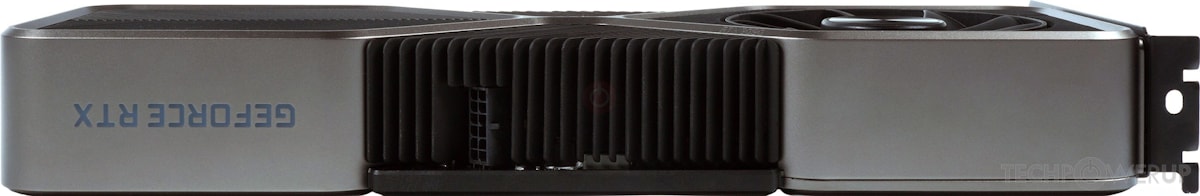

Top
Top

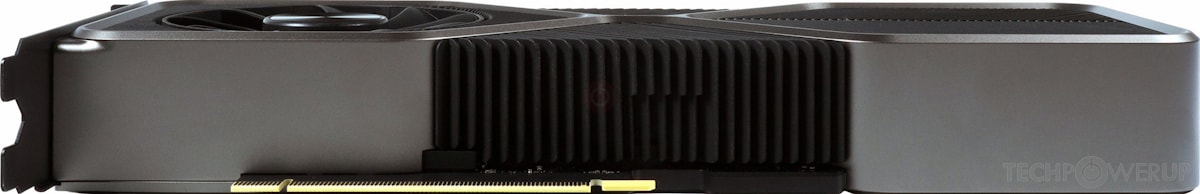

Bottom
Bottom

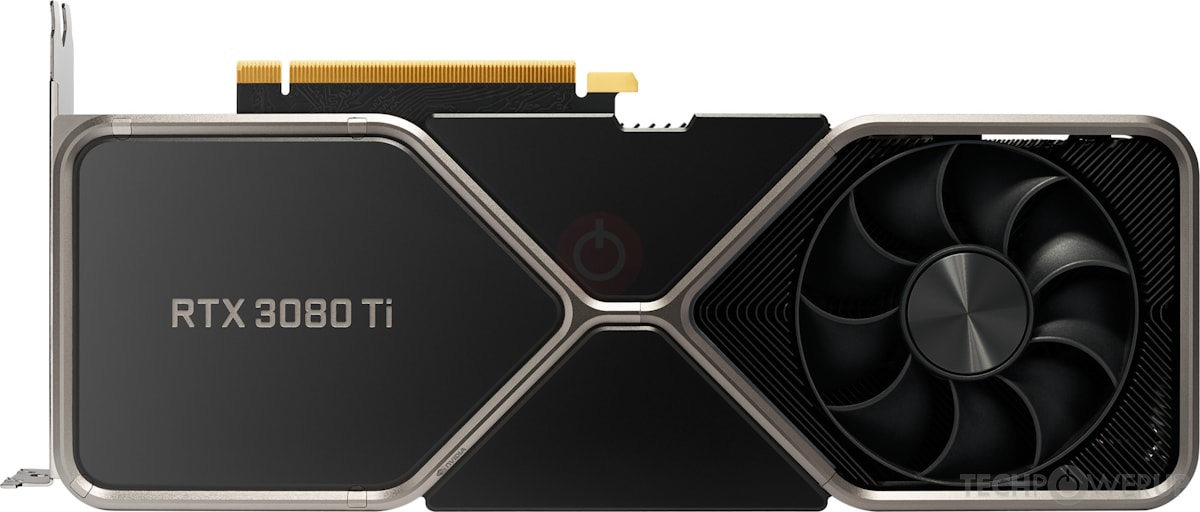

Back
Back

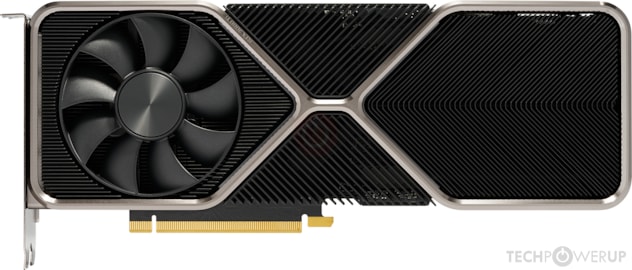

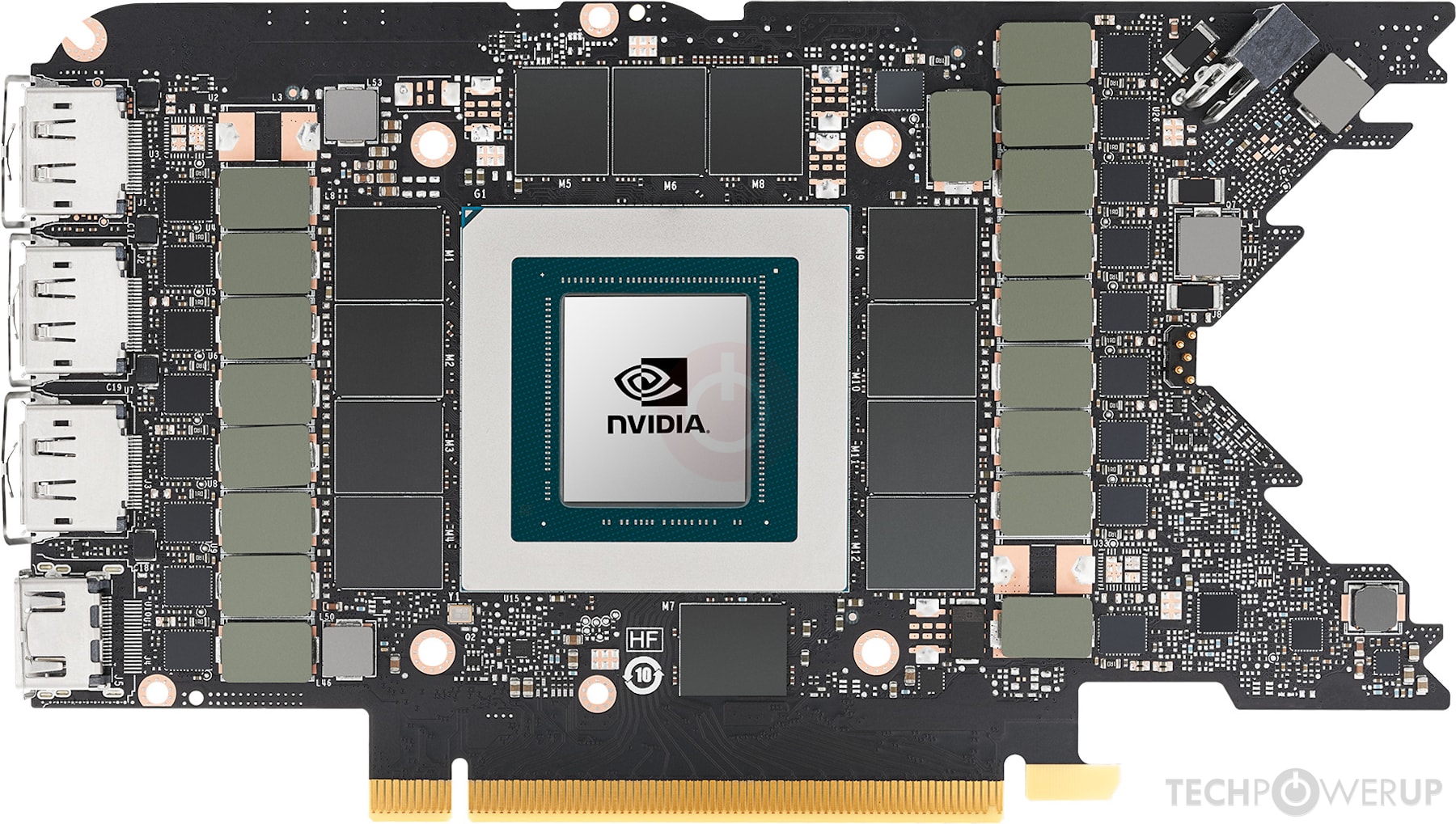

PCB Front
PCB Front

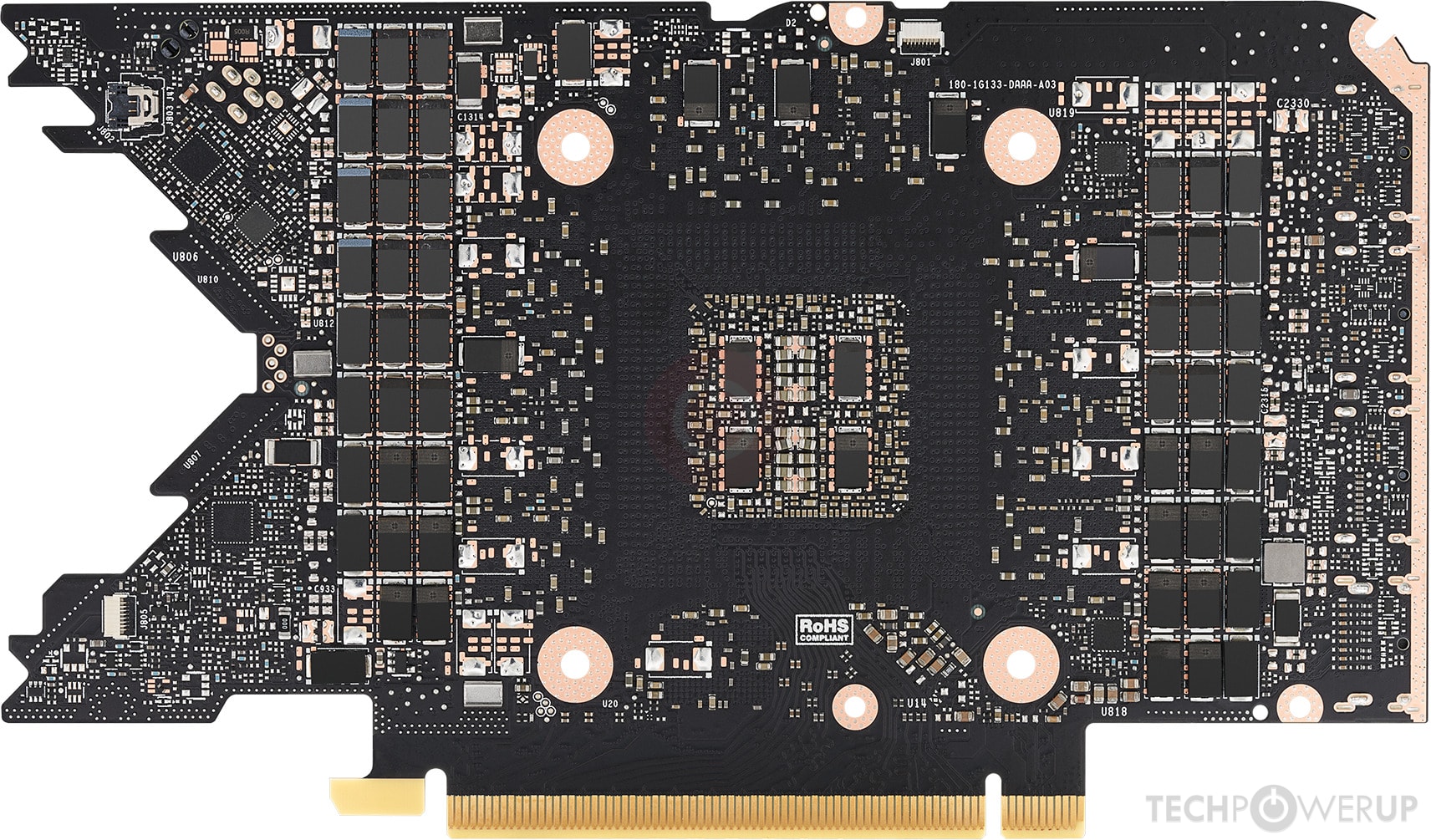

PCB Back
PCB Back
Box Art
Box Art
The GeForce RTX 3080 Ti is an enthusiast-class graphics card by NVIDIA, launched on May 31st, 2021. Built on the 8 nm process, and based on the GA102 graphics processor, in its GA102-225-A1 variant, the card supports DirectX 12 Ultimate. This ensures that all modern games will run on GeForce RTX 3080 Ti. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. The GA102 graphics processor is a large chip with a die area of 628 mm² and 28,300 million transistors. Unlike the fully unlocked GeForce RTX 3090, which uses the same GPU but has all 10496 shaders enabled, NVIDIA has disabled some shading units on the GeForce RTX 3080 Ti to reach the product's target shader count. It features 10240 shading units, 320 texture mapping units, and 112 ROPs. Also included are 320 tensor cores which help improve the speed of machine learning applications. The card also has 80 raytracing acceleration cores. NVIDIA has paired 12 GB GDDR6X memory with the GeForce RTX 3080 Ti, which are connected using a 384-bit memory interface. The GPU is operating at a frequency of 1365 MHz, which can be boosted up to 1665 MHz, memory is running at 1188 MHz (19 Gbps effective).
Being a dual-slot card, the NVIDIA GeForce RTX 3080 Ti draws power from 1x 12-pin power connector, with power draw rated at 350 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort. GeForce RTX 3080 Ti is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 285 mm x 112 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 1199 US Dollars.

Graphics Processor

GPU Name
GA102
GPU Variant
GA102-225-A1
Architecture
Ampere
Foundry
Samsung
Process Size
8 nm
Transistors
28,300 million
Die Size
628 mm²

Graphics Card

Release Date
May 31st, 2021
Availability
Jun 3rd, 2021
Generation
GeForce 30
Predecessor
GeForce 20
Production
Active
Launch Price
1,199 USD
Bus Interface
PCIe 4.0 x16
Reviews
39 in our database

Relative Performance

1%
GeForce 210
1%
GeForce 9400 GT
1%
Radeon HD 4550
1%
Radeon HD 5450
1%
Radeon HD 6450
1%
GeForce GT 520
2%
GeForce GT 220
2%
GeForce GT 430
2%
Radeon HD 5570
2%
Radeon HD 4670
2%
GeForce GT 440
2%
GeForce GT 240
3%
GeForce 9600 GT
3%
Radeon HD 5670
3%
GeForce GT 640
3%
GeForce 9800 GT
3%
Radeon HD 6670
4%
Radeon HD 4830
4%
Radeon HD 4770
4%
Radeon HD 4850
4%
GeForce GTS 250
4%
GeForce GTS 450
4%
Radeon HD 5750
5%
Radeon HD 7750
5%
Radeon HD 5770
5%
GeForce GTX 260
5%
Radeon HD 4870
5%
Radeon Vega 8
5%
GeForce GTX 550 Ti
5%
GeForce GTX 650
6%
Radeon HD 5830
6%
Radeon HD 6790
6%
Radeon HD 4890
6%
GeForce GTX 460
6%
Radeon RX Vega 11
6%
GeForce GT 1030
6%
GeForce GTX 275
6%
Radeon HD 7770 GHz Edition
6%
GeForce GTX 280
7%
GeForce GTX 465
7%
Radeon HD 6850
7%
GeForce GTX 285
7%
Radeon HD 5850
8%
Radeon HD 7790
8%
GeForce GTX 650 Ti
8%
Radeon RX 550
8%
GeForce GTX 470
8%
Radeon HD 6870
9%
Radeon HD 5870
9%
GeForce GTX 560 Ti
9%
Radeon HD 4870 X2
9%
GeForce GTX 750 Ti
9%
Radeon HD 6950
10%
GeForce GTX 295
10%
GeForce GTX 650 Ti Boost
10%
Radeon HD 7850
10%
GeForce GTX 480
10%
Radeon HD 6970
11%
Radeon R7 265
11%
Radeon RX 460
11%
Radeon R7 370
11%
GeForce GTX 660
11%
GeForce GTX 570
11%
Radeon RX 560
12%
GeForce GTX 950
12%
Radeon HD 7870 GHz Edition
12%
Radeon R9 270X
12%
GeForce GTX 660 Ti
12%
GeForce GTX 580
12%
GeForce GTX 1050
12%
Radeon HD 7950
13%
Radeon HD 5970
13%
GeForce GTX 760
14%
GeForce GTX 670
14%
GeForce GTX 960
15%
Radeon R9 380
15%
Radeon R9 285
15%
Radeon HD 7970
15%
GeForce GTX 680
16%
GeForce GTX 1050 Ti
16%
GeForce GTX 770
16%
Radeon HD 6990
17%
Radeon R9 280X
17%
GeForce GTX 590
17%
Radeon HD 7970 GHz Edition
19%
GeForce GTX 780
20%
GeForce GTX 1650
21%
Radeon RX 470
21%
Radeon R9 290
22%
Radeon RX 570
22%
Radeon R9 390
23%
Radeon R9 290X
23%
GeForce GTX 970
23%
GeForce GTX TITAN
23%
GeForce GTX 780 Ti
24%
Radeon R9 390X
24%
Radeon HD 7990
24%
Radeon RX 480
24%
GeForce GTX 690
25%
GeForce GTX 1060 6 GB
25%
Radeon RX 5500 OEM
26%
Radeon RX 580
26%
Radeon RX 5500 XT
26%
GeForce GTX 980
26%
GeForce GTX 1650 SUPER
26%
Radeon R9 FURY
28%
Radeon RX 590
29%
Radeon R9 295X2
29%
GeForce GTX 1660
30%
Radeon R9 FURY X
30%
GeForce GTX 980 Ti
31%
GeForce GTX TITAN X
33%
GeForce GTX 1660 SUPER
33%
GeForce GTX 1070
33%
GeForce GTX 1660 Ti
36%
Radeon RX Vega 56
38%
GeForce GTX 1070 Ti
38%
Radeon RX 5600 XT
39%
Radeon RX Vega 64
39%
GeForce GTX 1080
39%
GeForce RTX 2060
41%
Radeon RX 5700
44%
GeForce RTX 2060 SUPER
46%
GeForce RTX 2070
47%
GeForce RTX 3060
47%
Radeon RX 5700 XT
48%
Radeon VII
49%
TITAN X Pascal
50%
GeForce GTX 1080 Ti
51%
GeForce RTX 2070 SUPER
54%
GeForce RTX 2080
57%
GeForce RTX 2080 SUPER
59%
GeForce RTX 3060 Ti
60%
Radeon RX 6700 XT
64%
GeForce RTX 2080 Ti
69%
GeForce RTX 3070
73%
GeForce RTX 3070 Ti
76%
Radeon RX 6800
87%
Radeon RX 6800 XT
89%
GeForce RTX 3080
94%
Radeon RX 6900 XT
100%
GeForce RTX 3080 Ti
101%
GeForce RTX 3090
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.

Clock Speeds

Base Clock
1365 MHz
Boost Clock
1665 MHz
Memory Clock
1188 MHz
19 Gbps effective

Memory

Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
384 bit
Bandwidth
912.4 GB/s

Render Config

Shading Units
10240
TMUs
320
ROPs
112
SM Count
80
Tensor Cores
320
RT Cores
80
L1 Cache
128 KB (per SM)
L2 Cache
6 MB

Theoretical Performance

Pixel Rate
186.5 GPixel/s
Texture Rate
532.8 GTexel/s
FP16 (half) performance
34.10 TFLOPS (1:1)
FP32 (float) performance
34.10 TFLOPS
FP64 (double) performance
532.8 GFLOPS (1:64)

Board Design

Slot Width
Dual-slot
Length
285 mm
11.2 inches
Width
112 mm
4.4 inches
Height
40 mm
1.6 inches
TDP
350 W
Suggested PSU
750 W
Outputs
1x HDMI
3x DisplayPort
Power Connectors
1x 12-pin
Board Number
PG132 SKU 18

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.2
CUDA
8.6
Shader Model
6.6

Retail boards based on this design (60)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASUS TUF RTX 3080 Ti GAMING 1365 MHz 1665 MHz 1188 MHz 300 mm/11.8 inches, Triple-slot, 2x HDMI 3x DisplayPort
ASUS TUF RTX 3080 Ti GAMING OC 1365 MHz 1755 MHz 1188 MHz 300 mm/11.8 inches, Triple-slot, 2x HDMI 3x DisplayPort
ASUS ROG STRIX LC RTX 3080 Ti GAMING 1365 MHz 1665 MHz 1188 MHz 293 mm/11.5 inches, Triple-slot, 2x HDMI 3x DisplayPort
ASUS ROG STRIX LC RTX 3080 Ti GAMING OC 1365 MHz 1830 MHz 1188 MHz 293 mm/11.5 inches, Triple-slot, 2x HDMI 3x DisplayPort
ASUS ROG STRIX RTX 3080 Ti GAMING 1365 MHz 1665 MHz 1188 MHz 319 mm/12.6 inches, Triple-slot, 2x HDMI 3x DisplayPort
ASUS ROG STRIX RTX 3080 Ti GAMING OC 1365 MHz 1815 MHz 1188 MHz 319 mm/12.6 inches, Triple-slot, 2x HDMI 3x DisplayPort
Colorful iGame RTX 3080 Ti Advanced OC 1365 MHz 1695 MHz 1188 MHz 316 mm/12.4 inches, Triple-slot, 370 W
Colorful iGame RTX 3080 Ti Vulcan OC 1365 MHz 1710 MHz 1188 MHz 323 mm/12.7 inches, Triple-slot, 370 W
Colorful Tomahawk RTX 3080 Ti 1365 MHz 1665 MHz 1188 MHz 310 mm/12.2 inches, Triple-slot
EVGA RTX 3080 TI FTW3 ULTRA 1365 MHz 1800 MHz 1188 MHz 300 mm/11.8 inches, Triple-slot
EVGA RTX 3080 TI FTW3 ULTRA HYBRID 1365 MHz 1800 MHz 1188 MHz 289 mm/11.4 inches
EVGA RTX 3080 TI FTW3 ULTRA HYDRO COPPER 1365 MHz 1800 MHz 1188 MHz 289 mm/11.4 inches, Single-slot
EVGA RTX 3080 TI FTW3 ULTRA Launch Edition 1365 MHz 1800 MHz 1188 MHz 300 mm/11.8 inches, Triple-slot
EVGA RTX 3080 TI XC3 ULTRA 1365 MHz 1725 MHz 1188 MHz
EVGA RTX 3080 TI XC3 ULTRA HYBRID 1365 MHz 1725 MHz 1188 MHz 263 mm/10.4 inches
Gainward RTX 3080 Ti Blue Star OC 1365 MHz 1695 MHz 1188 MHz
Gainward RTX 3080 Ti Chasing Wind 1365 MHz 1665 MHz 1188 MHz
Gainward RTX 3080 Ti Glare 1365 MHz 1665 MHz 1188 MHz
Gainward RTX 3080 Ti Glare OC 1365 MHz 1695 MHz 1188 MHz
Gainward RTX 3080 Ti Phoenix 1365 MHz 1665 MHz 1188 MHz 294 mm/11.6 inches, Triple-slot
Gainward RTX 3080 Ti Red Star OC 1365 MHz 1695 MHz 1188 MHz
GALAX RTX 3080 TI EXG (1-Click OC) 1365 MHz 1710 MHz 1188 MHz 316 mm/12.4 inches, Triple-slot
GALAX RTX 3080 TI EXG White (1-Click OC) 1365 MHz 1710 MHz 1188 MHz 316 mm/12.4 inches, Triple-slot
GALAX RTX 3080 Ti OC Lab Edition 1365 MHz 1665 MHz 1188 MHz 339 mm/13.3 inches, Triple-slot
GALAX RTX 3080 TI SG (1-Click OC) 1365 MHz 1695 MHz 1188 MHz 317 mm/12.5 inches, Triple-slot
GIGABYTE AORUS RTX 3080 Ti MASTER 1365 MHz 1770 MHz 1188 MHz 319 mm/12.6 inches, Quad-slot, 3x HDMI 3x DisplayPort
GIGABYTE AORUS RTX 3080 Ti XTREME 1365 MHz 1830 MHz 1188 MHz 319 mm/12.6 inches, Quad-slot, 3x HDMI 3x DisplayPort
GIGABYTE RTX 3080 Ti EAGLE 1365 MHz 1665 MHz 1188 MHz 320 mm/12.6 inches, Triple-slot, 2x HDMI 3x DisplayPort
GIGABYTE RTX 3080 Ti EAGLE OC 1365 MHz 1680 MHz 1188 MHz 320 mm/12.6 inches, Triple-slot, 2x HDMI 3x DisplayPort
GIGABYTE RTX 3080 Ti GAMING OC 1365 MHz 1710 MHz 1188 MHz 320 mm/12.6 inches, Triple-slot, 2x HDMI 3x DisplayPort
GIGABYTE RTX 3080 Ti VISION OC 1365 MHz 1710 MHz 1188 MHz 320 mm/12.6 inches, Triple-slot, 2x HDMI 3x DisplayPort
Inno3D iChill RTX 3080 Ti FROSTBITE 1365 MHz 1710 MHz 1188 MHz 225 mm/8.9 inches
Inno3D iChill RTX 3080 Ti X3 1365 MHz 1710 MHz 1188 MHz 300 mm/11.8 inches, Triple-slot
Inno3D iChill RTX 3080 Ti X4 1365 MHz 1710 MHz 1188 MHz 300 mm/11.8 inches, Triple-slot
Inno3D RTX 3080 Ti X3 1365 MHz 1665 MHz 1188 MHz 300 mm/11.8 inches
Inno3D RTX 3080 Ti X3 OC 1365 MHz 1680 MHz 1188 MHz 300 mm/11.8 inches
KFA2 RTX 3080 TI EXG (1-Click OC) 1365 MHz 1710 MHz 1188 MHz 316 mm/12.4 inches, Triple-slot
KFA2 RTX 3080 TI SG (1-Click OC) 1365 MHz 1695 MHz 1188 MHz 317 mm/12.5 inches, Triple-slot
KUROTOSHIKOU RTX 3080 TI GALAKURO 1365 MHz 1695 MHz 1188 MHz 317 mm/12.5 inches, Triple-slot
Leadtek WinFast RTX 3080 Ti HURRICANE 1365 MHz 1665 MHz 1188 MHz
Manli RTX 3080 Ti (M3478+N613-00) 1365 MHz 1665 MHz 1188 MHz 317 mm/12.5 inches, Triple-slot
Manli RTX 3080 Ti Gallardo (M3486+N612-00) 1365 MHz 1680 MHz 1188 MHz 317 mm/12.5 inches, Triple-slot
MSI RTX 3080 Ti GAMING TRIO 1365 MHz 1695 MHz 1188 MHz 324 mm/12.8 inches, Triple-slot
MSI RTX 3080 Ti GAMING X TRIO 1365 MHz 1770 MHz 1188 MHz 324 mm/12.8 inches, Triple-slot
MSI RTX 3080 Ti SUPRIM 1365 MHz 1770 MHz 1188 MHz 336 mm/13.2 inches, Triple-slot
MSI RTX 3080 Ti SUPRIM X 1365 MHz 1830 MHz 1188 MHz 336 mm/13.2 inches, Triple-slot
MSI RTX 3080 Ti VENTUS 3X 1365 MHz 1665 MHz 1188 MHz 305 mm/12 inches, Triple-slot
MSI RTX 3080 Ti VENTUS 3X OC 1365 MHz 1695 MHz 1188 MHz 305 mm/12 inches, Triple-slot
Palit RTX 3080 Ti GameRock 1365 MHz 1665 MHz 1188 MHz 304 mm/12 inches, Triple-slot, 400 W
Palit RTX 3080 Ti GameRock OC 1365 MHz 1725 MHz 1188 MHz 304 mm/12 inches, Triple-slot, 400 W
Palit RTX 3080 Ti GamingPro 1365 MHz 1665 MHz 1188 MHz 294 mm/11.6 inches, Triple-slot
PNY XLR8 RTX 3080 Ti REVEL EPIC-X Triple Fan 1365 MHz 1665 MHz 1188 MHz 294 mm/11.6 inches, Triple-slot
PNY XLR8 RTX 3080 Ti UPRISING EPIC-X Triple Fan 1365 MHz 1665 MHz 1188 MHz 317 mm/12.5 inches, Triple-slot
ZOTAC RTX 3080 Ti AMP Holo 1365 MHz 1710 MHz 1188 MHz 318 mm/12.5 inches, Triple-slot
ZOTAC RTX 3080 Ti Apocalypse OC 1365 MHz 1695 MHz 1188 MHz 315 mm/12.4 inches, Triple-slot
ZOTAC RTX 3080 Ti PGF OC 1365 MHz 1740 MHz 1188 MHz 309 mm/12.2 inches, Triple-slot
ZOTAC RTX 3080 Ti Trinity 1365 MHz 1665 MHz 1188 MHz 318 mm/12.5 inches, Triple-slot
ZOTAC RTX 3080 Ti Trinity OC 1365 MHz 1695 MHz 1188 MHz 318 mm/12.5 inches, Triple-slot
ZOTAC RTX 3080 Ti X-GAMING Naraka Bladepoint 1365 MHz 1680 MHz 1188 MHz 311 mm/12.2 inches, Triple-slot
ZOTAC RTX 3080 Ti X-GAMING OC 1365 MHz 1680 MHz 1188 MHz 311 mm/12.2 inches, Triple-slot
