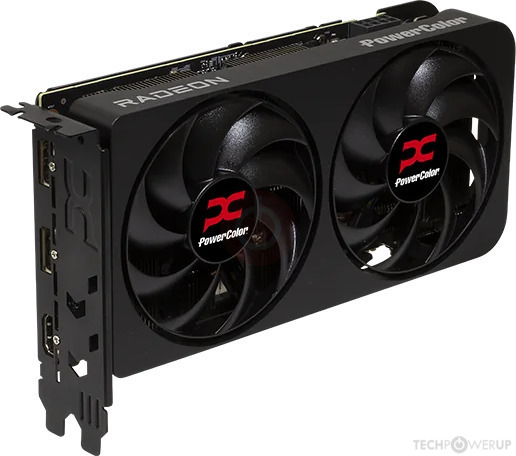

PowerColor Reaper RX 9060 XT OC 16 GB

RX9060XT 16G-A

Graphics Processor

Navi 44

Cores

2048

TMUs

128

ROPs

Memory Size

16 GB

Memory Type

GDDR6

Bus Width

128 bit

GPU

I/O

Top

Bottom

Back

Graphics Processor

GPU Name: Navi 44

Codename: ?

GPU Variant: Navi 44 XT
(215-176400102)

Architecture: RDNA 4.0

Foundry: TSMC

Process Type: N4P FinFET

Process Size: 4 nm

Transistors: 29,700 million

Density: 149.2M / mm²

Die Size: 199 mm²

Chip Package: Monolithic

Graphics Card

Release Date: Jun 4th, 2025

Announced: May 21st, 2025

Generation: Navi IV
(RX 9000)

Predecessor: Navi III

Production: Active

Bus Interface: PCIe 5.0 x16

Clock Speeds

Base Clock: 1700 MHz

Game Clock: ~~2530 MHz~~
2620 MHz (+4%)

Boost Clock: ~~3130 MHz~~
3230 MHz (+3%)

Memory Clock: 2518 MHz
20.1 Gbps effective

Memory

Memory Size: 16 GB

Memory Type: GDDR6

Memory Bus: 128 bit

Bandwidth: 322.3 GB/s

Render Config

Shading Units: 2048

TMUs: 128

ROPs: 64

Compute Units: 32

RT Cores: 32

L0 Cache: 32 KB per WGP

L2 Cache: 4 MB

L3 Cache: 32 MB

Theoretical Performance

Pixel Rate: ~~200.3 GPixel/s~~
206.7 GPixel/s

Texture Rate: ~~400.6 GTexel/s~~
413.4 GTexel/s

FP16 (half): ~~51.28 TFLOPS~~
52.92 TFLOPS (2:1)

FP32 (float): ~~25.64 TFLOPS~~
26.46 TFLOPS

FP64 (double): ~~801.3 GFLOPS~~
826.9 GFLOPS (1:32)

Board Design

Slot Width: Dual-slot

Length: 200 mm
7.9 inches

Width: 100 mm
3.9 inches

Height: 39 mm
1.5 inches

TDP: 160 W

Suggested PSU: 450 W

Outputs: 1x HDMI 2.1b
2x DisplayPort 2.1a

Power Connectors: 1x 8-pin

Graphics Features

DirectX: 12 Ultimate (12_2)

OpenGL: 4.6

OpenCL: 2.2

Vulkan: 1.3

Shader Model: 6.8

Navi 44 GPU Notes

Generation: Navi IV
Ray Tracing Cores: 3rd Gen
Infinity Cache: 3rd Gen
Graphics/Compute: 12.0.0
Shader ISA: GFX12.0 (gfx1200)
Display Core Next: 3.2.0
Video Core Next: 4.0.0
System DMA: 6.0.0

Other retail boards based on this design (17)

Name	GPU Clock	Boost Clock	Memory Clock	Other Changes
ASRock RX 9060 XT Challenger OC 16 GB	1700 MHz	3290 MHz	2518 MHz	249 mm/9.8 inches
ASRock RX 9060 XT Steel Legend OC 16 GB	1900 MHz	3320 MHz	2518 MHz	298 mm/11.7 inches
ASUS Prime RX 9060 XT OC Edition 16 GB	1700 MHz	3311 MHz	2518 MHz	304 mm/12 inches
ASUS TUF Gaming RX 9060 XT OC Edition 16 GB	1700 MHz	3130 MHz	2518 MHz	304 mm/12 inches
GIGABYTE RX 9060 XT GAMING 16 GB	1700 MHz	3130 MHz	2518 MHz	281 mm/11.1 inches
GIGABYTE RX 9060 XT GAMING OC 16 GB	1700 MHz	3130 MHz	2518 MHz	281 mm/11.1 inches
PowerColor Hellhound RX 9060 XT OC 16 GB	1700 MHz	3311 MHz	2518 MHz	310 mm/12.2 inches
PowerColor Hellhound Spectral White RX 9060 XT OC 16 GB	1700 MHz	3311 MHz	2518 MHz	310 mm/12.2 inches
PowerColor Reaper RX 9060 XT OC 16 GB	1700 MHz	3230 MHz	2518 MHz	200 mm/7.9 inches
Sapphire NITRO+ RX 9060 XT OC 16 GB	1900 MHz	3320 MHz	2518 MHz	300 mm/11.8 inches, Triple-slot, 2x HDMI 1x DisplayPort, 182 W
Sapphire PULSE RX 9060 XT OC 16 GB	1700 MHz	3290 MHz	2518 MHz	240 mm/9.4 inches, 2x HDMI 1x DisplayPort, 170 W
Sapphire PURE RX 9060 XT OC 16 GB	1700 MHz	3290 MHz	2518 MHz	240 mm/9.4 inches, 2x HDMI 1x DisplayPort, 170 W
XFX Mercury RX 9060 XT OC 16 GB	1900 MHz	3320 MHz	2518 MHz	320 mm/12.6 inches, Triple-slot
XFX Swift RX 9060 XT OC 16 GB	1900 MHz	3320 MHz	2518 MHz	270 mm/10.6 inches
XFX Swift RX 9060 XT Triple Fan OC 16 GB	1900 MHz	3320 MHz	2518 MHz	290 mm/11.4 inches
XFX Swift RX 9060 XT White OC 16 GB	1900 MHz	3320 MHz	2518 MHz	270 mm/10.6 inches
XFX Swift RX 9060 XT White Triple Fan OC 16 GB	1900 MHz	3320 MHz	2518 MHz	290 mm/11.4 inches
