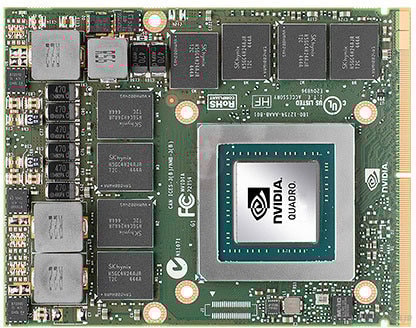

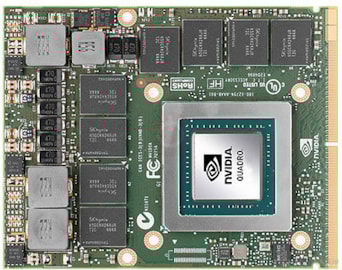

NVIDIA Quadro M3000M

Graphics Processor
GM204
Cores
1024
TMUs
64
ROPs
32
Memory Size
4 GB
Memory Type
GDDR5
Bus Width
256 bit
The Quadro M3000M is a professional graphics card by NVIDIA, launched in August 2015. Built on the 28 nm process, and based on the GM204 graphics processor, in its N16E-Q1-A1 variant, the card supports DirectX 12.0. The GM204 graphics processor is a large chip with a die area of 398 mm² and 5,200 million transistors. Unlike the fully unlocked GeForce GTX 980, which uses the same GPU but has all 2048 shaders enabled, NVIDIA has disabled some shading units on the Quadro M3000M to reach the product's target shader count. It features 1024 shading units, 64 texture mapping units and 32 ROPs. NVIDIA has placed 4,096 MB GDDR5 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1050 MHz, memory is running at 1253 MHz.
Being a mxm module card, the NVIDIA Quadro M3000M does not require any additional power connector, its power draw is rated at 75 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Quadro M3000M is connected to the rest of the system using a PCI-Express 3.0 x16 interface.

Graphics Processor

GPU Name
GM204
GPU Variant
N16E-Q1-A1
Architecture
Maxwell 2.0
Foundry
TSMC
Process Size
28 nm
Transistors
5,200 million
Die Size
398 mm²

Graphics Card

Release Date
Aug 18th, 2015
Generation
Quadro
(Mx000M)
Production
Active
Bus Interface
PCIe 3.0 x16

Relative Performance

4%
GeForce 210
5%
GeForce 9400 GT
6%
Radeon HD 4550
8%
Radeon HD 5450
9%
Radeon HD 6450
10%
GeForce GT 520
12%
GeForce GT 220
16%
GeForce GT 430
16%
Radeon HD 5570
18%
Radeon HD 4670
19%
GeForce GT 440
19%
GeForce GT 240
22%
GeForce 9600 GT
23%
Radeon HD 5670
25%
GeForce GT 640
26%
GeForce 9800 GT
27%
Radeon HD 6670
28%
Radeon HD 4830
29%
Radeon HD 4770
31%
Radeon HD 4850
32%
GeForce GTS 250
33%
GeForce GTS 450
34%
Radeon HD 5750
39%
Radeon HD 7750
39%
Radeon HD 5770
40%
GeForce GTX 260
40%
Radeon HD 4870
40%
Radeon Vega 8
41%
GeForce GTX 550 Ti
41%
GeForce GTX 650
43%
Radeon HD 5830
46%
Radeon HD 6790
46%
Radeon HD 4890
48%
GeForce GTX 460
48%
Radeon RX Vega 11
49%
GeForce GT 1030
49%
GeForce GTX 275
49%
Radeon HD 7770 GHz Edition
50%
GeForce GTX 280
50%
GeForce GTX 465
53%
Radeon HD 6850
54%
GeForce GTX 285
58%
Radeon HD 5850
59%
Radeon HD 7790
59%
GeForce GTX 650 Ti
61%
Radeon RX 550
62%
GeForce GTX 470
64%
Radeon HD 6870
68%
Radeon HD 5870
70%
GeForce GTX 560 Ti
71%
Radeon HD 4870 X2
72%
GeForce GTX 750 Ti
72%
Radeon HD 6950
75%
GeForce GTX 295
76%
GeForce GTX 650 Ti Boost
76%
Radeon HD 7850
77%
GeForce GTX 480
81%
Radeon HD 6970
83%
Radeon R7 265
84%
Radeon RX 460
84%
Radeon R7 370
84%
GeForce GTX 660
85%
GeForce GTX 570
86%
Radeon RX 560
91%
GeForce GTX 950
92%
Radeon HD 7870 GHz Edition
94%
Radeon R9 270X
95%
GeForce GTX 660 Ti
96%
GeForce GTX 580
97%
GeForce GTX 1050
97%
Radeon HD 7950
99%
Radeon HD 5970
100%
Quadro M3000M
102%
GeForce GTX 760
109%
GeForce GTX 670
112%
GeForce GTX 960
115%
Radeon R9 380
116%
Radeon R9 285
117%
Radeon HD 7970
118%
GeForce GTX 680
121%
GeForce GTX 1050 Ti
124%
GeForce GTX 770
127%
Radeon HD 6990
130%
Radeon R9 280X
132%
GeForce GTX 590
132%
Radeon HD 7970 GHz Edition
146%
GeForce GTX 780
151%
GeForce GTX 1650
161%
Radeon RX 470
163%
Radeon R9 290
174%
Radeon R9 390
175%
Radeon R9 290X
177%
GeForce GTX 970
179%
GeForce GTX TITAN
181%
Radeon RX 570
182%
GeForce GTX 780 Ti
184%
Radeon R9 390X
185%
Radeon HD 7990
186%
Radeon RX 480
188%
GeForce GTX 690
198%
Radeon RX 580
202%
GeForce GTX 980
205%
GeForce GTX 1060 6 GB
205%
Radeon R9 FURY
206%
Radeon RX 590
225%
Radeon R9 295X2
229%
Radeon R9 FURY X
233%
GeForce GTX 980 Ti
250%
GeForce GTX TITAN X
262%
GeForce GTX 1660 Ti
264%
GeForce GTX 1070
275%
Radeon RX Vega 56
299%
GeForce GTX 1070 Ti
306%
Radeon RX Vega 64
306%
GeForce RTX 2060
314%
GeForce GTX 1080
361%
Radeon VII
361%
GeForce RTX 2070
378%
TITAN X Pascal
388%
GeForce GTX 1080 Ti
419%
GeForce RTX 2080
485%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
1050 MHz
Memory Clock
1253 MHz
5012 MHz effective

Memory

Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
160.4 GB/s

Render Config

Shading Units
1024
TMUs
64
ROPs
32
SMM Count
8
L1 Cache
48 KB (per SMM)
L2 Cache
2 MB

Theoretical Performance

Pixel Rate
33.60 GPixel/s
Texture Rate
67.20 GTexel/s
FP32 (float) performance
2.150 TFLOPS
FP64 (double) performance
67.20 GFLOPS (1:32)

Board Design

Slot Width
MXM Module
TDP
75 W
Outputs
No outputs
Power Connectors
None

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.103
CUDA
5.2
Shader Model
6.4
