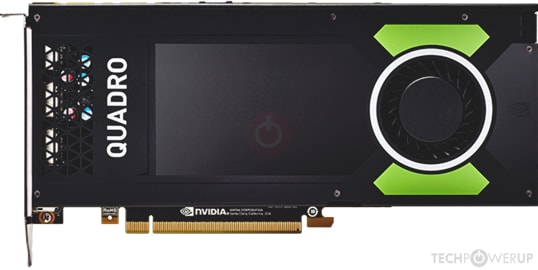

NVIDIA Quadro P4000

Graphics Processor
GP104
Cores
1792
TMUs
112
ROPs
64
Memory Size
8 GB
Memory Type
GDDR5
Bus Width
256 bit
The Quadro P4000 is a enthusiast-class professional graphics card by NVIDIA, launched in February 2017. Built on the 16 nm process, and based on the GP104 graphics processor, the card supports DirectX 12.0. The GP104 graphics processor is a large chip with a die area of 314 mm² and 7,200 million transistors. Unlike the fully unlocked GeForce GTX 1080, which uses the same GPU but has all 2560 shaders enabled, NVIDIA has disabled some shading units on the Quadro P4000 to reach the product's target shader count. It features 1792 shading units, 112 texture mapping units and 64 ROPs. NVIDIA has placed 8,192 MB GDDR5 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1202 MHz, which can be boosted up to 1480 MHz, memory is running at 1901 MHz.
Being a single-slot card, the NVIDIA Quadro P4000 draws power from 1x 6-pin power connectors, with power draw rated at 105 W maximum. Display outputs include: 4x DisplayPort. Quadro P4000 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 241 mm in length, and features a single-slot cooling solution. Its price at launch was 815 US Dollars.

Graphics Processor

GPU Name
GP104
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
7,200 million
Die Size
314 mm²

Graphics Card

Release Date
Feb 6th, 2017
Generation
Quadro
(Px000)
Production
Active
Launch Price
815 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

2%
GeForce 210
2%
GeForce 9400 GT
3%
Radeon HD 4550
4%
Radeon HD 5450
4%
Radeon HD 6450
5%
GeForce GT 520
6%
GeForce GT 220
8%
GeForce GT 430
8%
Radeon HD 5570
8%
Radeon HD 4670
9%
GeForce GT 440
9%
GeForce GT 240
10%
GeForce 9600 GT
11%
Radeon HD 5670
12%
GeForce GT 640
12%
GeForce 9800 GT
13%
Radeon HD 6670
13%
Radeon HD 4830
14%
Radeon HD 4770
15%
Radeon HD 4850
15%
GeForce GTS 250
15%
GeForce GTS 450
16%
Radeon HD 5750
18%
Radeon HD 7750
18%
Radeon HD 5770
19%
GeForce GTX 260
19%
Radeon HD 4870
19%
Radeon Vega 8
19%
GeForce GTX 550 Ti
19%
GeForce GTX 650
20%
Radeon HD 5830
21%
Radeon HD 6790
22%
Radeon HD 4890
23%
GeForce GTX 460
23%
Radeon RX Vega 11
23%
GeForce GT 1030
23%
GeForce GTX 275
23%
Radeon HD 7770 GHz Edition
23%
GeForce GTX 280
24%
GeForce GTX 465
25%
Radeon HD 6850
25%
GeForce GTX 285
27%
Radeon HD 5850
28%
GeForce GTX 650 Ti
28%
Radeon HD 7790
29%
Radeon RX 550
29%
GeForce GTX 470
30%
Radeon HD 6870
32%
Radeon HD 5870
33%
GeForce GTX 560 Ti
33%
Radeon HD 4870 X2
34%
GeForce GTX 750 Ti
34%
Radeon HD 6950
35%
GeForce GTX 295
35%
GeForce GTX 650 Ti Boost
36%
Radeon HD 7850
36%
GeForce GTX 480
38%
Radeon HD 6970
39%
Radeon R7 265
39%
Radeon RX 460
39%
Radeon R7 370
40%
GeForce GTX 660
40%
GeForce GTX 570
40%
Radeon RX 560
43%
GeForce GTX 950
43%
Radeon HD 7870 GHz Edition
44%
Radeon R9 270X
45%
GeForce GTX 660 Ti
45%
GeForce GTX 580
45%
GeForce GTX 1050
45%
Radeon HD 7950
46%
Radeon HD 5970
48%
GeForce GTX 760
51%
GeForce GTX 670
53%
GeForce GTX 960
54%
Radeon R9 380
54%
Radeon R9 285
55%
Radeon HD 7970
55%
GeForce GTX 680
57%
GeForce GTX 1050 Ti
58%
GeForce GTX 770
60%
Radeon HD 6990
61%
Radeon R9 280X
62%
GeForce GTX 590
62%
Radeon HD 7970 GHz Edition
69%
GeForce GTX 780
71%
GeForce GTX 1650
75%
Radeon RX 470
76%
Radeon R9 290
81%
Radeon RX 570
82%
Radeon R9 390
82%
Radeon R9 290X
83%
GeForce GTX 970
84%
GeForce GTX TITAN
85%
GeForce GTX 780 Ti
87%
Radeon R9 390X
87%
Radeon HD 7990
87%
Radeon RX 480
88%
GeForce GTX 690
93%
Radeon RX 580
95%
GeForce GTX 980
96%
Radeon R9 FURY
96%
GeForce GTX 1060 6 GB
100%
Quadro P4000
100%
Radeon RX 590
106%
Radeon R9 295X2
106%
GeForce GTX 1660
107%
Radeon R9 FURY X
109%
GeForce GTX 980 Ti
112%
GeForce GTX TITAN X
122%
GeForce GTX 1660 Ti
122%
GeForce GTX 1070
130%
Radeon RX Vega 56
138%
GeForce GTX 1070 Ti
141%
Radeon RX Vega 64
143%
GeForce GTX 1080
143%
GeForce RTX 2060
149%
Radeon RX 5700
161%
GeForce RTX 2060 SUPER
167%
GeForce RTX 2070
171%
Radeon RX 5700 XT
173%
Radeon VII
177%
TITAN X Pascal
183%
GeForce GTX 1080 Ti
185%
GeForce RTX 2070 SUPER
197%
GeForce RTX 2080
208%
GeForce RTX 2080 SUPER
230%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

Base Clock
1202 MHz
Boost Clock
1480 MHz
Memory Clock
1901 MHz
7604 MHz effective

Memory

Memory Size
8 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
243.3 GB/s

Render Config

Shading Units
1792
TMUs
112
ROPs
64
SM Count
14
L1 Cache
48 KB (per SM)
L2 Cache
2 MB

Theoretical Performance

Pixel Rate
94.72 GPixel/s
Texture Rate
165.8 GTexel/s
FP16 (half) performance
82.88 GFLOPS (1:64)
FP32 (float) performance
5.304 TFLOPS
FP64 (double) performance
165.8 GFLOPS (1:32)

Board Design

Slot Width
Single-slot
Length
9.5 inches
241 mm
TDP
105 W
Outputs
4x DisplayPort
Power Connectors
1x 6-pin
Board Number
PG410 SKU 501

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.122
CUDA
6.1
Shader Model
6.4
