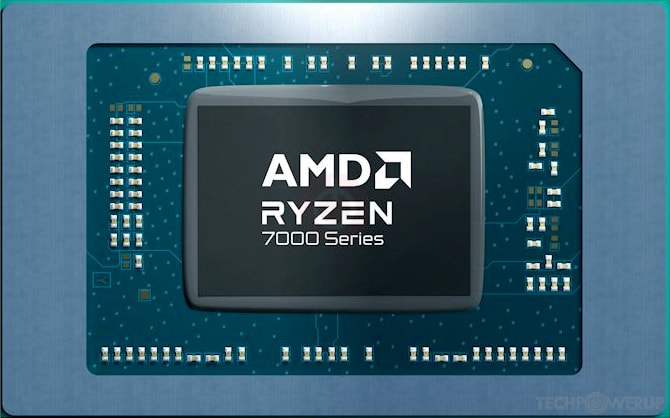

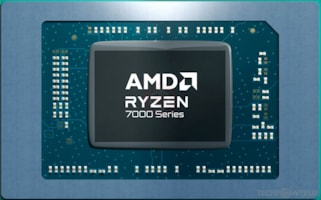

AMD Radeon 780M
Graphics Processor
Phoenix
Cores
768
TMUs
48
ROPs
32
Memory Size
System Shared
Memory Type
System Shared
Bus Width
System Shared
GPU
Recommended Gaming Resolutions:
1920x1080
2560x1440
3840x2160
The Radeon 780M is a mobile integrated graphics solution by AMD, launched on January 4th, 2023. Built on the 4 nm process, and based on the Phoenix graphics processor, the device supports DirectX 12 Ultimate. This ensures that all modern games will run on Radeon 780M. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. It features 768 shading units, 48 texture mapping units, and 32 ROPs. The card also has 12 raytracing acceleration cores. The GPU is operating at a frequency of 800 MHz, which can be boosted up to 2700 MHz. Its power draw is rated at 15 W maximum. Radeon 780M is connected to the rest of the system using a PCI-Express 4.0 x8 interface.
Graphics Processor
GPU Name
Phoenix
Architecture
RDNA 3.0
Foundry
TSMC
Process Size
4 nm
Transistors
25,390 million
Density
142.6M / mm²
Die Size
178 mm²
Chip Package
FP8
Integrated Graphics
Release Date
Jan 4th, 2023
Generation
Navi III IGP
(Phoenix Mobile)
Predecessor
Navi II IGP
Production
Active
Bus Interface
PCIe 4.0 x8
Clock Speeds
Base Clock
800 MHz
Boost Clock
2700 MHz
Memory Clock
System Shared
Memory
Memory Size
System Shared
Memory Type
System Shared
Memory Bus
System Shared
Bandwidth
System Dependent
Render Config
Shading Units
768
TMUs
48
ROPs
32
Compute Units
12
RT Cores
12
L0 Cache 32 KB per WGP
L1 Cache 128 KB per Array
L2 Cache
2 MB
Theoretical Performance
Pixel Rate
86.40 GPixel/s
Texture Rate
129.6 GTexel/s
FP16 (half)
16.59 TFLOPS (2:1)
FP32 (float)
8.294 TFLOPS
FP64 (double)
518.4 GFLOPS (1:16)
Board Design
Slot Width
IGP
TDP
15 W
Outputs
Portable Device Dependent
Power Connectors
None
Graphics Features
DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Phoenix GPU Notes
Generation: Navi III
Ray Tracing Cores: 2nd Gen
Infinity Cache: 2nd Gen
Graphics/Compute: 11.0.1
Shader ISA: GFX11.0 (gfx1103)
Display Core Next: 4.0
Video Core Next: 4.0
Per SIMD32:
- 10 KB Scalar Register File
Per CU:
- 16 KB Vector Data Cache
- 64 KB Local Data Share (GCN-Mode)
Per WGP:
- 16 KB Scalar Data Cache / K Cache
- 32 KB Instruction Cache
- 128 KB Local Data Share
