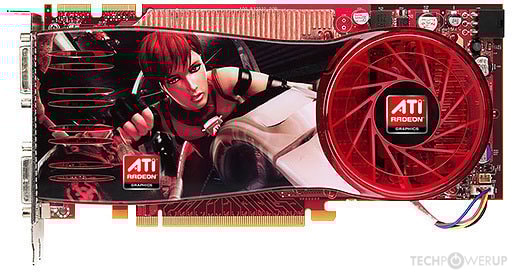

ATI Radeon HD 3870

Graphics Processor
RV670
Cores
320
TMUs
16
ROPs
16
Memory Size
512 MB
Memory Type
GDDR4
Bus Width
256 bit
GPU Chip
GPU

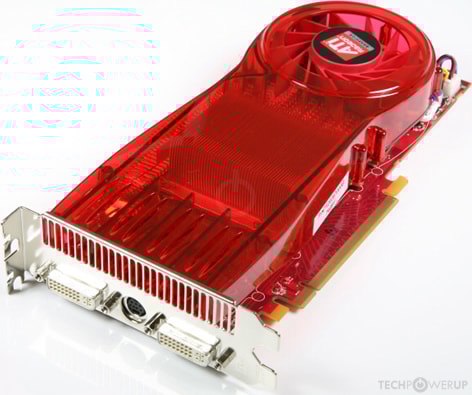

I/O
I/O

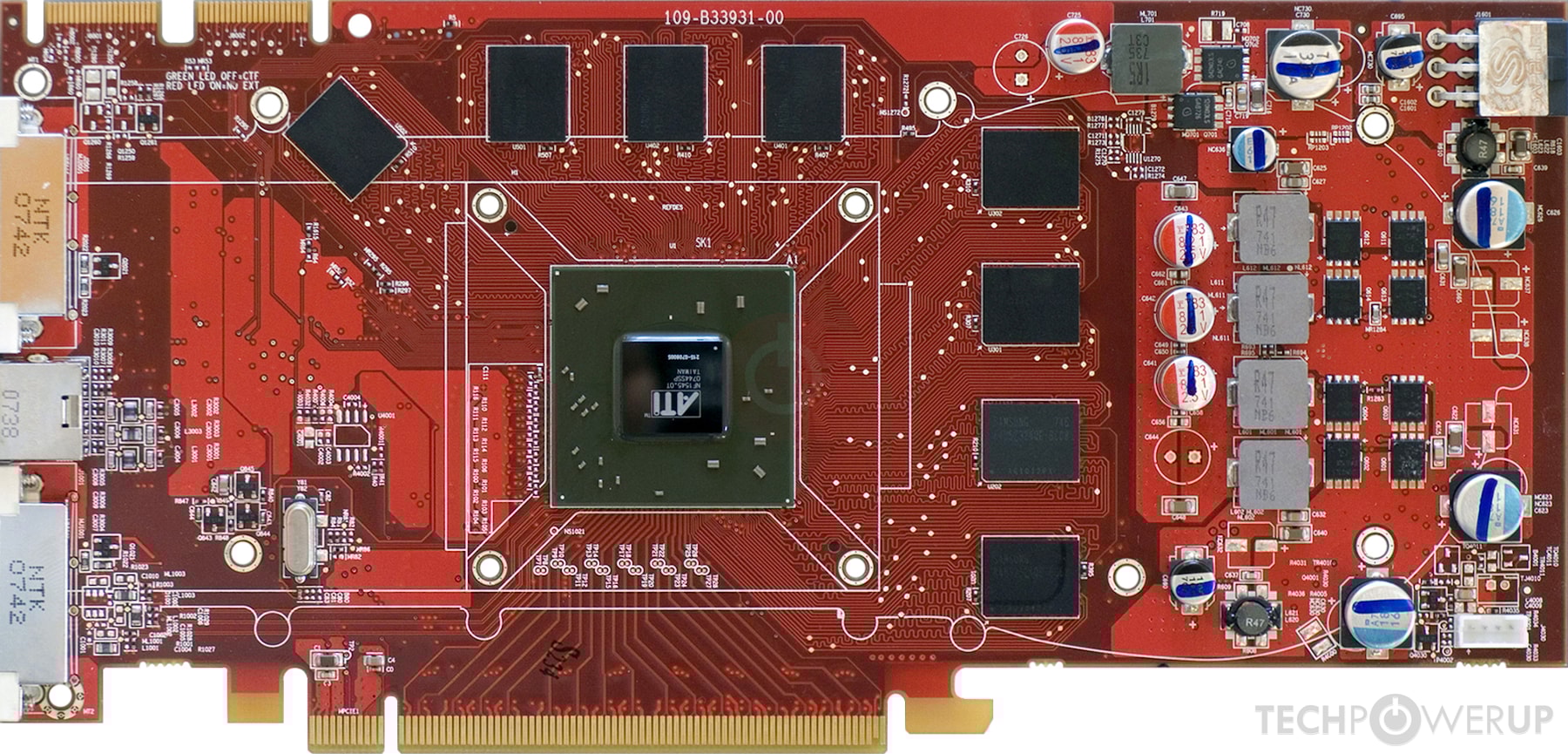

PCB Front
PCB Front
PCB Back
PCB Back
The Radeon HD 3870 was a performance-segment graphics card by ATI, launched on November 19th, 2007. Built on the 55 nm process, and based on the RV670 graphics processor, in its RV670 XT variant, the card supports DirectX 10.1. Since Radeon HD 3870 does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The RV670 graphics processor is an average sized chip with a die area of 192 mm² and 666 million transistors. It features 320 shading units, 16 texture mapping units, and 16 ROPs. ATI has paired 512 MB GDDR4 memory with the Radeon HD 3870, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 777 MHz, memory is running at 1126 MHz.
Being a dual-slot card, the ATI Radeon HD 3870 draws power from 1x 6-pin power connector, with power draw rated at 106 W maximum. Display outputs include: 2x DVI, 1x S-Video. Radeon HD 3870 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 241 mm in length, and features a dual-slot cooling solution. Its price at launch was 269 US Dollars.

Graphics Processor

GPU Name
RV670
GPU Variant
RV670 XT
(215-0708005)
Architecture
TeraScale
Foundry
TSMC
Process Size
55 nm
Transistors
666 million
Density
3.5M / mm²
Die Size
192 mm²
Chip Package
FCBGA-1281

Graphics Card

Release Date
Nov 19th, 2007
Generation
Radeon R600
(HD 3800)
Predecessor
Radeon R500 PCIe
Successor
Radeon R700
Production
End-of-life
Launch Price
269 USD
Bus Interface
PCIe 2.0 x16
Reviews
80 in our database

Relative Performance

GeForce 210
22%
GeForce 9400 GT
28%
Radeon HD 4550
34%
Radeon HD 5450
44%
Radeon HD 6450
51%
GeForce GT 520
54%
GeForce GT 220
67%
GeForce GT 430
88%
Radeon HD 5570
89%
Radeon HD 4670
97%
Radeon HD 3870
100%
GeForce GT 440
102%
GeForce GT 240
104%
GeForce 9600 GT
119%
Radeon HD 5670
127%
GeForce GT 640
136%
GeForce 9800 GT
141%
Radeon HD 6670
146%
Radeon HD 4830
151%
Radeon HD 4770
161%
Radeon HD 4850
170%
GeForce GTS 250
174%
GeForce GTS 450
179%
Radeon HD 5750
185%
Radeon HD 7750
211%
Radeon HD 5770
213%
GeForce GTX 260
217%
Radeon HD 4870
219%
Radeon Vega 8
220%
GeForce GTX 550 Ti
222%
GeForce GTX 650
224%
Radeon HD 5830
237%
Radeon HD 6790
249%
Radeon HD 4890
253%
GeForce GTX 460
263%
Radeon RX Vega 11
265%
GeForce GT 1030
267%
GeForce GTX 275
270%
Radeon HD 7770 GHz Edition
271%
GeForce GTX 280
271%
GeForce GTX 465
276%
Radeon HD 6850
290%
GeForce GTX 285
295%
Radeon HD 5850
317%
GeForce GTX 650 Ti
323%
Radeon HD 7790
323%
Radeon RX 550
336%
GeForce GTX 470
337%
Radeon HD 6870
349%
Radeon HD 5870
373%
GeForce GTX 560 Ti
385%
Radeon HD 4870 X2
387%
GeForce GTX 750 Ti
394%
Radeon HD 6950
395%
GeForce GTX 295
409%
GeForce GTX 650 Ti Boost
414%
Radeon HD 7850
417%
GeForce GTX 480
425%
Radeon HD 6970
444%
Radeon R7 265
453%
Radeon R7 370
460%
Radeon RX 460
460%
GeForce GTX 660
462%
GeForce GTX 570
463%
Radeon RX 560
471%
GeForce GTX 950
500%
Radeon HD 7870 GHz Edition
504%
Radeon R9 270X
517%
GeForce GTX 660 Ti
523%
GeForce GTX 580
525%
GeForce GTX 1050
530%
Radeon HD 7950
531%
GeForce GTX 1630
541%
Radeon HD 5970
541%
GeForce GTX 760
556%
GeForce GTX 670
599%
GeForce GTX 960
615%
Radeon R9 380
630%
Radeon R9 285
634%
Radeon HD 7970
640%
GeForce GTX 680
647%
GeForce GTX 1050 Ti
662%
GeForce GTX 770
679%
Radeon HD 6990
695%
Radeon R9 280X
712%
GeForce GTX 590
722%
Radeon HD 7970 GHz Edition
722%
GeForce GTX 780
800%
Arc A380
801%
Radeon RX 6400
812%
GeForce GTX 1650
829%
Radeon RX 470
880%
Radeon R9 290
893%
Radeon RX 570
941%
Radeon R9 390
952%
Radeon R9 290X
957%
GeForce GTX 970
970%
GeForce GTX TITAN
983%
GeForce GTX 780 Ti
996%
Radeon R9 390X
1011%
Radeon HD 7990
1015%
Radeon RX 480
1020%
GeForce GTX 690
1028%
GeForce GTX 1060 6 GB
1056%
Radeon RX 5500 OEM
1071%
Radeon RX 580
1084%
Radeon RX 5500 XT
1092%
Radeon RX 6500 XT
1101%
GeForce GTX 980
1106%
GeForce GTX 1650 SUPER
1116%
Radeon R9 FURY
1120%
Radeon RX 590
1170%
Radeon R9 295X2
1232%
GeForce GTX 1660
1239%
Radeon R9 FURY X
1254%
GeForce GTX 980 Ti
1275%
GeForce GTX TITAN X
1308%
GeForce GTX 1660 SUPER
1347%
GeForce GTX 1070
1423%
GeForce GTX 1660 Ti
1423%
GeForce RTX 3050 8 GB
1446%
Radeon RX Vega 56
1515%
GeForce GTX 1070 Ti
1606%
Radeon RX 5600 XT
1630%
Radeon RX Vega 64
1652%
GeForce GTX 1080
1675%
GeForce RTX 2060
1675%
Radeon RX 5700
1744%
Arc A580
1748%
Radeon RX 6600
1821%
GeForce RTX 2060 SUPER
1882%
GeForce RTX 2070
1906%
Radeon RX 5700 XT
1908%
GeForce RTX 3060 12 GB
1945%
Arc A750
2009%
Radeon VII
2019%
TITAN X Pascal
2072%
Radeon RX 6600 XT
2093%
GeForce GTX 1080 Ti
2134%
Arc A770
2155%
GeForce RTX 2070 SUPER
2157%
Radeon RX 6650 XT
2269%
Radeon RX 7600
2294%
GeForce RTX 4060
2305%
GeForce RTX 2080
2320%
Radeon RX 7600 XT
2367%
GeForce RTX 2080 SUPER
2433%
Arc B580
2462%
GeForce RTX 3060 Ti
2492%
Radeon RX 6700 XT
2580%
Radeon RX 6750 XT
2738%
GeForce RTX 4060 Ti 8 GB
2768%
GeForce RTX 2080 Ti
2789%
GeForce RTX 3070
2918%
GeForce RTX 3070 Ti
3123%
Radeon RX 7700 XT
3156%
Radeon RX 6800
3217%
GeForce RTX 4070
3564%
Radeon RX 6800 XT
3654%
GeForce RTX 3080
3793%
Radeon RX 7800 XT
3831%
Radeon RX 6900 XT
3937%
GeForce RTX 4070 SUPER
4135%
Radeon RX 7900 GRE
4214%
GeForce RTX 3080 Ti
4248%
Radeon RX 6950 XT
4254%
GeForce RTX 3090
4328%
GeForce RTX 4070 Ti
4437%
GeForce RTX 4070 Ti SUPER
4848%
Radeon RX 7900 XT
4978%
GeForce RTX 3090 Ti
5021%
GeForce RTX 4080
5637%
GeForce RTX 4080 SUPER
5722%
Radeon RX 7900 XTX
5776%
GeForce RTX 4090
7082%
GeForce RTX 5090
9560%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
777 MHz
Memory Clock
1126 MHz
2.3 Gbps effective

Memory

Memory Size
512 MB
Memory Type
GDDR4
Memory Bus
256 bit
Bandwidth
72.06 GB/s

Render Config

Shading Units
320
TMUs
16
ROPs
16
Compute Units
4
L2 Cache
256 KB

Theoretical Performance

Pixel Rate
12.43 GPixel/s
Texture Rate
12.43 GTexel/s
FP32 (float)
497.3 GFLOPS
FP64 (double)
99.46 GFLOPS (1:5)

Board Design

Slot Width
Dual-slot
Length
241 mm
9.5 inches
TDP
106 W
Suggested PSU
300 W
Outputs
2x DVI
1x S-Video
Power Connectors
1x 6-pin
Board Number
109-B33931-00

Graphics Features

DirectX
10.1 (10_1)
OpenGL
3.3 (full)
4.0 (partial)
OpenCL
N/A
Vulkan
N/A
Shader Model
4.1

RV670 GPU Notes

Mobile Variant: M88
Codename: Boom
Graphics/Compute: GFX3
Display Core Engine: 2.0
Unified Video Decoder: 1.0

RV670 Chip Numbers:
RV670 XT (215-0708017)
RV670 XTX ES (215-0708001)

Latest Drivers:
Windows XP / 8:
Catalyst Software Suite 13.1 / 13.4 Beta

Windows Vista / 7:
Catalyst Software Suite 13.9

Retail boards based on this design (11)

Name GPU Clock Memory Clock Other Changes
777 MHz 855 MHz GDDR3, 229 mm/9 inches, Single-slot
851 MHz 1143 MHz 229 mm/9 inches, Single-slot
850 MHz 950 MHz 1024 MB, GDDR3, 229 mm/9 inches
820 MHz 1200 MHz 229 mm/9 inches
850 MHz 1190 MHz
777 MHz 1126 MHz
825 MHz 1200 MHz Single-slot
800 MHz 1152 MHz Single-slot
800 MHz 1152 MHz Single-slot
800 MHz 1100 MHz 1024 MB, Single-slot
777 MHz 1126 MHz GDDR3, Single-slot
