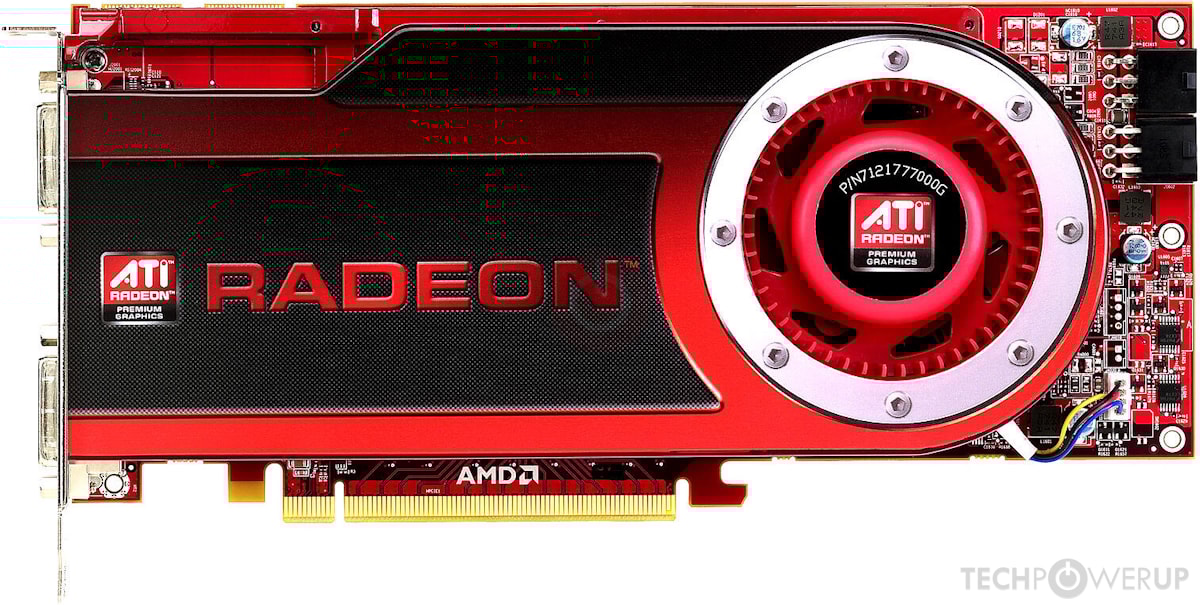

ATI Radeon HD 4870

Graphics Processor
RV770
Cores
800
TMUs
40
ROPs
16
Memory Size
512 MB
Memory Type
GDDR5
Bus Width
256 bit
GPU Chip
GPU

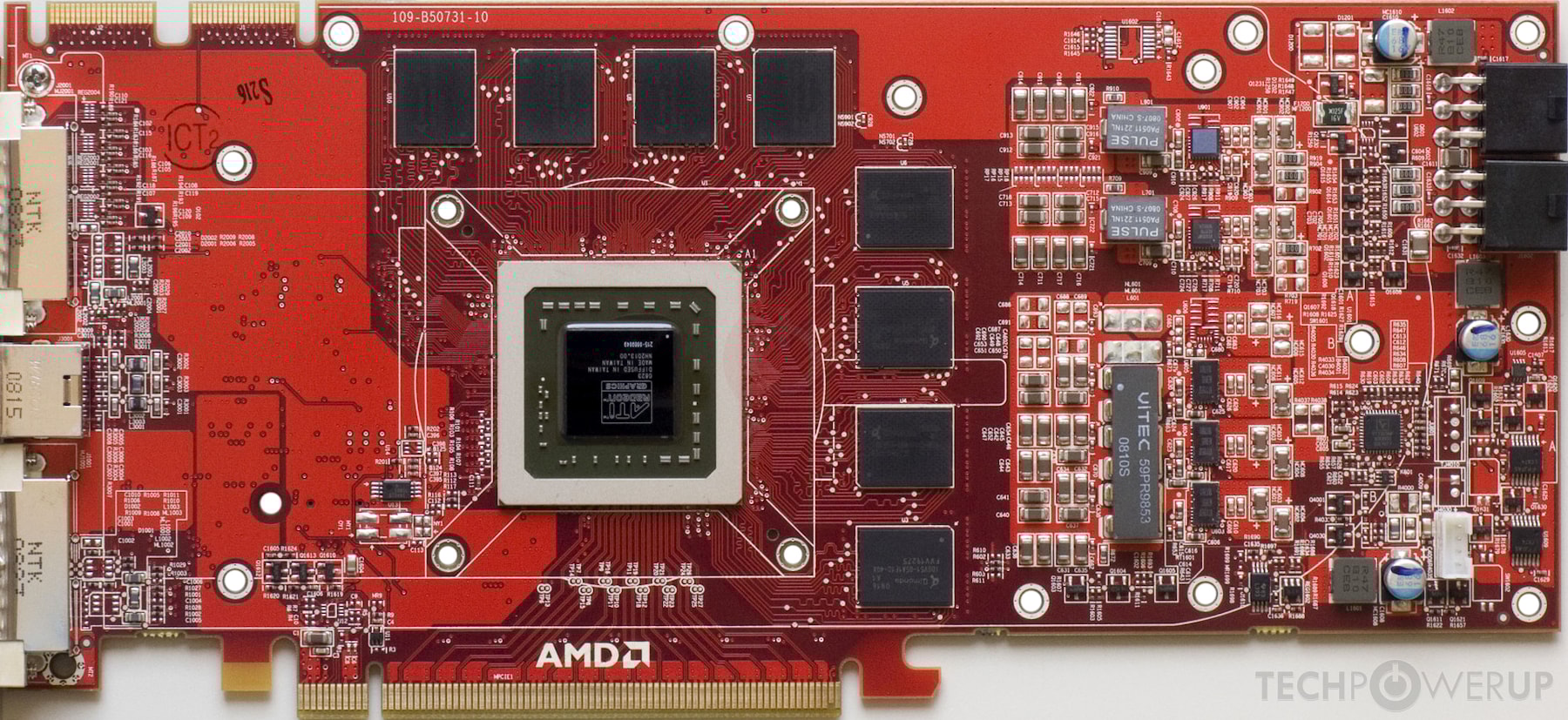

PCB Front
PCB Front

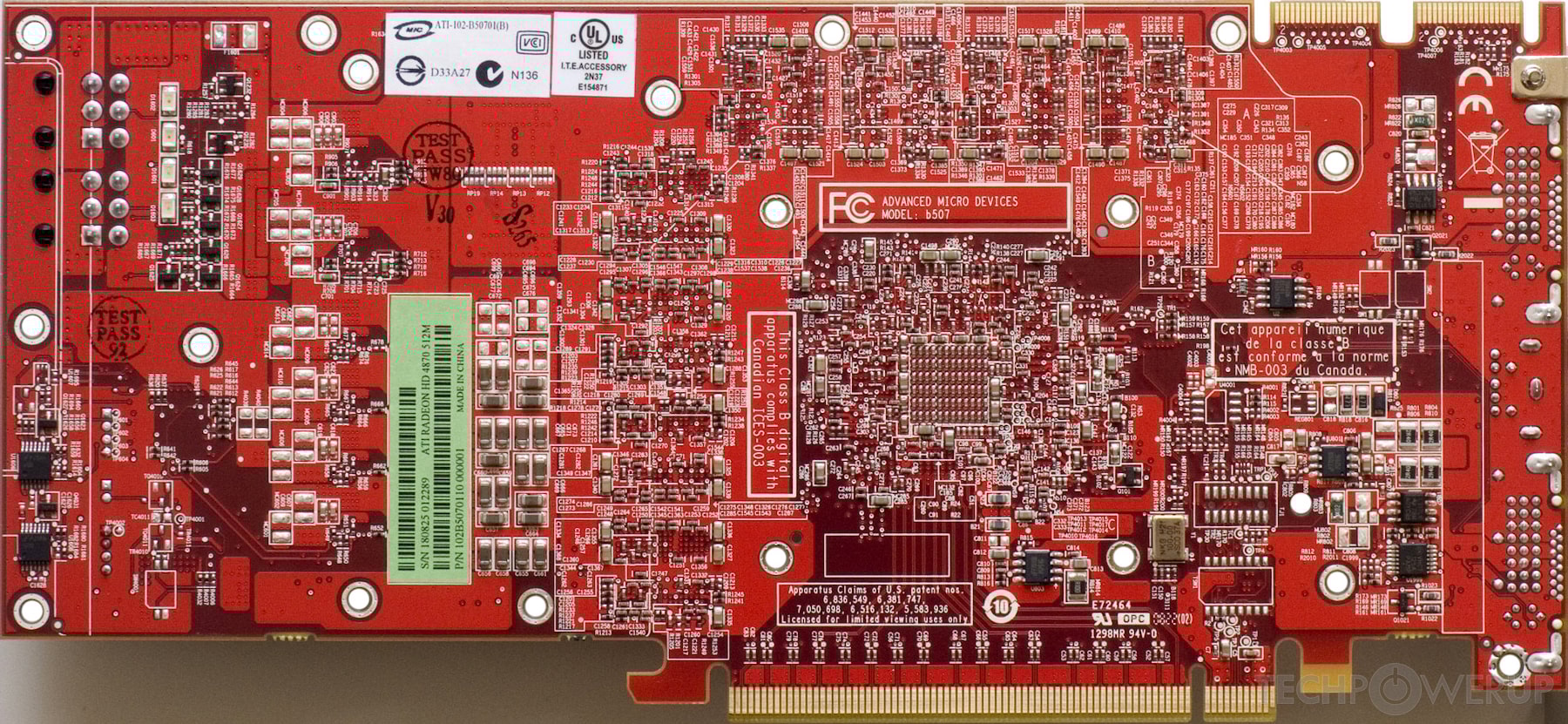

PCB Back
PCB Back
The Radeon HD 4870 was a performance-segment graphics card by ATI, launched on June 25th, 2008. Built on the 55 nm process, and based on the RV770 graphics processor, in its RV770 XT variant, the card supports DirectX 10.1. Since Radeon HD 4870 does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The RV770 graphics processor is an average sized chip with a die area of 256 mm² and 956 million transistors. It features 800 shading units, 40 texture mapping units, and 16 ROPs. ATI has paired 512 MB GDDR5 memory with the Radeon HD 4870, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 750 MHz, memory is running at 900 MHz (3.6 Gbps effective).
Being a dual-slot card, the ATI Radeon HD 4870 draws power from 2x 6-pin power connectors, with power draw rated at 150 W maximum. Display outputs include: 2x DVI, 1x S-Video. Radeon HD 4870 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card's dimensions are 241 mm x 111 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 299 US Dollars.

Graphics Processor

GPU Name
RV770
GPU Variant
RV770 XT
(215-0669049)
Architecture
TeraScale
Foundry
TSMC
Process Size
55 nm
Transistors
956 million
Density
3.7M / mm²
Die Size
256 mm²
Chip Package
HFCBGA-1492

Graphics Card

Release Date
Jun 25th, 2008
Generation
Radeon R700
(HD 4800)
Predecessor
Radeon R600
Successor
Evergreen
Production
End-of-life
Launch Price
299 USD
Bus Interface
PCIe 2.0 x16
Reviews
135 in our database

Relative Performance

GeForce 210
10%
GeForce 9400 GT
13%
Radeon HD 4550
16%
Radeon HD 5450
20%
Radeon HD 6450
23%
GeForce GT 520
25%
GeForce GT 220
31%
GeForce GT 430
40%
Radeon HD 5570
40%
Radeon HD 4670
44%
GeForce GT 440
46%
GeForce GT 240
47%
GeForce 9600 GT
54%
Radeon HD 5670
58%
GeForce GT 640
62%
GeForce 9800 GT
64%
Radeon HD 6670
67%
Radeon HD 4830
69%
Radeon HD 4770
73%
Radeon HD 4850
77%
GeForce GTS 250
79%
GeForce GTS 450
82%
Radeon HD 5750
84%
Radeon HD 7750
96%
Radeon HD 5770
97%
GeForce GTX 260
99%
Radeon HD 4870
100%
Radeon Vega 8
100%
GeForce GTX 550 Ti
101%
GeForce GTX 650
102%
Radeon HD 5830
108%
Radeon HD 6790
114%
Radeon HD 4890
116%
GeForce GTX 460
120%
Radeon RX Vega 11
121%
GeForce GT 1030
122%
GeForce GTX 275
123%
Radeon HD 7770 GHz Edition
123%
GeForce GTX 280
124%
GeForce GTX 465
126%
Radeon HD 6850
132%
GeForce GTX 285
135%
Radeon HD 5850
144%
GeForce GTX 650 Ti
147%
Radeon HD 7790
147%
Radeon RX 550
153%
GeForce GTX 470
154%
Radeon HD 6870
159%
Radeon HD 5870
170%
GeForce GTX 560 Ti
175%
Radeon HD 4870 X2
176%
GeForce GTX 750 Ti
179%
Radeon HD 6950
180%
GeForce GTX 295
187%
GeForce GTX 650 Ti Boost
189%
Radeon HD 7850
190%
GeForce GTX 480
194%
Radeon HD 6970
203%
Radeon R7 265
206%
Radeon RX 460
210%
Radeon R7 370
210%
GeForce GTX 660
211%
GeForce GTX 570
211%
Radeon RX 560
215%
GeForce GTX 950
228%
Radeon HD 7870 GHz Edition
230%
Radeon R9 270X
236%
GeForce GTX 660 Ti
238%
GeForce GTX 580
240%
GeForce GTX 1050
241%
Radeon HD 7950
242%
GeForce GTX 1630
247%
Radeon HD 5970
247%
GeForce GTX 760
254%
GeForce GTX 670
273%
GeForce GTX 960
280%
Radeon R9 380
287%
Radeon R9 285
289%
Radeon HD 7970
292%
GeForce GTX 680
295%
GeForce GTX 1050 Ti
302%
GeForce GTX 770
310%
Radeon HD 6990
317%
Radeon R9 280X
324%
GeForce GTX 590
329%
Radeon HD 7970 GHz Edition
329%
GeForce GTX 780
365%
Arc A380
365%
Radeon RX 6400
370%
GeForce GTX 1650
378%
Radeon RX 470
401%
Radeon R9 290
407%
Radeon RX 570
429%
Radeon R9 390
434%
Radeon R9 290X
437%
GeForce GTX 970
442%
GeForce GTX TITAN
448%
GeForce GTX 780 Ti
454%
Radeon R9 390X
461%
Radeon HD 7990
463%
Radeon RX 480
465%
GeForce GTX 690
469%
GeForce GTX 1060 6 GB
482%
Radeon RX 5500 OEM
488%
Radeon RX 580
494%
Radeon RX 5500 XT
498%
Radeon RX 6500 XT
502%
GeForce GTX 980
504%
GeForce GTX 1650 SUPER
509%
Radeon R9 FURY
511%
Radeon RX 590
534%
Radeon R9 295X2
562%
GeForce GTX 1660
565%
Radeon R9 FURY X
572%
GeForce GTX 980 Ti
581%
GeForce GTX TITAN X
596%
GeForce GTX 1660 SUPER
614%
GeForce GTX 1070
649%
GeForce GTX 1660 Ti
649%
GeForce RTX 3050 8 GB
659%
Radeon RX Vega 56
690%
GeForce GTX 1070 Ti
732%
Radeon RX 5600 XT
743%
Radeon RX Vega 64
753%
GeForce GTX 1080
764%
GeForce RTX 2060
764%
Radeon RX 5700
795%
Arc A580
797%
Radeon RX 6600
830%
GeForce RTX 2060 SUPER
858%
GeForce RTX 2070
869%
Radeon RX 5700 XT
870%
GeForce RTX 3060 12 GB
887%
Arc A750
916%
Radeon VII
921%
TITAN X Pascal
945%
Radeon RX 6600 XT
954%
GeForce GTX 1080 Ti
973%
Arc A770
983%
GeForce RTX 2070 SUPER
983%
Radeon RX 6650 XT
1034%
Radeon RX 7600
1046%
GeForce RTX 4060
1051%
GeForce RTX 2080
1058%
Radeon RX 7600 XT
1079%
GeForce RTX 2080 SUPER
1109%
GeForce RTX 3060 Ti
1136%
Radeon RX 6700 XT
1176%
Radeon RX 6750 XT
1248%
GeForce RTX 4060 Ti 8 GB
1262%
GeForce RTX 2080 Ti
1271%
GeForce RTX 3070
1330%
GeForce RTX 3070 Ti
1424%
Radeon RX 7700 XT
1439%
Radeon RX 6800
1467%
GeForce RTX 4070
1625%
Radeon RX 6800 XT
1666%
GeForce RTX 3080
1729%
Radeon RX 7800 XT
1746%
Radeon RX 6900 XT
1795%
GeForce RTX 4070 SUPER
1885%
Radeon RX 7900 GRE
1921%
GeForce RTX 3080 Ti
1937%
Radeon RX 6950 XT
1939%
GeForce RTX 3090
1973%
GeForce RTX 4070 Ti
2023%
GeForce RTX 4070 Ti SUPER
2210%
Radeon RX 7900 XT
2270%
GeForce RTX 3090 Ti
2289%
GeForce RTX 4080
2570%
GeForce RTX 4080 SUPER
2609%
Radeon RX 7900 XTX
2633%
GeForce RTX 4090
3229%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.

Clock Speeds

GPU Clock
750 MHz
Memory Clock
900 MHz
3.6 Gbps effective

Memory

Memory Size
512 MB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
115.2 GB/s

Render Config

Shading Units
800
TMUs
40
ROPs
16
Compute Units
10
L1 Cache
16 KB (per CU)
L2 Cache
256 KB

Theoretical Performance

Pixel Rate
12.00 GPixel/s
Texture Rate
30.00 GTexel/s
FP32 (float)
1,200 GFLOPS
FP64 (double)
240.0 GFLOPS (1:5)

Board Design

Slot Width
Dual-slot
Length
241 mm
9.5 inches
Width
111 mm
4.4 inches
Height
40 mm
1.6 inches
TDP
150 W
Suggested PSU
450 W
Outputs
2x DVI
1x S-Video
Power Connectors
2x 6-pin
Board Number
109-B50731-10

Graphics Features

DirectX
10.1 (10_1)
OpenGL
3.3
OpenCL
1.1
Vulkan
N/A
Shader Model
4.1

RV770 GPU Notes

Mobile Variant: M98
Codename: Wekiva
Graphics/Compute: GFX3
Display Core Engine: 3.1
Unified Video Decoder: 2.0

Latest Drivers:
Windows XP / 8:
Catalyst Software Suite 13.1 / 13.4 Beta

Windows Vista / 7:
Catalyst Software Suite 13.9

Retail boards based on this design (17)

Name GPU Clock Memory Clock Other Changes
815 MHz 925 MHz
815 MHz 925 MHz
770 MHz 920 MHz
780 MHz 1000 MHz
770 MHz 1000 MHz 1024 MB
780 MHz 1000 MHz
775 MHz 1000 MHz 2x DVI 1x DisplayPort
775 MHz 1000 MHz 1x DVI 1x HDMI 1x DisplayPort 1x VGA
800 MHz 950 MHz Single-slot
780 MHz 1000 MHz
780 MHz 1000 MHz 1024 MB, 1x DVI 1x HDMI 1x VGA
750 MHz 900 MHz 1024 MB, 1x DVI 1x HDMI 1x VGA
750 MHz 900 MHz 2 GB, 1x DVI 1x HDMI 1x VGA
750 MHz 900 MHz 2x DVI
750 MHz 900 MHz 1024 MB
775 MHz 950 MHz
775 MHz 950 MHz 1024 MB
