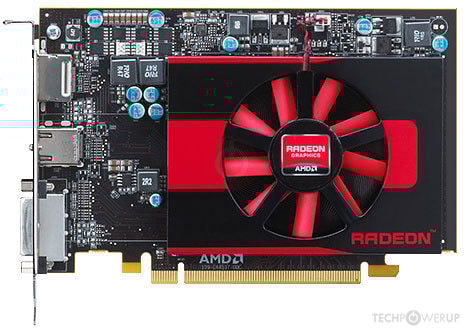

AMD Radeon HD 7750

Graphics Processor
Cape Verde
Cores
512
TMUs
32
ROPs
16
Memory Size
1024 MB
Memory Type
GDDR5
Bus Width
128 bit
GPU Chip
GPU
The Radeon HD 7750 was a mid-range graphics card by AMD, launched on February 15th, 2012. Built on the 28 nm process, and based on the Cape Verde graphics processor, in its Cape Verde PRO variant, the card supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_1, which can be problematic with newer DirectX 12 titles. The Cape Verde graphics processor is an average sized chip with a die area of 123 mm² and 1,500 million transistors. Unlike the fully unlocked Radeon HD 7770 GHz Edition, which uses the same GPU but has all 640 shaders enabled, AMD has disabled some shading units on the Radeon HD 7750 to reach the product's target shader count. It features 512 shading units, 32 texture mapping units, and 16 ROPs. AMD has paired 1,024 MB GDDR5 memory with the Radeon HD 7750, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 800 MHz, memory is running at 1125 MHz (4.5 Gbps effective).
Being a single-slot card, the AMD Radeon HD 7750 does not require any additional power connector, its power draw is rated at 55 W maximum. Display outputs include: 1x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2. Radeon HD 7750 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 168 mm in length, and features a single-slot cooling solution. Its price at launch was 109 US Dollars.

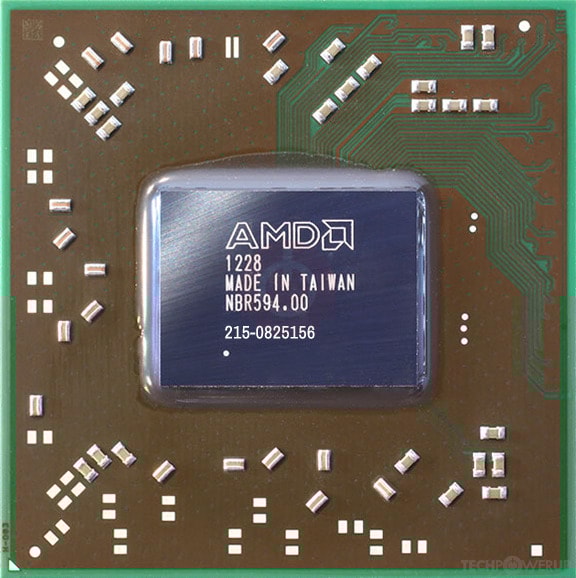

Graphics Processor

GPU Name
Cape Verde
GPU Variant
Cape Verde PRO
(215-0825156)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
1,500 million
Density
12.2M / mm²
Die Size
123 mm²
Chip Package
FCBGA-962

Graphics Card

Release Date
Feb 15th, 2012
Generation
Southern Islands
(HD 7700)
Predecessor
Northern Islands
Successor
Sea Islands
Production
End-of-life
Launch Price
109 USD
Bus Interface
PCIe 3.0 x16
Reviews
61 in our database

Relative Performance

GeForce 210
10%
GeForce 9400 GT
13%
Radeon HD 4550
16%
Radeon HD 5450
21%
Radeon HD 6450
24%
GeForce GT 520
26%
GeForce GT 220
32%
GeForce GT 430
41%
Radeon HD 5570
42%
Radeon HD 4670
46%
GeForce GT 440
48%
GeForce GT 240
49%
GeForce 9600 GT
56%
Radeon HD 5670
60%
GeForce GT 640
64%
GeForce 9800 GT
66%
Radeon HD 6670
69%
Radeon HD 4830
71%
Radeon HD 4770
76%
Radeon HD 4850
80%
GeForce GTS 250
82%
GeForce GTS 450
85%
Radeon HD 5750
88%
Radeon HD 7750
100%
Radeon HD 5770
101%
GeForce GTX 260
103%
Radeon HD 4870
104%
Radeon Vega 8
104%
GeForce GTX 550 Ti
105%
GeForce GTX 650
106%
Radeon HD 5830
112%
Radeon HD 6790
118%
Radeon HD 4890
120%
GeForce GTX 460
124%
Radeon RX Vega 11
125%
GeForce GT 1030
127%
GeForce GTX 275
128%
Radeon HD 7770 GHz Edition
128%
GeForce GTX 280
128%
GeForce GTX 465
131%
Radeon HD 6850
137%
GeForce GTX 285
140%
Radeon HD 5850
150%
GeForce GTX 650 Ti
153%
Radeon HD 7790
153%
Radeon RX 550
159%
GeForce GTX 470
160%
Radeon HD 6870
165%
Radeon HD 5870
176%
GeForce GTX 560 Ti
182%
Radeon HD 4870 X2
183%
GeForce GTX 750 Ti
186%
Radeon HD 6950
187%
GeForce GTX 295
194%
GeForce GTX 650 Ti Boost
196%
Radeon HD 7850
197%
GeForce GTX 480
201%
Radeon HD 6970
210%
Radeon R7 265
214%
Radeon RX 460
218%
Radeon R7 370
218%
GeForce GTX 660
219%
GeForce GTX 570
219%
Radeon RX 560
223%
GeForce GTX 950
237%
Radeon HD 7870 GHz Edition
239%
Radeon R9 270X
245%
GeForce GTX 660 Ti
248%
GeForce GTX 580
249%
GeForce GTX 1050
251%
Radeon HD 7950
251%
GeForce GTX 1630
256%
Radeon HD 5970
256%
GeForce GTX 760
263%
GeForce GTX 670
283%
GeForce GTX 960
291%
Radeon R9 380
298%
Radeon R9 285
300%
Radeon HD 7970
303%
GeForce GTX 680
306%
GeForce GTX 1050 Ti
313%
GeForce GTX 770
322%
Radeon HD 6990
329%
Radeon R9 280X
337%
GeForce GTX 590
342%
Radeon HD 7970 GHz Edition
342%
GeForce GTX 780
379%
Arc A380
379%
Radeon RX 6400
384%
GeForce GTX 1650
392%
Radeon RX 470
417%
Radeon R9 290
423%
Radeon RX 570
445%
Radeon R9 390
451%
Radeon R9 290X
453%
GeForce GTX 970
459%
GeForce GTX TITAN
465%
GeForce GTX 780 Ti
472%
Radeon R9 390X
478%
Radeon HD 7990
480%
Radeon RX 480
483%
GeForce GTX 690
487%
GeForce GTX 1060 6 GB
500%
Radeon RX 5500 OEM
507%
Radeon RX 580
513%
Radeon RX 5500 XT
517%
Radeon RX 6500 XT
521%
GeForce GTX 980
524%
GeForce GTX 1650 SUPER
528%
Radeon R9 FURY
530%
Radeon RX 590
554%
Radeon R9 295X2
583%
GeForce GTX 1660
587%
Radeon R9 FURY X
593%
GeForce GTX 980 Ti
603%
GeForce GTX TITAN X
619%
GeForce GTX 1660 SUPER
638%
GeForce GTX 1070
673%
GeForce GTX 1660 Ti
673%
GeForce RTX 3050 8 GB
684%
Radeon RX Vega 56
717%
GeForce GTX 1070 Ti
760%
Radeon RX 5600 XT
772%
Radeon RX Vega 64
782%
GeForce GTX 1080
793%
GeForce RTX 2060
793%
Radeon RX 5700
826%
Arc A580
827%
Radeon RX 6600
862%
GeForce RTX 2060 SUPER
891%
GeForce RTX 2070
902%
Radeon RX 5700 XT
903%
GeForce RTX 3060 12 GB
921%
Arc A750
951%
Radeon VII
956%
TITAN X Pascal
981%
Radeon RX 6600 XT
991%
GeForce GTX 1080 Ti
1010%
Arc A770
1020%
GeForce RTX 2070 SUPER
1021%
Radeon RX 6650 XT
1074%
Radeon RX 7600
1086%
GeForce RTX 4060
1091%
GeForce RTX 2080
1098%
Radeon RX 7600 XT
1121%
GeForce RTX 2080 SUPER
1151%
Arc B580
1165%
GeForce RTX 3060 Ti
1180%
Radeon RX 6700 XT
1221%
Radeon RX 6750 XT
1296%
GeForce RTX 4060 Ti 8 GB
1310%
GeForce RTX 2080 Ti
1320%
GeForce RTX 3070
1381%
GeForce RTX 3070 Ti
1478%
Radeon RX 7700 XT
1494%
Radeon RX 6800
1523%
GeForce RTX 4070
1687%
Radeon RX 6800 XT
1729%
GeForce RTX 3080
1795%
Radeon RX 7800 XT
1813%
Radeon RX 6900 XT
1864%
GeForce RTX 4070 SUPER
1957%
Radeon RX 7900 GRE
1995%
GeForce RTX 3080 Ti
2011%
Radeon RX 6950 XT
2013%
GeForce RTX 3090
2049%
GeForce RTX 4070 Ti
2100%
GeForce RTX 4070 Ti SUPER
2295%
Radeon RX 7900 XT
2357%
GeForce RTX 3090 Ti
2377%
GeForce RTX 4080
2668%
GeForce RTX 4080 SUPER
2708%
Radeon RX 7900 XTX
2734%
GeForce RTX 4090
3352%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.

Clock Speeds

GPU Clock
800 MHz
Memory Clock
1125 MHz
4.5 Gbps effective

Memory

Memory Size
1024 MB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
72.00 GB/s

Render Config

Shading Units
512
TMUs
32
ROPs
16
Compute Units
8
L1 Cache
16 KB (per CU)
L2 Cache
256 KB

Theoretical Performance

Pixel Rate
12.80 GPixel/s
Texture Rate
25.60 GTexel/s
FP32 (float)
819.2 GFLOPS
FP64 (double)
51.20 GFLOPS (1:16)

Board Design

Slot Width
Single-slot
Length
168 mm
6.6 inches
TDP
55 W
Suggested PSU
250 W
Outputs
1x DVI
1x HDMI 1.4a
1x DisplayPort 1.2
Power Connectors
None
Board Number
C441,
109-C44537-00B

Graphics Features

DirectX
12 (11_1)
OpenGL
4.6
OpenCL
2.1 (1.2)
Vulkan
1.2.170
Shader Model
6.5 (5.1)

Cape Verde GPU Notes

Generation: Southern Islands
Mobile Variant: Chelsea / Heathrow / Venus / Tropo
Graphics/Compute: GFX6 (gfx601)
Display Core Engine: 6.0
Unified Video Decoder: 4.0
Video Compression Engine: 1.0
CLRX: GCN 1.0

Latest Drivers:
Windows XP / 8:
Catalyst Software Suite 14.4

Windows Vista :
Catalyst Software Suite 13.12

Windows 7:
32-bit: Radeon Software: Adrenalin Edition 18.9.3
64-bit: AMD Software: Adrenalin Edition 22.6.1

Windows 8.1:
32-bit: Radeon Software: Crimson ReLive Edition 16.12.2 / 17.1.2
64-bit: Radeon Software: Crimson ReLive Edition 17.4.4 / 17.7.1

Windows 10:
32-bit: Radeon Software: Adrenalin Edition 18.9.3
64-bit: AMD Software: Adrenalin Edition 22.6.1

Retail boards based on this design (64)

Name GPU Clock Memory Clock Other Changes
820 MHz 1150 MHz 198 mm/7.8 inches
800 MHz 1125 MHz 198 mm/7.8 inches, Dual-slot
820 MHz 1150 MHz
900 MHz 1150 MHz 198 mm/7.8 inches
820 MHz 1150 MHz 198 mm/7.8 inches
800 MHz 800 MHz DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 800 MHz 4 GB, DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz
800 MHz 1125 MHz 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 198 mm/7.8 inches
800 MHz 1125 MHz Dual-slot, 1x DVI 1x HDMI
1100 MHz 1200 MHz Dual-slot, 2x DVI 1x HDMI 1x DisplayPort
900 MHz 1125 MHz 1x DVI 1x HDMI 2x mini-DisplayPort
800 MHz 1125 MHz 160 mm/6.3 inches, Dual-slot
800 MHz 1125 MHz 173 mm/6.8 inches, 1x mini-DisplayPort 1x DMS-59
800 MHz 800 MHz 2 GB, GDDR3, 195 mm/7.7 inches, Dual-slot, 2x DVI 1x HDMI 1x VGA
880 MHz 1125 MHz 195 mm/7.7 inches, 1x DVI 1x HDMI 1x VGA
850 MHz 800 MHz 2 GB, GDDR3, 195 mm/7.7 inches, Dual-slot, 2x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz Dual-slot, 1x DVI 1x HDMI 1x VGA
900 MHz 1125 MHz 232 mm/9.1 inches, Dual-slot, 1x DVI 1x HDMI 2x mini-DisplayPort
900 MHz 1125 MHz 232 mm/9.1 inches, Dual-slot, 1x DVI 1x HDMI 2x mini-DisplayPort
800 MHz 800 MHz DDR3, 181 mm/7.1 inches, Dual-slot, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 181 mm/7.1 inches, Dual-slot
800 MHz 800 MHz 2 GB, DDR3, 181 mm/7.1 inches, Dual-slot, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 194 mm/7.6 inches, Dual-slot, 1 x DVI 1x HDMI 1x VGA
900 MHz 1125 MHz 181 mm/7.1 inches, Dual-slot
800 MHz 1125 MHz 206 mm/8.1 inches
800 MHz 1125 MHz 170 mm/6.7 inches, Dual-slot
830 MHz 1125 MHz 170 mm/6.7 inches, Dual-slot
830 MHz 1125 MHz Dual-slot
800 MHz 1125 MHz 185 mm/7.3 inches, Dual-slot
900 MHz 1125 MHz 185 mm/7.3 inches, Dual-slot
800 MHz 800 MHz 2 GB, GDDR3, Dual-slot
800 MHz 800 MHz DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz
800 MHz 800 MHz 2 GB, DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 800 MHz 4 GB, DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 2 GB, 4x mini-DisplayPort
800 MHz 1125 MHz 205 mm/8.1 inches
800 MHz 1125 MHz
800 MHz 800 MHz 2 GB, GDDR3, 175 mm/6.9 inches, Dual-slot, 1x DVI 1x HDMI 1x VGA
1100 MHz 1250 MHz Dual-slot, 2x DVI 1x HDMI 1x DisplayPort
900 MHz 1125 MHz Dual-slot, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 170 mm/6.7 inches, 1x DVI 1x mini-HDMI 1x mini-DisplayPort
850 MHz 1200 MHz 170 mm/6.7 inches, Dual-slot
850 MHz 1200 MHz 165 mm/6.5 inches, Dual-slot, 1x DVI 1x HDMI 1x VGA
850 MHz 1200 MHz Dual-slot, 1x DVI 1x HDMI 1x VGA
900 MHz 1125 MHz Dual-slot
900 MHz 1125 MHz 2 GB, Dual-slot, 2x DVI 1x HDMI 1x DisplayPort
800 MHz 1125 MHz 185 mm/7.3 inches, Dual-slot
800 MHz 1125 MHz
800 MHz 1125 MHz 2 GB, 6x mini-DisplayPort
800 MHz 900 MHz GDDR3, 2x HDMI 1x mini-DisplayPort
800 MHz 1125 MHz
800 MHz 800 MHz DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 800 MHz 4 GB, DDR3, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 175 mm/6.9 inches, Dual-slot, 2x DVI 1x HDMI 1x DisplayPort
900 MHz 1125 MHz 224 mm/8.8 inches, Dual-slot, 2x DVI 1x HDMI 1x DisplayPort
800 MHz 1125 MHz 210 mm/8.3 inches, Dual-slot, 1x DVI 1x HDMI 1x VGA
900 MHz 1125 MHz 210 mm/8.3 inches, Dual-slot, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 211 mm/8.3 inches
800 MHz 1125 MHz 2 GB, Dual-slot, 2x DVI 1x HDMI 1x DisplayPort
800 MHz 1125 MHz Dual-slot, 1x DVI 1x HDMI 1x VGA
800 MHz 1125 MHz 181 mm/7.1 inches
