AMD Radeon PRO W6400
- Graphics Processor
- Navi 24
- Cores
- 768
- TMUs
- 48
- ROPs
- 32
- Memory Size
- 4 GB
- Memory Type
- GDDR6
- Bus Width
- 64 bit

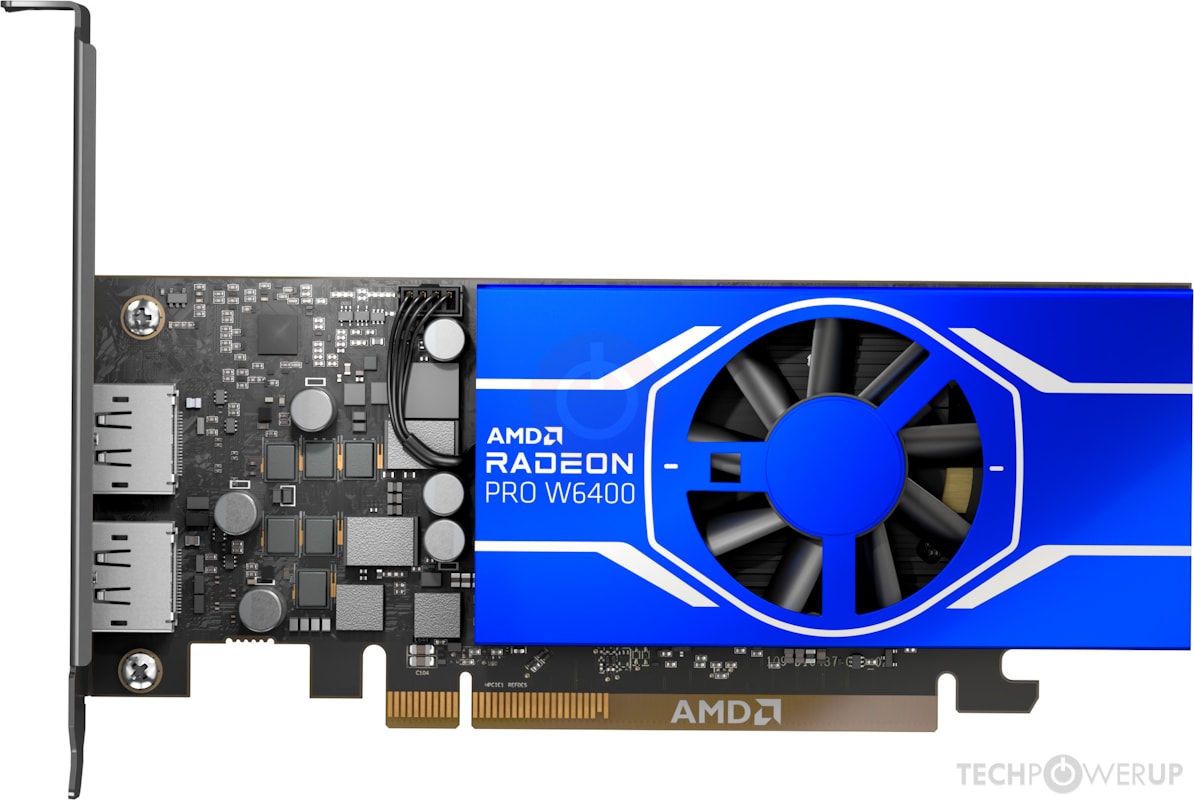

GPU

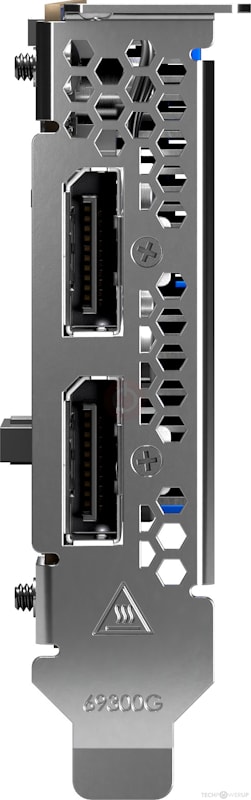

I/O
Top

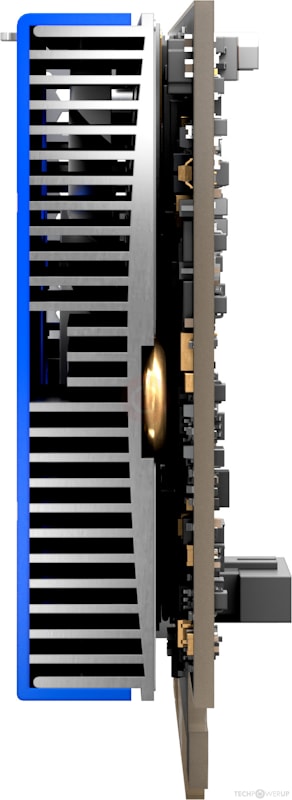

Rear
Back
Recommended Gaming Resolutions:
- 1600x900
- 1920x1080
- 2560x1440
The Radeon PRO W6400 is a professional graphics card by AMD, launched on January 19th, 2022. Built on the 6 nm process, and based on the Navi 24 graphics processor, in its Navi 24 XL-W variant, the card supports DirectX 12 Ultimate. The Navi 24 graphics processor is an average sized chip with a die area of 107 mm² and 5,400 million transistors. Unlike the fully unlocked Radeon RX 6500 XT, which uses the same GPU but has all 1024 shaders enabled, AMD has disabled some shading units on the Radeon PRO W6400 to reach the product's target shader count. It features 768 shading units, 48 texture mapping units, and 32 ROPs. The card also has 12 raytracing acceleration cores. AMD has paired 4 GB GDDR6 memory with the Radeon PRO W6400, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 2039 MHz, which can be boosted up to 2321 MHz, memory is running at 2000 MHz (16 Gbps effective).
Being a single-slot card, the AMD Radeon PRO W6400 does not require any additional power connector, its power draw is rated at 50 W maximum. Display outputs include: 2x DisplayPort 1.4a. Radeon PRO W6400 is connected to the rest of the system using a PCI-Express 4.0 x4 interface.
Being a single-slot card, the AMD Radeon PRO W6400 does not require any additional power connector, its power draw is rated at 50 W maximum. Display outputs include: 2x DisplayPort 1.4a. Radeon PRO W6400 is connected to the rest of the system using a PCI-Express 4.0 x4 interface.
Graphics Processor
Graphics Card
- Release Date
- Jan 19th, 2022
- Generation
-
Radeon Pro Navi
(Navi II Series)
- Predecessor
- Radeon Pro Vega
- Production
- Active
- Bus Interface
- PCIe 4.0 x4
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- Base Clock
- 2039 MHz
- Boost Clock
- 2321 MHz
- Memory Clock
-
2000 MHz
16 Gbps effective
Memory
- Memory Size
- 4 GB
- Memory Type
- GDDR6
- Memory Bus
- 64 bit
- Bandwidth
- 128.0 GB/s
Render Config
- Shading Units
- 768
- TMUs
- 48
- ROPs
- 32
- Compute Units
- 12
- RT Cores
- 12
- L0 Cache
- 32 KB per WGP
- L1 Cache
- 128 KB per Array
- L2 Cache
- 1024 KB
- L3 Cache
- 8 MB
Theoretical Performance
- Pixel Rate
- 74.27 GPixel/s
- Texture Rate
- 111.4 GTexel/s
- FP16 (half)
- 7.130 TFLOPS (2:1)
- FP32 (float)
- 3.565 TFLOPS
- FP64 (double)
- 222.8 GFLOPS (1:16)
Board Design
- Slot Width
- Single-slot
- TDP
- 50 W
- Suggested PSU
- 250 W
- Outputs
- 2x DisplayPort 1.4a
- Power Connectors
- None
- Board Number
- D637
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.2
- Vulkan
- 1.3
- Shader Model
- 6.8
Navi 24 GPU Notes
| Generation: Navi II Codename: Beige Goby Ray Tracing Cores: 1st Gen Infinity Cache: 1st Gen Graphics/Compute: 10.3.5 Shader ISA: GFX10.3 (gfx1034) Display Core Next: 3.0.3 Video Core Next: 3.0.33 System DMA: 5.2.5 Platform Security Processor: 11.0.13 Per SIMD32: - 10 KB Scalar Register File Per CU: - 16 KB Vector Data Cache - 64 KB Local Data Share (GCN-Mode) Per WGP: - 16 KB Scalar Data Cache / K Cache - 32 KB Instruction Cache - 128 KB Local Data Share Latest Drivers: Windows 7: 64-bit: AMD Software: Adrenalin Edition 22.6.1 Windows 10 / 11: 64-bit: AMD Software: Adrenalin Edition: Latest 64-bit: AMD Software: PRO Edition 22.Q4 |
