AMD Radeon R5 240 OEM

Graphics Processor
Oland
Cores
384
TMUs
24
ROPs
8
Memory Size
2 GB
Memory Type
DDR3
Bus Width
64 bit

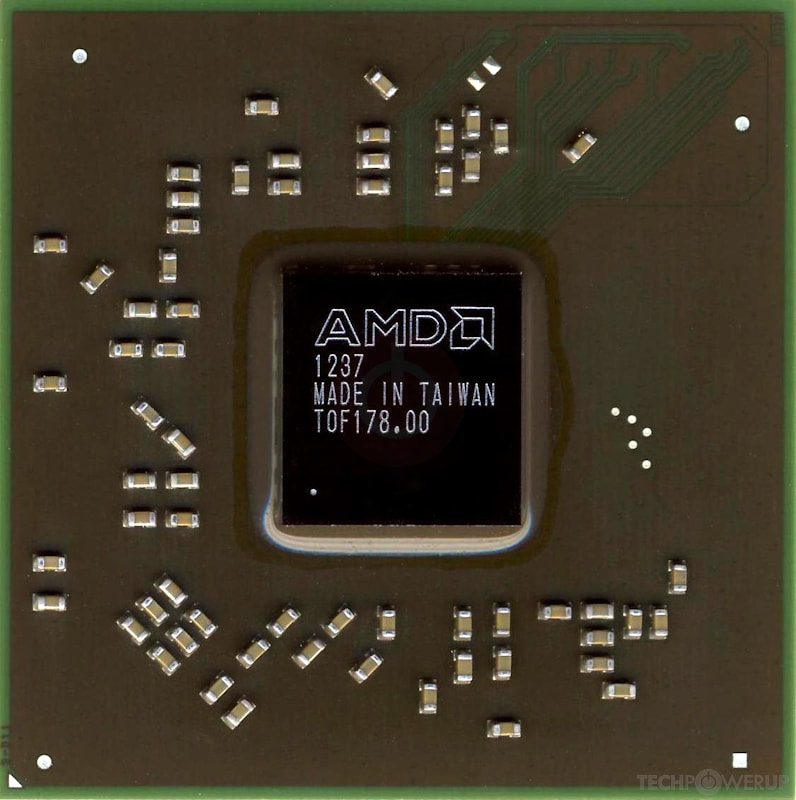

The Radeon R5 240 OEM was a graphics card by AMD, launched in November 2013. Built on the 28 nm process, and based on the Oland graphics processor, the card supports DirectX 12.0. The Oland graphics processor is a relatively small chip with a die area of only 90 mm² and 1,040 million transistors. It features 384 shading units, 24 texture mapping units and 8 ROPs. AMD has placed 2,048 MB DDR3 memory on the card, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 730 MHz, which can be boosted up to 780 MHz, memory is running at 900 MHz.

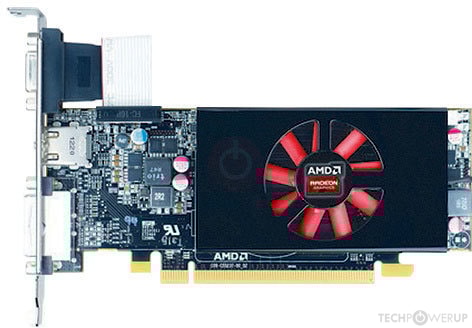

Being a single-slot card, the AMD Radeon R5 240 OEM does not require any additional power connector, its power draw is rated at 50 W maximum. Display outputs include: 1x DVI, 1x HDMI, 1x VGA. Radeon R5 240 OEM is connected to the rest of the system using a PCI-Express 3.0 x8 interface. The card measures 168 mm in length, and features a single-slot cooling solution.

Graphics Processor

GPU Name
Oland
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
1,040 million
Die Size
90 mm²

Graphics Card

Release Date
Nov 1st, 2013
Generation
Volcanic Islands
(R5 200)
Production
End-of-life
Bus Interface
PCIe 3.0 x8

Relative Performance

14%
GeForce 210
18%
GeForce 9400 GT
22%
Radeon HD 4550
28%
Radeon HD 5450
33%
Radeon HD 6450
35%
GeForce GT 520
43%
GeForce GT 220
57%
GeForce GT 430
57%
Radeon HD 5570
62%
Radeon HD 4670
66%
GeForce GT 440
67%
GeForce GT 240
77%
GeForce 9600 GT
82%
Radeon HD 5670
88%
GeForce GT 640
91%
GeForce 9800 GT
95%
Radeon HD 6670
98%
Radeon HD 4830
100%
Radeon R5 240 OEM
104%
Radeon HD 4770
110%
Radeon HD 4850
112%
GeForce GTS 250
116%
GeForce GTS 450
120%
Radeon HD 5750
137%
Radeon HD 7750
138%
Radeon HD 5770
140%
GeForce GTX 260
142%
Radeon HD 4870
142%
Radeon Vega 8
144%
GeForce GTX 550 Ti
145%
GeForce GTX 650
154%
Radeon HD 5830
161%
Radeon HD 6790
164%
Radeon HD 4890
170%
GeForce GTX 460
171%
Radeon RX Vega 11
173%
GeForce GT 1030
175%
GeForce GTX 275
175%
Radeon HD 7770 GHz Edition
176%
GeForce GTX 280
179%
GeForce GTX 465
188%
Radeon HD 6850
191%
GeForce GTX 285
205%
Radeon HD 5850
209%
GeForce GTX 650 Ti
209%
Radeon HD 7790
218%
Radeon RX 550
218%
GeForce GTX 470
226%
Radeon HD 6870
241%
Radeon HD 5870
249%
GeForce GTX 560 Ti
250%
Radeon HD 4870 X2
255%
GeForce GTX 750 Ti
256%
Radeon HD 6950
265%
GeForce GTX 295
268%
GeForce GTX 650 Ti Boost
270%
Radeon HD 7850
275%
GeForce GTX 480
288%
Radeon HD 6970
293%
Radeon R7 265
298%
Radeon RX 460
298%
Radeon R7 370
299%
GeForce GTX 660
300%
GeForce GTX 570
305%
Radeon RX 560
324%
GeForce GTX 950
327%
Radeon HD 7870 GHz Edition
335%
Radeon R9 270X
339%
GeForce GTX 660 Ti
340%
GeForce GTX 580
343%
GeForce GTX 1050
344%
Radeon HD 7950
350%
Radeon HD 5970
360%
GeForce GTX 760
388%
GeForce GTX 670
398%
GeForce GTX 960
408%
Radeon R9 380
410%
Radeon R9 285
415%
Radeon HD 7970
419%
GeForce GTX 680
429%
GeForce GTX 1050 Ti
440%
GeForce GTX 770
450%
Radeon HD 6990
461%
Radeon R9 280X
467%
GeForce GTX 590
468%
Radeon HD 7970 GHz Edition
518%
GeForce GTX 780
537%
GeForce GTX 1650
570%
Radeon RX 470
578%
Radeon R9 290
609%
Radeon RX 570
617%
Radeon R9 390
620%
Radeon R9 290X
628%
GeForce GTX 970
637%
GeForce GTX TITAN
645%
GeForce GTX 780 Ti
654%
Radeon R9 390X
657%
Radeon HD 7990
660%
Radeon RX 480
666%
GeForce GTX 690
702%
Radeon RX 580
716%
GeForce GTX 980
725%
Radeon R9 FURY
725%
GeForce GTX 1060 6 GB
758%
Radeon RX 590
798%
Radeon R9 295X2
802%
GeForce GTX 1660
812%
Radeon R9 FURY X
826%
GeForce GTX 980 Ti
847%
GeForce GTX TITAN X
921%
GeForce GTX 1660 Ti
921%
GeForce GTX 1070
981%
Radeon RX Vega 56
1040%
GeForce GTX 1070 Ti
1070%
Radeon RX Vega 64
1085%
GeForce GTX 1080
1085%
GeForce RTX 2060
1129%
Radeon RX 5700
1218%
GeForce RTX 2060 SUPER
1263%
GeForce RTX 2070
1293%
Radeon RX 5700 XT
1308%
Radeon VII
1341%
TITAN X Pascal
1382%
GeForce GTX 1080 Ti
1397%
GeForce RTX 2070 SUPER
1486%
GeForce RTX 2080
1575%
GeForce RTX 2080 SUPER
1739%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

Base Clock
730 MHz
Boost Clock
780 MHz
Memory Clock
900 MHz
1800 MHz effective

Memory

Memory Size
2 GB
Memory Type
DDR3
Memory Bus
64 bit
Bandwidth
14.40 GB/s

Render Config

Shading Units
384
TMUs
24
ROPs
8
Compute Units
6
L1 Cache
16 KB (per CU)
L2 Cache
128 KB

Theoretical Performance

Pixel Rate
6.240 GPixel/s
Texture Rate
18.72 GTexel/s
FP32 (float) performance
599.0 GFLOPS
FP64 (double) performance
37.44 GFLOPS (1:16)

Board Design

Slot Width
Single-slot
Length
6.6 inches
168 mm
TDP
50 W
Suggested PSU
350 W
Outputs
1x DVI
1x HDMI
1x VGA
Power Connectors
None
Board Number
C553

Graphics Features

DirectX
12.0 (11_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.101
Shader Model
5.1

Card Notes

Direct Rebrand of HD 8570

Oland GPU Notes

Architecture Codename: Sea Islands
CLRX Version: GCN 1.0
Graphics/Compute: GFX6 (gfx601)
Display Core Engine: 6.4
Unified Video Decoder: 4.0
Video Compression Engine: 1.0

Retail boards based on this design (1)

Name GPU Clock Boost Clock Memory Clock Other Changes
Dell R5 240 OEM 1 GB 775 MHz 825 MHz 1000 MHz 1024 MB, GDDR3, 1x DVI 1x DisplayPort
