AMD Radeon R7 370

Graphics Processor
Trinidad
Cores
1024
TMUs
64
ROPs
32
Memory Size
2 GB
Memory Type
GDDR5
Bus Width
256 bit
GPU Chip
GPU

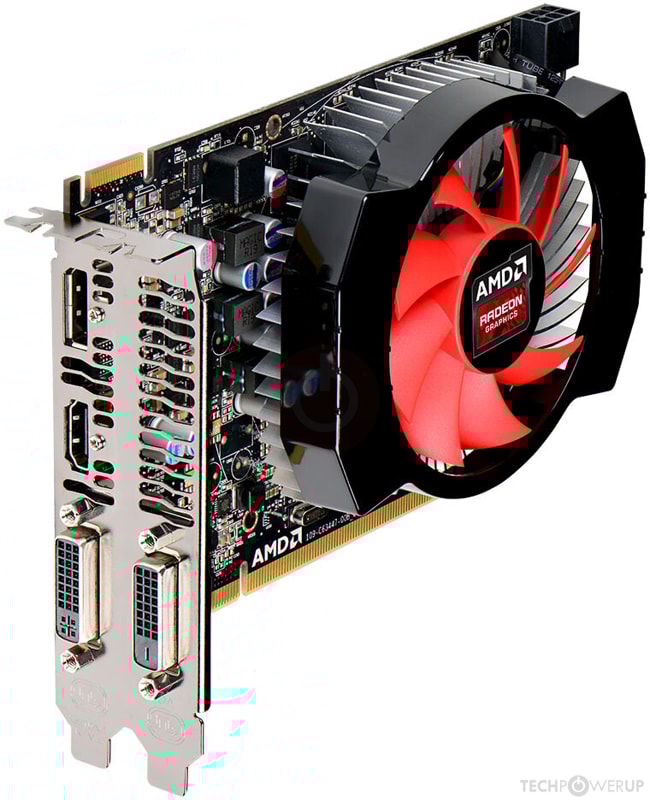

I/O
I/O

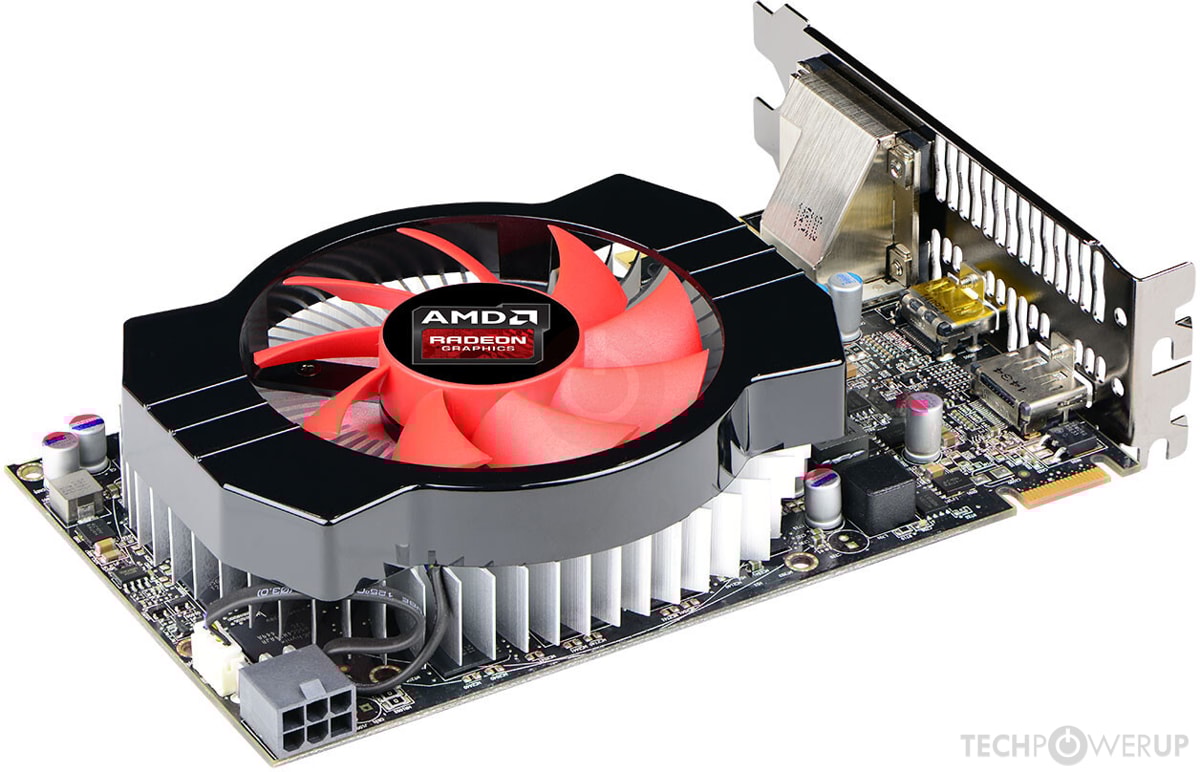

Top
Top
The Radeon R7 370 was a mid-range graphics card by AMD, launched on June 18th, 2015. Built on the 28 nm process, and based on the Trinidad graphics processor, in its Trinidad PRO variant, the card supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_1, which can be problematic with newer DirectX 12 titles. The Trinidad graphics processor is an average sized chip with a die area of 212 mm² and 2,800 million transistors. Unlike the fully unlocked Radeon R9 370, which uses the same GPU but has all 1280 shaders enabled, AMD has disabled some shading units on the Radeon R7 370 to reach the product's target shader count. It features 1024 shading units, 64 texture mapping units, and 32 ROPs. AMD has paired 2,048 MB GDDR5 memory with the Radeon R7 370, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 925 MHz, which can be boosted up to 975 MHz, memory is running at 1400 MHz (5.6 Gbps effective).
Being a dual-slot card, the AMD Radeon R7 370 draws power from 1x 6-pin power connector, with power draw rated at 110 W maximum. Display outputs include: 2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2. Radeon R7 370 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 152 mm in length, and features a dual-slot cooling solution. Its price at launch was 149 US Dollars.

Graphics Processor

GPU Name
Trinidad
GPU Variant
Trinidad PRO
(215-0870020)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
2,800 million
Density
13.2M / mm²
Die Size
212 mm²
Chip Package
FCBGA-1737

Graphics Card

Release Date
Jun 18th, 2015
Generation
Pirate Islands
(R7 300)
Predecessor
Volcanic Islands
Successor
Arctic Islands
Production
End-of-life
Launch Price
149 USD
Bus Interface
PCIe 3.0 x16
Reviews
21 in our database

Relative Performance

GeForce 210
5%
GeForce 9400 GT
6%
Radeon HD 4550
7%
Radeon HD 5450
10%
Radeon HD 6450
11%
GeForce GT 520
12%
GeForce GT 220
15%
GeForce GT 430
19%
Radeon HD 5570
19%
Radeon HD 4670
21%
GeForce GT 440
22%
GeForce GT 240
23%
GeForce 9600 GT
26%
Radeon HD 5670
28%
GeForce GT 640
30%
GeForce 9800 GT
31%
Radeon HD 6670
32%
Radeon HD 4830
33%
Radeon HD 4770
35%
Radeon HD 4850
37%
GeForce GTS 250
38%
GeForce GTS 450
39%
Radeon HD 5750
40%
Radeon HD 7750
46%
Radeon HD 5770
46%
GeForce GTX 260
47%
Radeon HD 4870
48%
Radeon Vega 8
48%
GeForce GTX 550 Ti
48%
GeForce GTX 650
49%
Radeon HD 5830
51%
Radeon HD 6790
54%
Radeon HD 4890
55%
GeForce GTX 460
57%
Radeon RX Vega 11
58%
GeForce GT 1030
58%
GeForce GTX 275
59%
Radeon HD 7770 GHz Edition
59%
GeForce GTX 280
59%
GeForce GTX 465
60%
Radeon HD 6850
63%
GeForce GTX 285
64%
Radeon HD 5850
69%
GeForce GTX 650 Ti
70%
Radeon HD 7790
70%
Radeon RX 550
73%
GeForce GTX 470
73%
Radeon HD 6870
76%
Radeon HD 5870
81%
GeForce GTX 560 Ti
84%
Radeon HD 4870 X2
84%
GeForce GTX 750 Ti
86%
Radeon HD 6950
86%
GeForce GTX 295
89%
GeForce GTX 650 Ti Boost
90%
Radeon HD 7850
91%
GeForce GTX 480
92%
Radeon HD 6970
97%
Radeon R7 265
98%
Radeon RX 460
100%
Radeon R7 370
100%
GeForce GTX 660
100%
GeForce GTX 570
101%
Radeon RX 560
102%
GeForce GTX 950
109%
Radeon HD 7870 GHz Edition
110%
Radeon R9 270X
112%
GeForce GTX 660 Ti
114%
GeForce GTX 580
114%
GeForce GTX 1050
115%
Radeon HD 7950
115%
GeForce GTX 1630
118%
Radeon HD 5970
118%
GeForce GTX 760
121%
GeForce GTX 670
130%
GeForce GTX 960
134%
Radeon R9 380
137%
Radeon R9 285
138%
Radeon HD 7970
139%
GeForce GTX 680
141%
GeForce GTX 1050 Ti
144%
GeForce GTX 770
148%
Radeon HD 6990
151%
Radeon R9 280X
155%
GeForce GTX 590
157%
Radeon HD 7970 GHz Edition
157%
GeForce GTX 780
174%
Arc A380
174%
Radeon RX 6400
176%
GeForce GTX 1650
180%
Radeon RX 470
191%
Radeon R9 290
194%
Radeon RX 570
204%
Radeon R9 390
207%
Radeon R9 290X
208%
GeForce GTX 970
211%
GeForce GTX TITAN
214%
GeForce GTX 780 Ti
217%
Radeon R9 390X
220%
Radeon HD 7990
221%
Radeon RX 480
222%
GeForce GTX 690
224%
GeForce GTX 1060 6 GB
230%
Radeon RX 5500 OEM
233%
Radeon RX 580
236%
Radeon RX 5500 XT
237%
Radeon RX 6500 XT
239%
GeForce GTX 980
240%
GeForce GTX 1650 SUPER
242%
Radeon R9 FURY
243%
Radeon RX 590
254%
Radeon R9 295X2
268%
GeForce GTX 1660
269%
Radeon R9 FURY X
272%
GeForce GTX 980 Ti
277%
GeForce GTX TITAN X
284%
GeForce GTX 1660 SUPER
293%
GeForce GTX 1070
309%
GeForce GTX 1660 Ti
309%
GeForce RTX 3050 8 GB
314%
Radeon RX Vega 56
329%
GeForce GTX 1070 Ti
349%
Radeon RX 5600 XT
354%
Radeon RX Vega 64
359%
GeForce GTX 1080
364%
GeForce RTX 2060
364%
Radeon RX 5700
379%
Arc A580
380%
Radeon RX 6600
396%
GeForce RTX 2060 SUPER
409%
GeForce RTX 2070
414%
Radeon RX 5700 XT
415%
GeForce RTX 3060 12 GB
423%
Arc A750
437%
Radeon VII
439%
TITAN X Pascal
450%
Radeon RX 6600 XT
455%
GeForce GTX 1080 Ti
464%
Arc A770
468%
GeForce RTX 2070 SUPER
469%
Radeon RX 6650 XT
493%
Radeon RX 7600
499%
GeForce RTX 4060
501%
GeForce RTX 2080
504%
Radeon RX 7600 XT
514%
GeForce RTX 2080 SUPER
529%
GeForce RTX 3060 Ti
542%
Radeon RX 6700 XT
561%
Radeon RX 6750 XT
595%
GeForce RTX 4060 Ti 8 GB
602%
GeForce RTX 2080 Ti
606%
GeForce RTX 3070
634%
GeForce RTX 3070 Ti
679%
Radeon RX 7700 XT
686%
Radeon RX 6800
699%
GeForce RTX 4070
775%
Radeon RX 6800 XT
794%
GeForce RTX 3080
824%
Radeon RX 7800 XT
833%
Radeon RX 6900 XT
856%
GeForce RTX 4070 SUPER
899%
Radeon RX 7900 GRE
916%
GeForce RTX 3080 Ti
923%
Radeon RX 6950 XT
924%
GeForce RTX 3090
941%
GeForce RTX 4070 Ti
964%
GeForce RTX 4070 Ti SUPER
1054%
Radeon RX 7900 XT
1082%
GeForce RTX 3090 Ti
1091%
GeForce RTX 4080
1225%
GeForce RTX 4080 SUPER
1243%
Radeon RX 7900 XTX
1255%
GeForce RTX 4090
1539%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.

Clock Speeds

Base Clock
925 MHz
Boost Clock
975 MHz
Memory Clock
1400 MHz
5.6 Gbps effective

Memory

Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
179.2 GB/s

Render Config

Shading Units
1024
TMUs
64
ROPs
32
Compute Units
16
L1 Cache
16 KB (per CU)
L2 Cache
512 KB

Theoretical Performance

Pixel Rate
31.20 GPixel/s
Texture Rate
62.40 GTexel/s
FP32 (float)
1.997 TFLOPS
FP64 (double)
124.8 GFLOPS (1:16)

Board Design

Slot Width
Dual-slot
Length
152 mm
6 inches
TDP
110 W
Suggested PSU
300 W
Outputs
2x DVI
1x HDMI 1.4a
1x DisplayPort 1.2
Power Connectors
1x 6-pin
Board Number
C631,
109-C63447-00B_02

Graphics Features

DirectX
12 (11_1)
OpenGL
4.6
OpenCL
2.1 (1.2)
Vulkan
1.2.170
Shader Model
6.5 (5.1)

Trinidad GPU Notes

Generation: Southern Islands
Desktop Variant: Pitcairn / Curacao
Mobile Variant: Wimbledon / Neptune
Graphics/Compute: GFX6 (gfx601)
Display Core Engine: 6.0
Unified Video Decoder: 4.0
Video Compression Engine: 1.0
CLRX: GCN 1.0

Latest Drivers:
Windows XP / 8:
Catalyst Software Suite 14.4

Windows Vista :
Catalyst Software Suite 13.12

Windows 7:
32-bit: Radeon Software: Adrenalin Edition 18.9.3
64-bit: AMD Software: Adrenalin Edition 22.6.1

Windows 8.1:
32-bit: Radeon Software: Crimson ReLive Edition 16.12.2 / 17.1.2
64-bit: Radeon Software: Crimson ReLive Edition 17.4.4 / 17.7.1

Windows 10:
32-bit: Radeon Software: Adrenalin Edition 18.9.3
64-bit: AMD Software: Adrenalin Edition 22.6.1

Retail boards based on this design (21)

Name GPU Clock Boost Clock Memory Clock Other Changes
925 MHz 975 MHz 1400 MHz 228 mm/9 inches
925 MHz 975 MHz 1400 MHz 4 GB, 214 mm/8.4 inches
925 MHz 1050 MHz 1400 MHz 228 mm/9 inches
925 MHz 1050 MHz 1400 MHz 4 GB, 214 mm/8.4 inches
965 MHz 1015 MHz 1400 MHz 194 mm/7.6 inches
975 MHz 1000 MHz 1400 MHz 270 mm/10.6 inches
970 MHz 1020 MHz 1400 MHz 255 mm/10 inches
980 MHz 1030 MHz 1400 MHz 258 mm/10.2 inches
980 MHz 1030 MHz 1400 MHz 4 GB, 258 mm/10.2 inches
970 MHz 1020 MHz 1400 MHz 255 mm/10 inches
935 MHz 985 MHz 1425 MHz 220 mm/8.7 inches
985 MHz 1035 MHz 1400 MHz 228 mm/9 inches
925 MHz 985 MHz 1400 MHz 170 mm/6.7 inches
925 MHz 985 MHz 1400 MHz 4 GB, 211 mm/8.3 inches
925 MHz 1075 MHz 1450 MHz 4 GB, 264 mm/10.4 inches
925 MHz 995 MHz 1400 MHz 221 mm/8.7 inches
925 MHz 975 MHz 1400 MHz 4 GB
925 MHz 995 MHz 1400 MHz 234 mm/9.2 inches
925 MHz 995 MHz 1400 MHz 4 GB, 234 mm/9.2 inches
1000 MHz 1050 MHz 1400 MHz 221 mm/8.7 inches
925 MHz 1040 MHz 1450 MHz 234 mm/9.2 inches
