AMD Radeon R9 295X2

Graphics Processor
Vesuvius x2
Cores
2816 x2
TMUs
176 x2
ROPs
64 x2
Memory Size
4 GB x2
Memory Type
GDDR5
Bus Width
512 bit x2

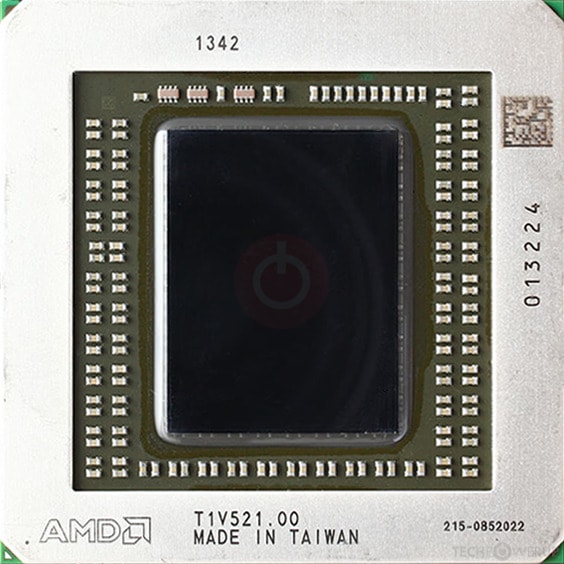

GPU Chip
GPU
Back
Back
PCB Front
PCB Front
PCB Back
PCB Back
The Radeon R9 295X2 was a enthusiast-class graphics card by AMD, launched in April 2014. Built on the 28 nm process, and based on the Vesuvius graphics processor, in its Vesuvius XT variant, the card supports DirectX 12.0. The Vesuvius graphics processor is a large chip with a die area of 438 mm² and 6,200 million transistors. Radeon R9 295X2 combines two graphics processors to increase performance. It features 2816 shading units, 176 texture mapping units and 64 ROPs per GPU. AMD has placed 8,192 MB GDDR5 memory on the card, which are connected using a 512-bit memory interface per GPU (each GPU manages 4,096 MB). The GPU is operating at a frequency of 1018 MHz, memory is running at 1250 MHz.
Being a dual-slot card, the AMD Radeon R9 295X2 draws power from 3x 8-pin power connectors, with power draw rated at 500 W maximum. Display outputs include: 1x DVI, 4x mini-DisplayPort. Radeon R9 295X2 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 307 mm in length, and features a dual-slot cooling solution. Its price at launch was 1499 US Dollars.

Graphics Processor

GPU Name
Vesuvius
GPU Variant
Vesuvius XT
(215-0852022)
Architecture
GCN 2.0
Foundry
TSMC
Process Size
28 nm
Transistors
6,200 million
Die Size
438 mm²

Graphics Card

Release Date
Apr 29th, 2014
Generation
Volcanic Islands
(R9 200)
Production
End-of-life
Launch Price
1,499 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

2%
GeForce 210
2%
GeForce 9400 GT
3%
Radeon HD 4550
4%
Radeon HD 5450
4%
Radeon HD 6450
4%
GeForce GT 520
5%
GeForce GT 220
7%
GeForce GT 430
7%
Radeon HD 5570
8%
Radeon HD 4670
8%
GeForce GT 440
8%
GeForce GT 240
10%
GeForce 9600 GT
10%
Radeon HD 5670
11%
GeForce GT 640
11%
GeForce 9800 GT
12%
Radeon HD 6670
12%
Radeon HD 4830
13%
Radeon HD 4770
14%
Radeon HD 4850
14%
GeForce GTS 250
15%
GeForce GTS 450
15%
Radeon HD 5750
17%
Radeon HD 7750
17%
Radeon HD 5770
18%
GeForce GTX 260
18%
Radeon HD 4870
18%
Radeon Vega 8
18%
GeForce GTX 550 Ti
18%
GeForce GTX 650
19%
Radeon HD 5830
20%
Radeon HD 6790
21%
Radeon HD 4890
21%
GeForce GTX 460
21%
Radeon RX Vega 11
22%
GeForce GT 1030
22%
GeForce GTX 275
22%
Radeon HD 7770 GHz Edition
22%
GeForce GTX 280
22%
GeForce GTX 465
24%
Radeon HD 6850
24%
GeForce GTX 285
26%
Radeon HD 5850
26%
GeForce GTX 650 Ti
26%
Radeon HD 7790
27%
Radeon RX 550
27%
GeForce GTX 470
28%
Radeon HD 6870
30%
Radeon HD 5870
31%
GeForce GTX 560 Ti
31%
Radeon HD 4870 X2
32%
GeForce GTX 750 Ti
32%
Radeon HD 6950
33%
GeForce GTX 295
34%
GeForce GTX 650 Ti Boost
34%
Radeon HD 7850
34%
GeForce GTX 480
36%
Radeon HD 6970
37%
Radeon R7 265
37%
Radeon R7 370
37%
Radeon RX 560
37%
GeForce GTX 660
38%
GeForce GTX 570
41%
GeForce GTX 950
41%
Radeon HD 7870 GHz Edition
42%
Radeon R9 270X
42%
GeForce GTX 660 Ti
43%
GeForce GTX 580
43%
GeForce GTX 1050
43%
Radeon HD 7950
44%
Radeon RX 460
44%
Radeon HD 5970
45%
GeForce GTX 760
49%
GeForce GTX 670
50%
GeForce GTX 960
51%
Radeon R9 380
51%
Radeon R9 285
52%
Radeon HD 7970
52%
GeForce GTX 680
54%
GeForce GTX 1050 Ti
55%
GeForce GTX 770
56%
Radeon HD 6990
58%
Radeon R9 280X
59%
GeForce GTX 590
59%
Radeon HD 7970 GHz Edition
65%
GeForce GTX 780
71%
Radeon RX 470
72%
Radeon R9 290
77%
Radeon R9 390
78%
Radeon R9 290X
79%
GeForce GTX 970
80%
GeForce GTX TITAN
80%
Radeon RX 570
81%
GeForce GTX 780 Ti
82%
Radeon R9 390X
82%
Radeon HD 7990
83%
Radeon RX 480
83%
GeForce GTX 690
88%
Radeon RX 580
90%
GeForce GTX 980
91%
GeForce GTX 1060 6 GB
91%
Radeon R9 FURY
91%
Radeon RX 590
100%
Radeon R9 295X2
102%
Radeon R9 FURY X
103%
GeForce GTX 980 Ti
111%
GeForce GTX TITAN X
117%
GeForce GTX 1070
122%
Radeon RX Vega 56
133%
GeForce GTX 1070 Ti
136%
GeForce RTX 2060
136%
Radeon RX Vega 64
140%
GeForce GTX 1080
160%
GeForce RTX 2070
160%
Radeon VII
168%
TITAN X Pascal
172%
GeForce GTX 1080 Ti
186%
GeForce RTX 2080
216%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

GPU Clock
1018 MHz
Memory Clock
1250 MHz
5000 MHz effective

Memory

Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
512 bit
Bandwidth
320.0 GB/s

Render Config

Shading Units
2816
TMUs
176
ROPs
64
Compute Units
44

Theoretical Performance

Pixel Rate
65.15 GPixel/s
Texture Rate
179.2 GTexel/s
FP32 (float) performance
5,733 GFLOPS
FP64 (double) performance
716.7 GFLOPS (1:8)

Board Design

Slot Width
Dual-slot
Length
12.08 inches
307 mm
TDP
500 W
Outputs
1x DVI
4x mini-DisplayPort
Power Connectors
3x 8-pin
Board Number
C673-A7

Graphics Features

DirectX
12.0 (12_0)
OpenGL
4.6
OpenCL
2.0
Vulkan
1.1.96
Shader Model
6.0

Vesuvius GPU Notes

Chip Variant: Hawaii
CLRX Version: GCN 1.1
Graphics/Compute: GFX7 (gfx701)
Display Core Engine: 8.5
Unified Video Decoder: 4.2
Video Compression Engine: 2.0
ROCm Support

Retail boards based on this design (12)

Name GPU Clock Memory Clock Other Changes
ASUS R9 295X2 1018 MHz 1250 MHz
Club 3D R9 295X2 1018 MHz 1250 MHz
ColorFire R9 295X2 1018 MHz 1250 MHz
GIGABYTE R9 295X 1018 MHz 1250 MHz
HIS R9 295X2 1018 MHz 1250 MHz
MSI R9 295X2 1018 MHz 1250 MHz
PowerColor R9 295X2 1018 MHz 1250 MHz
Sapphire R9 295X2 1018 MHz 1250 MHz
Sapphire R9 295X2 OC 1030 MHz 1300 MHz
VisionTek CryoVenom R9 295X2 1018 MHz 1250 MHz Single-slot
VisionTek R9 295X2 1018 MHz 1250 MHz
XFX R9 295X2 1018 MHz 1250 MHz
