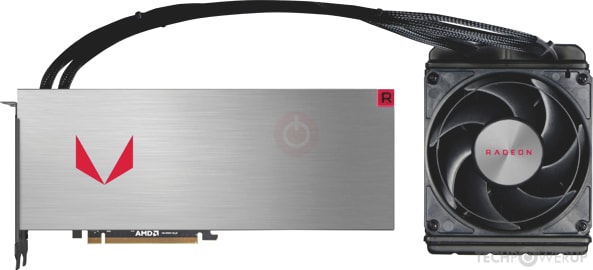

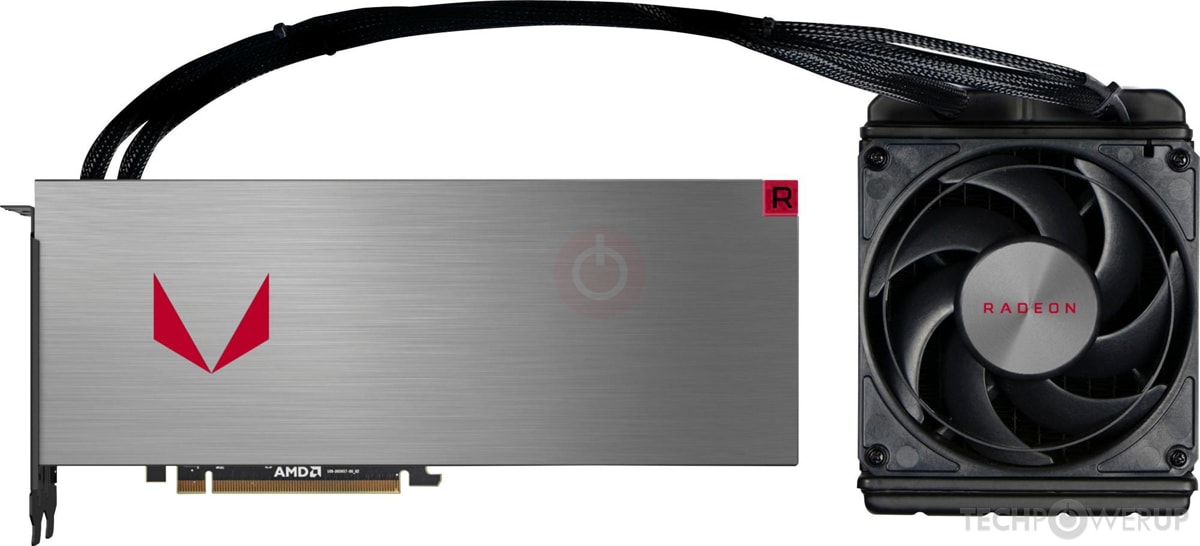

AMD Radeon RX Vega 64 Liquid Cooling

Graphics Processor
Vega 10
Cores
4096
TMUs
256
ROPs
64
Memory Size
8 GB
Memory Type
HBM2
Bus Width
2048 bit
GPU Chip
GPU

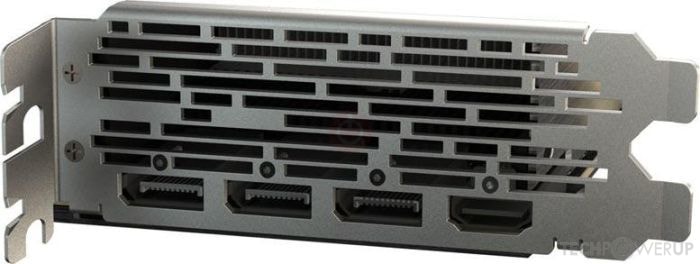

I/O
I/O

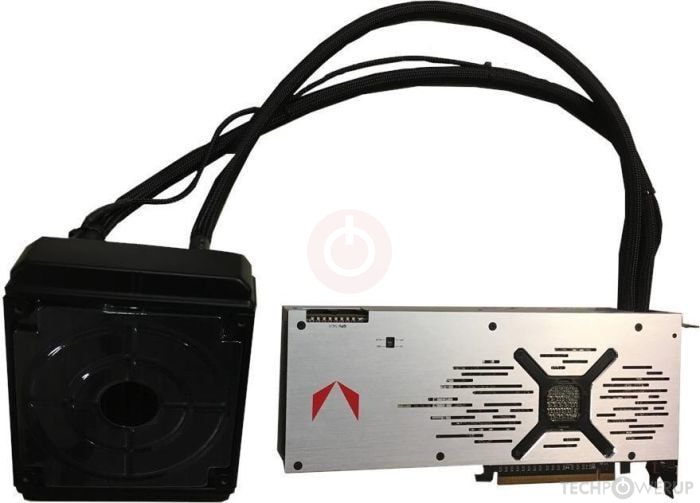

Back
Back
The Radeon RX Vega 64 Liquid Cooling is a enthusiast-class graphics card by AMD, launched in August 2017. Built on the 14 nm process, and based on the Vega 10 graphics processor, in its Vega 10 XTX variant, the card supports DirectX 12.0. The Vega 10 graphics processor is a large chip with a die area of 495 mm² and 12,500 million transistors. It features 4096 shading units, 256 texture mapping units and 64 ROPs. AMD has placed 8,192 MB HBM2 memory on the card, which are connected using a 2048-bit memory interface. The GPU is operating at a frequency of 1408 MHz, which can be boosted up to 1668 MHz, memory is running at 945 MHz.
Being a dual-slot card, the AMD Radeon RX Vega 64 Liquid Cooling draws power from 2x 8-pin power connectors, with power draw rated at 345 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort. Radeon RX Vega 64 Liquid Cooling is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 282 mm in length, and features a dual-slot cooling solution. Its price at launch was 699 US Dollars.

Graphics Processor

GPU Name
Vega 10
GPU Variant
Vega 10 XTX
Architecture
GCN 5.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
12,500 million
Die Size
495 mm²

Graphics Card

Release Date
Aug 7th, 2017
Generation
Vega
(RX Vega)
Predecessor
Polaris
Successor
Navi
Production
Active
Launch Price
699 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

1%
GeForce 210
2%
GeForce 9400 GT
2%
Radeon HD 4550
2%
Radeon HD 5450
3%
Radeon HD 6450
3%
GeForce GT 520
4%
GeForce GT 220
5%
GeForce GT 430
5%
Radeon HD 5570
5%
Radeon HD 4670
6%
GeForce GT 440
6%
GeForce GT 240
7%
GeForce 9600 GT
7%
Radeon HD 5670
8%
GeForce GT 640
8%
GeForce 9800 GT
8%
Radeon HD 6670
8%
Radeon HD 4830
9%
Radeon HD 4770
9%
Radeon HD 4850
10%
GeForce GTS 250
10%
GeForce GTS 450
10%
Radeon HD 5750
12%
Radeon HD 7750
12%
Radeon HD 5770
12%
GeForce GTX 260
12%
Radeon HD 4870
12%
Radeon Vega 8
12%
GeForce GTX 550 Ti
12%
GeForce GTX 650
13%
Radeon HD 5830
14%
Radeon HD 6790
14%
Radeon HD 4890
15%
GeForce GTX 460
15%
Radeon RX Vega 11
15%
GeForce GT 1030
15%
GeForce GTX 275
15%
Radeon HD 7770 GHz Edition
15%
GeForce GTX 280
15%
GeForce GTX 465
16%
Radeon HD 6850
16%
GeForce GTX 285
18%
Radeon HD 5850
18%
GeForce GTX 650 Ti
18%
Radeon HD 7790
19%
Radeon RX 550
19%
GeForce GTX 470
19%
Radeon HD 6870
21%
Radeon HD 5870
21%
GeForce GTX 560 Ti
22%
Radeon HD 4870 X2
22%
GeForce GTX 750 Ti
22%
Radeon HD 6950
23%
GeForce GTX 295
23%
GeForce GTX 650 Ti Boost
23%
Radeon HD 7850
24%
GeForce GTX 480
25%
Radeon HD 6970
25%
Radeon R7 265
26%
Radeon RX 460
26%
Radeon R7 370
26%
GeForce GTX 660
26%
GeForce GTX 570
26%
Radeon RX 560
28%
GeForce GTX 950
28%
Radeon HD 7870 GHz Edition
29%
Radeon R9 270X
29%
GeForce GTX 660 Ti
29%
GeForce GTX 580
30%
GeForce GTX 1050
30%
Radeon HD 7950
30%
Radeon HD 5970
31%
GeForce GTX 760
33%
GeForce GTX 670
34%
GeForce GTX 960
35%
Radeon R9 380
35%
Radeon R9 285
36%
Radeon HD 7970
36%
GeForce GTX 680
37%
GeForce GTX 1050 Ti
38%
GeForce GTX 770
39%
Radeon HD 6990
40%
Radeon R9 280X
40%
GeForce GTX 590
40%
Radeon HD 7970 GHz Edition
45%
GeForce GTX 780
46%
GeForce GTX 1650
49%
Radeon RX 470
50%
Radeon R9 290
52%
Radeon RX 570
53%
Radeon R9 390
53%
Radeon R9 290X
54%
GeForce GTX 970
55%
GeForce GTX TITAN
56%
GeForce GTX 780 Ti
56%
Radeon R9 390X
57%
Radeon HD 7990
57%
Radeon RX 480
57%
GeForce GTX 690
60%
Radeon RX 580
62%
GeForce GTX 980
62%
Radeon R9 FURY
62%
GeForce GTX 1060 6 GB
65%
Radeon RX 590
69%
Radeon R9 295X2
69%
GeForce GTX 1660
70%
Radeon R9 FURY X
71%
GeForce GTX 980 Ti
73%
GeForce GTX TITAN X
79%
GeForce GTX 1660 Ti
79%
GeForce GTX 1070
84%
Radeon RX Vega 56
90%
GeForce GTX 1070 Ti
92%
Radeon RX Vega 64
93%
GeForce GTX 1080
93%
GeForce RTX 2060
97%
Radeon RX 5700
100%
Radeon RX Vega 64 Liquid Cooling
105%
GeForce RTX 2060 SUPER
109%
GeForce RTX 2070
111%
Radeon RX 5700 XT
113%
Radeon VII
115%
TITAN X Pascal
119%
GeForce GTX 1080 Ti
120%
GeForce RTX 2070 SUPER
128%
GeForce RTX 2080
136%
GeForce RTX 2080 SUPER
150%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

Base Clock
1408 MHz
Boost Clock
1668 MHz
Memory Clock
945 MHz
1890 MHz effective

Memory

Memory Size
8 GB
Memory Type
HBM2
Memory Bus
2048 bit
Bandwidth
483.8 GB/s

Render Config

Shading Units
4096
TMUs
256
ROPs
64
Compute Units
64
L1 Cache
16 KB (per CU)
L2 Cache
4 MB

Theoretical Performance

Pixel Rate
106.8 GPixel/s
Texture Rate
427.0 GTexel/s
FP16 (half) performance
27.33 TFLOPS (2:1)
FP32 (float) performance
13.66 TFLOPS
FP64 (double) performance
854.0 GFLOPS (1:16)

Board Design

Slot Width
Dual-slot
Length
11.1 inches
282 mm
TDP
345 W
Suggested PSU
700 W
Outputs
1x HDMI
3x DisplayPort
Power Connectors
2x 8-pin
Board Number
D05005

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
2.0
Vulkan
1.1.119
Shader Model
6.4

Vega 10 GPU Notes

Architecture Codename: Vega
Codename: Greenland
CLRX Version: GCN 1.4
Graphics/Compute: GFX9 (gfx900) / (gfx901)
Display Core Engine: 12.0
Unified Video Decoder: 7.0
Video Compression Engine: 4.0

Retail boards based on this design (10)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASUS RX Vega 64 Liquid Cooling 1408 MHz 1668 MHz 945 MHz
BIOSTAR RX Vega 64 Liquid 1408 MHz 1668 MHz 945 MHz
Dataland RX Vega 64 Liquid 1408 MHz 1668 MHz 945 MHz
GIGABYTE RX Vega 64 Watercooling 1408 MHz 1668 MHz 945 MHz
HIS RX Vega 64 Liquid Cooling 1408 MHz 1668 MHz 945 MHz
MSI RX Vega 64 Wave 1408 MHz 1668 MHz 945 MHz
PowerColor RX Vega 64 Liquid Cooling 1408 MHz 1668 MHz 945 MHz
Sapphire RX Vega 64 Liquid Cooling 1408 MHz 1668 MHz 945 MHz
XFX RX Vega 64 Liquid Cooling 1408 MHz 1668 MHz 945 MHz
Yeston RX Vega 64 Liquid Cooling 1408 MHz 1668 MHz 945 MHz
