AMD Radeon RX Vega 64

Graphics Processor
Vega 10
Cores
4096
TMUs
256
ROPs
64
Memory Size
8 GB
Memory Type
HBM2
Bus Width
2048 bit
GPU Chip
GPU

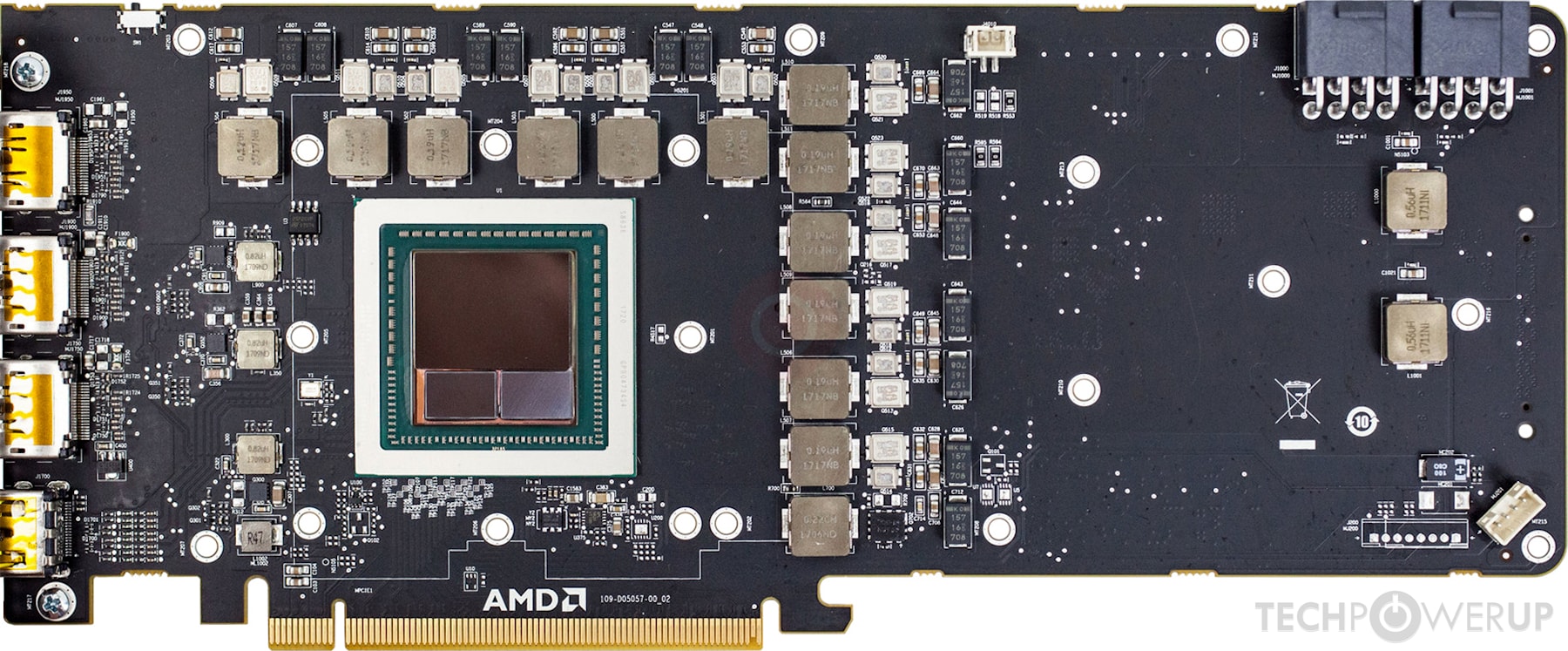

PCB Front
PCB Front
PCB Back
PCB Back

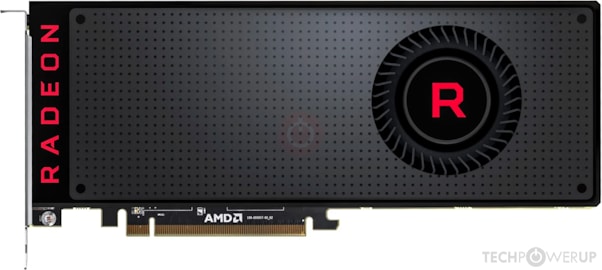

The Radeon RX Vega 64 is a high-end graphics card by AMD, launched in August 2017. Built on the 14 nm process, and based on the Vega 10 graphics processor, in its Vega 10 XT variant, the card supports DirectX 12.0. The Vega 10 graphics processor is a large chip with a die area of 495 mm² and 12,500 million transistors. It features 4096 shading units, 256 texture mapping units and 64 ROPs. AMD has placed 8,192 MB HBM2 memory on the card, which are connected using a 2048-bit memory interface. The GPU is operating at a frequency of 1200 MHz, which can be boosted up to 1536 MHz, memory is running at 945 MHz.
Being a dual-slot card, the AMD Radeon RX Vega 64 draws power from 2x 8-pin power connectors, with power draw rated at 295 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort. Radeon RX Vega 64 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 279 mm in length, and features a dual-slot cooling solution. Its price at launch was 499 US Dollars.

Graphics Processor

GPU Name
Vega 10
GPU Variant
Vega 10 XT
(215-0894200)
Architecture
GCN 5.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
12,500 million
Die Size
495 mm²

Graphics Card

Release Date
Aug 7th, 2017
Generation
Vega
(RX Vega)
Production
Active
Launch Price
499 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

1%
GeForce 210
2%
GeForce 9400 GT
2%
Radeon HD 4550
3%
Radeon HD 5450
3%
Radeon HD 6450
3%
GeForce GT 520
4%
GeForce GT 220
5%
GeForce GT 430
5%
Radeon HD 5570
6%
Radeon HD 4670
6%
GeForce GT 440
6%
GeForce GT 240
7%
GeForce 9600 GT
8%
Radeon HD 5670
8%
GeForce GT 640
8%
GeForce 9800 GT
9%
Radeon HD 6670
9%
Radeon HD 4830
10%
Radeon HD 4770
10%
Radeon HD 4850
10%
GeForce GTS 250
11%
GeForce GTS 450
11%
Radeon HD 5750
13%
Radeon HD 7750
13%
Radeon HD 5770
13%
GeForce GTX 260
13%
Radeon HD 4870
13%
Radeon Vega 8
13%
GeForce GTX 550 Ti
13%
GeForce GTX 650
14%
Radeon HD 5830
15%
Radeon HD 6790
15%
Radeon HD 4890
16%
GeForce GTX 460
16%
Radeon RX Vega 11
16%
GeForce GT 1030
16%
GeForce GTX 275
16%
Radeon HD 7770 GHz Edition
16%
GeForce GTX 280
16%
GeForce GTX 465
17%
Radeon HD 6850
18%
GeForce GTX 285
19%
Radeon HD 5850
19%
Radeon HD 7790
19%
GeForce GTX 650 Ti
20%
Radeon RX 550
20%
GeForce GTX 470
21%
Radeon HD 6870
22%
Radeon HD 5870
23%
GeForce GTX 560 Ti
23%
Radeon HD 4870 X2
23%
GeForce GTX 750 Ti
24%
Radeon HD 6950
24%
GeForce GTX 295
25%
GeForce GTX 650 Ti Boost
25%
Radeon HD 7850
25%
GeForce GTX 480
26%
Radeon HD 6970
27%
Radeon R7 265
27%
Radeon R7 370
27%
Radeon RX 560
28%
GeForce GTX 660
28%
GeForce GTX 570
30%
GeForce GTX 950
30%
Radeon HD 7870 GHz Edition
31%
Radeon R9 270X
31%
GeForce GTX 660 Ti
31%
GeForce GTX 580
32%
GeForce GTX 1050
32%
Radeon HD 7950
32%
Radeon RX 460
32%
Radeon HD 5970
33%
GeForce GTX 760
36%
GeForce GTX 670
37%
GeForce GTX 960
38%
Radeon R9 380
38%
Radeon R9 285
38%
Radeon HD 7970
39%
GeForce GTX 680
39%
GeForce GTX 1050 Ti
40%
GeForce GTX 770
41%
Radeon HD 6990
42%
Radeon R9 280X
43%
GeForce GTX 590
43%
Radeon HD 7970 GHz Edition
48%
GeForce GTX 780
52%
Radeon RX 470
53%
Radeon R9 290
57%
Radeon R9 390
57%
Radeon R9 290X
58%
GeForce GTX 970
59%
GeForce GTX TITAN
59%
Radeon RX 570
59%
GeForce GTX 780 Ti
60%
Radeon R9 390X
60%
Radeon HD 7990
61%
Radeon RX 480
61%
GeForce GTX 690
65%
Radeon RX 580
66%
GeForce GTX 980
67%
Radeon R9 FURY
67%
GeForce GTX 1060 6 GB
73%
Radeon R9 295X2
75%
Radeon R9 FURY X
76%
GeForce GTX 980 Ti
82%
GeForce GTX TITAN X
90%
GeForce GTX 1070
93%
Radeon RX Vega 56
100%
GeForce GTX 1070 Ti
100%
Radeon RX Vega 64
105%
GeForce GTX 1080
118%
GeForce RTX 2070
123%
TITAN X Pascal
127%
GeForce GTX 1080 Ti
138%
GeForce RTX 2080
157%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

GPU Clock
1200 MHz
Boost Clock
1536 MHz
Memory Clock
945 MHz
1890 MHz effective

Memory

Memory Size
8 GB
Memory Type
HBM2
Memory Bus
2048 bit
Bandwidth
483.8 GB/s

Render Config

Shading Units
4096
TMUs
256
ROPs
64
Compute Units
64

Theoretical Performance

Pixel Rate
98.30 GPixel/s
Texture Rate
393.2 GTexel/s
FP16 (half) performance
25,166 GFLOPS (2:1)
FP32 (float) performance
12,583 GFLOPS
FP64 (double) performance
786.4 GFLOPS (1:16)

Board Design

Slot Width
Dual-slot
Length
11 inches
279 mm
TDP
295 W
Outputs
1x HDMI
3x DisplayPort
Power Connectors
2x 8-pin
Board Number
D050-57

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
2.0
Vulkan
1.1.86
Shader Model
6.2

Vega 10 GPU Notes

Codename: Greenland
CLRX Version: GCN 1.4
Graphics/Compute: GFX9 (gfx900) / (gfx901)
Display Core Engine: 12.0
Unified Video Decoder: 7.0
Video Compression Engine: 4.0

Retail boards based on this design (24)

Name GPU Clock Boost Clock Memory Clock Other Changes
AREZ STRIX RX Vega 64 GAMING OC 1200 MHz 1590 MHz 945 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
ASRock Phantom Gaming X RX Vega 64 1200 MHz 1536 MHz 945 MHz
ASUS RX Vega 64 1200 MHz 1536 MHz 945 MHz
ASUS ROG STRIX RX Vega 64 GAMING 1200 MHz 1536 MHz 945 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS ROG STRIX RX Vega 64 GAMING OC 1200 MHz 1590 MHz 945 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
BIOSTAR RX Vega 64 1200 MHz 1536 MHz 945 MHz
Dataland DEVIL RX Vega 64 OC 1417 MHz 1607 MHz 945 MHz 12.44 inches/316 mm, 2x HDMI 2x DisplayPort
Dataland RX Vega 64 1200 MHz 1536 MHz 945 MHz
GIGABYTE RX Vega 64 1200 MHz 1536 MHz 945 MHz
GIGABYTE RX Vega 64 GAMING OC 1276 MHz 1560 MHz 945 MHz
HIS RX Vega AIR Black 1200 MHz 1536 MHz 945 MHz
MAXSUN RX Vega 64 1200 MHz 1536 MHz 945 MHz
MSI RX Vega 64 1200 MHz 1536 MHz 945 MHz
MSI RX Vega 64 Air Boost OC 1272 MHz 1575 MHz 945 MHz
PowerColor Red Devil RX Vega 64 OC 1417 MHz 1607 MHz 945 MHz 12.44 inches/316 mm, 2x HDMI 2x DisplayPort
PowerColor Red Dragon RX Vega 64 OC 1200 MHz 1536 MHz 945 MHz 12.44 inches/316 mm, 2x HDMI 2x DisplayPort
PowerColor RX Vega 64 1200 MHz 1536 MHz 945 MHz
Sapphire NITRO+ RX Vega 64 1200 MHz 1536 MHz 945 MHz 12.2 inches/310 mm, 2x HDMI 2x DisplayPort
Sapphire NITRO+ RX Vega 64 Limited Edition 1423 MHz 1611 MHz 945 MHz 12.2 inches/310 mm, 2x HDMI 2x DisplayPort
Sapphire RX Vega 64 1200 MHz 1536 MHz 945 MHz
VisionTek RX Vega 64 Black 1200 MHz 1536 MHz 945 MHz
XFX RX Vega 64 1200 MHz 1536 MHz 945 MHz
XFX RX Vega 64 Double Edition 1200 MHz 1536 MHz 945 MHz 9.45 inches/240 mm
Yeston RX Vega 64 1200 MHz 1536 MHz 945 MHz
