AMD Ryzen Z2 Extreme GPU

Graphics Processor
Strix Point
Cores
1024
TMUs
64
ROPs
48
Memory Size
16 GB
Memory Type
LPDDR5X
Bus Width
256 bit
GPU Chip
GPU

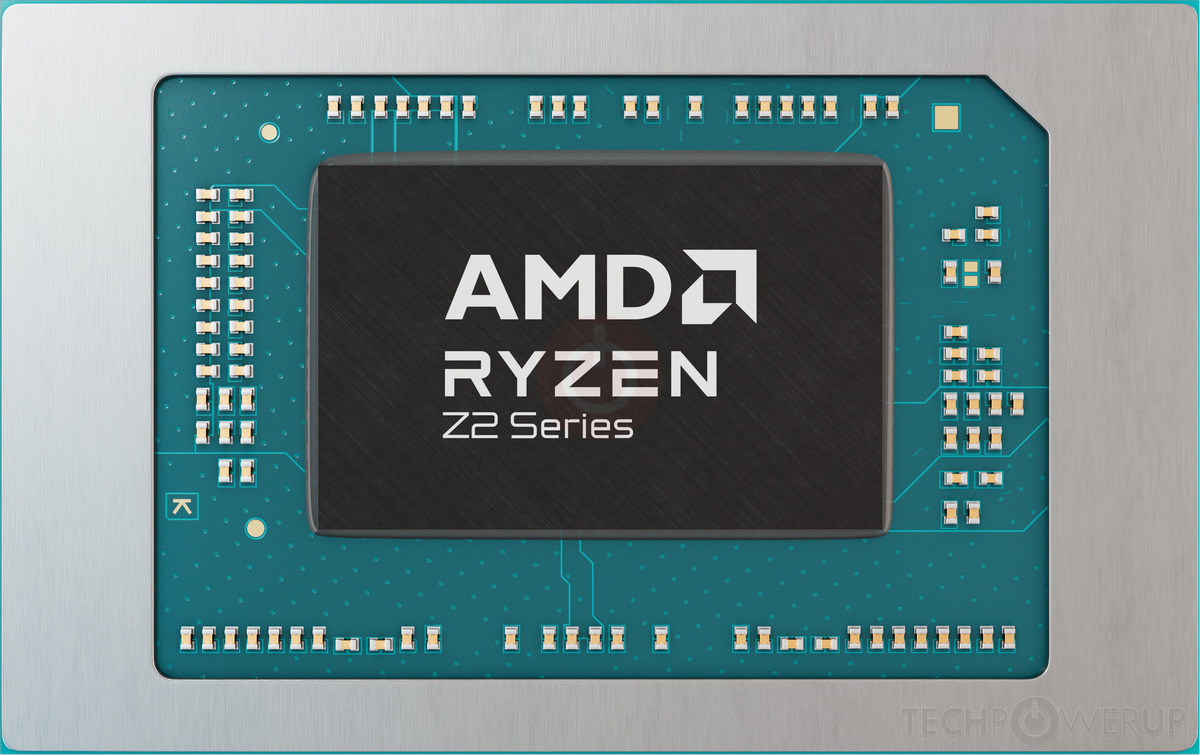

The Ryzen Z2 Extreme GPU is a gaming console graphics solution by AMD, launched in 2025. Built on the 4 nm process, and based on the Strix Point graphics processor, in its 100-000001684 variant, the device supports DirectX 12 Ultimate. The Strix Point graphics processor is an average sized chip with a die area of 233 mm² and 34,000 million transistors. It features 1024 shading units, 64 texture mapping units, and 48 ROPs. The card also has 16 raytracing acceleration cores. AMD includes 16 GB LPDDR5X memory, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 800 MHz, which can be boosted up to 2700 MHz, memory is running at 1000 MHz.
Its power draw is rated at 28 W maximum. Ryzen Z2 Extreme GPU is connected to the rest of the system using a PCI-Express 4.0 x4 interface.

Graphics Processor

GPU Name
Strix Point
GPU Variant
100-000001684
Architecture
RDNA 3.5
Foundry
TSMC
Process Size
4 nm
Transistors
34,000 million
Density
145.9M / mm²
Die Size
233 mm²
Chip Package
FP8

Graphics Card

Release Date
2025
Announced
Jan 6th, 2025
Generation
Console GPU
(AMD)
Production
Active

Clock Speeds

Base Clock
800 MHz
Boost Clock
2700 MHz
Memory Clock
1000 MHz
8 Gbps effective

Memory

Memory Size
16 GB
Memory Type
LPDDR5X
Memory Bus
256 bit
Bandwidth
256.0 GB/s

Render Config

Shading Units
1024
TMUs
64
ROPs
48
Compute Units
16
RT Cores
16
L0 Cache
32 KB per WGP
L1 Cache
128 KB per Array
L2 Cache
8 MB
L3 Cache
16 MB

Theoretical Performance

Pixel Rate
129.6 GPixel/s
Texture Rate
172.8 GTexel/s
FP16 (half)
11.06 TFLOPS (2:1)
FP32 (float)
5.530 TFLOPS
FP64 (double)
345.6 GFLOPS (1:16)

Board Design

TDP
28 W
Outputs
1x USB Type-C
Power Connectors
None
Weight
g ( lbs)
Storage
GB PCIe 4.0 x4

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.8

Console Notes

Ryzen Z2 Extreme APU
Cores: 3x Zen 5 + 5x Zen 5c
Base Clock: 2.0 GHz
Zen5c Turbo Clock: 3.3 GHz
Zen5 Turbo Clock: 5.0 GHz

some specs unknown

Strix Point GPU Notes

Generation: Navi III
Ray Tracing Cores: 2nd Gen
Infinity Cache: 2nd Gen
Graphics/Compute: 11.5.1 (11.5.0 for 890M)
Shader ISA: GFX11.5 (gfx1151 / gfx1150 for 890M)
Display Core Next: 3.5.0
Video Core Next: 4.0.5
System DMA: 6.1.0
Platform Security Processor: 14.0.0

Per SIMD32:
- 10 KB Scalar Register File

Per CU:
- 16 KB Vector Data Cache
- 64 KB Local Data Share (GCN-Mode)

Per WGP:
- 16 KB Scalar Data Cache / K Cache
- 32 KB Instruction Cache
- 128 KB Local Data Share
