NVIDIA TITAN V
- Graphics Processor
- GV100
- Cores
- 5120
- TMUs
- 320
- ROPs
- 96
- Memory Size
- 12 GB
- Memory Type
- HBM2
- Bus Width
- 3072 bit
Recommended Resolutions:
- 640x480
- 1280x720
- 1366x768
- 1600x900
- 1920x1080
- 2560x1440
- 3840x2160
The TITAN V is a enthusiast-class graphics card by NVIDIA, launched in December 2017. Built on the 12 nm process, and based on the GV100 graphics processor, in its GV100-400-A1 variant, the card supports DirectX 12.0. The GV100 graphics processor is a large chip with a die area of 815 mm² and 21,100 million transistors. It features 5120 shading units, 320 texture mapping units and 96 ROPs. Also included are 640 tensor cores which help improve the speed of machine learning applications. NVIDIA has placed 12,288 MB HBM2 memory on the card, which are connected using a 3072-bit memory interface. The GPU is operating at a frequency of 1200 MHz, which can be boosted up to 1455 MHz, memory is running at 848 MHz.
Being a dual-slot card, the NVIDIA TITAN V draws power from 1x 6-pin + 1x 8-pin power connectors, with power draw rated at 250 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort. TITAN V is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 267 mm in length, and features a dual-slot cooling solution. Its price at launch was 2999 US Dollars.
Being a dual-slot card, the NVIDIA TITAN V draws power from 1x 6-pin + 1x 8-pin power connectors, with power draw rated at 250 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort. TITAN V is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 267 mm in length, and features a dual-slot cooling solution. Its price at launch was 2999 US Dollars.

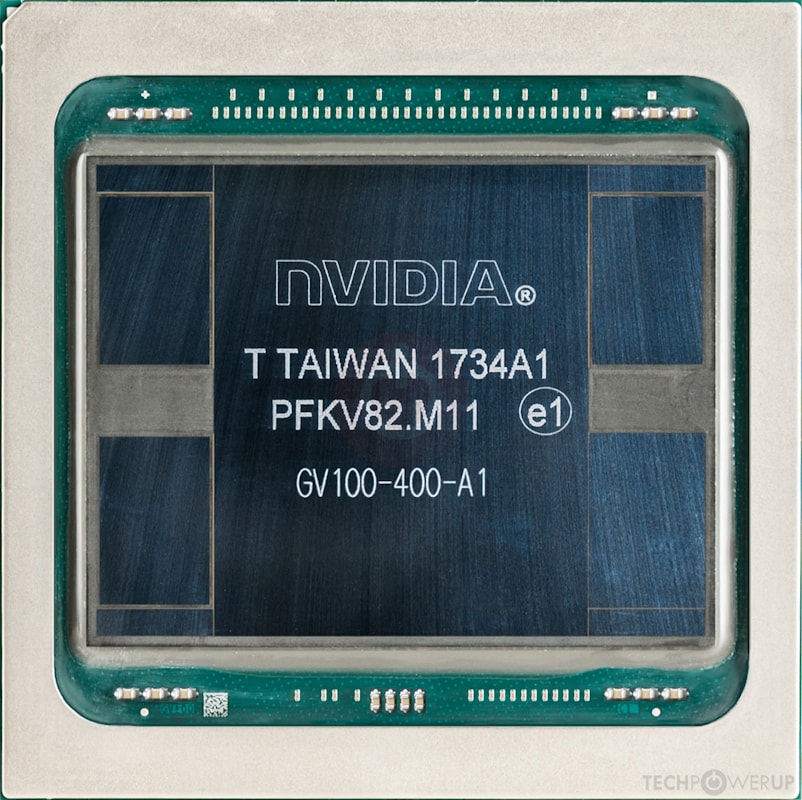

Graphics Processor
- GPU Name
- GV100
- GPU Variant
- GV100-400-A1
- Architecture
- Volta
- Foundry
- TSMC
- Process Size
- 12 nm
- Transistors
- 21,100 million
- Die Size
- 815 mm²
Graphics Card
- Release Date
- Dec 7th, 2017
- Generation
- GeForce 10
- Predecessor
- GeForce 900
- Successor
- GeForce 20
- Production
- Active
- Launch Price
- 2,999 USD
- Bus Interface
- PCIe 3.0 x16
- Reviews
- 4 in our database
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- Base Clock
- 1200 MHz
- Boost Clock
- 1455 MHz
- Memory Clock
-
848 MHz
1696 MHz effective
Memory
- Memory Size
- 12 GB
- Memory Type
- HBM2
- Memory Bus
- 3072 bit
- Bandwidth
- 651.3 GB/s
Render Config
- Shading Units
- 5120
- TMUs
- 320
- ROPs
- 96
- SM Count
- 80
- Tensor Cores
- 640
- L1 Cache
- 96 KB (per SM)
- L2 Cache
- 4.5 MB
Theoretical Performance
- Pixel Rate
- 139.7 GPixel/s
- Texture Rate
- 465.6 GTexel/s
- FP16 (half) performance
- 29.80 TFLOPS (2:1)
- FP32 (float) performance
- 14.90 TFLOPS
- FP64 (double) performance
- 7.450 TFLOPS (1:2)

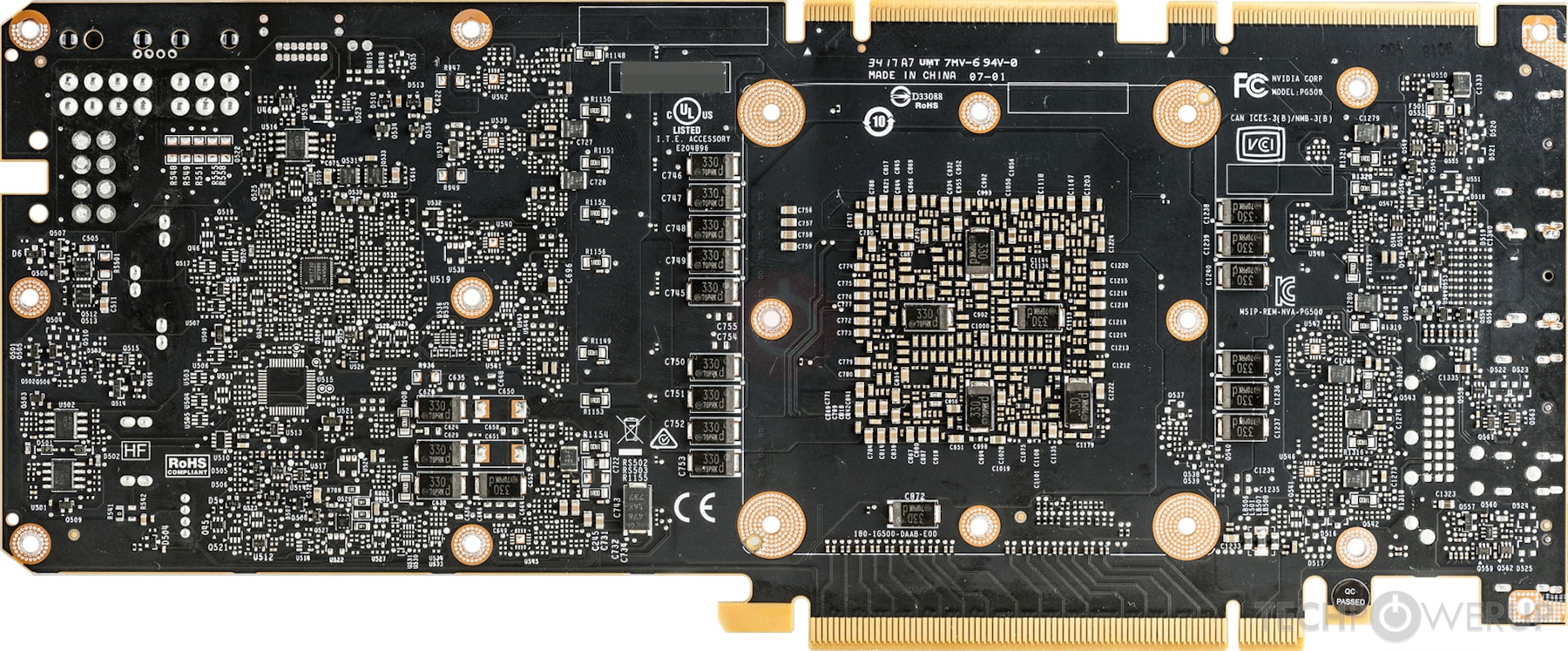

Board Design
- Slot Width
- Dual-slot
- Length
- 10.5 inches
267 mm
- TDP
- 250 W
- Outputs
- 1x HDMI
3x DisplayPort
- Power Connectors
- 1x 6-pin + 1x 8-pin
- Board Number
- PG500 SKU 0
Graphics Features
- DirectX
- 12.0 (12_1)
- OpenGL
- 4.6
- OpenCL
- 1.2
- Vulkan
- 1.1.122
- CUDA
- 7.0
- Shader Model
- 6.4
Card Notes
| Base Clock: Deep Learning: 98.304TFLOPs Boost Clock: Deep Learning: 119.193TFLOPs |
