Orico O7000 2 TB (YMTC QLC X3-6070)

2 TB
Capacity
MAP1602A
Controller
QLC
Flash
PCIe 4.0 x4
Interface
M.2 2280
Form Factor

Multiple hardware versions found.

Performance could vary due to unannounced flash/controller changes.

Back
Back
Package
Package
PCB Front
PCB Front
PCB Back
PCB Back
Flash
Flash
SSD Controller
Controller
NAND Die
NAND Die
The Orico O7000 is a solid-state drive in the M.2 2280 form factor, launched in 2022. It is only available in the 2 TB capacity listed on this page. With the rest of the system, the Orico O7000 interfaces using a PCI-Express 4.0 x4 connection. The SSD controller is the MAP1602A Falcon Lite from MaxioTech, a DRAM cache is not available. Orico has installed 232-layer QLC NAND flash on the O7000, the flash chips are made by YMTC. Please note that this SSD is sold in multiple variants with different NAND flash or controller, which could affect performance, the "Notes" section at the end of this page has more info. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are absorbed more quickly. The cache is sized at 464 GB. Copying data out of the SLC cache (folding) completes at 160 MB/s. Thanks to support for the fast PCI-Express 4.0 interface, performance is excellent. The O7000 is rated for sequential read speeds of up to 7,000 MB/s and 6,500 MB/s write.
At its launch, the SSD was priced at 120 USD. The warranty length is set to five years, which is an excellent warranty period. Orico guarantees an endurance rating of 1200 TBW, a typical value for consumer SSDs.

Solid-State-Drive

Capacity: 2 TB (2048 GB)
Hardware Versions:
Overprovisioning: 140.7 GB / 7.4 %
Production: Active
Released: 2022
Price at Launch: 120 USD
Part Number: Unknown
Market: Consumer

Physical

Form Factor: M.2 2280 (Single-Sided)
Interface: PCIe 4.0 x4
Protocol: NVMe 1.4
Power Draw: 0.75 W (Idle)
2.9 W (Avg)
4.5 W (Max)

Controller

Manufacturer: MaxioTech
Name:
MAP1602A Falcon Lite
Find More Drives
Architecture: ARM 32-bit Cortex-R5
Core Count: Quad-Core
Frequency: 1,000 MHz
Foundry: TSMC
Process: 12 nm
Flash Channels: 4 @ 2,400 MT/s
Chip Enables: 4
Controller Features: HMB (enabled)

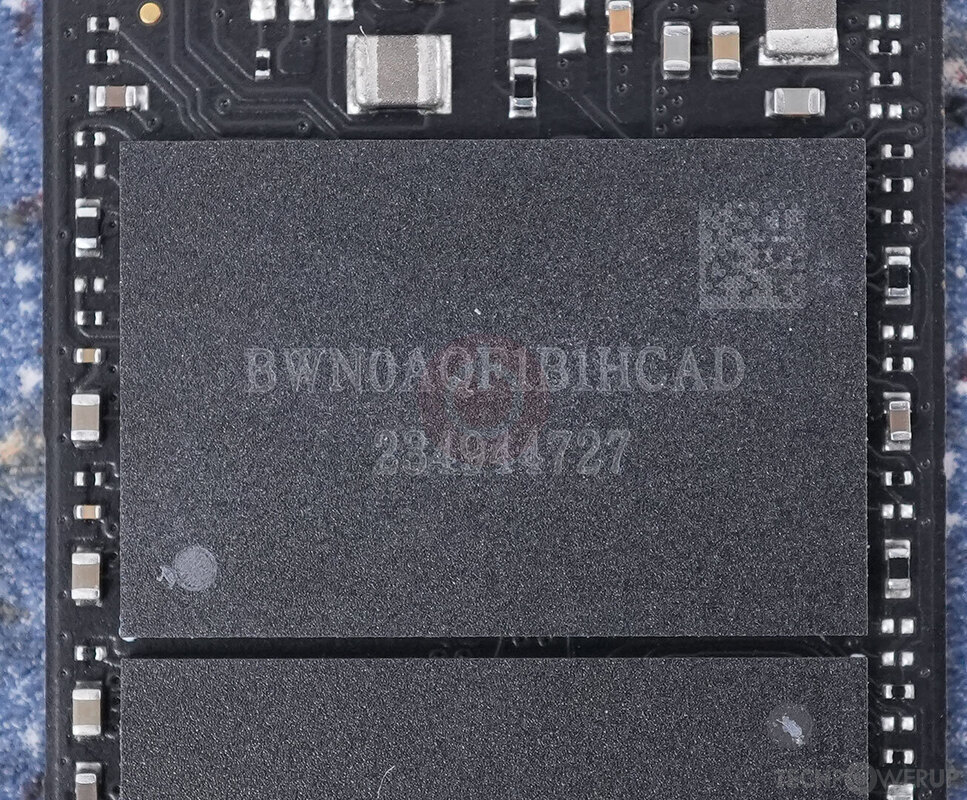

NAND Flash

Manufacturer: YMTC
Name: Xtacking 3.0 (X3-6070)
Part Number: BWN0AQF1B1HCAD
Type: QLC
Technology: 232-layer
Speed: 2400 MT/s
Capacity: 4 chips @ 4 Tbit
ONFI: 5.0
Topology: Charge Trap
Die Size: 52 mm²
(19.7 Gbit/mm²)
Dies per Chip: 4 dies @ 1 Tbit
Planes per Die: 4
Decks per Die: 2
Word Lines: 253 per NAND String
91.7% Vertical Efficiency
Endurance:
(up to)
1500 P/E Cycles
Page Size: 16 KB

DRAM Cache

Type: None
Host-Memory-Buffer (HMB): 32 MB

Performance

Sequential Read: 7,000 MB/s
Sequential Write: 6,500 MB/s
Random Read: Unknown
Random Write: Unknown
Endurance: 1200 TBW
Warranty: 5 Years
MTBF: 1.5 Million Hours
Drive Writes Per Day (DWPD): 0.3
SLC Write Cache: approx. 464 GB
(dynamic only)
Cache Folding Speed: 160 MB/s

Features

TRIM: Yes
SMART: Yes
Power Loss Protection: No
Encryption:
  • Unknown
RGB Lighting: No
PS5 Compatible: Yes

Reviews

Same Drive

This section lists other SSDs in our database using the exact same hardware components

Notes

Drive:

Sequential performance might be lower since manufacturer only lists "up-to" performance in their website.

Controller:

This controller features multiples variants:
F1C - Uses NVMe 1.4
F2C - Uses NVMe 1.4
F3C - Uses NVMe 2.0
F3C U - For 4TB SSDs and uses NVMe 2.0

Core Clock speed should be close to this.

NAND Die:

Some Batchs of these wafers can be sold at @ 1.000 P.E.C.
