Teamgroup MP33 256 GB (SM2263XT + B27B)

256 GB
Capacity
SM2263XT
Controller
TLC
Flash
PCIe 3.0 x4
Interface
M.2 2280
Form Factor

Multiple hardware versions found.

Performance could vary due to unannounced flash/controller changes.

Back

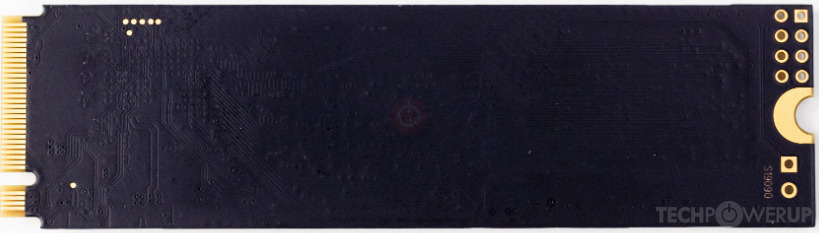

Back
SSD Controller
Controller
The Teamgroup MP33 is a solid-state drive in the M.2 2280 form factor, launched on August 27th, 2020. It is available in capacities ranging from 128 GB to 2 TB. This page reports specifications for the 256 GB variant. With the rest of the system, the Teamgroup MP33 interfaces using a PCI-Express 3.0 x4 connection. The SSD controller is the SM2263XT from Silicon Motion, a DRAM cache is not available. Teamgroup has installed 96-layer TLC NAND flash on the MP33, the flash chips are made by Micron. Please note that this SSD is sold in multiple variants with different NAND flash or controller, which could affect performance, the "Notes" section at the end of this page has more info. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are processed more quickly. The MP33 is rated for sequential read speeds of up to 1,600 MB/s and 1,000 MB/s write; random IOPS reach up to 160K for reads and 200K for writes.
At its launch, the SSD was priced at 43 USD. The warranty length is set to five years, which is an excellent warranty period. Teamgroup guarantees an endurance rating of 150 TBW, a typical value for consumer SSDs.

Solid-State-Drive

Capacity: 256 GB
Variants: 128 GB 256 GB 512 GB 1 TB 2 TB
Hardware Versions:
Overprovisioning: 17.6 GB / 7.4 %
Production: Active
Released: Aug 27th, 2020
Price at Launch: 43 USD
Part Number: TM8FP6256G0C101
Market: Consumer

Physical

Form Factor: M.2 2280 (Single-Sided)
Interface: PCIe 3.0 x4
Protocol: NVMe 1.3
Power Draw: Unknown

Controller

Manufacturer: Silicon Motion
Name: SM2263XT
Architecture: ARM 32-bit Cortex-R5
Core Count: Dual-Core
Frequency: 575 MHz
Foundry: TSMC
Process: 28 nm
Flash Channels: 4 @ 800 MT/s
Chip Enables: 4
Controller Features: HMB (enabled)

NAND Flash

Manufacturer: Micron
Name: B27B FortisFlash
Type: TLC
Technology: 96-layer
Speed: 533 MT/s .. 1200 MT/s
Capacity: 2 chips @ 1 Tbit
ONFI: 4.1
Topology: Floating Gate
Dies per Chip: 2 dies @ 512 Gbit
Planes per Die: 4
Decks per Die: 2
Word Lines: 108 per NAND String
88.9% Vertical Efficiency
Read Time (tR): 87 µs
Program Time (tProg): 800 µs
Block Erase Time (tBERS): 15 ms
Die Write Speed: 84 MB/s
Endurance:
(up to)
3000 P/E Cycles
(40000 in SLC Mode)
Page Size: 16 KB
Block Size: 3456 Pages
Plane Size: 338 Blocks

DRAM Cache

Type: None
Host-Memory-Buffer (HMB): 64 MB

Performance

Sequential Read: 1,600 MB/s
Sequential Write: 1,000 MB/s
Random Read: 160,000 IOPS
Random Write: 200,000 IOPS
Endurance: 150 TBW
Warranty: 5 Years
MTBF: 1.5 Million Hours
Drive Writes Per Day (DWPD): 0.3
SLC Write Cache: Yes

Features

TRIM: Yes
SMART: Yes
Power Loss Protection: No
Encryption:
  • No
RGB Lighting: No
PS5 Compatible: No

Notes

Controller:

The difference between this and the non-XT revision (SM2263, SM2263G, SM2263ENG, etc.) is that this revision doesn't support the DRAM cache, in fact it uses HMB (Host Memory Buffer).

NAND Die:

tPROG - 800 µs (withouh Vpp)
tPROG w/ ~ 25% Overhead: ~ 914 µs (Avg 70 MB/s per each die)
