Copper Shims on Chipset

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Joined
Jan 5, 2006
Messages
18,085 (2.69/day)
System Name AlderLake / Laptop
Processor Intel i7 12700K P-Cores @ 5Ghz / Intel i3 7100U
Motherboard Gigabyte Z690 Aorus Master / HP 83A3 (U3E1)
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut Extreme + 5 case fans / Fan
Memory 32GB DDR5 Corsair Dominator Platinum RGB 6000MT/s CL36 / 8GB DDR4 HyperX CL13
Video Card(s) MSI RTX 2070 Super Gaming X Trio / Intel HD620
Storage Samsung 980 Pro 1TB + 970 Evo 500GB + 850 Pro 512GB + 860 Evo 1TB x2 / Samsung 256GB M.2 SSD
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p / 14" 1080p IPS Glossy
Case Be quiet! Silent Base 600 - Window / HP Pavilion
Audio Device(s) Panasonic SA-PMX94 / Realtek onboard + B&O speaker system / Harman Kardon Go + Play / Logitech G533
Power Supply Seasonic Focus Plus Gold 750W / Powerbrick
Mouse Logitech MX Anywhere 2 Laser wireless / Logitech M330 wireless
Keyboard RAPOO E9270P Black 5GHz wireless / HP backlit
Software Windows 11 / Windows 10
Benchmark Scores Cinebench R23 (Single Core) 1936 @ stock Cinebench R23 (Multi Core) 23006 @ stock
Which costs me more:/

No spare fans laying around?

I had also done testing few years ago, bought various fans and still have fans in boxes that I don't use at the moment.

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
No spare fans laying around?

I had also done testing few years ago, bought various fans and still have fans in boxes that I don't use at the moment.
Not really. But I have plan to change the front intakes with 140mm Noctua fans.

Joined
Jan 5, 2006
Messages
18,085 (2.69/day)
System Name AlderLake / Laptop
Processor Intel i7 12700K P-Cores @ 5Ghz / Intel i3 7100U
Motherboard Gigabyte Z690 Aorus Master / HP 83A3 (U3E1)
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut Extreme + 5 case fans / Fan
Memory 32GB DDR5 Corsair Dominator Platinum RGB 6000MT/s CL36 / 8GB DDR4 HyperX CL13
Video Card(s) MSI RTX 2070 Super Gaming X Trio / Intel HD620
Storage Samsung 980 Pro 1TB + 970 Evo 500GB + 850 Pro 512GB + 860 Evo 1TB x2 / Samsung 256GB M.2 SSD
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p / 14" 1080p IPS Glossy
Case Be quiet! Silent Base 600 - Window / HP Pavilion
Audio Device(s) Panasonic SA-PMX94 / Realtek onboard + B&O speaker system / Harman Kardon Go + Play / Logitech G533
Power Supply Seasonic Focus Plus Gold 750W / Powerbrick
Mouse Logitech MX Anywhere 2 Laser wireless / Logitech M330 wireless
Keyboard RAPOO E9270P Black 5GHz wireless / HP backlit
Software Windows 11 / Windows 10
Benchmark Scores Cinebench R23 (Single Core) 1936 @ stock Cinebench R23 (Multi Core) 23006 @ stock
I use 6 Be Quiet fans and 1 Scythe at the moment.

Joined
Mar 21, 2016
Messages
2,224 (0.74/day)

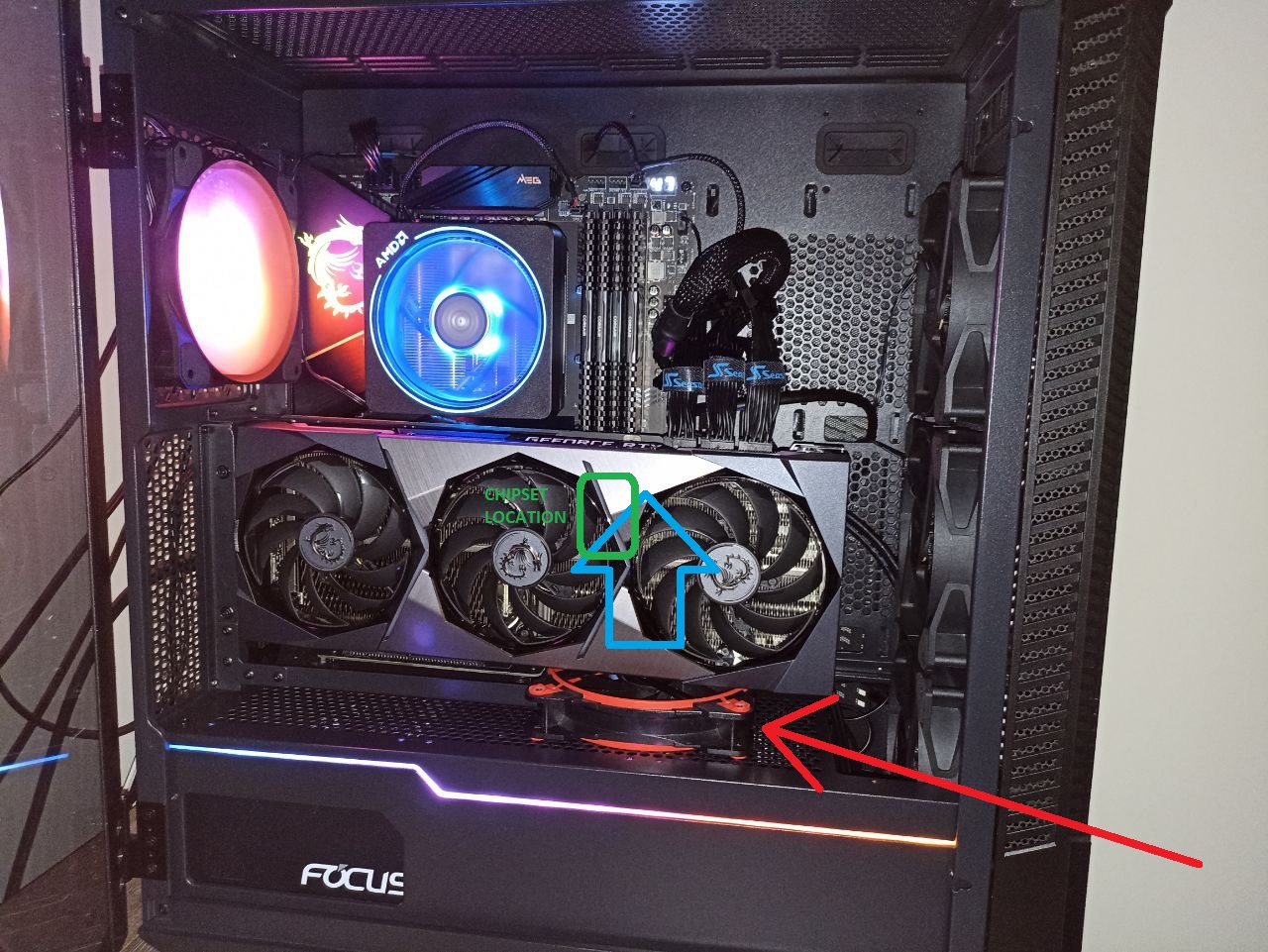

One last question. This is how my case looks from right side. Do you think adding two more lateral fans would help more cooling?

View attachment 304618

I'd use bottom as a intake and top I'd probably try both to get a idea for which works best. They have some angled fan adapters too that with those side fans if using as a intake fan you could direct towards the motherboard as well for more a blower fan. That or just get a blower fan and mount that instead which is probably cheaper if you want to use both for intake fans and w/o impeding the front fans with a cross airflow turbulence issue in the process.

Joined
Apr 18, 2019
Messages
2,157 (1.15/day)
Location
Olympia, WA
System Name Sleepy Painter
Processor AMD Ryzen 5 3600
Motherboard Asus TuF Gaming X570-PLUS/WIFI
Cooling FSP Windale 6 - Passive
Memory 2x16GB F4-3600C16-16GVKC @ 16-19-21-36-58-1T
Video Card(s) MSI RX580 8GB
Storage 2x Samsung PM963 960GB nVME RAID0, Crucial BX500 1TB SATA, WD Blue 3D 2TB SATA
Display(s) Microboard 32" Curved 1080P 144hz VA w/ Freesync
Case NZXT Gamma Classic Black
Audio Device(s) Asus Xonar D1
Power Supply Rosewill 1KW on 240V@60hz
Mouse Logitech MX518 Legend
Keyboard Red Dragon K552
Software Windows 10 Enterprise 2019 LTSC 1809 17763.1757
One last question. This is how my case looks from right side. Do you think adding two more lateral fans would help more cooling?
View attachment 304618
Assuming there's vents on the back side panel, setting up fans there as intake, would probably help.

I always built my towers 'negative pressure', but this last rebuild I went 'positive pressure'.
Having a fan intake cool air right by components, seems to help. (Whodda thunkit? :laugh:)


PS: I'm quite enjoying this seemingly unending epic.
Reminds me of 'the old days' when enthusiasts would get enthusiastically dedicated to improving performance beyond what was engineered.

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Assuming there's vents on the back side panel, setting up fans there as intake, would probably help.

I always built my towers 'negative pressure', but this last rebuild I went 'positive pressure'.
Having a fan intake cool air right by components, seems to help. (Whodda thunkit? :laugh:)


PS: I'm quite enjoying this seemingly unending epic.
Reminds me of 'the old days' when enthusiasts would get enthusiastically dedicated to improving performance beyond what was engineered.
I may change the chipset fan with 80mm one. Cause it barely affects the temps even at highest rpm. Do you think it could fit?
Look how 40mm fan seems:

Joined
Apr 18, 2019
Messages
2,157 (1.15/day)
Location
Olympia, WA
System Name Sleepy Painter
Processor AMD Ryzen 5 3600
Motherboard Asus TuF Gaming X570-PLUS/WIFI
Cooling FSP Windale 6 - Passive
Memory 2x16GB F4-3600C16-16GVKC @ 16-19-21-36-58-1T
Video Card(s) MSI RX580 8GB
Storage 2x Samsung PM963 960GB nVME RAID0, Crucial BX500 1TB SATA, WD Blue 3D 2TB SATA
Display(s) Microboard 32" Curved 1080P 144hz VA w/ Freesync
Case NZXT Gamma Classic Black
Audio Device(s) Asus Xonar D1
Power Supply Rosewill 1KW on 240V@60hz
Mouse Logitech MX518 Legend
Keyboard Red Dragon K552
Software Windows 10 Enterprise 2019 LTSC 1809 17763.1757
I may change the chipset fan with 80mm one. Cause it barely affects the temps even at highest rpm. Do you think it could fit?
Look how 40mm fan seems:
View attachment 304713
Unfortunately, the heatsink has no real (exposed) fins; it's not really built to take advantage of a mounted-on fan. (Even aimed correctly)

An 80mm fan might be a bit thick and without any airspace, won't move much air. (Any axial fan is going to be suffocated butted up directly to a surface).

If your SATA I/O wasn't in the way, I'd suggests blowing 'across' the heatsink. That way the fan is freestanding in air, and blowing 'obliquely' across the most surface area.

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Unfortunately, the heatsink has no real (exposed) fins; it's not really built to take advantage of a mounted-on fan. (Even aimed correctly)

An 80mm fan might be a bit thick and without any airspace, won't move much air. (Any axial fan is going to be suffocated butted up directly to a surface).

If your SATA I/O wasn't in the way, I'd suggests blowing 'across' the heatsink. That way the fan is freestanding in air, and blowing 'obliquely' across the most surface area.
Yes the fins are located on the back side. What a sick design!

Joined
Nov 15, 2021
Messages
2,754 (2.95/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
@mclaren85 do you have a grinder? Cutting crosshatched cuts in the heat spreader will improve its ability to dissipate heat.

Assuming it is a solid block.

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Front fans are somehow helpful when they're at full speed. But only when the magnetic dust filter has been removed.

No I don't have it. But seems like a good idea
@mclaren85 do you have a grinder? Cutting crosshatched cuts in the heat spreader will improve its ability to dissipate heat.

Assuming it is a solid block

The other idea which comes to mind is using peltier cooling.

Last edited:
Joined
Apr 18, 2019
Messages
2,157 (1.15/day)
Location
Olympia, WA
System Name Sleepy Painter
Processor AMD Ryzen 5 3600
Motherboard Asus TuF Gaming X570-PLUS/WIFI
Cooling FSP Windale 6 - Passive
Memory 2x16GB F4-3600C16-16GVKC @ 16-19-21-36-58-1T
Video Card(s) MSI RX580 8GB
Storage 2x Samsung PM963 960GB nVME RAID0, Crucial BX500 1TB SATA, WD Blue 3D 2TB SATA
Display(s) Microboard 32" Curved 1080P 144hz VA w/ Freesync
Case NZXT Gamma Classic Black
Audio Device(s) Asus Xonar D1
Power Supply Rosewill 1KW on 240V@60hz
Mouse Logitech MX518 Legend
Keyboard Red Dragon K552
Software Windows 10 Enterprise 2019 LTSC 1809 17763.1757
The other idea which comes to mind is using pettier cooling.
Something thin and copper like this, could be easily cut using a rotary tool (dremel) or even a hacksaw w/ some patience, then drilled and mounted to the board.

You're seeing the limits in the design of the chipset heatsink; it was not intended to see active ventilation, and it's 'bulk' is compensating for lack of surface-area and the material used.
TBQH, w/o changing the cooler, you'd be better-off using a 'centrifugal fan' like out of a laptop or single-slot GPU cooler. (and 'ducting' it through the fins. Cardboard, Tape, etc.)

If you meant 'Peltier', just don't. (At least not in this application. Get an old board/build to 'play' with Peltier devices (TECs), if you're that curious.)
Without regulation circuitry, you easily could get condensation and short something, or under-cool the TEC and burn it out, followed by an overheating/dead chipset.
Either way, there's a ton more bulk; which is already something trying to be avoided.

Last edited:
Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Something thin and copper like this, could be easily cut using a rotary tool (dremel) or even a hacksaw w/ some patience, then drilled and mounted to the board.

You're seeing the limits in the design of the chipset heatsink; it was not intended to see active ventilation, and it's 'bulk' is compensating for lack of surface-area and the material used.
TBQH, w/o changing the cooler, you'd be better-off using a 'centrifugal fan' like out of a laptop or single-slot GPU cooler.

If you meant 'Peltier', just don't. (At least not in this application. Get an old board/build to 'play' with Peltier devices (TECs), if you're that curious.)
Without regulation circuitry, you easily could get condensation and short something, or under-cool the TEC and burn it out, followed by an overheating/dead chipset.
Either way, there's a ton more bulk; which is already something trying to be avoided.
Yes sorry for the typo. Pelter is nothing that I saw before so it attracted my attention.
I didn't understand your idea properly, why would I need a copper on the back of the GPU?

Joined
Nov 15, 2021
Messages
2,754 (2.95/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
Yes sorry for the typo. Pelter is nothing that I saw before so it attracted my attention.
I didn't understand your idea properly, why would I need a copper on the back of the GPU?
This is a photo of a product on the market, designed to help cool GPU backplates.

It was intended to show the modification I was suggesting (crosscuts) to your southbridge heatsink.

If you observe the pattern closely, you will see that it has much higher surface area than a solid block - which assists with heat dissipation, especially with airflow.

Joined
Apr 18, 2019
Messages
2,157 (1.15/day)
Location
Olympia, WA
System Name Sleepy Painter
Processor AMD Ryzen 5 3600
Motherboard Asus TuF Gaming X570-PLUS/WIFI
Cooling FSP Windale 6 - Passive
Memory 2x16GB F4-3600C16-16GVKC @ 16-19-21-36-58-1T
Video Card(s) MSI RX580 8GB
Storage 2x Samsung PM963 960GB nVME RAID0, Crucial BX500 1TB SATA, WD Blue 3D 2TB SATA
Display(s) Microboard 32" Curved 1080P 144hz VA w/ Freesync
Case NZXT Gamma Classic Black
Audio Device(s) Asus Xonar D1
Power Supply Rosewill 1KW on 240V@60hz
Mouse Logitech MX518 Legend
Keyboard Red Dragon K552
Software Windows 10 Enterprise 2019 LTSC 1809 17763.1757
Yes sorry for the typo. Pelter is nothing that I saw before so it attracted my attention.
I didn't understand your idea properly, why would I need a copper on the back of the GPU?

Was just showing the original/intended use of the copper heatsink-plate. (also, gives a 'relatable' size reference.)

The lack of exposed surface area, and aluminum material of the stock heatsink are the biggest hindrances to maximum-ly cooling the chipset.
You can either work within them (blowing air through the enclosed fins using a ducted fan)
or
You can replace the heatsink. (the 'GPU backplate' heatsink I referenced, would be available to you through alibaba/aliexpress.)

Joined
Nov 15, 2021
Messages
2,754 (2.95/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
Sooo...

I went back and found this:

And this is the contact area of HS:

View attachment 303140
Is that a sticker enclosing/covering the "hole" in the heatsink? If you mounted your Noctua over that after removing the sticker, it might help.

Don't crosscut this thing. Unless you plan to flip it over and use the existing cuts.

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
I've found an old AMD fan which is slightly bigger than my noctua. Will try this and give feedback soon.


In case these methods won't work, I won't give up.. There is an innovative cooling solution called Air Jet.


Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
That old AMD fan has too much noise than anything and has no or little effect on cooling even at 6000 rpm.. So I decided to remove everything on chipset and decided to attach my little Noctua to the rear-end of my case in order to increase the flow from front-intake to exhaust.

Here are the pictures:


Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Last edited:
Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
So put a fan underneath the GPU to both cool down gpu and chipset. The fan is blowing the air to upper direction. I marked the air movement, and virtual chipset location.


Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
That old AMD fan has too much noise than anything and has no or little effect on cooling even at 6000 rpm.. So I decided to remove everything on chipset and decided to attach my little Noctua to the rear-end of my case in order to increase the flow from front-intake to exhaust.

Here are the pictures:

View attachment 304982View attachment 304983View attachment 304984View attachment 304985
This type has absolutely no effect on anything so I decided to move back on the chipset but this time, attached carefully and rigidly



One thing I'm very sure is, this Noctua doing super job.


Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Do you think adding two lateral fans would help?

Joined
Jan 22, 2020
Messages
889 (0.56/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Thermal Grizzly
Memory 32 GB
Video Card(s) MSI Suprim X RTX 3080
Storage 500 GB MSI Spatium nvme + 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case MSI MPG Velox Airflow 100P
Audio Device(s) Altec Lansing
Power Supply Seasonic 750W 80+ Gold
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
So I ordered kapton tape pictured below:


and the copper shim:





I hope that will definitely help..
