Prolimatech Unveils MK-13 Multi-VGA Cooler

Discussion in 'News' started by btarunr, Dec 7, 2009.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,381 (11.30/day)
    Thanks Received:
    13,608
    Location:
    Hyderabad, India
    Prolimatech, of the Megahalems CPU cooler fame, is ready with its first high-performance VGA air-cooler, the Prolimatech MK-13. The cooler boasts of a special OmniMount Retention system, that makes it compatible with all modern single-GPU graphics cards, including those from ATI Radeon HD 5000 series, and NVIDIA GeForce GTX 200 series. Other series include GeForce 6 series ~ 9 series and GTS/GT/G 200, and Radeon X1000 series upward. This mechanism, the company claims, provides future-proofing.

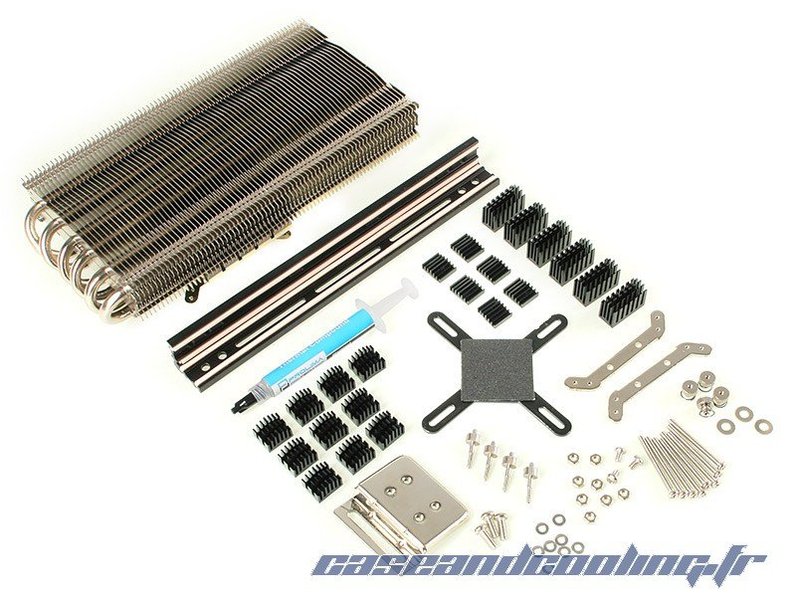

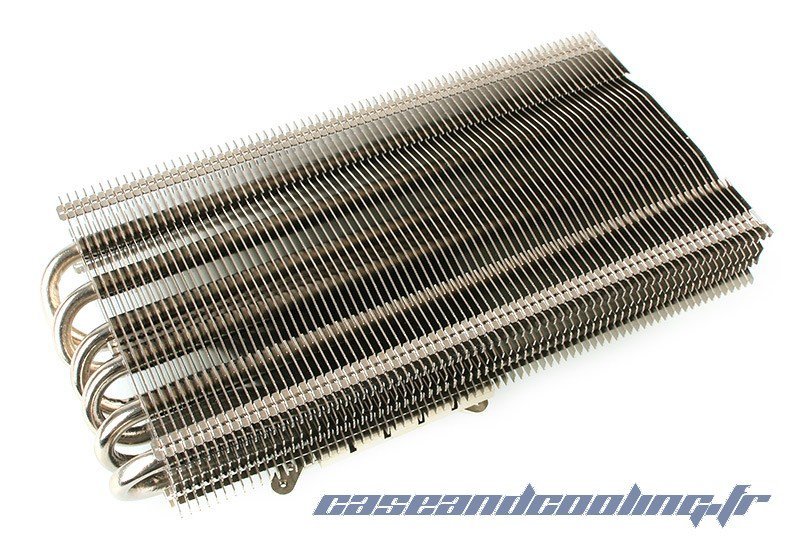

    The cooler consists of a nickel-plated copper GPU contact block from which six nickel-plated copper heatpipes arise, conveying heat to a densely-packet aluminum fin array. This array is designed such that it can hold four 120 mm fans despite there being low clearance between it and the card's PCB (enough room for memory and VRM heatsinks). Two of these fans attach along top of the array, with two on the sides (bridging two neighbouring VGA cards installed with the same cooler). The main heatsink measures 205 x 99.87 x 43.5 mm, weighing 555 g. The kit includes three different kinds of heatsinks for other components of the card, the necessary fittings, and a syringe of Prolimatech thermal compound. It is priced at 49.9 EUR.

    [​IMG] [​IMG]

    More pictures after the page-break.

    [​IMG] [​IMG] [​IMG]

    Source: Case and Cooling.fr
    Last edited: Dec 7, 2009
  2. Easo

    Easo

    Joined:
    May 19, 2009
    Messages:
    824 (0.43/day)
    Thanks Received:
    78
    Location:
    Latvia
    Nice, a lot of accesories, and a lot of fan space, though "only" 92 ones :/
  3. a111087

    a111087

    Joined:
    Apr 2, 2007
    Messages:
    2,741 (1.02/day)
    Thanks Received:
    193
    Location:
    US
    looks awesome! and price is reasonable
  4. DaJMasta

    Joined:
    Nov 6, 2005
    Messages:
    479 (0.15/day)
    Thanks Received:
    38
    Location:
    Silver Spring, MD
    Since it looks like they use square mounting brackets, I wonder if you could take a dual GPU card like a 5970 and use two of them in a tower orientation. You'd need some kind of additional physical support or the board would probably snap in two, but that would be a sight to see :)
  5. t77snapshot

    t77snapshot

    Joined:
    Nov 26, 2008
    Messages:
    4,208 (2.01/day)
    Thanks Received:
    2,736
    Location:
    S.Cali
    This thing is a beast!!! And would probably work well as a passive on lower end cards;)

    :wtf:
    Crunching for Team TPU
  6. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,381 (11.30/day)
    Thanks Received:
    13,608
    Location:
    Hyderabad, India
    Elaborated.

    [​IMG]
    1Kurgan1 says thanks.
  7. Naelex

    Naelex New Member

    Joined:
    Jul 16, 2009
    Messages:
    117 (0.06/day)
    Thanks Received:
    12
    Location:
    Plymouth, UK
    looks great, and not a bad price either. I'd like to see some real pics of it installed though
  8. theorw

    theorw New Member

    Joined:
    Jul 5, 2007
    Messages:
    771 (0.30/day)
    Thanks Received:
    50
    Location:
    Athens GREECE
    holly crap!!!!
    This IS some SERIOUS vga cooler!!!!
    I bet u can give your 5870 like 1.6volts and it will be really cool!!!
    I am so tempted to buy it even if it costs 50 EUR!!!!
  9. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.72/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND

    He means, running it with no fan on a HD5770 ( or lesser card) for example.

    Or on a HD5350 for the lulz.




    Any whom! looks nice, but they missed a trick here, could of made it double ended heat pipe style due to how this card mounts.
  10. Zubasa

    Zubasa

    Joined:
    Oct 1, 2006
    Messages:
    3,980 (1.38/day)
    Thanks Received:
    457
    Location:
    Hong Kong
    Woot!
    I am in love.
  11. RejZoR

    RejZoR

    Joined:
    Oct 2, 2004
    Messages:
    4,534 (1.25/day)
    Thanks Received:
    895
    Location:
    Europe/Slovenia
    My HD4870 running perfectly passive. Hm :)
  12. fatguy1992

    fatguy1992 New Member

    Joined:
    Aug 24, 2008
    Messages:
    419 (0.19/day)
    Thanks Received:
    46
    Location:
    Brisbane, Australia
    Just what I was looking for to cool my GTX 275's.
  13. Bo_Fox

    Bo_Fox New Member

    Joined:
    May 29, 2009
    Messages:
    480 (0.25/day)
    Thanks Received:
    57
    Location:
    Barack Hussein Obama-Biden's Nation
    This is awesome. 555 grams is a lot.. but it'd be fine if you have your case/motherboard lying down flat and your video card standing upright.

    That's what I'm doing right now with my 8800GTX and Accelero Xtreme 8800. I have two fans (one 92mm and one 80mm) blowing down across the vertical fins. I also have another 70mm fan that fits perfectly onto the right side (separate heatsink of the 8800), blowing through the fins. It performs 3 degrees better than the stock fans that come with the Xtreme 8800!

    However, about the 4 120mm fans as shown in the picture, with two blowing thru the fins and two blowing down across the fins, I think this is a horrible setup. I think this setup would actually perform worse than just having 2 fans blowing one way. It's because having 2 fans blowing against 2 other fans would just stifle airflow and conflict with the fan rotation speed of each other. There is the most amount of airflow and highest pressure coming from near the edge of the fan, a bit "diagonally" outwards.

    2 fans on top would be PERFECT for SLI or crossfire setups, with 2 of those Prolimatech heatsinks. Especially if those cards are only 2 slots apart, which does not give any room for fans in between. All you would need are two moderately quiet 120mm fans positioned right in the middle, so that the airflow blows down across both heatsinks, or have four fans in total, with two blowing down across the first card, and then two attached to the side of the second card, blowing through it. I'd recommend two 92mm fans if there is not enough room in between the first card and the CPU tower heatsink, though.

    This is great to see Prolimatech come out with a super heatsink that's compatible with ALL of the latest video cards (especially both GTX 285 and 5870). :rockout: Hopefully it would also fit with a GT300 (at least with a separate mounting bracket kit, if it's possible).
  14. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.72/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    It will be fine in a vertical case too, it has a back plate and the GPU is generally above the PCI-E slot /close to the PCI-E bracket so your card should be fine and dandy : ]
  15. Completely Bonkers New Member

    Joined:
    Feb 6, 2007
    Messages:
    2,580 (0.94/day)
    Thanks Received:
    516
    I wonder how this compares to the not quite so heavy but cheaper and larger SCYTHE SCVSG-1000?

    [​IMG]
    jerry145us says thanks.
  16. OnBoard

    OnBoard New Member

    Joined:
    Sep 16, 2006
    Messages:
    3,044 (1.05/day)
    Thanks Received:
    379
    Location:
    Finland
    Nice idea on SLI/Crossfire setups, looks like this will sell :) (though I don't see any NVIO sink for GTX 200 or VRM sink for 65nm cards, even though they say it's compatible)
  17. WarEagleAU

    WarEagleAU Bird of Prey

    Joined:
    Jul 9, 2006
    Messages:
    10,796 (3.64/day)
    Thanks Received:
    545
    Location:
    Gurley, AL
    or the Xigmatek VGA cooler. I so want this it is not even funny. I love it. It is good to see Prolimatech make something for an AMD product as I have not seen either of their two coolers with an AMD mount, only Intel.
  18. fochkoph

    fochkoph

    Joined:
    Nov 23, 2008
    Messages:
    151 (0.07/day)
    Thanks Received:
    13
    Location:
    Fremont, CA
    Nice, I love these Musashi/T-Rad2 style coolers for video cards. Going by the pictures alone that thing looks quality!
  19. Bo_Fox

    Bo_Fox New Member

    Joined:
    May 29, 2009
    Messages:
    480 (0.25/day)
    Thanks Received:
    57
    Location:
    Barack Hussein Obama-Biden's Nation
    Prolimatech's MK-13 will destroy this Scythe cooler hands-down. For starters, there are 6 heatpipes, not 4, and then there's more fin surface area. Finally, it can be cooled with more than just 1 fan (and not a super-slim fan that's even less effective when quiet).
  20. AsRock

    AsRock TPU addict

    Joined:
    Jun 23, 2007
    Messages:
    10,860 (4.15/day)
    Thanks Received:
    1,662
    Location:
    US
    Never mind those fans that SCYTHE use as they suck ass. This Prolimatech Unveils MK-13 like you said will own it without trying.

    Just thinking were i could get my hands on one lol.
  21. t77snapshot

    t77snapshot

    Joined:
    Nov 26, 2008
    Messages:
    4,208 (2.01/day)
    Thanks Received:
    2,736
    Location:
    S.Cali
    Oh I get it now, thanks bta;) Sorry I didn't see that picture at first.
    Crunching for Team TPU
  22. kylzer

    kylzer New Member

    Joined:
    May 10, 2009
    Messages:
    511 (0.26/day)
    Thanks Received:
    78
    Location:
    192.168.1.1
    Please fit the 5770 :laugh:
  23. panchoman

    panchoman Sold my stars!

    Joined:
    Jul 16, 2007
    Messages:
    9,595 (3.70/day)
    Thanks Received:
    1,200
    aren't these all copys of the hr-03 from thermalright?
    PP Mguire says thanks.
  24. [I.R.A]_FBi

    [I.R.A]_FBi New Member

    Joined:
    May 19, 2007
    Messages:
    7,664 (2.89/day)
    Thanks Received:
    540
    Location:
    c:\programs\kitteh.exe
    i was wonderign why the nvidia card list was so long compared to the ati list then a remembered the g92 et al fiasco, lol
  25. PP Mguire

    PP Mguire New Member

    Joined:
    Aug 15, 2008
    Messages:
    5,005 (2.28/day)
    Thanks Received:
    453
    Location:
    Venus, Texas
    Exactly what i was thinking. People going crazy over a product already out there :roll::roll:
