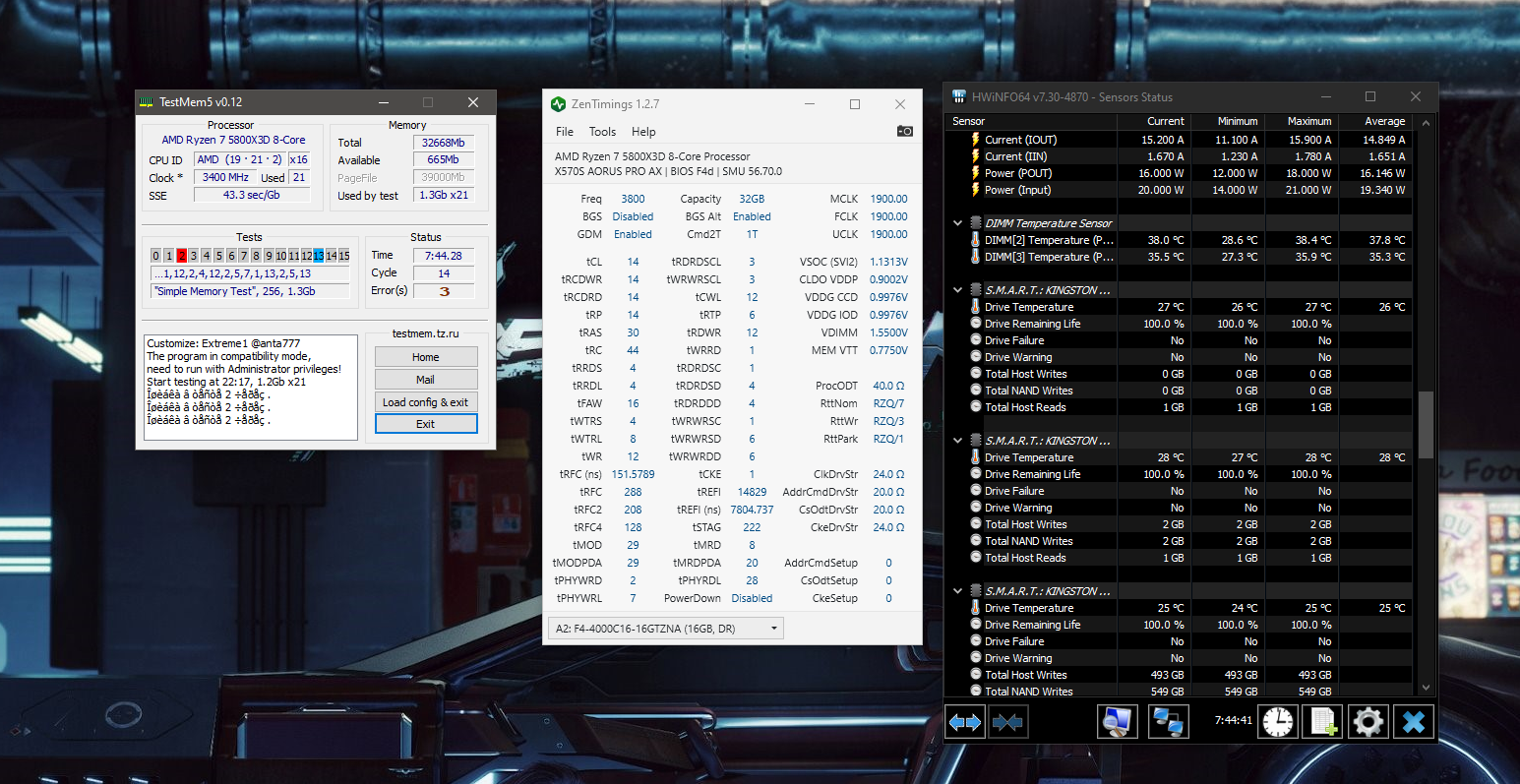

14 cycle TM5 failure
- Thread starter LowBlow
- Start date
- Joined
- Jun 24, 2015
- Messages
- 8,311 (2.30/day)
- Location
- Western Canada
| System Name | ab┃ob |
|---|---|
| Processor | 7800X3D┃5800X3D |
| Motherboard | B650E PG-ITX┃X570 Impact |
| Cooling | NH-U12A + T30┃AXP120-x67 |
| Memory | 64GB 6400CL32┃32GB 3600CL14 |
| Video Card(s) | RTX 4070 Ti Eagle┃RTX A2000 |
| Storage | 8TB of SSDs┃1TB SN550 |
| Case | Caselabs S3┃Lazer3D HT5 |
Does tCWL 14 and SCLs at 4 pass? tbh I'd drop tRFC significantly before thinking of dropping tCWL below 14, just somewhat strange list of priorities
If this wasn't a Gigabyte board first thing I'd do is try 1.56V........but knowing Gigabyte overvolts every board's VDIMM, if following the usual +0.03V estimate it might be getting close to 1.6V. Otherwise I wouldn't see an issue with 1.56V, seeing as you're below 40C while 7 hours in TM5
Or do tRRDL 6 and tWTRL 12, might be able to save you 0.01-0.02V.
Worst case tRCD 15 or 16 if you can't afford the VDIMM increase? May not have to touch tRP with it yet
5800X3D is not the best CPU for B-die to stretch its legs anyway (Fabric and RAM matter less) so I wouldn't be too bummed about running flat 15s, 14-15-15, or dropping down to 3733CL14.
If this wasn't a Gigabyte board first thing I'd do is try 1.56V........but knowing Gigabyte overvolts every board's VDIMM, if following the usual +0.03V estimate it might be getting close to 1.6V. Otherwise I wouldn't see an issue with 1.56V, seeing as you're below 40C while 7 hours in TM5
Or do tRRDL 6 and tWTRL 12, might be able to save you 0.01-0.02V.
Worst case tRCD 15 or 16 if you can't afford the VDIMM increase? May not have to touch tRP with it yet
5800X3D is not the best CPU for B-die to stretch its legs anyway (Fabric and RAM matter less) so I wouldn't be too bummed about running flat 15s, 14-15-15, or dropping down to 3733CL14.
Last edited:
- Joined
- Oct 16, 2018
- Messages
- 987 (0.41/day)
- Location
- Uttar Pradesh, India
| Processor | AMD R7 1700X @ 4100Mhz |
|---|---|
| Motherboard | MSI B450M MORTAR MAX (MS-7B89) |
| Cooling | Phanteks PH-TC14PE |
| Memory | Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14 |
| Video Card(s) | XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC) |
| Storage | Samsung SSD 850 EVO 250GB |
| Display(s) | Acer KG271 1080p @ 81Hz |
| Power Supply | SuperFlower Leadex II 750W 80+ Gold |
| Keyboard | Redragon Devarajas RGB |
| Software | Microsoft Windows 10 (10.0) Professional 64-bit |
| Benchmark Scores | https://valid.x86.fr/mvvj3a |
Change tCWL from 12 to 14. RDWR should Automatically go down if its on Auto.
tCKE 8 may help if it makes things worse then change it back to 1
Although GDM is on try with ClkDrvStr 40. Do this last. Its not good to make too many changes because you wont know what helped and what made things worse.
tCKE 8 may help if it makes things worse then change it back to 1
Although GDM is on try with ClkDrvStr 40. Do this last. Its not good to make too many changes because you wont know what helped and what made things worse.
Last edited:
- Joined
- Aug 15, 2016
- Messages
- 486 (0.15/day)
| Processor | Intel i7 4770k |
|---|---|
| Motherboard | ASUS Sabertooth Z87 |
| Cooling | BeQuiet! Shadow Rock 3 |
| Memory | Patriot Viper 3 RedD 16 GB @ 1866 MHz |
| Video Card(s) | XFX RX 480 GTR 8GB |
| Storage | 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB |
| Display(s) | AOC Q27G2U QHD, Dell S2415H FHD |
| Case | Cooler Master HAF XM |
| Audio Device(s) | Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251 |
| Power Supply | Corsair AX860 |
| Mouse | Razer DeathAdder V2 |
| Keyboard | Razer Huntsman Tournament Edition |
| Software | Windows 10 Pro x64 |
Just out of curiousity, could you run DRAM calculator to see what will it recommend?
- Joined
- Oct 16, 2018
- Messages
- 987 (0.41/day)
- Location
- Uttar Pradesh, India
| Processor | AMD R7 1700X @ 4100Mhz |
|---|---|
| Motherboard | MSI B450M MORTAR MAX (MS-7B89) |
| Cooling | Phanteks PH-TC14PE |
| Memory | Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14 |
| Video Card(s) | XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC) |
| Storage | Samsung SSD 850 EVO 250GB |
| Display(s) | Acer KG271 1080p @ 81Hz |
| Power Supply | SuperFlower Leadex II 750W 80+ Gold |
| Keyboard | Redragon Devarajas RGB |
| Software | Microsoft Windows 10 (10.0) Professional 64-bit |
| Benchmark Scores | https://valid.x86.fr/mvvj3a |
Not recommended for ZEN 3 CPUs its only suppots up to ZEN 2
@LowBlow
Also forgot to add TRAS should be 28 and RC 42.
- Joined
- Aug 15, 2016
- Messages
- 486 (0.15/day)
| Processor | Intel i7 4770k |
|---|---|
| Motherboard | ASUS Sabertooth Z87 |
| Cooling | BeQuiet! Shadow Rock 3 |
| Memory | Patriot Viper 3 RedD 16 GB @ 1866 MHz |
| Video Card(s) | XFX RX 480 GTR 8GB |
| Storage | 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB |
| Display(s) | AOC Q27G2U QHD, Dell S2415H FHD |
| Case | Cooler Master HAF XM |
| Audio Device(s) | Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251 |
| Power Supply | Corsair AX860 |
| Mouse | Razer DeathAdder V2 |
| Keyboard | Razer Huntsman Tournament Edition |
| Software | Windows 10 Pro x64 |
So there's no chance it will make a suitable config because of Zen 3?
- Joined
- Oct 16, 2018
- Messages
- 987 (0.41/day)
- Location
- Uttar Pradesh, India
| Processor | AMD R7 1700X @ 4100Mhz |
|---|---|
| Motherboard | MSI B450M MORTAR MAX (MS-7B89) |
| Cooling | Phanteks PH-TC14PE |
| Memory | Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14 |
| Video Card(s) | XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC) |
| Storage | Samsung SSD 850 EVO 250GB |
| Display(s) | Acer KG271 1080p @ 81Hz |
| Power Supply | SuperFlower Leadex II 750W 80+ Gold |
| Keyboard | Redragon Devarajas RGB |
| Software | Microsoft Windows 10 (10.0) Professional 64-bit |
| Benchmark Scores | https://valid.x86.fr/mvvj3a |
You can only use it has a starting point. But it usually gives wrong ProcODT and other voltages which work and is ok for ZEN 2 but will can cause problems on ZEN 3 CPUs.
You may get lucky and get a profile to work if its a safe profile. Most of the timing settings are OK but not the other voltage settings.
