Graphics cards differences between Hdmi/Dp.

[Oldschool297]

Do i own much by using the DP port instead of hdmi? I mean without playing games. Just watching movies. Pictures. Use firefox etc.



[R-T-B]

The HDMI forum is kind of scummy in regards to open source, but from a technical perspective, no. If things are working as you expect, the picture should be the same,



[TheLostSwede]

Depends on your monitor, your inputs and your outputs, as well as cables.
There are several revisions of HDMI and DP, so without knowing what hardware you have and what cables you have, it's an impossible question to answer.



[Oldschool297]

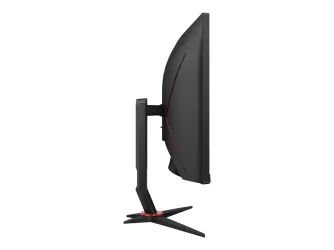

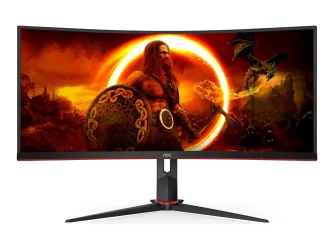

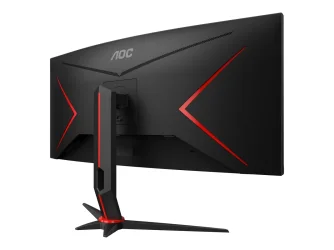

I have a AOC 34" gaming cu34g2xp from Dec 2024. Bought in march 2024. Pretty new. I use it to my vintage workstation Dell T3500 precision. The graphic card is a old one. Gigabyte Nvidia geforce GTX 660 windforce. The cables are the ones who followed with the AOC screen.

GIGABYTE GTX 660 WindForce 2X OC Specs

NVIDIA GK106, 1098 MHz, 960 Cores, 80 TMUs, 24 ROPs, 2048 MB GDDR5, 1502 MHz, 192 bit

www.techpowerup.com

CU34G2XP/BK

aoc.com

I use Windows 8.1 on that. It seems complicated to install 10 when it is missing the UEFI bios that requires. But i have learned that you create a Usb with legacy boot.

​

Gaming Bildskärmar CU34G2XP/BK Specifikation​

​

Ladda ner manual
SV
Download leaflet
SV​

​

Visa information​

Skärmstorlek (tum)​

34​

Skärmstorlek (cm)​

86.4​

Krökningsradie​

1500R​

Panelbehandling​

Antiglare (AG)​

Pixelavstånd (mm)​

0.23175​

Punkter per tum​

109.7​

Panelupplösning​

3440x1440​

Bildförhållande​

21:9​

Paneltyp​

VA​

Bakgrundsbelysningstyp​

WLED​

Max Uppdateringshastighet​

180 Hz​

Svarstid GtG​

1 ms​

Svarstid MPRT​

1 ms​

Statiskt kontrastförhållande​

4000:1​

Dynamiskt kontrastförhållande​

80M:1​

Betraktningsvinkel (CR10)​

178/178​

Displayfärger​

1,07 miljarder​

Brightness in nits​

430 cd/m2​

OD Response (typical)​

1 ms GtG​

Panel Haze Value​

25%​

Support 1:1 function​

✓​

​

Videofunktioner​

Synkroniseringsteknik (VRR)​

Adaptive Sync​

Digital signalfrekvens vertikal​

48-100HZ(HDMI), 48-144HZ(DP)​

Digital signalfrekvens horisontell​

30k-160kHZ(HDMI), 30k-220kHZ(DP)​

HDR (High Dynamic Range)​

VESA Certified DisplayHDR™ 400​

Blue Light-teknik​

Svagt blått ljus​

Multiview (PbP, PiP)​

PiP+PbP​

Färgutrymme (sRGB) CIE 1931%​

126.5​

Färgutrymme (DCI-P3) CIE 1976%​

95.1​

Färgutrymme (Adobe RGB) CIE 1976%​

91.4​

Flimmerfritt​

Flicker Free​

Delta E<2 (sRGB)​

Delta E<2 (sRGB)​

​

Skåpinformation​

Ram typ (fram)​

3-sidig ramlös​

Ram färg (fram)​

Svart, Röd​

Ram finish (fram)​

Strukturerad​

Skåpfärg (baksida)​

Svart, Röd​

Skåp finish (baksida)​

Strukturerad​

Avtagbart stativ​

✓​

Kensington-lås​

✓​

Quick release function​

✓​

VESA Mount Support​

Yes​

​

Ergonomisk information​

Luta​

3.5° ±1.5° ~ 21.5° ±1.5°​

Höjdjustering (mm)​

130mm​

Vridning​

30° ±2° ~ 30° ±2°​

​

Spelfunktioner​

Spelstil​

Shooters, MMORPG, Action, RTS, Racing​

Spelläge​

RTS, FPS, Racing, Gamer 1, Gamer 2, Off​

Spelbekvämlighet​

G-menu​

Låg eftersläpning​

✓​

Spelfärg​

✓​

Skuggkontroll​

✓​

Minskning av rörelseoskärpa​

✓​

Crosshair / Dial Point​

✓​

Ramräknare​

✓​

​

Hållbarhet​

Carton material​

EPS​

​

Effektförbrukning​

Strömförsörjning​

Intern​

Strömkälla​

100 - 240V 50/60Hz​

Strömförbrukning på (typisk) i watt​

59​

Strömförbrukning viloläge i watt​

0.5​

Strömförbrukningen av i watt​

0.3​

​

Anslutningsinformation​

HDMI​

HDMI 2.0 x 2​

Digital HDCP (HDMI-version)​

HDCP 2.2​

DisplayPort​

DisplayPort 1.4 x 2​

USB-hubb​

✓​

USB-hubb hastighet​

USB 3.2 (Gen 1)​

USB-nedströmuttag​

4​

USB-snabbladdningsuttag​

✓​

Ljudutgång​

Hörlur ut (3,5 mm)​

DP HDCP version​

HDCP 2.2​

​

Produktmått​

Produktmått inkl. bas (BxHxD) mm​

808.3 x (398.2~528.2) x 237.4​

Produktmått exkl. bas (BxHxD) mm​

808.3 x 367.5 x 102.9​

Förpackningsmått (BxHxD) mm​

903 x 280 x 548​

Packaging dimensions (WxHxD) mm (CN)​

903 x 280 x 548​

Bruttovikt inkl. förpackning (i kg)​

12​

Nettovikt exkl. förpackning (i kg)​

8.02​

Gross weight incl. package (in kg) (CN)​

12​

Produkt utan stativ (kg)​

6.51​

​

Vad finns i lådan​

HDMI-kabel​

1x​

Displayport-kabel​

1x​

Strömsladd​

✓​

​

Annan information​

EAN​

4038986111331​

OSD-språk​

Engelsk, Ukrainska, Turkiska, Polerad, Tyska, Portugisiska, Spanska, Franska, Finska, Koreanska, Japanska, Kinesiska (förenklad), Kinesiska (traditionell), Svenska, Nederländska, Italienska, Kroatiska, Ryska, Tjeckiska​

Garantitid​

3 år​

​

Maximal upplösning med kontakt​

Optimal upplösning DP​

3440x1440@180Hz​

Optimal upplösning HDMI​

3440x1440@100Hz​

​

​



[agent_x007]

HDMI 1.4 on your GTX 660 is capable of 1920x1080@144 or 2560x1440@75Hz(-ish) or 4k@48Hz.
So maybe 3440x1440@60Hz ?

DisplayPort 1.2 from it supports 4k@60, so you might get 3440x1440@95(120)Hz.



[Oldschool297]

Yes that is correct. 3440x1440@60Hz is maximum with hdmi. Higher Hz is not needed when you do not play?
