Help with removing timer function on circuit board

J

Jswe

New Member
Joined
Dec 25, 2016
Messages
2 (0.00/day)
Hi! Need some help with removal of the timer funktion on a Bosch heatpad (PFP1136), any ideas on how?

Regards,

J

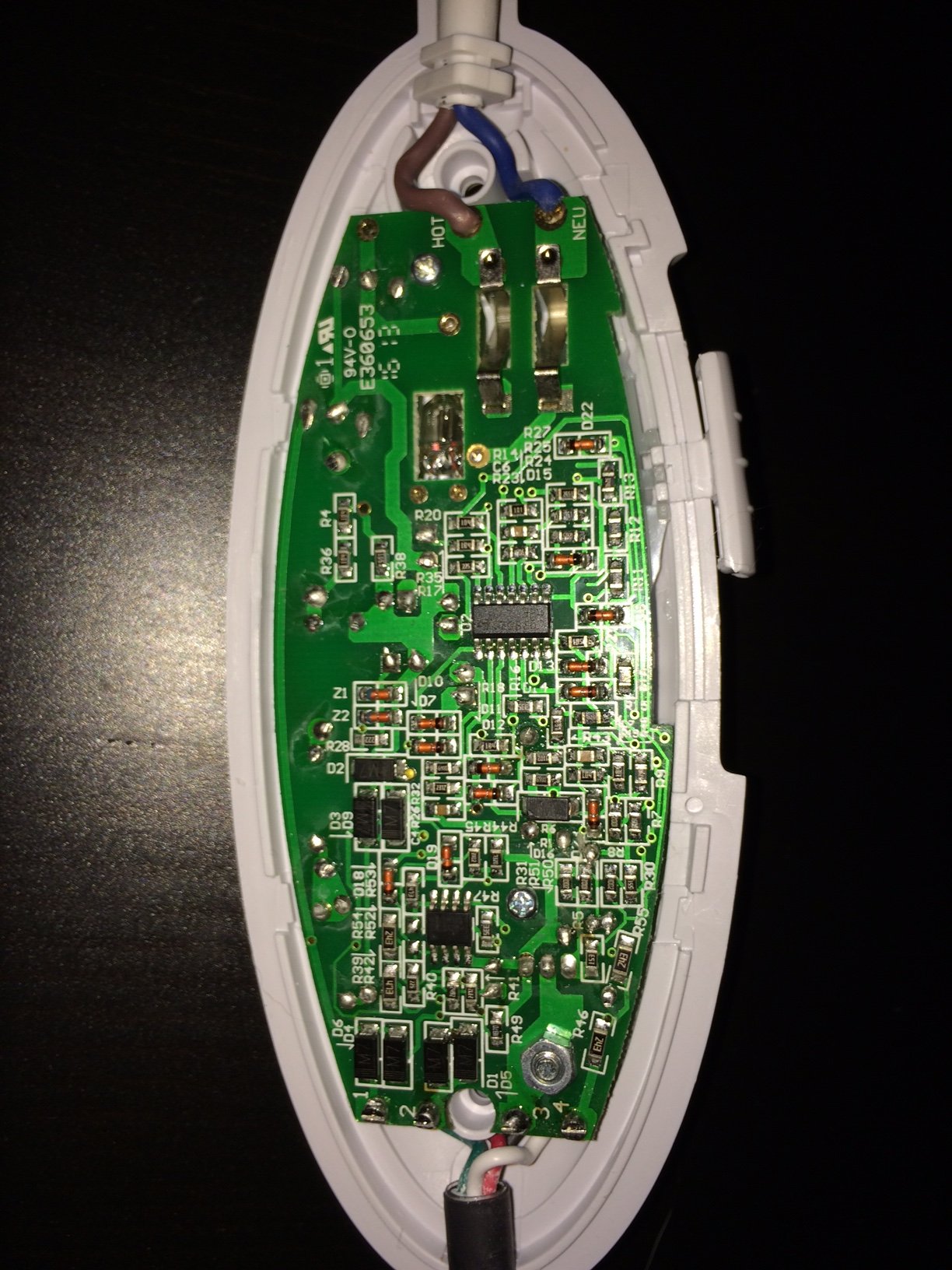

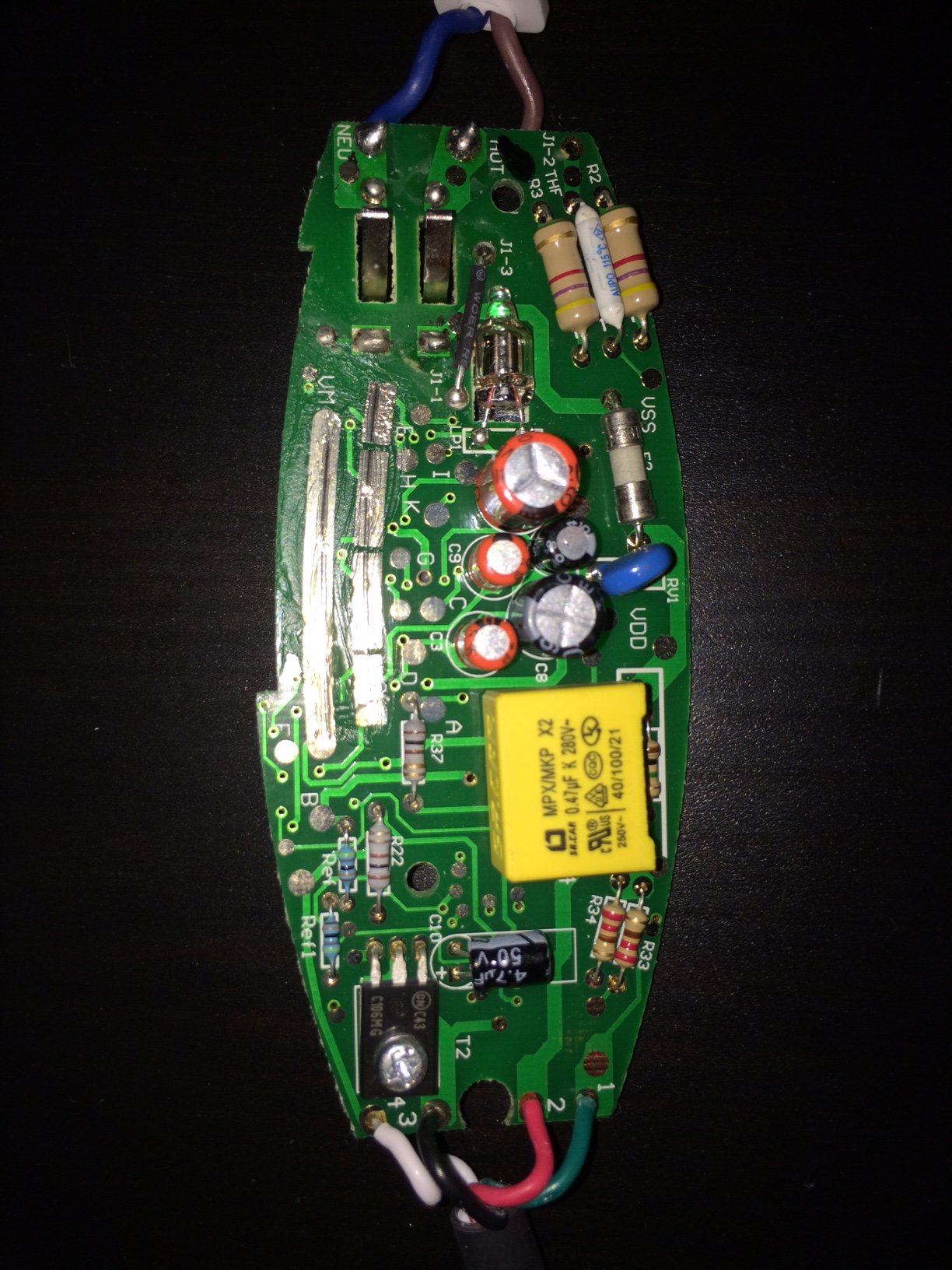

Can't tell you anything with just picks. The timer looks to consist of a capacitor and an up/down counter on an IC but that's basically all I can say w/o actually fiddling with it. Could you include a pic with he outside of the case that has the switch labels.

Test it with power and hard wire it! On the flip side, timers are a good thing, and are sometimes there so the board does not overheat and you catch fire while sleeping!

Just cut the two wires from both ends of that device and throw the device away. In connect one of these to both wires.

Bill_Bright said:
Just cut the two wires from both ends of that device and throw the device away. In connect one of these to both wires.
Click to expand...
Way to help him short cut any safety measures that device had. You know better than that.
It's an instant fire hazard.

Its a safety device, you defeat it there is no warranty and you are your own liability if you kill yourself or someone else by doing this.

Mr.Scott said:
Way to help him short cut any safety measures that device had. You know better than that.
It's an instant fire hazard.
Click to expand...
Instant fire hazard? Now that is simply ridiculous! He wants to dig around in circuits disabling the timing feature. That's the timing feature and you should know better than that.

The best solution if the device is broken is to replace the pad.

Bill, it doesn't even look like a straighthrough AC timer device if I'm not mistaken. There are several wires on what I am assuming is a DC (or something else) end.

Your advice this time strikes me as just bad advice. Please don't take that personally, but as constructive criticism (and criticism I'm not claiming is neccesarily 100% right.) I'd like you to make sure you didn't miss something and I admit my electronics knowledge is really just basic, but this seems wrong.

We all give bad advice on occasion, usually because we missed something. Not sure if it's you or me here but we both should take our time thinking here. A second look never hurts.

Last edited:
It was bad advice. I admit and I apologize to Jswe and everyone else. :oops: It was meant tongue in cheek but this is not the place for it. So again, I apologize.

Because we have no schematics, cannot see the part numbers or values of the all the components, nor can we see all the trace routes, my sincere advice it to just replace the pad.

Bill_Bright said:
It was bad advice. I admit and I apologize to Jswe and everyone else. :oops: It was meant tongue in cheek but this is not the place for it. So again, I apologize.

Because we have no schematics, cannot see the part numbers or values of the all the components, nor can we see all the trace routes, my sincere advice it to just replace the pad.
Click to expand...

Agreed.

As an aside, I'm glad to see I'm not going completely out of date and there's some kind of fancy schmancy quad polarity AC pass through timer thing going on (how else could two wires go in, 4 come out?)

I mean I guess technically there could be multiple AC phases at play, but I thought that a little complex for a heating pad... plus I never liked AC and don't really understand it, I'm a modern day Thomas Edison, lol!

Bill_Bright said:
Instant fire hazard? Now that is simply ridiculous! He wants to dig around in circuits disabling the timing feature. That's the timing feature and you should know better than that.

The best solution if the device is broken is to replace the pad.
Click to expand...
The timer is there to allow a cool down period so things don't overheat. I DO know that thank you.
Regardless, you know it was bad advice so there is no point in making it more than it is. I'm all done here. :)

R-T-B said:
(how else could two wires go in, 4 come out?)
Click to expand...
My "guess" would be for high (4) and low (2).

Mr.Scott said:
...so there is no point in making it more than it is.
Click to expand...
And yet you found it necessary to come back in after I showed my embarrassment, admitted I was wrong and apologized twice just to get your final jabs in. I guess you've got your warm fuzzy now, so good for you. :rolleyes:

Bill_Bright said:
And yet you found it necessary to come back in after I showed my embarrassment, admitted I was wrong and apologized twice just to get your final jabs in. I guess you've got your warm fuzzy now, so good for you. :rolleyes:
Click to expand...
lol. It wasn't like that at all. I just responded to your post to me that I DID know what the timing feature was and what it was for. I don't do passive aggressive.
Cool off man. There was no jab at you.
jesus. The ego's on some of you people are incredible.

Burn baby.. BURN! jajajajaj

Mr.Scott said:
jesus. The ego's on some of you people are incredible.
Click to expand...
:roll:And yet another jab! Wow!

If my ego and arrogance was so great, I would not have been able to swallow my pride, admit my mistake or apologize. Instead, I would have dug myself into a deeper hole by insisting I was right and further criticized those who said otherwise.

Now you are welcome get another jab in. I'm done here.

WTF is your problem dude.
Get over yourself already.
