is it worth using ssd with usb2?

avidgamer121 · Apr 7, 2025

so i have 7 drives, 4 internal and 3 external but the problem i only have 2 usb 3.0 and my case doesn't have front usb 3.0 so my 7th drive is connected to a usb 2.0 adapter it's better than nothing but still slow despite the fact im getting peak speed

should i buy usb hub? i also want to confirm if i buy one will the bandwidth be full considering only 1 drive is actively transferring files?

Konomi · Apr 7, 2025

If you aren't using the SSD for anything intensive (like loading games), you can get away with USB 2. Not ideal, but it works. If you're constantly accessing files on it, get the USB 3 hub - you'll get the speed of your drive as long as you're not hammering the other drives at the same time.

_roman_ · Apr 7, 2025

10 - 15 years I used to use that.

I did not look it up. I think it's in the nature of the "hub" to share the bandwidth. It also depends what the mainboard does. That is a different topic about mainboard design and bandwidth.

You can check the tree view of usb devices.

Code:

Sienna_Cichlid /home/roman # lsusb -t
/:  Bus 001.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/12p, 480M
    |__ Port 009: Dev 002, If 0, Class=Mass Storage, Driver=usb-storage, 480M
/:  Bus 002.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/5p, 20000M/x2
/:  Bus 003.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/12p, 480M
    |__ Port 007: Dev 002, If 0, Class=Vendor Specific Class, Driver=[none], 12M
    |__ Port 007: Dev 002, If 2, Class=Human Interface Device, Driver=usbhid, 12M
/:  Bus 004.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/6p, 10000M
/:  Bus 005.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 480M
    |__ Port 002: Dev 002, If 0, Class=Human Interface Device, Driver=usbhid, 12M
    |__ Port 002: Dev 002, If 1, Class=Human Interface Device, Driver=usbhid, 12M
    |__ Port 002: Dev 002, If 2, Class=Human Interface Device, Driver=usbhid, 12M
    |__ Port 002: Dev 002, If 3, Class=Human Interface Device, Driver=usbhid, 12M
/:  Bus 006.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 10000M
/:  Bus 007.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 480M
    |__ Port 002: Dev 002, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 001: Dev 003, If 0, Class=Human Interface Device, Driver=usbhid, 12M
        |__ Port 001: Dev 003, If 1, Class=Human Interface Device, Driver=usbhid, 12M
        |__ Port 004: Dev 004, If 0, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 1, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 2, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 3, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 4, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 5, Class=Application Specific Interface, Driver=[none], 480M
/:  Bus 008.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 10000M
/:  Bus 009.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/1p, 480M
/:  Bus 010.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/0p, 5000M

When you wonder Port 7 is obvious my ASUS PA278QV monitor build in hub - only a part to explain the hub topic
which is totally fine - as the "usb sound card" is usb 2 = m-audio air 192|6
mouse = who cares

Code:

Bus 007 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 007 Device 002: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 007 Device 003: ID 3938:1161 Acrox AGM700 Gaming mouse
Bus 007 Device 004: ID 0763:410c M-Audio AIR 192 6

--

you may provide more information before asking in detail. what hardware do you own already and intend to use (parts please)

I would not use anything below 10gbps usb anymore for usb nvme.
Sata SSDs with usb 5gbps I used for quite a while.

Shrek · Apr 7, 2025

USB 3 hubs are as cheap as $12
Amazon.com: USB 3.0 Hub,Aluminum 4 Port USB Data Hub 3.0 Multi USB Port Expander Dongle USB Extension Multiport Adapter with 3.3ft Cable USB Splitter for Laptop, PC/Xbox/Flash Drive/Printer/Camera/Keyborad/Mouse : Electronics

DaemonForce · Apr 7, 2025

Do you have a USB3 header anywhere?
It isn't always about front ports. My case doesn't have any.
It sometimes makes sense to use the header for rear I/O.
Very specific case but I would opt for a USB3 DOM (if I could find any).

avidgamer121 · Apr 7, 2025

DaemonForce said:
Do you have a USB3 header anywhere?
It isn't always about front ports. My case doesn't have any.
It sometimes makes sense to use the header for rear I/O.
Very specific case but I would opt for a USB3 DOM (if I could find any).

yes my mobo does have usb3 header i think for more than a decade all budget mobos have. Do you have really old pc?
DOMs seem like a rare thing and couldn't find one listed online

Shrek said:
USB 3 hubs are as cheap as $12
Amazon.com: USB 3.0 Hub,Aluminum 4 Port USB Data Hub 3.0 Multi USB Port Expander Dongle USB Extension Multiport Adapter with 3.3ft Cable USB Splitter for Laptop, PC/Xbox/Flash Drive/Printer/Camera/Keyborad/Mouse : Electronics

i am satisfied with usb2 speed, it's actually similar to my new 1tb ssd after it hits sustain load limit so i guess for a little while i can live with it maybe next month. Yeah i now it's very cheap i can even get a chinese ones hub + enclosure under 8$ but that's that caveat you face when not being financially independent.

A Computer Guy · Apr 8, 2025

avidgamer121 said:
so i have 7 drives, 4 internal and 3 external but the problem i only have 2 usb 3.0 and my case doesn't have front usb 3.0 so my 7th drive is connected to a usb 2.0 adapter it's better than nothing but still slow despite the fact im getting peak speed

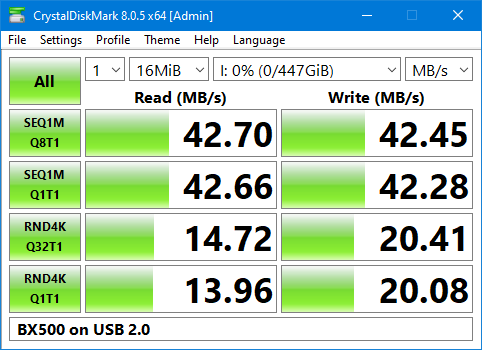

View attachment 393881

should i buy usb hub? i also want to confirm if i buy one will the bandwidth be full considering only 1 drive is actively transferring files?

USB3 supplies more power. You may have issues with USB2 only power delivery with storage devices.

avidgamer121 said:
yes my mobo does have usb3 header ...

If you have an unused USB3 header and your case can't support it you can get something like this...

theFOoL · Apr 8, 2025

A Computer Guy said:
USB3 supplies more power. You may have issues with USB2 only power delivery with storage devices.

If you have an unused USB3 header and your case can't support it you can get something like this...
View attachment 393910

I was going to suggest. I have that in my 775 Build

avidgamer121 · Apr 8, 2025

A Computer Guy said:
USB3 supplies more power. You may have issues with USB2 only power delivery with storage devices.

If you have an unused USB3 header and your case can't support it you can get something like this...
View attachment 393910

Sounds like a good idea, i will have a look.

theFOoL · Apr 8, 2025

avidgamer121 said:
Sounds like a good idea, i will have a look.

Yes but Bare in mind that USB Storage devices like SSD/2.5 HDD should work with any problems but you need a dock with power outlet for 3.5 HDDs I bought a 8 port USB3 extension Hub off temu

LabRat 891 · Apr 8, 2025

SSDs are great for access times.
Faster access times will notably improve felt performance, even within the bandwidth-limitations of USB 2.0.
If it's games and/or applications on the external drive, the improvement will be notable vs. an HDD.

I can tell you from experience, over a USB 2.0 bandwidth-limited bridged (USB<->SATA or NVMe) connection:
-any SATA SSD is faster than any 2.5" SATA HDD
-any NVME SSD is faster than a SATA SSD or eMMC (basemodel SteamDeck pull)
-any Optane (excepting H10 and H20) will be faster over USB2.0 than any other NVMe.

_roman_ said:

10 - 15 years I used to use that.

I did not look it up. I think it's in the nature of the "hub" to share the bandwidth. It also depends what the mainboard does. That is a different topic about mainboard design and bandwidth.

You can check the tree view of usb devices.

Code:

Sienna_Cichlid /home/roman # lsusb -t
/:  Bus 001.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/12p, 480M
    |__ Port 009: Dev 002, If 0, Class=Mass Storage, Driver=usb-storage, 480M
/:  Bus 002.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/5p, 20000M/x2
/:  Bus 003.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/12p, 480M
    |__ Port 007: Dev 002, If 0, Class=Vendor Specific Class, Driver=[none], 12M
    |__ Port 007: Dev 002, If 2, Class=Human Interface Device, Driver=usbhid, 12M
/:  Bus 004.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/6p, 10000M
/:  Bus 005.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 480M
    |__ Port 002: Dev 002, If 0, Class=Human Interface Device, Driver=usbhid, 12M
    |__ Port 002: Dev 002, If 1, Class=Human Interface Device, Driver=usbhid, 12M
    |__ Port 002: Dev 002, If 2, Class=Human Interface Device, Driver=usbhid, 12M
    |__ Port 002: Dev 002, If 3, Class=Human Interface Device, Driver=usbhid, 12M
/:  Bus 006.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 10000M
/:  Bus 007.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 480M
    |__ Port 002: Dev 002, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 001: Dev 003, If 0, Class=Human Interface Device, Driver=usbhid, 12M
        |__ Port 001: Dev 003, If 1, Class=Human Interface Device, Driver=usbhid, 12M
        |__ Port 004: Dev 004, If 0, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 1, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 2, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 3, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 4, Class=Audio, Driver=snd-usb-audio, 480M
        |__ Port 004: Dev 004, If 5, Class=Application Specific Interface, Driver=[none], 480M
/:  Bus 008.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/2p, 10000M
/:  Bus 009.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/1p, 480M
/:  Bus 010.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/0p, 5000M

When you wonder Port 7 is obvious my ASUS PA278QV monitor build in hub - only a part to explain the hub topic
which is totally fine - as the "usb sound card" is usb 2 = m-audio air 192|6
mouse = who cares

Code:

Bus 007 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 007 Device 002: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 007 Device 003: ID 3938:1161 Acrox AGM700 Gaming mouse
Bus 007 Device 004: ID 0763:410c M-Audio AIR 192 6

--

you may provide more information before asking in detail. what hardware do you own already and intend to use (parts please)

I would not use anything below 10gbps usb anymore for usb nvme.
Sata SSDs with usb 5gbps I used for quite a while.

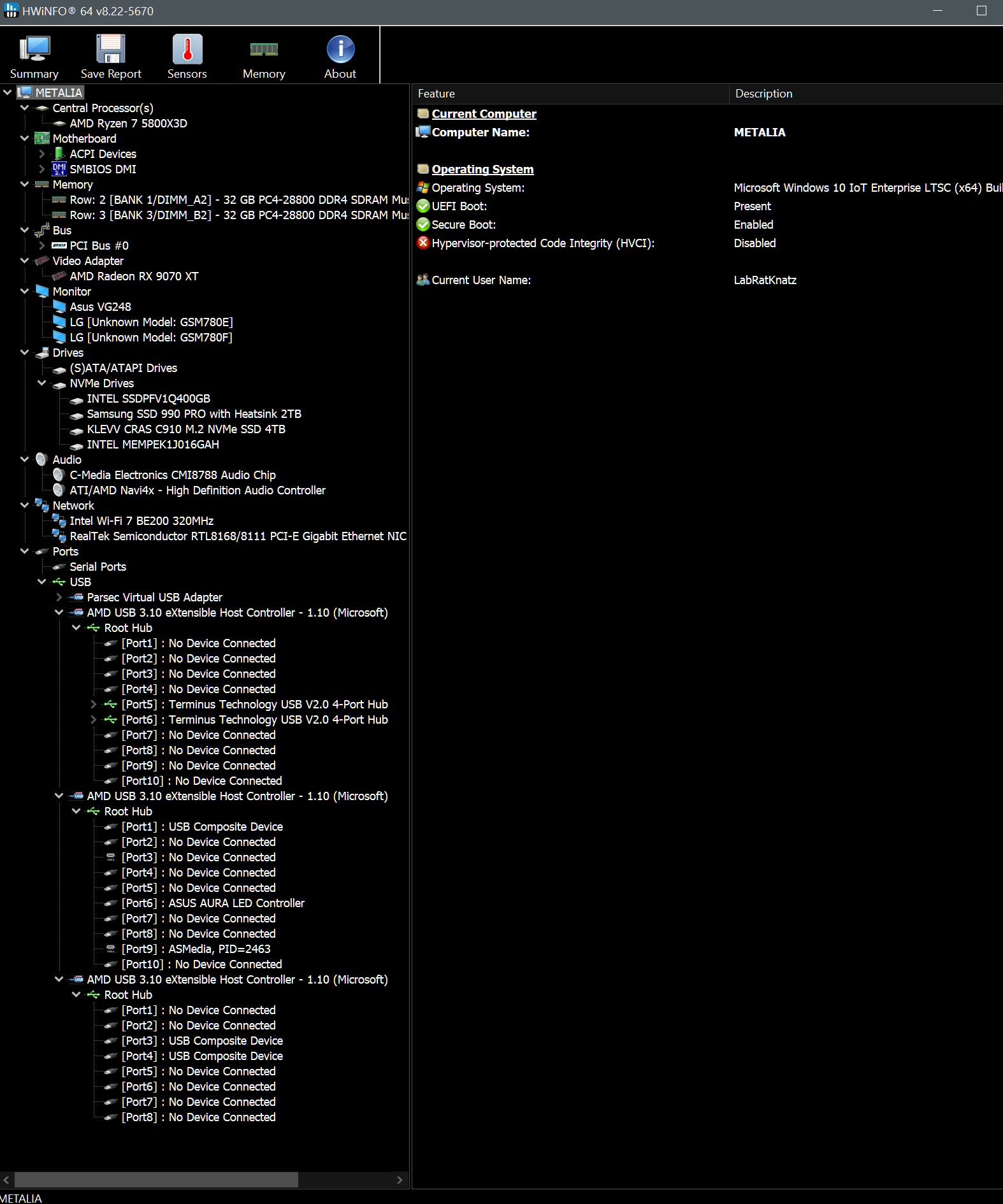

A very user friendly way to view that info, is HWiNFO

Free Download HWiNFO Sofware | Installer & Portable for Windows, DOS

Start to analyze your hardware right now! HWiNFO has available as an Installer and Portable version for Windows (32/64-bit) and Portable version for DOS.

www.hwinfo.com

theFOoL · Apr 8, 2025

Indeed man. Luckily SSDs arey cheap if you Go the 2.5 case+msata (that's what I Do) :pimp:

or NVME

Just a FYI I ran WIN7 Go on a USB2 SD Card teehee

LabRat 891 · Apr 8, 2025

theFOoL said:
Indeed man. Luckily SSDs arey cheap if you Go the 2.5 case+msata (that's what I Do) or NVME

Just a FYI I ran WIN7 Go on a USB2 SD Card teehee

I use lower-capacity NVMe drives and 1TB+ NVMes that don't have a solid home yet in USB enclosures regularly.
Even, for installing Win7 or XP on Legacy AMD K8 machines. At least once, I've installed XP onto a late-model Socket A build with a 16GB Optane M10 over USB 1.1. :cool:

Somewhere in front of me right now, there's a USB3.2<->NVMe bridge+USB3.0 hub+cardreader enclosure* containing a Rocket Q4 1TB, that I use as a Win10 LiveUSB.
Basically, I plug my mouse and KB into the NVMe enclosure, then plug that into a given machine, and can run "My Windows" with "My Peripherals" on any given Win10x64-supporting build. Even over USB2.0, it is "usable".
*I thermal putty'd the Realtek USB<->NVME bridge, any obvious power components, and the NVME drive itself to the aluminum casement. It gets fairly-evenly 'warm', with extended use.

DaemonForce · Apr 8, 2025

avidgamer121 said:
yes my mobo does have usb3 header i think for more than a decade all budget mobos have. Do you have really old pc?

Hella ancient dude.

This is a 2019 era Ryzen system with a 2009 era power supply and 2002 era server chassis with a Pentium 4 block.
There is no wire management system, no front panel, no headers of any kind, drive cages drilled out and it now uses a 360mm Cu rad.
Absolutely overkill for a 65/88W Ryzen and ~10W SolarFlare. Modded it for the FX-8370 and AMD 970 chipset, then Ryzen happened.

avidgamer121 said:
i am satisfied with usb2 speed, it's actually similar to my new 1tb ssd after it hits sustain load limit so i guess for a little while i can live with it maybe next month.

I might have something here.

Left: A Teamgroup 64GB SDXC chip. Right: An unfinished 32GB UDP chip. Outstanding performance in HDTune and it's under $5.
I use a complete 16GB SanDisk USB to boot Windows Server in my SFF eMachines. Might use this UDP or a full size 60GB sata to boot the FX rack.
Still on the fence. That machine only has 2 USB3.x ports but also a USB3 header and lots of USB2 and headers. Point is options exist.

A Computer Guy said:
If you have an unused USB3 header and your case can't support it you can get something like this...
View attachment 393910

It's a very good idea if you need to juggle USB3. I usually do.
My main system isn't in the middle of any kind of development or production role so I have LOTS of USB3 open right now.
Still, not everyone needs everything on a USB3 connection and it's wise to load up the USB2 headers if you can do that. I did.

I'm sure you won't have a problem.

AleXXX666 · Apr 8, 2025

avidgamer121 said:
so i have 7 drives, 4 internal and 3 external but the problem i only have 2 usb 3.0 and my case doesn't have front usb 3.0 so my 7th drive is connected to a usb 2.0 adapter it's better than nothing but still slow despite the fact im getting peak speed
View attachment 393881

should i buy usb hub? i also want to confirm if i buy one will the bandwidth be full considering only 1 drive is actively transferring files?

depends WHAT files you need. For small files "random read" - LITTLE margin. For transferring HEAVY files - BIG difference, and then even BIG difference between USB 3.0, 3.1 and 3.2. (IDC about USB4 "hype").

Assimilator · Apr 8, 2025

avidgamer121 said:
so i have 7 drives, 4 internal and 3 external but the problem i only have 2 usb 3.0 and my case doesn't have front usb 3.0 so my 7th drive is connected to a usb 2.0 adapter it's better than nothing but still slow despite the fact im getting peak speed
View attachment 393881

should i buy usb hub? i also want to confirm if i buy one will the bandwidth be full considering only 1 drive is actively transferring files?

Why don't you just run a USB3 extension cable from the rear IO to the front of the case?

A Computer Guy · Apr 8, 2025

theFOoL said:
Yes but Bare in mind that USB Storage devices like SSD/2.5 HDD should work with any problems ...

It all depends on the device power draw which one should take into consideration when using any USB only powered docking. I have 2.5.in HDD's that only draw 0.5 amps (2.5w) but I also have 2.5in SSD's that draw a whopping 2.0 amps (10w). The dock itself will use a little of that USB power as well.

A tool like this can come in handy if you use a lot of USB devices.

Amazon.com

avidgamer121 · Apr 8, 2025

Assimilator said:
Why don't you just run a USB3 extension cable from the rear IO to the front of the case?

Are there splitter of such kind? I don't understand your statement, I mean you are implying I should use rear io which I am already using with two drives, maybe I don't understand your post.

A Computer Guy · Apr 8, 2025

avidgamer121 said:
Are there splitter of such kind? I don't understand your statement, I mean you are implying I should use rear io which I am already using with two drives, maybe I don't understand your post.

You can get USB extension cables.

If you have any rear USB ports left on your I/O panel you can use an extension cable to route the other end to somewhere more convenient like toward the front of your PC for use. At least in my opinion rear I/O tends to be more reliable than front panel connectors and also more reliable than USB hubs so I prefer and use good quality extension cables when possible.

avidgamer121 · Apr 8, 2025

A Computer Guy said:
You can get USB extension cables.

View attachment 393997

If you have any rear USB ports left on your I/O panel you can use an extension cable to route the other end to somewhere more convenient like toward the front of your PC for use. At least in my opinion rear I/O tends to be more reliable than front panel connectors and also more reliable than USB hubs so I prefer and use good quality extension cables when possible.

no i don't have any left, all 6 are in use which include 2 usb3 ones. So no point in buying this.

theFOoL · Apr 8, 2025

True yes rear I/O is best. It also has alittle bit more power

lexluthermiester · Apr 8, 2025

avidgamer121 said:
is it worth using ssd with usb2?

so i have 7 drives, 4 internal and 3 external but the problem i only have 2 usb 3.0 and my case doesn't have front usb 3.0 so my 7th drive is connected to a usb 2.0 adapter it's better than nothing but still slow despite the fact im getting peak speed
View attachment 393881

should i buy usb hub? i also want to confirm if i buy one will the bandwidth be full considering only 1 drive is actively transferring files?

Hell yes. Two reasons. First, the USB2.0 bus will never have to wait on an SSD and Second, most USB2.0 drive enclosures have dual jacks for higher power usage which most SSD's need. USB3.X will have no issues running an SSD. I do this frequently.

A four port USB3 hub will be inexpensive.
EDIT:
My personal USB3 hubs are this model.
https://www.amazon.com/Sabrent-Individual-Switches-Included-HB-UMP3/dp/B00TPMEOYM
Liked this one so much I bought several.

avidgamer121 · Apr 8, 2025

lexluthermiester said:
Hell yes. Two reasons. First, the USB2.0 bus will never have to wait on an SSD and Second, most USB2.0 drive enclosures have dual jacks for higher power usage which most SSD's need. USB3.X will have no issues running an SSD. I do this frequently.

i am using a very old usb2 adapter for this, it was bought back in 2013 when i had sandy bridge pc and the mobo was h61 which had no usb3. It doesn't need dual jacks and it's fine with both ssd and hdd. I transferred a huge game as well without any issue.

Assimilator · Apr 8, 2025

avidgamer121 said:
no i don't have any left, all 6 are in use which include 2 usb3 ones. So no point in buying this.

Ahhh sorry, I didn't look at your board in detail, I had no idea people were still using systems where USB3 ports are at a premium. Given that your board does have an internal USB3 header which can supply two ports, a USB3 PCI breakout connector as @A Computer Guy suggested is the best idea.

System Name	Xpectra
Processor	Intel Core i3 10105F
Motherboard	Asrock H470M-HDV
Cooling	Cooler Master H410R RGB
Memory	Hynix 16GB (2x8) 2666Mhz DDR4 RAM
Video Card(s)	Zotac GTX 1050 Ti Mini
Storage	EVM 128GB+1TB SSD, BX500 480GB, Seagate 1TB + 2x 500GB
Display(s)	LG 22MP68VQ
Case	Chiptronex C100
Audio Device(s)	F&D F190X
Power Supply	Corsair CX550
Mouse	Zebronics Byte
Keyboard	TVS Gold
Software	Windows 10 Pro 64-bit 22H2

System Name	CyberPowerPC ET8070
Processor	Intel Core i5-10400F
Motherboard	Gigabyte B460M DS3H AC-Y1
Memory	2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s)	MSI Nvidia GeForce GTX 1660 Super
Storage	Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s)	Dell P2416D (2560 x 1440)
Power Supply	EVGA 500W1 (modified to have two bridge rectifiers)
Software	Windows 11 Home

System Name	DevKit
Processor	AMD Ryzen 5 3600 ↗4.0GHz
Motherboard	Asus TUF Gaming X570-Plus WiFi
Cooling	Koolance CPU-300-H06, Koolance GPU-180-L06, SC800 Pump
Memory	4x16GB Ballistix 3200MT/s ↗3800
Video Card(s)	PowerColor RX 580 Red Devil 8GB ↗1380MHz ↘1105mV, PowerColor RX 7900 XT Hellhound 20GB
Storage	240GB Corsair MP510, 120GB KingDian S280
Display(s)	Nixeus VUE-24 (1080p144)
Case	Koolance PC2-601BLW + Koolance EHX1020CUV Radiator Kit
Audio Device(s)	Oculus CV-1
Power Supply	Antec Earthwatts EA-750 Semi-Modular
Mouse	Easterntimes Tech X-08, Zelotes C-12
Keyboard	Logitech 106-key, Romoral 15-Key Macro, Royal Kludge RK84
VR HMD	Oculus CV-1
Software	Windows 10 Pro Workstation, VMware Workstation 16 Pro, MS SQL Server 2016, Fan Control v120, Blender
Benchmark Scores	Cinebench R15: 1590cb Cinebench R20: 3530cb (7.83x451cb) CPU-Z 17.01.64: 481.2/3896.8 VRMark: 8009

System Name	Xpectra
Processor	Intel Core i3 10105F
Motherboard	Asrock H470M-HDV
Cooling	Cooler Master H410R RGB
Memory	Hynix 16GB (2x8) 2666Mhz DDR4 RAM
Video Card(s)	Zotac GTX 1050 Ti Mini
Storage	EVM 128GB+1TB SSD, BX500 480GB, Seagate 1TB + 2x 500GB
Display(s)	LG 22MP68VQ
Case	Chiptronex C100
Audio Device(s)	F&D F190X
Power Supply	Corsair CX550
Mouse	Zebronics Byte
Keyboard	TVS Gold
Software	Windows 10 Pro 64-bit 22H2

System Name	Still not a thread ripper but pretty good.
Processor	Ryzen 9 7950x, Thermal Grizzly AM5 Offset Mounting Kit, Thermal Grizzly Extreme Paste
Motherboard	ASRock B650 LiveMixer (BIOS/UEFI version P3.08, AGESA 1.2.0.2)
Cooling	EK-Quantum Velocity, EK-Quantum Reflection PC-O11, D5 PWM, EK-CoolStream PE 360, XSPC TX360
Memory	Micron DDR5-5600 ECC Unbuffered Memory (2 sticks, 64GB, MTC20C2085S1EC56BD1) + JONSBO NF-1
Video Card(s)	XFX Radeon RX 5700 & EK-Quantum Vector Radeon RX 5700 +XT & Backplate
Storage	Samsung 4TB 980 PRO, 2 x Optane 905p 1.5TB (striped), AMD Radeon RAMDisk
Display(s)	2 x 4K LG 27UL600-W (and HUANUO Dual Monitor Mount)
Case	Lian Li PC-O11 Dynamic Black (original model)
Audio Device(s)	Corsair Commander Pro for Fans, RGB, & Temp Sensors (x4)
Power Supply	Corsair RM750x
Mouse	Logitech M575
Keyboard	Corsair Strafe RGB MK.2
Software	Windows 10 Professional (64bit)
Benchmark Scores	RIP Ryzen 9 5950x, ASRock X570 Taichi (v1.06), 128GB Micron DDR4-3200 ECC UDIMM (18ASF4G72AZ-3G2F1)

System Name	LGA775 \| BoX-Server
Processor	Xeon E5450 OC3.6GHZ from 3GHZ \| i3 3.4GHZ
Motherboard	ASUS PQ5-EM \| ASRock
Cooling	120MM Heatsink (2-FANs) \| Custom HSK 90mm
Memory	DDR2 2GB-x4=8GB \| 8GB 2x4GB=8GB
Video Card(s)	NVIDIA Quadro K2200 4GB \| Intel
Storage	500\500/240/240GB SSDs 120GB Laptop IDE
Display(s)	Asus 24"
Case	DIYPC N1e-SPORT \| CoolerMaster 110
Audio Device(s)	Onboard
Power Supply	EVGA 550WATT \| Rosewill 530WATT
Mouse	Rosewill RGB
Keyboard	Rosewill RGB
Software	WiN10ET/WiN11ET

System Name	Metalia
Processor	AMD Ryzen 7 5800X3D
Motherboard	Asus TuF Gaming X570-PLUS
Cooling	ID Cooling 280mm AIO w/ Arctic P14s
Memory	2x32GB DDR4-3600
Video Card(s)	Sapphire Pulse RX 9070 XT
Storage	Optane P5801X 400GB, Samsung 990Pro 2TB
Display(s)	LG ‎32GS95UV 32" OLED 240/480hz 4K/1080P Dual Mode
Case	Geometric Future M8 Dharma
Audio Device(s)	Xonar Essence STX
Power Supply	Seasonic Focus GX-1000 Gold
Mouse	Attack Shark R3 Magnesium - White
Keyboard	Keychron K8 Pro - White - Tactile Brown Switch
Software	Windows 10 IoT Enterprise LTSC 2021

System Name	Laptop ASUS TUF F15 \| Desktop 1 \| Desktop 2
Processor	Intel Core i7-11800H \| Intel Core i5-14600K@135W \| Intel Core i3-10100
Motherboard	ASUS FX506HC \| Gigabyte B660M DS3H DDR4 \| MSI MAG B560M Bazooka
Cooling	Laptop built-in cooling lol \| Thermalright Assassin Spirit w/ BeQuiet Shadow Wings fan\| Stock Copper
Memory	24 GB @ 3200 \| 32 GB @ 3733 \| 16 GB @ 3200
Video Card(s)	Nvidia RTX 3050 Mobile 4GB \| Nvidia GTX 1650 \| Nvidia GTX 960 2 GB
Storage	Adata XPG SX8200 Pro 512 GB \| Samsung M2 SSD 256 GB & 1 TB 2.5" HDD @ 7200\| SSD 250 GB & SSD 240 GB
Display(s)	Laptop built-in 144 Hz FHD screen \| Dell 27" WQHD @ 75 Hz & 49" TV FHD \| Samsung 32" TV FHD
Case	It's a laptop, it doesn't need case lmfao \| Deepcool Mattrexx 55 MESH \| Aerocool Cylon PRO
Audio Device(s)	laptop built in audio \| Logitech 2.1 speakers \| Logitech stereo speakers
Power Supply	ASUS 180W PSU \| SeaSonic Focus GX-550 \| SeaSonic M12II EVO 520W
Mouse	Logitech G604 \| Corsair Harpoon wired mouse\| Logitech G305
Keyboard	Laptop built-in keyboard \|Razer Blackwidow \| Steelseries APEX 7 TKL
VR HMD	Quest 2 sold out and don't need VR anymore lol
Software	Windows 10 Enterprise 20H2 \| Windows 10 Enterprise 20H2 & Ubuntu Mate 24.04.2\| Windows 11 24H2 LTSC
Benchmark Scores	good enough

System Name	Firelance.
Processor	Threadripper 3960X
Motherboard	ROG Strix TRX40-E Gaming
Cooling	IceGem 360 + 6x Arctic Cooling P12
Memory	8x 16GB Patriot Viper DDR4-3200 CL16
Video Card(s)	MSI GeForce RTX 4060 Ti Ventus 2X OC
Storage	2TB WD SN850X (boot), 4TB Crucial P3 (data)
Display(s)	Dell S3221QS(A) (32" 38x21 60Hz) + 2x AOC Q32E2N (32" 25x14 75Hz)
Case	Enthoo Pro II Server Edition (Closed Panel) + 6 fans
Power Supply	Fractal Design Ion+ 2 Platinum 760W
Mouse	Logitech G604
Keyboard	Razer Pro Type Ultra
Software	Windows 10 Professional x64
