Lian Li Redefines PC Case Layout with the SUP-01 Compact Tower

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
46,696 (7.66/day)
Location
Hyderabad, India
System Name RBMK-1000
Processor AMD Ryzen 7 5700G
Motherboard ASUS ROG Strix B450-E Gaming
Cooling DeepCool Gammax L240 V2
Memory 2x 8GB G.Skill Sniper X
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) ASUS SupremeFX S1220A
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Gamdias Hermes E2
Software Windows 11 Pro
LIAN LI Industrial Co. Ltd., a leading manufacturer of chassis and PC accessories, launches the SUP-01, a small tower case that revolutionizes the conventional layout of standard PCs. Engineered with three distinct airflow chambers, each dedicated to essential components—GPU, CPU's AIO, and motherboard. The SUP-01 positions the GPU at the center of the front panel on a fully adjustable bracket, and accommodates up to a 360 AIO behind the motherboard tray for enhanced cooling efficiency. A non-tinted tempered glass panel on the left side offers a clear view of the main chamber which supports up to regular ATX motherboards and ATX back-connect motherboards, and the PCIe riser bracket with built-in diffused LED strips. Additional LED strips decorate the top edge of the PSU chamber along both the left and front sides of the case. Available in black and white, the SUP-01 retails at an MSRP of $149.99.

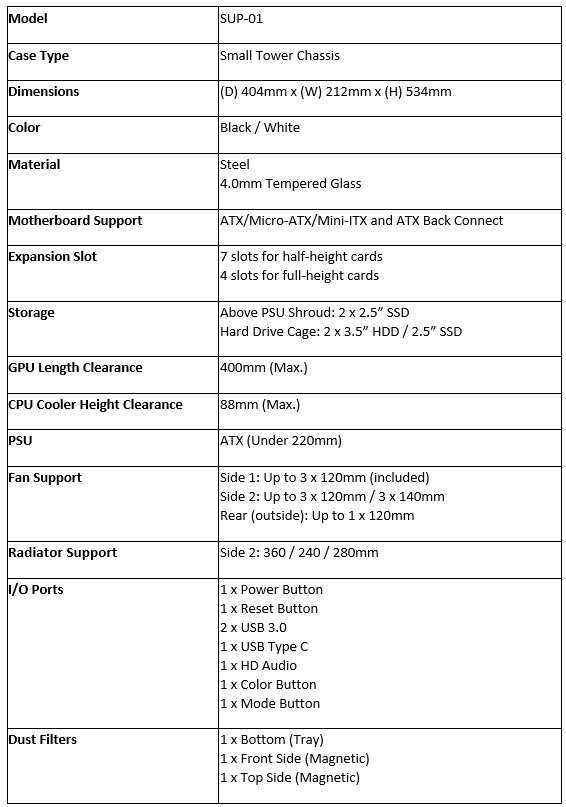

The SUP-01, with its compact 45-liter enclosure, challenges traditional PC designs by offering a smaller footprint without compromising high-end hardware compatibility. By integrating only the core components, users can swiftly assemble a thermally efficient computer comparable to the LANCOOL 216. Placing the GPU in an upright position at the front of the case enables fresh air intake for optimal GPU performance. The adjustable bracket allows precise positioning of the GPU, both vertically and horizontally, maximizing airflow and aesthetics. The SUP-01 features LED strips along the front and left side of the case, along with an additional strip on the PCIe riser bracket. These strips can be conveniently controlled via the built-in Mode and Color buttons, offering six preset modes and eleven colors for customization.



3 Airflow Chambers
The SUP-01 boasts three separate airflow chambers for efficient cooling. The GPU positioned at the front acts as an intake, while 3 pre-installed 120 mm PWM fans serve as exhaust behind the motherboard tray, creating the first airflow chamber. For the CPU, an AIO with a radiator and fans mounted behind the motherboard tray creates the second airflow chamber, supporting up to a 280/360 mm AIO. Additionally, a 120 mm fan can be mounted at the rear of the case to cool motherboard components such as RAM, CPU power delivery, and M.2 storage.

Modern Compatibility
The motherboard mounting tray accommodates ATX back-connect motherboards, as well as standard ATX, M-ATX, and Mini-ITX motherboards. Equipped with a PCIe 4.0 riser cable mounted on a pre-installed bracket, the SUP-01 supports GPUs of up to four slots thick with a maximum length of 400 mm at the front. Storage options include provision for up to two 3.5" HDDs or 2.5" SSDs in the PSU chamber, while an additional two 2.5" SSDs can be mounted above the PSU shroud in the main chamber, adorned with an elegant mirror cover.

Availability
The SUP-01 is available for pre-order on May 30th, 2024, at an MSRP of $149.99 for the black and for the white version.

For more information, visit the product page.



View at TechPowerUp Main Site

Joined
Jan 31, 2012
Messages
2,528 (0.56/day)
Location
East Europe
System Name Sandfiller
Processor I5-10400
Motherboard MSI MPG Z490 GAMING PLUS
Cooling Noctua NH-L9i
Memory 32GB Corsair LPX 2400 Mhz DDR4 CL14
Video Card(s) PNY QUADRO RTX A2000
Storage Intel 670P 512GB
Display(s) Philips 288E2A 28" 4K + 22" LG 1080p
Case SilverStone Raven RV03
Audio Device(s) Creative Sound Blaster Z
Power Supply Fractal Design IntegraM 650W
Mouse Logitech Triathlon
Keyboard REDRAGON MITRA
Software Windows 11 Home x 64
So wait? if you don't use the riser cable you can install low profile stuff on the front chamber?
Also anyone wondering about the storage, this is what is supports: 4 × 2.5 SSDs or 2 × 3.5 HDDs
Honestly I dig it, there is potential for a workstation Optiplex low-profile build in there :p

Last edited:
Joined
Nov 6, 2016
Messages
1,624 (0.58/day)
Location
NH, USA
System Name Lightbringer
Processor Ryzen 7 2700X
Motherboard Asus ROG Strix X470-F Gaming
Cooling Enermax Liqmax Iii 360mm AIO
Memory G.Skill Trident Z RGB 32GB (8GBx4) 3200Mhz CL 14
Video Card(s) Sapphire RX 5700XT Nitro+
Storage Hp EX950 2TB NVMe M.2, HP EX950 1TB NVMe M.2, Samsung 860 EVO 2TB
Display(s) LG 34BK95U-W 34" 5120 x 2160
Case Lian Li PC-O11 Dynamic (White)
Power Supply BeQuiet Straight Power 11 850w Gold Rated PSU
Mouse Glorious Model O (Matte White)
Keyboard Royal Kludge RK71
Software Windows 10
This kind of reminds me of an old Lian Li case I always loved, but never got a chance to build in, the PC-O7SX. Just like Lian Li rebooted the PC-O11 with Derbauer, I think they should do the same thing with the PC-O7SX. Maingear used to build their F131 model in the PC-O6S case, the m-ATX version of the PC-O7, and I always thought it looked amazing. Thr PC-O7could fit an E-ATX motherboard too!

Joined
Jun 25, 2014
Messages
158 (0.04/day)
System Name Ryzen shine, Mr Freeman
Processor 5900X
Motherboard ASUS X570 Dark Hero
Cooling Arctic Liquid Freezer II 360 ARGB
Memory 32GB TridentZ Neo 3600 CL14
Video Card(s) 3080TI FE with Alphacool Eiswolf AIO
Storage 2TB 970 EVO PLUS, 1TB 980
Display(s) LG OLED 55CX
Case O11D XL Black
Audio Device(s) Xonar Essence STU, Mackie MR5+MR10S, HD598
Power Supply Seasonic Prime Titanium 850W
Mouse GPW
Keyboard G815
Ok i see what they did there. An upright front gpu.
But how big does it accept? Does a brick like 4090 fit, and also its power connector not cramped?
And would it not be better, if the vga has its connectors on the top? I mean because of heatpipe orientation.

Joined
Sep 30, 2019
Messages
336 (0.19/day)
Ok i see what they did there. An upright front gpu.
But how big does it accept? Does a brick like 4090 fit, and also its power connector not cramped?
And would it not be better, if the vga has its connectors on the top? I mean because of heatpipe orientation.
Seems to be good for a 4 slot GPU. Other sites have reviews up already.
I don't know if the bracket can be inverted though.

Joined
Jan 20, 2019
Messages
1,322 (0.67/day)
Location
London, UK
System Name ❶ Oooh (2024) ❷ Aaaah (2021) ❸ Ahemm (2017)
Processor ❶ 5800X3D ❷ i7-9700K ❸ i7-7700K
Motherboard ❶ X570-F ❷ Z390-E ❸ Z270-E
Cooling ❶ ALFIII 360 ❷ X62 + X72 (GPU mod) ❸ X62
Memory ❶ 32-3600/16 ❷ 32-3200/16 ❸ 16-3200/16
Video Card(s) ❶ 3080 X Trio ❷ 2080TI (AIOmod) ❸ 1080TI
Storage ❶ NVME/SSD/HDD ❷ <SAME ❸ SSD/HDD
Display(s) ❶ 1440/165/IPS ❷ 1440/144/IPS ❸ 1080/144/IPS
Case ❶ BQ Silent 601 ❷ Cors 465X ❸ Frac Mesh C
Audio Device(s) ❶ HyperX C2 ❷ HyperX C2 ❸ Logi G432
Power Supply ❶ HX1200 Plat ❷ RM750X ❸ EVGA 650W G2
Mouse ❶ Logi G Pro ❷ Razer Bas V3 ❸ Logi G502
Keyboard ❶ Logi G915 TKL ❷ Anne P2 ❸ Logi G610
Benchmark Scores I have wrestled bandwidths, Tussled with voltages, Handcuffed Overclocks, Thrown Gigahertz in Jail
"Engineered with three distinct airflow chambers, each dedicated to essential components—GPU, CPU's AIO, and motherboard"

yep, thats what i thought on first impressions - this is certainly not aimed at beefed up air coolers (with 88mm clearance). Other then the obvious, this case gets a big thumbs up from me. I have in the past several times looked at various slim case options which ticks all ma-boxes but found nothing exciting enough to pull the trigger. I've got a 27" 1440p panel sitting dead centre on my desk, a 24" 1080p on the left and a protruding current mid-tower sitting on the right. I don't like protruders and have been looking to swap out for some time. Only problem being the upgrades i fancy pulling the trigger on usually command a pricey SFX PSU upgrade or just lack in other departments. The SUP-01 on the other hand doesn't and ticks a number of boxes for me (aesthetics/airflow/tampered glass/etc).

Erm... whatsup with the mirror on the top PSU shroud? +1 for the so-convenient side facing I/O hookups for a side desk sitter.

Last edited:
Joined
Oct 6, 2020
Messages
67 (0.05/day)
Processor Intel Core i7 12700KF
Motherboard Asus Prime Z690-P D4
Cooling Arctic Liquid Freezer II 280
Memory G.Skill TRIDENT Z 32GB 4000MHz CL16 DDR4
Video Card(s) MSI Suprim X RTX 4080 16GB
Storage Kingston KC3000 1TB
Display(s) Alienware AW3423DWF 34" 21:9 OLED
Case Lian Li Lancool III
Power Supply Fractal Design ION 860+ Platinum
Mouse Roccat Kone Air
Keyboard OZONE StrikePro Spectra (CherryMX Red)
Software Windows 11 Pro 64bit
I like Lian Li, in fact I am using one now but this .. it's a bit weird.
Why the GPU bracket is at the bottom and not at the top? Regarding the weight of modern GPUs it may be prone to bending. If you take a look on their home page there is a picture of complete set and even there you can see that the GPU is not straight vertical - in fact it's already leaning backwards (at the top).

Last edited:
Joined
Jan 20, 2019
Messages
1,322 (0.67/day)
Location
London, UK
System Name ❶ Oooh (2024) ❷ Aaaah (2021) ❸ Ahemm (2017)
Processor ❶ 5800X3D ❷ i7-9700K ❸ i7-7700K
Motherboard ❶ X570-F ❷ Z390-E ❸ Z270-E
Cooling ❶ ALFIII 360 ❷ X62 + X72 (GPU mod) ❸ X62
Memory ❶ 32-3600/16 ❷ 32-3200/16 ❸ 16-3200/16
Video Card(s) ❶ 3080 X Trio ❷ 2080TI (AIOmod) ❸ 1080TI
Storage ❶ NVME/SSD/HDD ❷ <SAME ❸ SSD/HDD
Display(s) ❶ 1440/165/IPS ❷ 1440/144/IPS ❸ 1080/144/IPS
Case ❶ BQ Silent 601 ❷ Cors 465X ❸ Frac Mesh C
Audio Device(s) ❶ HyperX C2 ❷ HyperX C2 ❸ Logi G432
Power Supply ❶ HX1200 Plat ❷ RM750X ❸ EVGA 650W G2
Mouse ❶ Logi G Pro ❷ Razer Bas V3 ❸ Logi G502
Keyboard ❶ Logi G915 TKL ❷ Anne P2 ❸ Logi G610
Benchmark Scores I have wrestled bandwidths, Tussled with voltages, Handcuffed Overclocks, Thrown Gigahertz in Jail
I like Lian Li, in fact I am using one now but this .. it's a bit weird.
Why the GPU bracket is at the bottom and not at the top? Regarding the weight of modern GPUs it may be prone to bending. If you take a look on their home page there is a picture of complete set and even there you can see that the GPU is not straight vertical - in fact it's already leaning backwards (at the top).
View attachment 349246

wouldn't a top bracket 1. have the back of the card facing the front 2. or, if in the alternative orientation rob the GPU from intaking air from the front? I wouldn't have it any other way.

You're right i can see the card leaning to one side.. could it be the power connector/riser cable adding a little pressure?

Joined
Oct 6, 2020
Messages
67 (0.05/day)
Processor Intel Core i7 12700KF
Motherboard Asus Prime Z690-P D4
Cooling Arctic Liquid Freezer II 280
Memory G.Skill TRIDENT Z 32GB 4000MHz CL16 DDR4
Video Card(s) MSI Suprim X RTX 4080 16GB
Storage Kingston KC3000 1TB
Display(s) Alienware AW3423DWF 34" 21:9 OLED
Case Lian Li Lancool III
Power Supply Fractal Design ION 860+ Platinum
Mouse Roccat Kone Air
Keyboard OZONE StrikePro Spectra (CherryMX Red)
Software Windows 11 Pro 64bit
wouldn't a top bracket 1. have the back of the card facing the front 2. or, if in the alternative orientation rob the GPU from intaking air from the front? I wouldn't have it any other way.

You're right i can see the card leaning to one side.. could it be the power connector/riser cable adding a little pressure?
From the point I see it, if you take the card and rotate it clockwise, the bracket will be at the top and the exhaust (top of the Gpu) would be facing the mesh and not the glass (just like now).

Joined
Nov 21, 2010
Messages
2,279 (0.46/day)
Location
Right where I want to be
System Name Miami
Processor Ryzen 3800X
Motherboard Asus Crosshair VII Formula
Cooling Ek Velocity/ 2x 280mm Radiators/ Alphacool fullcover
Memory F4-3600C16Q-32GTZNC
Video Card(s) XFX 6900 XT Speedster 0
Storage 1TB WD M.2 SSD/ 2TB WD SN750/ 4TB WD Black HDD
Display(s) DELL AW3420DW / HP ZR24w
Case Lian Li O11 Dynamic XL
Audio Device(s) EVGA Nu Audio
Power Supply Seasonic Prime Gold 1000W+750W
Mouse Corsair Scimitar/Glorious Model O-
Keyboard Corsair K95 Platinum
Software Windows 10 Pro
Half-height pci card slots on a tower, who? Just WHO asked for that?

Joined
Jul 16, 2014
Messages
8,145 (2.25/day)
Location
SE Michigan
System Name Dumbass
Processor AMD Ryzen 7800X3D
Motherboard ASUS TUF gaming B650
Cooling Artic Liquid Freezer 2 - 420mm
Memory G.Skill Sniper 32gb DDR5 6000
Video Card(s) GreenTeam 4070 ti super 16gb
Storage Samsung EVO 500gb & 1Tb, 2tb HDD, 500gb WD Black
Display(s) 1x Nixeus NX_EDG27, 2x Dell S2440L (16:9)
Case Phanteks Enthoo Primo w/8 140mm SP Fans
Audio Device(s) onboard (realtek?) - SPKRS:Logitech Z623 200w 2.1
Power Supply Corsair HX1000i
Mouse Steeseries Esports Wireless
Keyboard Corsair K100
Software windows 10 H
Benchmark Scores https://i.imgur.com/aoz3vWY.jpg?2
what exactly is redefining? the motherbored tray is in the same spot...

Joined
May 25, 2024
Messages
45 (1.80/day)
i tought it's just a slim tower for LP GPU's only but with ATX PSU slot , since TFX PSU's are harder to replace
but than i scrolled and saw lepudruk's photo
hopefully the PCI cable wont catch fire as NZCT H1 cable did


ITISTIME

New Member
Joined
Mar 28, 2023
Messages
25 (0.06/day)
This looks awful for airflow..for half the price I can get a Phanteks XT View with way better airflow.

Joined
Jan 31, 2012
Messages
2,528 (0.56/day)
Location
East Europe
System Name Sandfiller
Processor I5-10400
Motherboard MSI MPG Z490 GAMING PLUS
Cooling Noctua NH-L9i
Memory 32GB Corsair LPX 2400 Mhz DDR4 CL14
Video Card(s) PNY QUADRO RTX A2000
Storage Intel 670P 512GB
Display(s) Philips 288E2A 28" 4K + 22" LG 1080p
Case SilverStone Raven RV03
Audio Device(s) Creative Sound Blaster Z
Power Supply Fractal Design IntegraM 650W
Mouse Logitech Triathlon
Keyboard REDRAGON MITRA
Software Windows 11 Home x 64
Half-height pci card slots on a tower, who? Just WHO asked for that?
People who bought this or this and this and a full ATX board too and a huge AIO for the CPU :D

RTXA2000.jpgRTX A4000 SFF.jpg912fsgSDweL.jpg


I mean the RTX 4000 SFF is like $1400 aaand it's got a backplate ;) Some braging rights to be had yes? :D

EDIT: your other option to fit that kind of combo: LP GPU+full ATX + ATX PSU is this:

1200x1182.jpgzone-evil-ze-300b-usb-3.0-slim-atx-case (1).jpgzone-evil-ze-300b-usb-3.0-slim-atx-case.jpg

Joke aside, I would love to see a full half-height build in this one.

Last edited:
Joined
Feb 20, 2019
Messages
7,551 (3.88/day)
System Name Bragging Rights
Processor Atom Z3735F 1.33GHz
Motherboard It has no markings but it's green
Cooling No, it's a 2.2W processor
Memory 2GB DDR3L-1333
Video Card(s) Gen7 Intel HD (4EU @ 311MHz)
Storage 32GB eMMC and 128GB Sandisk Extreme U3
Display(s) 10" IPS 1280x800 60Hz
Case Veddha T2
Audio Device(s) Apparently, yes
Power Supply Samsung 18W 5V fast-charger
Mouse MX Anywhere 2
Keyboard Logitech MX Keys (not Cherry MX at all)
VR HMD Samsung Oddyssey, not that I'd plug it into this though....
Software W10 21H1, barely
Benchmark Scores I once clocked a Celeron-300A to 564MHz on an Abit BE6 and it scored over 9000.
I've used enough PCIe riser cables that I don't want to ever use PCIe riser cables again.

Most of the time they work, but it's just an extra layer of unnecessary complexity that you have to rule out when troubleshooting. When they don't work, they're often half-working which makes issues really weird.

Joined
Feb 20, 2019
Messages
7,551 (3.88/day)
System Name Bragging Rights
Processor Atom Z3735F 1.33GHz
Motherboard It has no markings but it's green
Cooling No, it's a 2.2W processor
Memory 2GB DDR3L-1333
Video Card(s) Gen7 Intel HD (4EU @ 311MHz)
Storage 32GB eMMC and 128GB Sandisk Extreme U3
Display(s) 10" IPS 1280x800 60Hz
Case Veddha T2
Audio Device(s) Apparently, yes
Power Supply Samsung 18W 5V fast-charger
Mouse MX Anywhere 2
Keyboard Logitech MX Keys (not Cherry MX at all)
VR HMD Samsung Oddyssey, not that I'd plug it into this though....
Software W10 21H1, barely
Benchmark Scores I once clocked a Celeron-300A to 564MHz on an Abit BE6 and it scored over 9000.
Does any one actually have this case yet???
The only place that seems to list it in the UK has it as a pre-order without an ETA.

So, not even soon - Pre-orders typically have a 5-8 week date estimate once the distributor in Taiwan has scheduled a specific container ship and filled the shipping documentation. We don't even have that yet so these are likely still a 30 day boat ride away on the wrong side of the planet, and that's ignoring all the bureacracy that needs to happen before it can even get on the boat, as well as several days once it reaches mainland Europeon distribution hubs. I'd guess it's a little quicker to the US West coast, but not by much.

Joined
Feb 20, 2019
Messages
7,551 (3.88/day)
System Name Bragging Rights
Processor Atom Z3735F 1.33GHz
Motherboard It has no markings but it's green
Cooling No, it's a 2.2W processor
Memory 2GB DDR3L-1333
Video Card(s) Gen7 Intel HD (4EU @ 311MHz)
Storage 32GB eMMC and 128GB Sandisk Extreme U3
Display(s) 10" IPS 1280x800 60Hz
Case Veddha T2
Audio Device(s) Apparently, yes
Power Supply Samsung 18W 5V fast-charger
Mouse MX Anywhere 2
Keyboard Logitech MX Keys (not Cherry MX at all)
VR HMD Samsung Oddyssey, not that I'd plug it into this though....
Software W10 21H1, barely
Benchmark Scores I once clocked a Celeron-300A to 564MHz on an Abit BE6 and it scored over 9000.
Here in the US, we can get it via Newegg - https://www.newegg.com/p/2AM-000Z-000D2

I was listing to a youtube video, which talked about placing an E-ATX in this joker. I know it will overlap some times, but with a single GPU cooler, as far right as possible :)
Why would you want EATX in a case with only half-height slots? That's pointle-

WAIT, could you cram a dual-socket server board in this....?

Joined
Jul 16, 2022
Messages
484 (0.69/day)
My thought is the foll
Why would you want EATX in a case with only half-height slots? That's pointle-

WAIT, could you cram a dual-socket server board in this....?

I need to get actual dims. I use a single PCI Lane - PNY GPU. Stand that joker vertical like above, as far right as possible. The larger motherboard will overhand the grommets; who cares? You can make this a clean transition with some proper cabling and ties. How much overhang can you have before the motherboard and wiring run into the GPU? I use the single GPU cooler, and the plan would be to water-cool the situation.

I wanted to see if anyone actually had it so that I could get some measurements from them. I see what is offered online, but nothing is giving me exactly what I want.

Looks like no stores will have this case locally. So the best way to get these measurements, is for me to order the case, and if I do not like it or will not work. Return the case. It would be tight, BUT if I could get the wiring in there, and keep the wiring CLEAN, no messes. Get the watercooling in there with out everything tripping over each other. People JAMB ITX cases, motherboards, and stuff in the smallest of cases all the time. On this, I would do it all to keep it clean.


Joined
Jul 16, 2022
Messages
484 (0.69/day)
Lian-Li have added the case manual to the web page.
They usually add STEP files for 3D CAD users, but those haven't appeared yet.
Yes, you are correct; I have seen those files on the Lian Li website in the past.

Thinking out loud, I would do something to offer some support on the right side of the motherboard. I could have a metal fabber make an "L" shape of thin gauge metal, attach it, and offer some nice support. That side of the motherboard is delicate, and I would want it hanging there.

Also, on the base side where the radiator is, I need to make sure I can get two 360 x 30mm rads vertically. I know one for sure, but I would have to confirm two. In the worst case, I could have the same metal fabber make a piece to hold two rads.

Top
