Maximus VIII Ranger BIOS corrupted after USB BIOS flashback

itsakjt

itsakjt

Joined
Oct 9, 2010
Messages
1,571 (0.29/day)
Location
Kolkata, India
System Specs
System Name Coffee | Maximus
Processor Intel Core i7 9700K @ 5.2 GHz with AVX/4.8 GHz cache | i7 9700KF @ 5.0 GHz/4.7 GHz cache
Motherboard ASUS Maximus X Formula | ASUS Maximus VIII Ranger (modded BIOS for Coffee Lake)+TPM2.0 module
Cooling Cooler Master ML240 Illusion | Cooler Master ML120L RGB
Memory 2*16 GB (32 GB) Kingston Fury Beast @3600 MHz CL17 | 4*8 GB (32 GB) HyperX Fury @3200 MHz CL14
Video Card(s) Zotac RTX 3070 8 GB Twin Edge OC | Galax RTX 2060 Super 8 GB
Storage Samsung PM981a 1TB+Crucial P5 1TB+480GB SATA SSD+2 TB HDD | Crucial P1 500GB+2.5TB HDDs
Display(s) LG OLED 55 G3, 4K 120 Hz, VRR, ALLM, GSync, FreeSync | Samsung 43AU9070 4K TV, VRR, ALLM
Case Corsair Crystal 460X RGB | Lianli Lancool 215
Audio Device(s) Creative Sound Blaster Z SE w LG SC9S Dolby/DTS | Realtek ALC1150 (Supreme FX) w 2.1 speakers
Power Supply ASUS ROG Strix 750G (80+ Gold) | Cooler Master MWE 650 V2 (80+ Bronze)
Mouse Cooler Master MM731 19000 DPI gaming mouse
Keyboard Cooler Master CK721 65% mechanical gaming keyboard (tactile)
Software Windows 11 Pro x64 |Windows 11 Pro x64
Benchmark Scores Cinebench R20 MT 4200,ST 547 CPU-Z MT 4871, ST 620 | R20 MT - 4158, ST - 534, CPU-Z MT 4798, ST 603
Hello everyone. So I have a Maximus VIII Ranger motherboard which I was using with a modded BIOS for Skylake OC because my old 7600K had a faulty memory controller.
I got an used 7600K for a steal price (tried and tested working) and hence was flashing the latest BIOS back again using BIOS flashback to make sure it is fully supported. After flashing, the board no longer POSTs. The Q Code indicator shows 00. I have tried multiple BIOS files including the one that was there (the modded one) and it's still the same.
I am about to order a USB BIOS programmer but before doing that, wanted to know if any of you have a similar experience and if it is possible to recover the BIOS without any tools.

You know it has a removable Bios chip right?
Buy a new one on eBay.

Please try this:
Clear CMOS, remove CMOS battery, wait one hour, put the battery back.
Use other USB flash drive, download latest bios Asus maximus ranger viii 3802, and extract to desktop, then rename extracted bios file to M8R, format USB drive with rufus to FAT32, copy M8R to the usb flash drive, and try again flash BIOS using FLASHBACK. .

Caring1 said:
You know it has a removable Bios chip right?
Buy a new one on eBay.
Click to expand...
I know but eBay service is very poor here in India.

Grom0X said:
Please try this:
Clear CMOS, remove CMOS battery, wait one hour, put the battery back.
Use other USB flash drive, download latest bios Asus maximus ranger viii 3802, and extract to desktop, then rename extracted bios file to M8R, format USB drive with rufus to FAT32, copy M8R to the usb flash drive, and try again flash BIOS using FLASHBACK. .
Click to expand...
I did try it but same issue persists. I am pretty sure nothing else is wrong with the board as it worked just 5 mins before the update. I didn't even touch the CPU socket. Just updated via flashback and attempted powering it on and since then, it is like this.
After this, I did try different CPUs just to be sure but still a no go.

Buy a usb flash programmer and try to flash a fresh copy onto the bios chip.

itsakjt said:
I know but eBay service is very poor here in India.
Click to expand...
How can that even be?
I mean isn't India the central nexus for Tech support?
You guys are like the living embodiment of outsourcing and you can't get a BIOS chip?
OKAY now I have head EVERYTHING! I can NOW DIE in piece.

davidm71 said:
Buy a usb flash programmer and try to flash a fresh copy onto the bios chip.
Click to expand...
That's exactly what I have done. Ordered a CH341A from Amazon. It should get delivered today.
trickson said:
How can that even be?
I mean isn't India the central nexus for Tech support?
You guys are like the living embodiment of outsourcing and you can't get a BIOS chip?
OKAY now I have head EVERYTHING! I can NOW DIE in piece.
Click to expand...
eBay.in was shut down on 2018 due to poor sales and issues with shipping. After that it is there but usually costs a lot in shipping or the product cannot be delivered.
I searched for the BIOS chip and there is indeed one on eBay for around 15 pounds but it cannot be shipped to India.
I am really hoping the BIOS programmer will fix it.

Only thing with using bios programmer you loose motherboard specific information like UUID and serial number info that needs to be inserted into bios. Forget how exactly.

davidm71 said:
Only thing with using bios programmer you loose motherboard specific information like UUID and serial number info that needs to be inserted into bios. Forget how exactly.
Click to expand...
Absolutely. And the Ethernet MAC address too probably (in case of Intel LAN). However, I might have an idea to restore those. Using CoffeeTime to edit the BIOS file and putting those information, it should work fine. Even if the existing BIOS is completely corrupt, I still have the box with all the info and will give it a shot.
But first, to get the board to POST again.

itsakjt said:
Absolutely. And the Ethernet MAC address too probably (in case of Intel LAN). However, I might have an idea to restore those. Using CoffeeTime to edit the BIOS file and putting those information, it should work fine. Even if the existing BIOS is completely corrupt, I still have the box with all the info and will give it a shot.
But first, to get the board to POST again.
Click to expand...
Isnt there an app for that? FD44editor I think. Anyhow I remember once Or rather first time I flashed an old Asus board I used an unmodified stock bios and it still worked. Probably wasnt perfect.

I fixed it. The flasher (CH341A) was delivered today. I put my BIOS chip on the tool, made a full backup and used FD44 to inject the serial number, UUID and MAC to the fresh ASUS BIOS. A new bin file was generated.
Then erased the chip complely and flashed the BIOS and bingo, it's back.

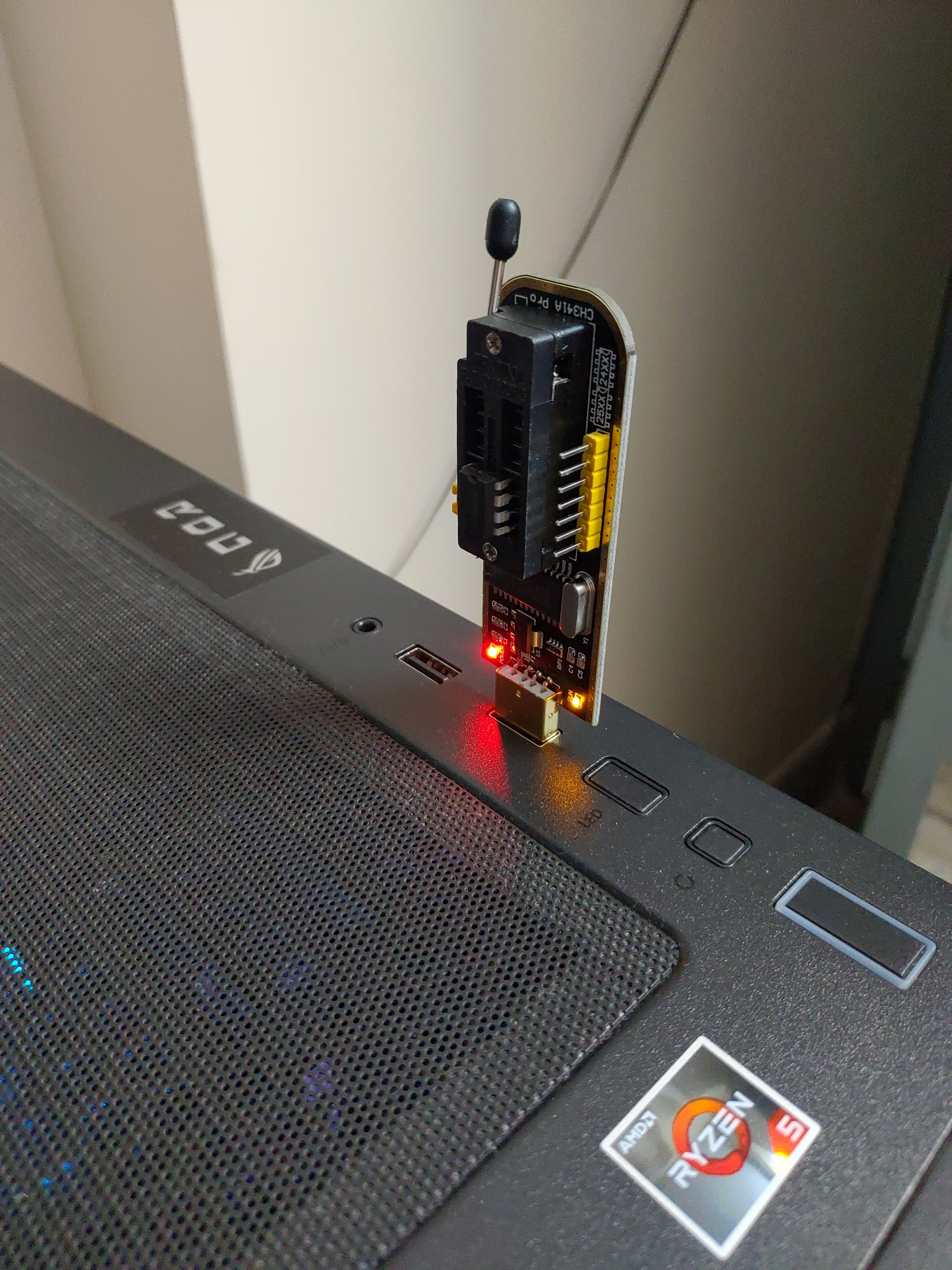

The flasher:



And success:

AWSOME! So good to hear you got it fixed and thanks for the detailed update as to how you managed it!
Awesome!
