MXM graphics with desktop CPU

[ThisMayBeYou]

Hello everyone,
I have this unique motherboard with desktop CPU and MXM graphics slot. Video output goes directly from the card. Integrated GPU does not have output. The issue is whenever I try to install a driver for the card screen turns black. Safe mode works. I tried HP and DELL drivers on AMD’s official page and none of them work.
The BIOS on this motherboard has a lot options, I tried to disable LVDS, switched to HDMI only and no result. Maybe someone has experience in MXM and can point me in the right direction?
Specs:
Zeroone H110 motherboard
16GB SODIMM memory
GPU: AMD FirePro M5100



[TheLostSwede]

Maybe try contact the board maker?

ZEROONE

Website description

www.zeroone.net.cn

This seems to be the MXM module you have.

Firepro M5100 2GB Video Vga Graphic Card 216 0846000 VENUS MXM DDR5 VGA Video Card Card for dell Precision M4800 M4700 M4600|Sound Cards| - AliExpress

Cheap Sound Cards, Buy Quality Computer & Office Directly from China Suppliers:Firepro M5100 2GB Video Vga Graphic Card 216 0846000 VENUS MXM DDR5 VGA Video Card Card for dell Precision M4800 M4700 M4600 Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.

www.aliexpress.com



[TumbleGeorge]

ASRock has also industrial MB with same chipset and MXM slot on board. In manual when MXM video is mounted, work from Displayport only.



[ThisMayBeYou]

ASRock has also industrial MB with same chipset and MXM slot on board. In manual when MXM video is mounted, work from Displayport only.

I’ll contact manufacturer. The board comes only 1xHDMI. Maybe it needs a modded VBIOS or modded driver to use HDMI as default?



[computercam]

Hello everyone,
I have this unique motherboard with desktop CPU and MXM graphics slot. Video output goes directly from the card. Integrated GPU does not have output. The issue is whenever I try to install a driver for the card screen turns black. Safe mode works. I tried HP and DELL drivers on AMD’s official page and none of them work.
The BIOS on this motherboard has a lot options, I tried to disable LVDS, switched to HDMI only and no result. Maybe someone has experience in MXM and can point me in the right direction?
Specs:
Zeroone H110 motherboard
16GB SODIMM memory
GPU: AMD FirePro M5100

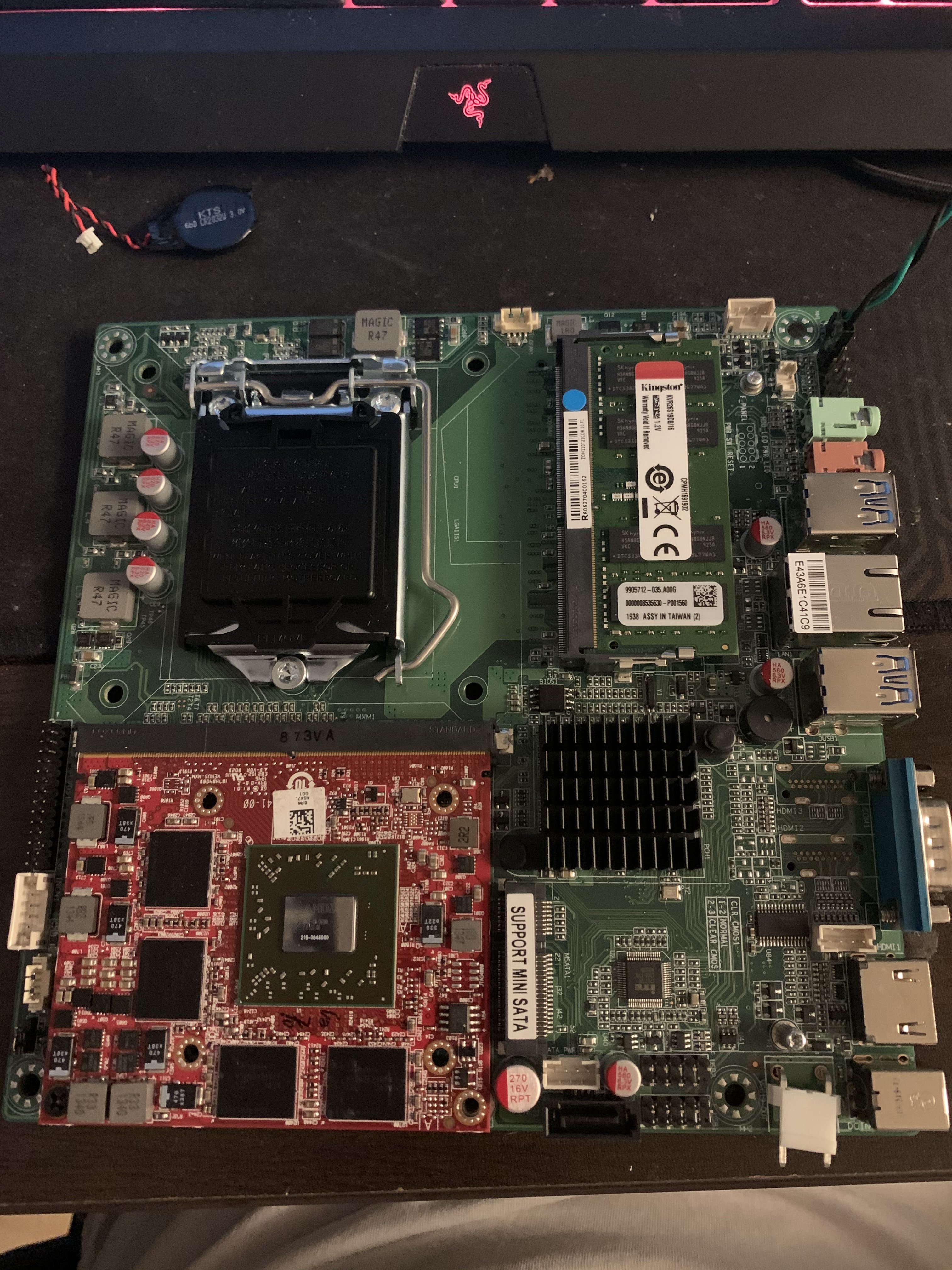

View attachment 180751View attachment 180750

I have this same motherboard. I'm using a quadro p4000 without any issue. You can try setting the slot power limit to max, disable cpu graphics, set gpu to peg eval(or elk creek if it doesn't work). I'm trying to get a quadro rtx 3000 to work on mine. I even bought the h310.
