New EK-Pro Pump-Reservoir Combo Units Also Work as Manifolds

GFreeman

News Editor
Staff member
Joined
Mar 6, 2023
Messages
1,050 (2.88/day)
EK, the premium water-cooling gear manufacturer, is launching a new pump-reservoir combo unit with a plethora of G1/4" ports, allowing it to also act as a manifold. EK-Pro Pump Reservoir Manifold X6 D5 - Acetal has enough ports to work with a total of six water-cooling components, for example, two CPUs, two GPUs, and two radiators. It also has a dedicated fill port, a drain port with an optional QDC, and a small window for visually monitoring the coolant level.

EK-Pro Pump Reservoir Manifold X6 D5 - Acetal
This is a custom water-cooling reservoir, routing, and pump solution. It can act as a regular pump-reservoir combo, be used like a manifold, or, practically, as a distribution plate, even though its aesthetics vastly differ from most distro plates. The X6 in the name designates the number of components it can directly connect as a manifold, and D5 indicates a single D5 pump pushing the liquid around the loop. It can be mounted to the case in many different ways. EK-Pro Pump Reservoir Manifold X6 D5 has M4 screw threads on the side opposite to ports and on the backside, allowing for plenty of mounting options, multiplied by the bracket with 120 mm fan mounting hole spacing (105 mm). A staggering 14 G1/4" ports are available, of which two act as dedicated fill and drain ports.

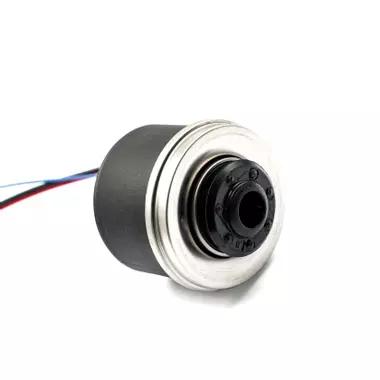

Genuine D5 Pump
This combo unit comes with a powerful yet silent PWM-controlled D5 pump. The goal was to make a product with enough power to offer excellent reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum. The D5 pump has been updated with the latest G3 (Generation 3) variant and comes with a SATA power connector, following the latest PC industry trend to decrease the use of 4-pin Molex cables.

Drain Port With QDC
EK-Pro Pump Reservoir Manifold X6 D5 - Acetal comes with a drain port and a Quick Disconnect Coupling/Fitting and tubing for the user to be able to drain their system directly out of the case without the need for any other tools. You simply slide on the part of the QDC with the tubing onto the other half of the QDC installed on the combo unit and effortlessly drain the reservoir. Using the QDC is entirely optional but brings many QoL benefits.

Build Materials
Most of this combo unit is made of durable Black POM acetal, with the addition of a stainless steel plate that goes over the front of the combo and has a sliver opened for the see-through acrylic window.

The pump is held by a black-anodized aluminium holder. Neither the steel plate nor the aluminium holder is in contact with the coolant, so there is no risk of corrosion due to the mixing of metals. The only metal touching the coolant is the nickel-plated brass G1/4" plugs that close the unused ports - high-quality O-rings seal coolant.

Technical Details
Reservoir:
  • Dimensions with the attached pump (W x D x H): 75 x 115 x 235 mm
  • Dimensions with the attached QDC (W x D x H): 75 x 115 x 235 mm
Pump Motor:
  • Motor: Electronically commuted spherical motor
  • Rated voltage: 12 V DC
  • Power consumption: 23 W
  • Maximum pressure head: 3.9 m
  • Maximum flow: 1500L/h
  • Maximum system temperature: 60°C
  • Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Sluminium Oxide, Hard Coal
  • Power connector: SATA and 4-pin PWM FAN connector
Operational Regime:
  • PWM duty cycle: ~ 20-100%
  • Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Availability and Pricing
The EK-Pro Pump Reservoir Manifold X6 D5 - Acetal is available for pre-order through the EK Webshop and partner reseller network. It is expected to ship out in late December 2023. The manufacturer-suggested retail price (MSRP), VAT included, for the EK-Pro Pump Reservoir Manifold X6 D5 - Acetal is set at €379.90.

View at TechPowerUp Main Site | Source

Joined
Jul 16, 2022
Messages
443 (0.74/day)
Extremely clean and nice.

I am shocked this does not offer a dual D5 pump. Considering this is used in high-grade workstations.

Joined
May 3, 2019
Messages
1,258 (0.71/day)
System Name BigRed
Processor I7 12700k
Motherboard Asus Rog Strix z690-A WiFi D4
Cooling Noctua D15s/MX6
Memory TEAM GROUP 32GB DDR4 4000C16 B die
Video Card(s) MSI RTX 3080 Gaming Trio X 10GB
Storage M.2 drives-Crucial P5 500GB 4x4/WD SN850X 4TB 4x4/WD SN850X 2TB 4x4
Display(s) Dell s3422dwg 34" 3440x1440p 144hz ultrawide
Case Corsair 7000D
Audio Device(s) Topping D10s DAC/PCamp TC 1680 AMP/MS M10 Speakers/Bowers and Wilkins P7 Headphones
Power Supply Corsair RM850x 80% gold
Mouse Logitech G604 wireless
Keyboard Logitech G413 carbon
Software Windows 10 Pro
Benchmark Scores Who cares
Nice but the price is shocking tbh, typical EK+ EK tax

Joined
Jun 2, 2017
Messages
7,623 (3.09/day)
System Name Best AMD Computer
Processor AMD 7900X3D
Motherboard Asus X670E E Strix
Cooling In Win SR36
Memory GSKILL DDR5 32GB 5200 30
Video Card(s) Sapphire Pulse 7900XT (Watercooled)
Storage Corsair MP 700, Seagate 530 2Tb, Adata SX8200 2TBx2, Kingston 2 TBx2, Micron 8 TB, WD AN 1500
Display(s) GIGABYTE FV43U
Case Corsair 7000D Airflow
Audio Device(s) Corsair Void Pro, Logitch Z523 5.1
Power Supply Deepcool 1000M
Mouse Logitech g7 gaming mouse
Keyboard Logitech G510
Software Windows 11 Pro 64 Steam. GOG, Uplay, Origin
Benchmark Scores Firestrike: 46183 Time Spy: 25121
Interesting I am thinking you could use that with a RAD and a GPU block.

Joined
Jul 16, 2022
Messages
443 (0.74/day)
Exactly!

I love stuff like this, becuase now it makes the system design, and layout a lot easier.

What would be nice, if they had a small format ITX version!

What if you cut off a few of those top holes. This could be a nice one!

Joined
Dec 26, 2006
Messages
3,407 (0.54/day)
Location
Northern Ontario Canada
Processor Ryzen 5700x
Motherboard Gigabyte X570S Aero G R1.1 BiosF5g
Cooling Noctua NH-C12P SE14 w/ NF-A15 HS-PWM Fan 1500rpm
Memory Micron DDR4-3200 2x32GB D.S. D.R. (CT2K32G4DFD832A)
Video Card(s) AMD RX 6800 - Asus Tuf
Storage Kingston KC3000 1TB & 2TB & 4TB Corsair LPX
Display(s) LG 27UL550-W (27" 4k)
Case Be Quiet Pure Base 600 (no window)
Audio Device(s) Realtek ALC1220-VB
Power Supply SuperFlower Leadex V Gold Pro 850W ATX Ver2.52
Mouse Mionix Naos Pro
Keyboard Corsair Strafe with browns
Software W10 22H2 Pro x64
That is a lot of screws and ports!!!

Joined
Jul 30, 2019
Messages
2,208 (1.31/day)
System Name Not a thread ripper but pretty good.
Processor Ryzen 9 5950x
Motherboard ASRock X570 Taichi (revision 1.06, BIOS/UEFI version P5.50)
Cooling EK-Quantum Velocity, EK-Quantum Reflection PC-O11, EK-CoolStream PE 360, Alphacool NexXxoS ST25 360
Memory Micron DDR4-3200 ECC Unbuffered Memory (4 sticks, 128GB, 18ASF4G72AZ-3G2F1)
Video Card(s) XFX Radeon RX 5700 & EK-Quantum Vector Radeon RX 5700 +XT & Backplate
Storage Samsung 2TB 980 PRO 2TB Gen4x4 NVMe, Samsung 2TB 970 EVO Plus Gen3x4 NVMe x 2
Display(s) 2 x 4K LG 27UL600-W (and HUANUO Dual Monitor Mount)
Case Lian Li PC-O11 Dynamic Black (original model)
Power Supply Corsair RM750x
Mouse Logitech M575
Keyboard Corsair Strafe RGB MK.2
Software Windows 10 Professional (64bit)
Benchmark Scores Typical for non-overclocked CPU.
They must have seen this Linus video and decided they can do better.



Extremely clean and nice.

I am shocked this does not offer a dual D5 pump. Considering this is used in high-grade workstations.
Well if you buy two them ....
That is a lot of screws and ports!!!
Someone there really like making ports.

Joined
Jan 29, 2012
Messages
6,359 (1.44/day)
Location
Florida
System Name natr0n-PC
Processor Ryzen 5950x - SMT Off
Motherboard B450 AORUS M
Cooling EK AIO - 6 fan action
Memory Patriot - Viper Steel DDR4 (B-Die)(4x8GB)
Video Card(s) EVGA 3070ti FTW
Storage Various
Display(s) PIXIO IPS 240Hz 1080P
Case Thermaltake Level 20 VT
Audio Device(s) LOXJIE D10 + Kinter Amp + 6 Bookshelf Speakers Sony+JVC+Sony
Power Supply Super Flower Leadex III ARGB 80+ Gold 650W
Software XP/7/8.1/10
Benchmark Scores http://valid.x86.fr/79kuh6
Joined
May 3, 2019
Messages
1,258 (0.71/day)
System Name BigRed
Processor I7 12700k
Motherboard Asus Rog Strix z690-A WiFi D4
Cooling Noctua D15s/MX6
Memory TEAM GROUP 32GB DDR4 4000C16 B die
Video Card(s) MSI RTX 3080 Gaming Trio X 10GB
Storage M.2 drives-Crucial P5 500GB 4x4/WD SN850X 4TB 4x4/WD SN850X 2TB 4x4
Display(s) Dell s3422dwg 34" 3440x1440p 144hz ultrawide
Case Corsair 7000D
Audio Device(s) Topping D10s DAC/PCamp TC 1680 AMP/MS M10 Speakers/Bowers and Wilkins P7 Headphones
Power Supply Corsair RM850x 80% gold
Mouse Logitech G604 wireless
Keyboard Logitech G413 carbon
Software Windows 10 Pro
Benchmark Scores Who cares
No wonder a good loop can cost as much as a half decent complete PC with these prices. My loop is about £700, so with this it would be close to £1k. I love my H2O cooling but i know why it's not for everyone.

If i come into a nice wedge, i'd like one of these though.

Joined
Feb 22, 2022
Messages
495 (0.67/day)
Processor AMD Ryzen 7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Custom Watercooling
Memory G.Skill Trident Z Royal 2x16GB
Video Card(s) MSi RTX 3080ti Suprim X
Storage 2TB Corsair MP600 PRO Hydro X
Display(s) Samsung G7 27" x2
Audio Device(s) Sound Blaster ZxR
Power Supply Be Quiet! Dark Power Pro 12 1500W
Mouse Logitech G903
Keyboard Steelseries Apex Pro
Where did my water pressure go? Oh right, spread out all over the darn place.

Looks great. I like what appears to be a very practically placed drain port at the bottom. Unlike the radiator mount pump+reservoairs they sell, that drainport is half useless. But, these manifolds are not my thing anyway.

Joined
Feb 20, 2020
Messages
8,934 (6.06/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon 901 Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Hi,
Yeah ek charges per hole and they are proud of their plugs :laugh:
At least this one has a D5 pump included and sata powered :cool:

Nice but the price is shocking tbh, typical EK+ EK tax
Manifolds alone have just been EOLed though so this one is at least worth considering.

Joined
May 3, 2019
Messages
1,258 (0.71/day)
System Name BigRed
Processor I7 12700k
Motherboard Asus Rog Strix z690-A WiFi D4
Cooling Noctua D15s/MX6
Memory TEAM GROUP 32GB DDR4 4000C16 B die
Video Card(s) MSI RTX 3080 Gaming Trio X 10GB
Storage M.2 drives-Crucial P5 500GB 4x4/WD SN850X 4TB 4x4/WD SN850X 2TB 4x4
Display(s) Dell s3422dwg 34" 3440x1440p 144hz ultrawide
Case Corsair 7000D
Audio Device(s) Topping D10s DAC/PCamp TC 1680 AMP/MS M10 Speakers/Bowers and Wilkins P7 Headphones
Power Supply Corsair RM850x 80% gold
Mouse Logitech G604 wireless
Keyboard Logitech G413 carbon
Software Windows 10 Pro
Benchmark Scores Who cares
Hi,
Yeah ek charges per hole and they are proud of their plugs :laugh:
At least this one has a D5 pump included and sata powered :cool:


Manifolds alone have just been EOLed though so this one is at least worth considering.

I guess it's good for multi rad/CPU/GPU loops, but now mine is single rad/cpu/gpu so this would be no use for me really.

Joined
Feb 20, 2020
Messages
8,934 (6.06/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon 901 Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
I guess it's good for multi rad/CPU/GPU loops, but now mine is single rad/cpu/gpu so this would be no use for me really.
Hi,
For an existing build changing large components is ruled by budget
If it isn't broken = don't fix it

I rarely like ek new stuff but this one is pretty neat and I can see lots of ways to setup stuff with it.
But yeah I've got two loops already so I'm done with those to ;)

Joined
Jul 7, 2019
Messages
798 (0.47/day)
They must have seen this Linus video and decided they can do better.

View attachment 322112


Well if you buy two them ....

Someone there really like making ports.
The real question though is if EK learned from Linus' teething issues and from plumbing professionals and added restrictors to the outlets to ensure equal flow rates. Because in Linus' case, the lack of built-in restrictors saw a notable pressure drop on systems furthest from the main outlet.

Joined
Sep 25, 2023
Messages
121 (0.75/day)
Location
Finland
System Name RayneOSX
Processor Ryzen 9 5900x 185w
Motherboard Asus Strix x570-E
Cooling EKWB AIO 360 RGB (9 ekwb vardar RGB fans)
Memory Gskill Trident Z neo CL18 3600mhz 64GB
Video Card(s) MSI RTX 3080 Gaming Z Trio 10G LHR
Storage Wayy too many to list here
Display(s) Samsung Odyssey G5 1440p 144hz 27 x2 / Samsung Odyssey CRG5 1080p 144hz 24
Case LianLi 011D white w/ Vertical GPU
Audio Device(s) Sound Blaster Z
Power Supply Corsair RM1000x (2021)
Mouse Logitech G502
Keyboard Ducky One 2 mini Cherry MX silent
VR HMD Quest 2
Software Win10 Pro / Ubuntu 20.04
Benchmark Scores Timespy 17 127 https://www.3dmark.com/spy/40770744 (old)
Joined
May 3, 2019
Messages
1,258 (0.71/day)
System Name BigRed
Processor I7 12700k
Motherboard Asus Rog Strix z690-A WiFi D4
Cooling Noctua D15s/MX6
Memory TEAM GROUP 32GB DDR4 4000C16 B die
Video Card(s) MSI RTX 3080 Gaming Trio X 10GB
Storage M.2 drives-Crucial P5 500GB 4x4/WD SN850X 4TB 4x4/WD SN850X 2TB 4x4
Display(s) Dell s3422dwg 34" 3440x1440p 144hz ultrawide
Case Corsair 7000D
Audio Device(s) Topping D10s DAC/PCamp TC 1680 AMP/MS M10 Speakers/Bowers and Wilkins P7 Headphones
Power Supply Corsair RM850x 80% gold
Mouse Logitech G604 wireless
Keyboard Logitech G413 carbon
Software Windows 10 Pro
Benchmark Scores Who cares
salu, EK lance une nouvelle unité combinée pompe-réservoir avec plusieurs ports G1/4", pouvant agir comme un collecteur. Le collecteur de réservoir de pompe EK-Pro X6 D5 - Acétal peut fonctionner avec jusqu'à six composants de refroidissement par eau , avec des ports dédiés pour deux processeurs, deux GPU et deux radiateurs. Il comprend un port de remplissage, un port de vidange avec un QDC en option, et une fenêtre pour surveiller le niveau de liquide de refroidissement. Cette solution polyvalente peut être utilisée comme un combo pompe-réservoir, un collecteur, voire une plaque de distribution, offrant des options de montage variées avec ses filetages M4 et un support compatible avec un espacement de trou de montage de ventilateur de 120 mm.La pompe D5 intégrée, contrôlée par PWM, assure des performances fiables et silencieuses, tandis que l'orifice de vidange avec collecteur QDC facilite le processus de vidange du système. Fabriqué principalement en acétal POM noir durable, avec des éléments en acier inoxydable et aluminium anodisé noir, cette unité minimise les risques de corrosion. L'utilisation de bouchons en laiton nickelé assure une protection contre les mélanges de métaux. En conclusion, utiliser un convertisseur de rouille peut être préférable pour la prévention.

English only if possible please :)

Joined
Feb 20, 2020
Messages
8,934 (6.06/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon 901 Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
The real question though is if EK learned from Linus' teething issues and from plumbing professionals and added restrictors to the outlets to ensure equal flow rates. Because in Linus' case, the lack of built-in restrictors saw a notable pressure drop on systems furthest from the main outlet.
Hi,
Well the only benefit would be having multiple height holes for different mounting places
Not filling all the holes with lines to different parts in the loop
One out and one in and fill the rest with plugs which yeah makes this item a weird addition unless going for a machine gun kelly build :laugh:

Fluid would always flow through the least restrictive route.

Top
