Sapphire Pulse Rx 580 SKU#11265-05-20G BIOS request
- Thread starter bm_enzo
- Start date
eidairaman1
The Exiled Airman
- Joined
- Jul 2, 2007
- Messages
- 44,417 (6.78/day)
- Location
- Republic of Texas (True Patriot)
| System Name | PCGOD |
|---|---|
| Processor | AMD FX 8350@ 5.0GHz |
| Motherboard | Asus TUF 990FX Sabertooth R2 2901 Bios |
| Cooling | Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED |
| Memory | 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V) |
| Video Card(s) | AMD Radeon 290 Sapphire Vapor-X |
| Storage | Samsung 840 Pro 256GB, WD Velociraptor 1TB |
| Display(s) | NEC Multisync LCD 1700V (Display Port Adapter) |
| Case | AeroCool Xpredator Evil Blue Edition |
| Audio Device(s) | Creative Labs Sound Blaster ZxR |
| Power Supply | Seasonic 1250 XM2 Series (XP3) |
| Mouse | Roccat Kone XTD |
| Keyboard | Roccat Ryos MK Pro |
| Software | Windows 7 Pro 64 |
Need a gpu-z screenshot to verify the ram since cards can come with samsung, micron, elpida
,hynix
Better yet take a picture of the sku sticker on the card back or side of heatsink, there is more info below the sku that is needed
@bm_enzo
eidairaman1
The Exiled Airman
- Joined
- Jul 2, 2007
- Messages
- 44,417 (6.78/day)
- Location
- Republic of Texas (True Patriot)
| System Name | PCGOD |
|---|---|
| Processor | AMD FX 8350@ 5.0GHz |
| Motherboard | Asus TUF 990FX Sabertooth R2 2901 Bios |
| Cooling | Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED |
| Memory | 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V) |
| Video Card(s) | AMD Radeon 290 Sapphire Vapor-X |
| Storage | Samsung 840 Pro 256GB, WD Velociraptor 1TB |
| Display(s) | NEC Multisync LCD 1700V (Display Port Adapter) |
| Case | AeroCool Xpredator Evil Blue Edition |
| Audio Device(s) | Creative Labs Sound Blaster ZxR |
| Power Supply | Seasonic 1250 XM2 Series (XP3) |
| Mouse | Roccat Kone XTD |
| Keyboard | Roccat Ryos MK Pro |
| Software | Windows 7 Pro 64 |
Yes
1002 67DF 1DA2 387E
1002 67DF 1DA2 387E
Do you still need a picture of the label on the card?
eidairaman1
The Exiled Airman
- Joined
- Jul 2, 2007
- Messages
- 44,417 (6.78/day)
- Location
- Republic of Texas (True Patriot)
| System Name | PCGOD |
|---|---|
| Processor | AMD FX 8350@ 5.0GHz |
| Motherboard | Asus TUF 990FX Sabertooth R2 2901 Bios |
| Cooling | Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED |
| Memory | 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V) |
| Video Card(s) | AMD Radeon 290 Sapphire Vapor-X |
| Storage | Samsung 840 Pro 256GB, WD Velociraptor 1TB |
| Display(s) | NEC Multisync LCD 1700V (Display Port Adapter) |
| Case | AeroCool Xpredator Evil Blue Edition |
| Audio Device(s) | Creative Labs Sound Blaster ZxR |
| Power Supply | Seasonic 1250 XM2 Series (XP3) |
| Mouse | Roccat Kone XTD |
| Keyboard | Roccat Ryos MK Pro |
| Software | Windows 7 Pro 64 |
Here,
There are others, make sure samsung is contained in the tables.
www.techpowerup.com
No i dont
@bm_enzo here is the latest
Whats the deal then?
@bm_enzo
There are others, make sure samsung is contained in the tables.
TechPowerUp
Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.
No i dont
@bm_enzo here is the latest
Whats the deal then?
@bm_enzo
Here,
There are others, make sure samsung is contained in the tables.
TechPowerUp
Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.
No i dont
@bm_enzo here is the latest
Whats the deal then?
@bm_enzo
All 3 VBIOS gave me a SubsystemID's mismatch error message
eidairaman1
The Exiled Airman
- Joined
- Jul 2, 2007
- Messages
- 44,417 (6.78/day)
- Location
- Republic of Texas (True Patriot)
| System Name | PCGOD |
|---|---|
| Processor | AMD FX 8350@ 5.0GHz |
| Motherboard | Asus TUF 990FX Sabertooth R2 2901 Bios |
| Cooling | Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED |
| Memory | 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V) |
| Video Card(s) | AMD Radeon 290 Sapphire Vapor-X |
| Storage | Samsung 840 Pro 256GB, WD Velociraptor 1TB |
| Display(s) | NEC Multisync LCD 1700V (Display Port Adapter) |
| Case | AeroCool Xpredator Evil Blue Edition |
| Audio Device(s) | Creative Labs Sound Blaster ZxR |
| Power Supply | Seasonic 1250 XM2 Series (XP3) |
| Mouse | Roccat Kone XTD |
| Keyboard | Roccat Ryos MK Pro |
| Software | Windows 7 Pro 64 |
All 3 VBIOS gave me a SubsystemID's mismatch error message
Get me the picture of the SKU sticker at this rate
Alefutura70
New Member
- Joined
- Jan 21, 2022
- Messages
- 11 (0.01/day)
I have the same problem with my Rx 580 Shappire Pulse 8gb OC, exactly the same gpu model as yours.
SKU 11265-05-20G......PN S88-4E353-830SA.....Does anyone have the download link for the original bios? That would help me a lot!!! Thanks a lot!!!
SKU 11265-05-20G......PN S88-4E353-830SA.....Does anyone have the download link for the original bios? That would help me a lot!!! Thanks a lot!!!
Last edited:
eidairaman1
The Exiled Airman
- Joined
- Jul 2, 2007
- Messages
- 44,417 (6.78/day)
- Location
- Republic of Texas (True Patriot)
| System Name | PCGOD |
|---|---|
| Processor | AMD FX 8350@ 5.0GHz |
| Motherboard | Asus TUF 990FX Sabertooth R2 2901 Bios |
| Cooling | Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED |
| Memory | 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V) |
| Video Card(s) | AMD Radeon 290 Sapphire Vapor-X |
| Storage | Samsung 840 Pro 256GB, WD Velociraptor 1TB |
| Display(s) | NEC Multisync LCD 1700V (Display Port Adapter) |
| Case | AeroCool Xpredator Evil Blue Edition |
| Audio Device(s) | Creative Labs Sound Blaster ZxR |
| Power Supply | Seasonic 1250 XM2 Series (XP3) |
| Mouse | Roccat Kone XTD |
| Keyboard | Roccat Ryos MK Pro |
| Software | Windows 7 Pro 64 |
we need to know what memory is on the card, so pull the heatsink
Alefutura70
New Member
- Joined
- Jan 21, 2022
- Messages
- 11 (0.01/day)
I managed to get an image since this model has dual bios...as shown above in the comments thread. This is what gpuz affects now.
I made a backup of the bios before doing the failed biosmod attempt that left me with no image. In other words, I have the original bios in a .rom file, but I don't know how to fix it or make that repair. I already went wrong once and I don't want to fail again
I made a backup of the bios before doing the failed biosmod attempt that left me with no image. In other words, I have the original bios in a .rom file, but I don't know how to fix it or make that repair. I already went wrong once and I don't want to fail again
Attachments
Last edited:
- Joined
- Apr 22, 2021
- Messages
- 1,891 (1.26/day)
- Location
- Romania
| System Name | Gaming1 / Office 2 |
|---|---|
| Processor | Intel i7 7700k@4.8ghz / Ryzen 7 5700G |
| Motherboard | MSI 270 SLI PLUS / MSI MAG X570S - TOMAHAWK MAX WIFI |
| Cooling | ID-Cooling Frostflow X 120 - Liquid / ID-Cooling SE-903 V2 |
| Memory | 2x16GB Corsair Vengeance LPX 3600 Black / 2x16GB Corsair Vengeance RGB Pro SL - 3600Mhz |
| Video Card(s) | XFX RX 6600XT 8GB / XFX RX 5700XT THICC III Ultra 8GB |
| Storage | 1st : 1x SSD Samsung 980 Pro 1Tb + 4x SAS HDD in RAID / 2nd : 1 Tb SSD Nvme Samsung 980 Pro 1Tb |
| Display(s) | 2x Dell 3008 WFP |
| Case | CoolerMaster HAF 932 / GENESIS IRID 300 |
| Audio Device(s) | Soundblaster XFI / Onboard |
| Power Supply | Seasonic Focus 850 W / Seasonic Focus 850 W |
| Mouse | Logitech G502 HERO / Logitech G5 |
| Keyboard | Dell SmartCard Reader SK 3205 / Dell SmartCard Reader SK 3205 |
| Software | 1st - Win 10 Pro X64 / Win 7 X86 / Ubuntu / 2nd - Windows 11 Pro x64 |
Hello
So as i understood you have the original BIOS saved in a file ?
Well that helps us a lot. This will be easier for you.
Download please an older version of atiflash (2.93)
Put AtiFlash folder in root (c:\) so you will have c:\AtiFlash
Save the BIOS file you have (the original one) in the AtiFlash folder and rename it as RX580.rom

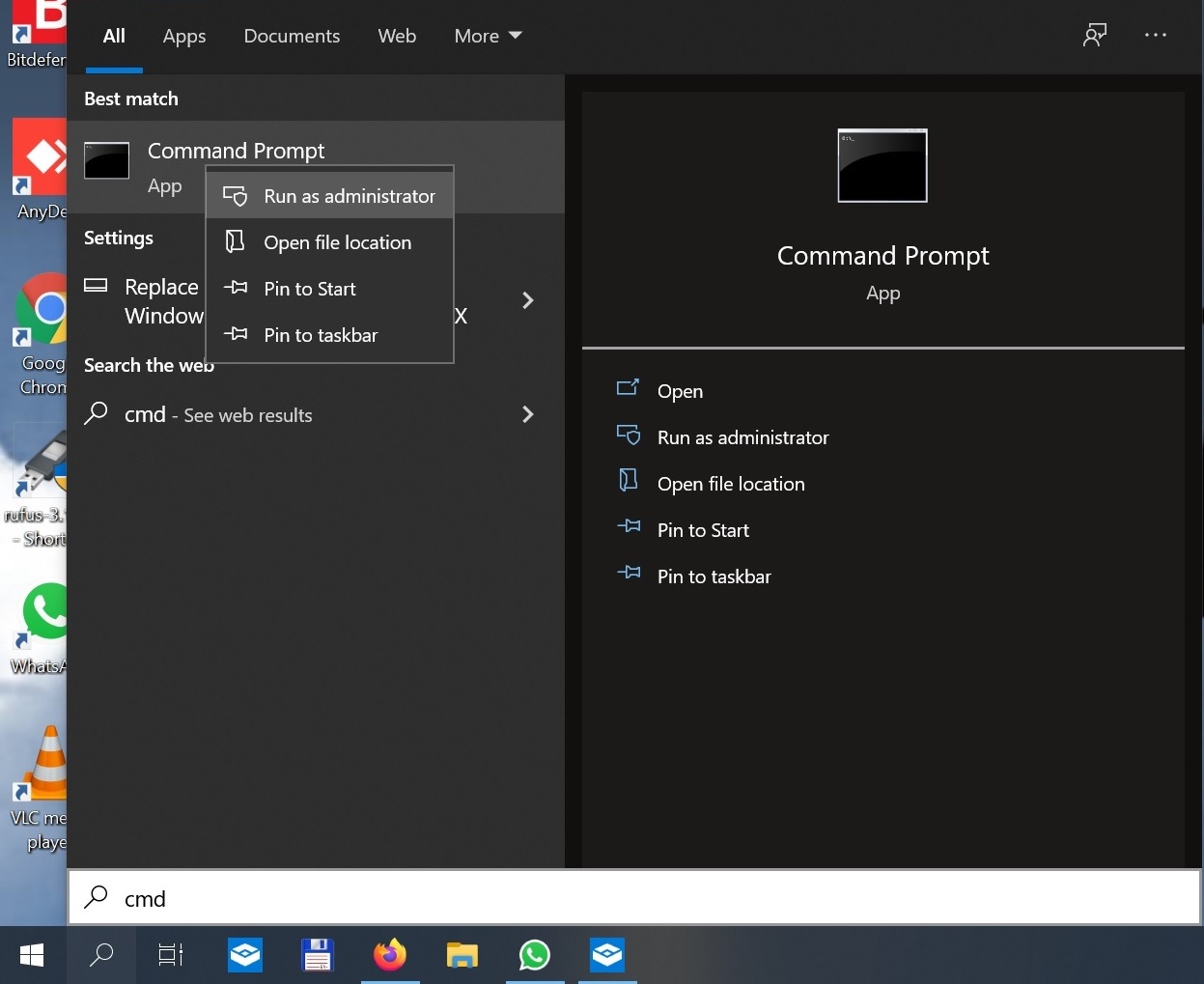

Open CMD with admin privileges.
(Win+S key to open search box. In search box enter word : cmd and on result that appear right click on it and choose "run as administrator" )
BIOS switch must be set to position 1 - we will flash ONLY the BIOS1 right now. (or the one that is wrong...you know which one you need to flash)
Use CD command to enter AtiFlash folder (directory)
Use the following command to forceflash:
amdvbflash -p -f -fa -fs 0 RX580.rom
After BIOS is flashed a message will appear to restart computer
Keep us informed how it went
So as i understood you have the original BIOS saved in a file ?
Well that helps us a lot. This will be easier for you.
Download please an older version of atiflash (2.93)
Put AtiFlash folder in root (c:\) so you will have c:\AtiFlash
Save the BIOS file you have (the original one) in the AtiFlash folder and rename it as RX580.rom
Open CMD with admin privileges.
(Win+S key to open search box. In search box enter word : cmd and on result that appear right click on it and choose "run as administrator" )
BIOS switch must be set to position 1 - we will flash ONLY the BIOS1 right now. (or the one that is wrong...you know which one you need to flash)
Use CD command to enter AtiFlash folder (directory)
Use the following command to forceflash:
amdvbflash -p -f -fa -fs 0 RX580.rom
After BIOS is flashed a message will appear to restart computer
Keep us informed how it went
Attachments
Alefutura70
New Member
- Joined
- Jan 21, 2022
- Messages
- 11 (0.01/day)
A question!!! Version 2.93 Atiflash for win 10 does not work? Why should it be an older version?
eidairaman1
The Exiled Airman
- Joined
- Jul 2, 2007
- Messages
- 44,417 (6.78/day)
- Location
- Republic of Texas (True Patriot)
| System Name | PCGOD |
|---|---|
| Processor | AMD FX 8350@ 5.0GHz |
| Motherboard | Asus TUF 990FX Sabertooth R2 2901 Bios |
| Cooling | Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED |
| Memory | 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V) |
| Video Card(s) | AMD Radeon 290 Sapphire Vapor-X |
| Storage | Samsung 840 Pro 256GB, WD Velociraptor 1TB |
| Display(s) | NEC Multisync LCD 1700V (Display Port Adapter) |
| Case | AeroCool Xpredator Evil Blue Edition |
| Audio Device(s) | Creative Labs Sound Blaster ZxR |
| Power Supply | Seasonic 1250 XM2 Series (XP3) |
| Mouse | Roccat Kone XTD |
| Keyboard | Roccat Ryos MK Pro |
| Software | Windows 7 Pro 64 |
Because it is easier to use than 3.20
- Joined
- Apr 22, 2021
- Messages
- 1,891 (1.26/day)
- Location
- Romania
| System Name | Gaming1 / Office 2 |
|---|---|
| Processor | Intel i7 7700k@4.8ghz / Ryzen 7 5700G |
| Motherboard | MSI 270 SLI PLUS / MSI MAG X570S - TOMAHAWK MAX WIFI |
| Cooling | ID-Cooling Frostflow X 120 - Liquid / ID-Cooling SE-903 V2 |
| Memory | 2x16GB Corsair Vengeance LPX 3600 Black / 2x16GB Corsair Vengeance RGB Pro SL - 3600Mhz |
| Video Card(s) | XFX RX 6600XT 8GB / XFX RX 5700XT THICC III Ultra 8GB |
| Storage | 1st : 1x SSD Samsung 980 Pro 1Tb + 4x SAS HDD in RAID / 2nd : 1 Tb SSD Nvme Samsung 980 Pro 1Tb |
| Display(s) | 2x Dell 3008 WFP |
| Case | CoolerMaster HAF 932 / GENESIS IRID 300 |
| Audio Device(s) | Soundblaster XFI / Onboard |
| Power Supply | Seasonic Focus 850 W / Seasonic Focus 850 W |
| Mouse | Logitech G502 HERO / Logitech G5 |
| Keyboard | Dell SmartCard Reader SK 3205 / Dell SmartCard Reader SK 3205 |
| Software | 1st - Win 10 Pro X64 / Win 7 X86 / Ubuntu / 2nd - Windows 11 Pro x64 |
Alefutura70
New Member
- Joined
- Jan 21, 2022
- Messages
- 11 (0.01/day)
Descargue Atiflash 2.87 porque me dijeron que debe ser una versión anterior a la 2.93.
¿Será que el procedimiento para recuperar la bios no funciona por eso?
¿Será que el procedimiento para recuperar la bios no funciona por eso?
- Joined
- Apr 22, 2021
- Messages
- 1,891 (1.26/day)
- Location
- Romania
| System Name | Gaming1 / Office 2 |
|---|---|
| Processor | Intel i7 7700k@4.8ghz / Ryzen 7 5700G |
| Motherboard | MSI 270 SLI PLUS / MSI MAG X570S - TOMAHAWK MAX WIFI |
| Cooling | ID-Cooling Frostflow X 120 - Liquid / ID-Cooling SE-903 V2 |
| Memory | 2x16GB Corsair Vengeance LPX 3600 Black / 2x16GB Corsair Vengeance RGB Pro SL - 3600Mhz |
| Video Card(s) | XFX RX 6600XT 8GB / XFX RX 5700XT THICC III Ultra 8GB |
| Storage | 1st : 1x SSD Samsung 980 Pro 1Tb + 4x SAS HDD in RAID / 2nd : 1 Tb SSD Nvme Samsung 980 Pro 1Tb |
| Display(s) | 2x Dell 3008 WFP |
| Case | CoolerMaster HAF 932 / GENESIS IRID 300 |
| Audio Device(s) | Soundblaster XFI / Onboard |
| Power Supply | Seasonic Focus 850 W / Seasonic Focus 850 W |
| Mouse | Logitech G502 HERO / Logitech G5 |
| Keyboard | Dell SmartCard Reader SK 3205 / Dell SmartCard Reader SK 3205 |
| Software | 1st - Win 10 Pro X64 / Win 7 X86 / Ubuntu / 2nd - Windows 11 Pro x64 |
NO NO....i said you must use an older version and i pointed out to version 2.93
You must download exactly 2.93
Not older not newer.
Dije que debes usar una versión anterior y señalé la versión 2.93.
You must download exactly 2.93
Not older not newer.
Dije que debes usar una versión anterior y señalé la versión 2.93.
Alefutura70
New Member
- Joined
- Jan 21, 2022
- Messages
- 11 (0.01/day)
ok... sorry... i use google translate... i'm from argentina and my english is very bad.
i will try with 2.93.
i will try with 2.93.
