Tachyum Boots Linux on Prodigy FPGA

AleksandarK

Staff member
Joined
Aug 19, 2017
Messages
1,534 (0.86/day)
Tachyum Inc. today announced that it has successfully executed the Linux boot process on the field-programmable gate array (FPGA) prototype of its Prodigy Universal Processor, in 2 months after taking delivery of the IO motherboard from manufacturing. This achievement proves the stability of the Prodigy emulation system and allows the company to move forward with additional testing before advancing to tape out.

Tachyum engineers were able to perform the Linux boot, execute a short user-mode program and shutdown the system on the fully functional FPGA emulation system. Not only does this successful test prove that the basic processor is stable, but interrupts, exceptions, timing, and system-mode transitions are, as well. This is a key milestone, which dramatically reduces risk, as booting and running large and complex pieces of software like Linux reliably on the Tachyum FPGA processor prototype shows that verification and hardware stability are past the most difficult turning point, and it is now obvious that verification and testing should successfully complete in the coming months. Designers are now shifting their attention to debug and verification processes, running hundreds of trillions of test cycles over the next few months, and running large scale user mode applications with compatibility testing to get the processor to production quality.

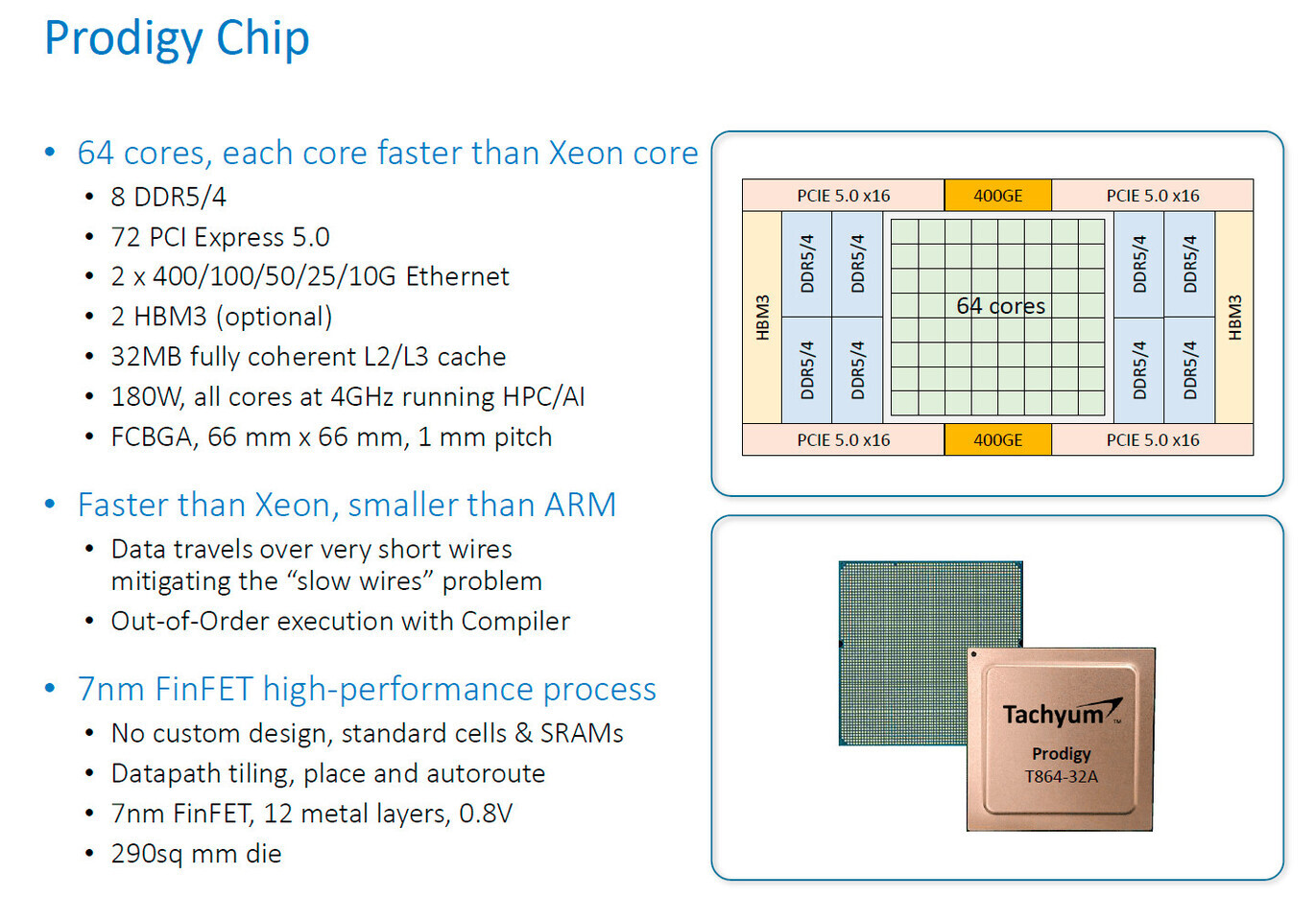

The Prodigy Universal Processor has progressed to a complete system prototype with integrated CPU, memory, PCI Express, networking and BMC management subsystems connected to the FPGA emulation system board. The fully functional Prodigy emulation system is available to customers to perform early testing and software development, prior to a full four-socket reference design motherboard, which is expected to be available in Q1 2022.

"Despite some hurdles in acquiring some IO IP from our suppliers, we are very pleased with the progress that has been made in bringing Prodigy to life," said Dr. Radoslav Danilak, co-founder and CEO of Tachyum. "Achieving a successful Linux boot in 2 months after receiving the FPGA IO motherboard prototype is a huge milestone. As we turn to further debugging and testing, we look forward to being able to run larger user-mode applications on the Prodigy prototype next month. This is an exciting journey, as we continue our drive toward enabling human brain-scale AI, while significantly reducing data center power consumption."

Tachyum's Prodigy processor can run HPC applications, convolutional AI, explainable AI, general AI, bio AI, and spiking neural networks, plus normal data center workloads, on a single homogeneous processor platform, using existing standard programming models. Without Prodigy, hyperscale data centers must use a combination of CPU, GPU, TPU hardware, for these different workloads, creating inefficiency, expense, and the complexity of separate supply and maintenance infrastructures. Using specific hardware dedicated to each type of workload (e.g., data center, AI, HPC), results in underutilization of hardware resources, and more challenging programming, support, and maintenance. Prodigy's ability to seamlessly switch among these various workloads dramatically changes the competitive landscape and the economics of data centers.

As the world's first universal processor, Prodigy runs legacy x86, ARM and RISC-V binaries in addition to its native Prodigy code. With a single homogeneous, highly efficient processor architecture, Prodigy delivers industry-leading performance across data center, AI, and HPC workloads, outperforming the fastest Xeon processors while consuming 10x lower power (core vs. core), as well as outperforming NVIDIA's fastest GPU in HPC, as well as AI training and inference.

Prodigy's 3X lower cost per MIPS and its 10X lower core power translate to a 4X lower data center Total Cost of Ownership (TCO), delivering billions of dollars in annual savings to hyperscalers. Since Prodigy is the world's only processor that can switch between data center, AI and HPC workloads, unused servers can be used as CAPEX- free AI or HPC cloud resources, because the servers have already been amortized. Prodigy will also allow Edge developers for IoT to exploit its low power/high performance, along with its simple programming model, to deliver efficient high- performance AI to the edge.

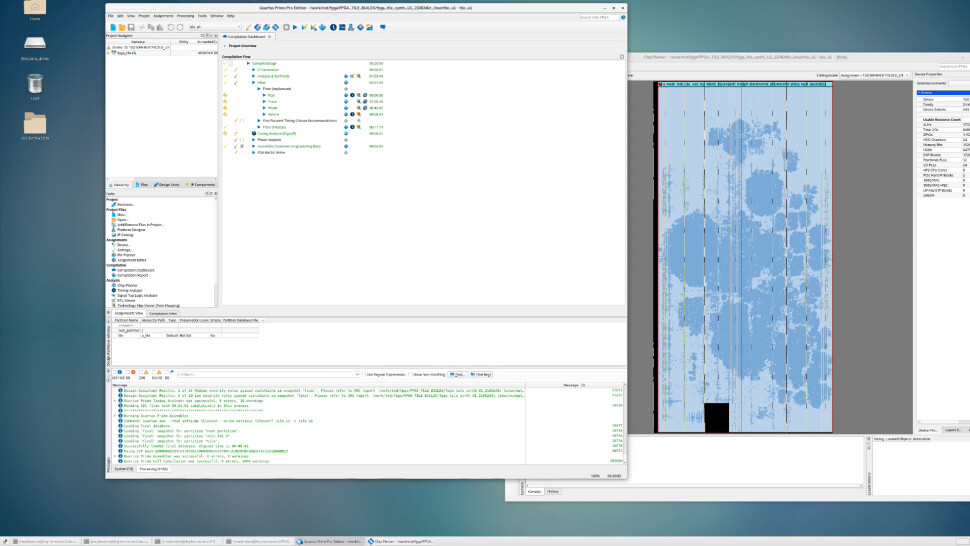

Demonstration video of the FPGA Linux boot process is now available for viewing at https://www.tachyum.com/resources/presentations/. Those wishing to be among the first to receive news, events and updates on Prodigy's processor can subscribe to the company's newsletter here: https://www.tachyum.com/newsletter.

View at TechPowerUp Main Site

Joined
Dec 10, 2015
Messages
545 (0.23/day)
Location
Here
System Name Skypas
Processor Intel Core i7-6700
Motherboard Asus H170 Pro Gaming
Cooling Cooler Master Hyper 212X Turbo
Memory Corsair Vengeance LPX 16GB
Video Card(s) MSI GTX 1060 Gaming X 6GB
Storage Corsair Neutron GTX 120GB + WD Blue 1TB
Display(s) LG 22EA63V
Case Corsair Carbide 400Q
Power Supply Seasonic SS-460FL2 w/ Deepcool XFan 120
Mouse Logitech B100
Keyboard Corsair Vengeance K70
Software Windows 10 Pro (to be replaced by 2025)
So this universal processor is an SoC connected to an FPGA?

Joined
Oct 14, 2017
Messages
210 (0.12/day)
System Name Lightning
Processor 4790K
Motherboard asrock z87 extreme 3
Cooling hwlabs black ice 20 fpi radiator, cpu mosfet blocks, MCW60 cpu block, full cover on 780Ti's
Memory corsair dominator platinum 2400C10, 32 giga, DDR3
Video Card(s) 2x780Ti
Storage intel S3700 400GB, samsung 850 pro 120 GB, a cheep intel MLC 120GB, an another even cheeper 120GB
Display(s) eizo foris fg2421
Case 700D
Audio Device(s) ESI Juli@
Power Supply seasonic platinum 1000
Mouse mx518
Software Lightning v2.0a
don't hold your breth, if this is as revolutionary as it appears to be one of the big fishes will just buy it and kill it, and if it isn't which is most likely because they haven't bought it yet then they will wait and see if it does and if in the end turn out to be a threat, they will buy it then :(

Joined
Mar 10, 2010
Messages
10,187 (2.26/day)
Location
Manchester uk
System Name RyzenGtEvo/ Asus strix scar II/Trig
Processor Amd R5 5600G/ Intel 8750H/3800X
Motherboard Crosshair hero8 impact/Asus/crosshair hero 7
Cooling 360EK extreme rad+ 360$EK slim all push, cpu ek suprim Gpu full cover all EK
Memory Corsair Vengeance Rgb pro 3600cas14 16Gb in four sticks./16Gb/16GB
Video Card(s) Sapphire refference Rx vega 64 EK waterblocked/Rtx 2060/GTX 1060
Storage Silicon power 1TB nvme/8Tb external/1Tb samsung Evo nvme 2Tb sata ssd/1Tb nvme
Display(s) Samsung UAE28"850R 4k freesync.dellshiter
Case Lianli p0-11 dynamic/strix scar2/aero cool shiter
Audio Device(s) Xfi creative 7.1 on board ,Yamaha dts av setup, corsair void pro headset
Power Supply corsair 1200Hxi/Asus stock /850 watt ?
Mouse Roccat Kova/ Logitech G wireless
Keyboard Roccat Aimo 120
VR HMD Oculus rift
Software Win 10 Pro
Benchmark Scores 8726 vega 3dmark timespy/ laptop Timespy 6506
Almost, it's an SoC programed into an FPGA. Kinda brilliant if you ask me..
Four FPGAs.

Still a while out, I think they're 10x is evaporating personally.

Joined
Jun 23, 2011
Messages
385 (0.10/day)
System Name potato
Processor Ryzen 9 3950X
Motherboard MSI MAG B550 Tomahawk
Cooling Custom WC Loop
Memory 2x16GB G.Skill Trident Z Neo 3600
Video Card(s) Radeon VII
Storage SSD: Team 512GB NVMe + Team 2TB SATA || HDD: 2x WD VRaptor 500GB & 2x WD Blue 4TB
Display(s) XIAOMI Curved 34" 144Hz UWQHD
Case be quiet dark base pro 900
Audio Device(s) Edifier R1800T, Logitech G733
Power Supply Corsair AX860i
Mouse Logitech G Pro
Keyboard Corsair K65
Software win 10 amd64
So this universal processor is an SoC connected to an FPGA?
mmm, nope.
FPGA is needed to verify the design before they make the actual silicon, basically it is used to emulate the processor in order to test it.

Joined
Aug 25, 2015
Messages
165 (0.07/day)
Location
Chicago, IL
System Name Mass Effect/Wakanda
Processor AMD Ryzen 5 5600X/AMD Ryzen 7 2700X
Motherboard Asus ROG Strix X470-F Gaming/Asus ROG Strix B450-F Gaming II
Cooling Noctua NH-D15S/AMD Wraith Max
Memory G.Skill Ripjaws V Series 16GB (2x8GB) DDR4-3200/Corsair Vengeance RGB Pro 16GB (2x8GB) DDR4-3200
Video Card(s) MSI AMD Radeon RX 5700 XT MECH OC/Nvidia GeForce GTX 1070 FE
Storage Samsung 860 Evo 500GB 2.5" SSDs x2, WD Black 4TB 3.5" 7200RPM, Samsung 970 EVO 500GB 1TB NVME M.2
Display(s) Acer XF270H 1920x1080p @ 144Hz
Case Thermaltake Core P3 TG ATX Mid Tower/CoolerMaster MasterCase Pro 5
Audio Device(s) Turtle Beach Ear Force Atlas One Wired Gaming Headset
Power Supply Cooler Master V850 80+ Gold/Corsair CX650M 80+ Bronze
Mouse Thermaltake Level 10 M/Logitech G502
Keyboard Corsair K70 RGB MK.2 Wired Gaming Edition/Steelseries Apex 3 RGB
Software Windows 10 Pro OEM 64bit/Ubuntu 20.04 64bit
Someone is waiting to write this company a check as we speak.

Joined
Jul 5, 2013
Messages
19,512 (5.94/day)
Location
USA
mmm, nope.
FPGA is needed to verify the design before they make the actual silicon, basically it is used to emulate the processor in order to test it.
Did you read the article? They're in the testing phase, which means they have functional units. How else would they run Linux?

Joined
Jun 23, 2011
Messages
385 (0.10/day)
System Name potato
Processor Ryzen 9 3950X
Motherboard MSI MAG B550 Tomahawk
Cooling Custom WC Loop
Memory 2x16GB G.Skill Trident Z Neo 3600
Video Card(s) Radeon VII
Storage SSD: Team 512GB NVMe + Team 2TB SATA || HDD: 2x WD VRaptor 500GB & 2x WD Blue 4TB
Display(s) XIAOMI Curved 34" 144Hz UWQHD
Case be quiet dark base pro 900
Audio Device(s) Edifier R1800T, Logitech G733
Power Supply Corsair AX860i
Mouse Logitech G Pro
Keyboard Corsair K65
Software win 10 amd64
Did you read the article? They're in the testing phase, which means they have functional units. How else would they run Linux?
yep, read it.
emulating processor with FPGA is a common practice in CPU design process, you would want to verify whether your CPU can run as intended before making the actual silicon prototype.
