GIGABYTE GTX 680 SuperOverclock WindForce 5X Pictured Some More

Discussion in 'News' started by btarunr, Apr 30, 2012.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,965 (11.00/day)
    Thanks Received:
    13,757
    Location:
    Hyderabad, India
    Unveiled earlier this month, GIGABYTE's GeForce GTX 680 SuperOverclock has been an attention magnet thanks to its WindForce 5X cooling solution, which you'll either love or hate. Coolaler.com got to spend some time with this card, more importantly, to dissemble it. The cooler is found to occupy 3 expansion slots in your system, which isn't exactly new, no thanks to ASUS and its DirectCu II solution. The entire volume of card's cooling area is occupied by a gigantic heatsink.

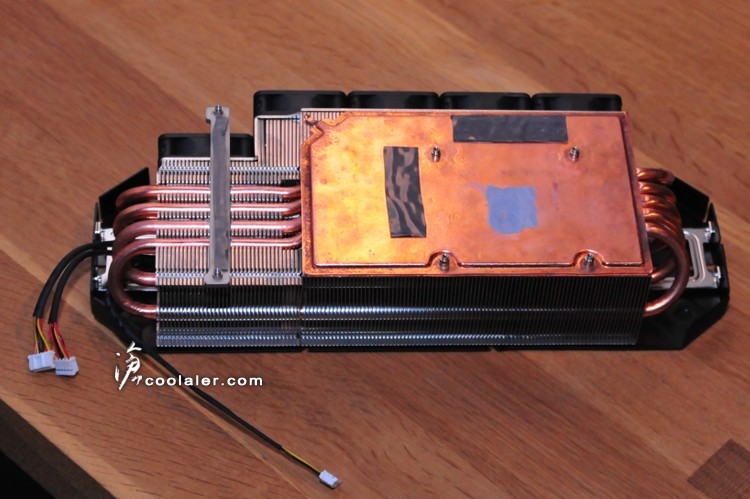

    At the base of WindForce 5X cooling solution is a vapor-chamber plate, which draws heat from the GPU and memory chips. This plate makes contact with five 8 mm-thick copper heat-pipes. These pipes pass through the gargantuan heatsink in a closed loop. There are five 40 mm fans arranged on top of the card to ventilate the heatsink. These fans occupy extra space on the top-side of the card, since as we mentioned, almost the entire volume of the cooler's space is occupied by the heatsink. The back side of the card was also shown, fitted with a back-plate, with as many as four NEC Tokin proadlizers peeking out of a cutout. Other components on the back side are hard to make out.

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Source: Coolaler

    Last edited: Apr 30, 2012
    de.das.dude, 1c3d0g and bear jesus say thanks.
  2. theonedub

    theonedub habe fidem

    Joined:
    Apr 30, 2009
    Messages:
    7,221 (3.50/day)
    Thanks Received:
    3,819
    At least fix the stickers on the fans so that the Gigabyte logo is oriented correctly when viewed installed in a case.

    Crunching for Team TPU
  3. Capitan Harlock

    Capitan Harlock

    Joined:
    Jan 15, 2012
    Messages:
    487 (0.45/day)
    Thanks Received:
    77
    Location:
    Arcadia
    very cool but for me the right name is super brick xd looks like a semipassive but with 5 littlefans xd

  4. bear jesus

    bear jesus New Member

    Joined:
    Aug 12, 2010
    Messages:
    1,535 (0.96/day)
    Thanks Received:
    200
    Location:
    Britland
    Now i see that it's both heat pipes and a vapor chamber i am quite curious how well the heatsink its self performs.

  5. PopcornMachine

    PopcornMachine

    Joined:
    Aug 17, 2009
    Messages:
    1,563 (0.80/day)
    Thanks Received:
    459
    Location:
    Los Angeles/Orange County CA
    Interesting design. Very curious as to how well this one cools and how quiet it is.

    But still wouldn't want a 3-slot card.

  6. Hayder_Master

    Hayder_Master

    Joined:
    Apr 21, 2008
    Messages:
    5,179 (2.13/day)
    Thanks Received:
    638
    Location:
    IRAQ-Baghdad
    GIGABYTE GTX 680 Wind Noise 5X

  7. HossHuge

    HossHuge

    Joined:
    Jun 26, 2008
    Messages:
    2,077 (0.88/day)
    Thanks Received:
    520
    Location:
    EDM, AB, CAN
    So they want to blow hot air directly into the motherboard?

  8. CoreDuo New Member

    Joined:
    Jan 6, 2008
    Messages:
    39 (0.02/day)
    Thanks Received:
    4
    The way I understand it, the fans pull heat away from the card and towards the side panel where one or more fan slots would typically be in such a configuration.

  9. m1dg3t

    m1dg3t

    Joined:
    May 22, 2010
    Messages:
    2,247 (1.34/day)
    Thanks Received:
    513
    Location:
    Canada
    Fugly. I have 1 fan that size in one of my rig's and it SCREAMs! I can imagine what 4 sound like :shadedshu

  10. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,965 (11.00/day)
    Thanks Received:
    13,757
    Location:
    Hyderabad, India
    The fans are pointing outward.

  11. CoreDuo New Member

    Joined:
    Jan 6, 2008
    Messages:
    39 (0.02/day)
    Thanks Received:
    4
    Yeah, they're the same kind of blowers typically found in rackmount servers.

  12. m1dg3t

    m1dg3t

    Joined:
    May 22, 2010
    Messages:
    2,247 (1.34/day)
    Thanks Received:
    513
    Location:
    Canada
    It's where I got mine lol

  13. rooivalk

    rooivalk

    Joined:
    Sep 7, 2011
    Messages:
    193 (0.16/day)
    Thanks Received:
    26
    Location:
    Pacific Rim
    I think it would be nicer if they're using bigger and fewer fans like Zalman ZM-80C HP
    [​IMG]
    and maybe add slider to the fan similiar to razer imperator side button mechanism, so it's still could be SLI-ed.

  14. wickerman

    wickerman

    Joined:
    Mar 12, 2006
    Messages:
    291 (0.09/day)
    Thanks Received:
    51
    Location:
    Austin, TX
    I agree with rooivalk, I can't imagine why anyone would want to add 5 of those horrible little noise makers to their case, those fans are likely to be louder than the stock unit. Granted the heatsink carries a lot more surface area and nothing would stop you from ripping those stupid fans off and rigging up a few 120s along side...but why on earth did they thing this was a good idea :twitch:

    I'm always willing to pay a premium for a better cooler, but the first box on my checklist is of improvements over the reference design is noise levels. If this is actually louder than the reference design, I really won't consider it as an option.

  15. Huddo93

    Huddo93 New Member

    Joined:
    Oct 13, 2011
    Messages:
    299 (0.26/day)
    Thanks Received:
    57
    Location:
    Perth, WA, Australia
    In my opinion, this is one of the ugliest GTX 680 cooler designs to date.. It isn't even a full cover design!.. On top of that, if those 40mm fans are anything like the old ones i used to have once upon a time, they will be loud as hell. Now gigabyte.. I understand you wanted to stand out, but this is just ridiculous.

  16. grammaton_feather New Member

    Joined:
    Feb 24, 2012
    Messages:
    13 (0.01/day)
    Thanks Received:
    1
    Modern fan motors can be quiet. Even 40mm unless they're travelling at insane speeds. The 5 x fans on the giga SO will be speed restricted. You won't hear any high pitch whine. Since it's a super-overclock and since gigabyte super-overclocks tend to be the most extreme in terms of factory overclocks then it should be worth checking out.

    Last edited: Apr 30, 2012
  17. HossHuge

    HossHuge

    Joined:
    Jun 26, 2008
    Messages:
    2,077 (0.88/day)
    Thanks Received:
    520
    Location:
    EDM, AB, CAN
    Best case senario would either these Delta fans (6.5CFM 18.5 dBA) or these SilenX fans (5CFM 14 dBA).

  18. Huddo93

    Huddo93 New Member

    Joined:
    Oct 13, 2011
    Messages:
    299 (0.26/day)
    Thanks Received:
    57
    Location:
    Perth, WA, Australia
    Still not the only problem with I have with it though >.<

  19. Dj-ElectriC

    Dj-ElectriC

    Joined:
    Aug 13, 2010
    Messages:
    2,248 (1.41/day)
    Thanks Received:
    851
    Mother of copper...

  20. DarkOCean

    DarkOCean

    Joined:
    Jan 28, 2009
    Messages:
    1,619 (0.75/day)
    Thanks Received:
    350
    Location:
    on top of that big mountain on mars(Romania)
    What is this, a semi passive heatsink?

  21. hhumas

    Joined:
    Jun 24, 2011
    Messages:
    554 (0.43/day)
    Thanks Received:
    22
    Location:
    Islamabad
    its cooler is awesome

  22. lZKoce

    lZKoce

    Joined:
    Jan 31, 2012
    Messages:
    699 (0.66/day)
    Thanks Received:
    88
    Location:
    Bulgaria
    Oh yeah, this morning is getting better and better. I hoped they would release more info on this card and here we go. Good work, TPU news-team.
    Ontopic: full frontal assault, that's such a cool card. Now the GPU-suppprt devices, some PC cases have, will definitely justify their existance. Talk about sagging :D. It's double the size of a Saphirre Nettop. Pure copper brick, what more can a gamer ask for :p

  23. Chaitanya

    Joined:
    Mar 7, 2011
    Messages:
    424 (0.31/day)
    Thanks Received:
    34
    Location:
    Pune
    Gigabyte will definitely win an awards for this card: The Noisiest Video card on the earth. :banghead:

  24. Kenny646 New Member

    Joined:
    Apr 27, 2012
    Messages:
    3 (0.00/day)
    Thanks Received:
    0
    I don't see all the hate..if they made this and it sucked on the mega fail stick, they wouldn't put it as the "super overclock edition". I think that 5x 40mm would probably deliver about the same airflow as those 3x 60mm windforce (they are 60mm right?) coolers, presuming they use high quality ones.

    Can't wait to see the teardown of this thing, the heatsink looks mysterious :p

  25. DOM

    DOM

    Joined:
    May 30, 2006
    Messages:
    7,552 (2.41/day)
    Thanks Received:
    828
    Location:
    TX, USA
    I can't belive they really came out with this.... They should call it shit bricks :roll:
