Prolimatech Toys with Two New LGA2011 CPU Cooler Designs

Discussion in 'News' started by btarunr, Feb 9, 2012.

  1. btarunr

    btarunr Editor & Senior Moderator Staff Member

    Joined:
    Oct 9, 2007
    Messages:
    28,708 (11.16/day)
    Thanks Received:
    13,669
    Location:
    Hyderabad, India
    Among the sea of tower-type CPU coolers which are the same old tripe packaged and colored differently, few companies are actually investing in innovation, one of them is Prolimatech. The company is working on two new yet-unnamed CPU coolers specifically designed for socket LGA2011 motherboards, one has already taken shape, the other is still in its CGI form.

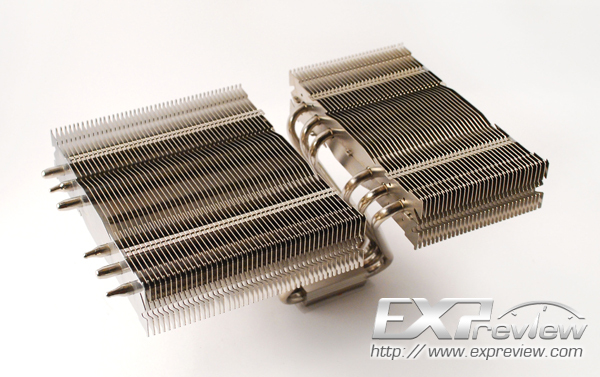

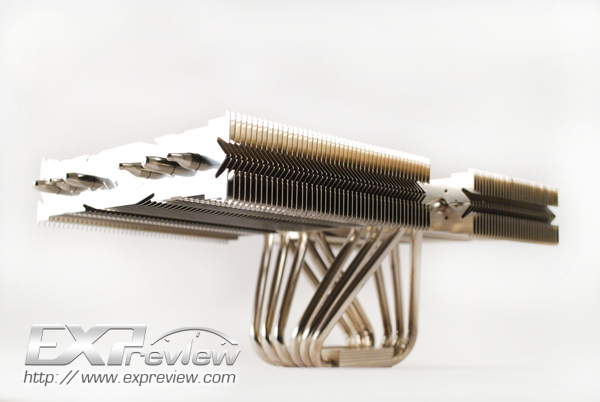

    The first one (first two images below), appears to be an leaner, fitter evolution of the Prolimatech Genesis. While the Genesis uses a dual-independent fin-stack design in which one stack propagates perpendicular to the plane of the motherboard while the other propagates parallel to the plane, on this new design, both stacks propagate parallel to the plane, in opposite directions, and both being dissimilar in size.

    [​IMG] [​IMG] [​IMG] [​IMG]

    Fans are to be strapped onto both stacks, which perform top-flow ventilation. The larger fin stack of the two ideally hovers over the memory area of the motherboard that's east of the socket, while the smaller one over the memory area west of it. It becomes a tight squeeze for things west of the socket, and this is probably why this stack is smaller. Heat is conveyed to the two by six heat-pipes, which pass through the base.

    The second cooler (last two images above), has a slightly more exotic shape, in which the heat pipe take three sharp U-turns, in the long-arms of each of these U-turns is an aluminum fin stack, and the CPU base is in the center. Unlike the other cooler design, this cooler has a side-flow ventilation. The aluminum fin stacks don't propagate all the way down, to make room for the memory areas below. As for the ventilation, a single 120 mm fan can be attached in the central portion, more fans can be attached to the aluminum fin stacks at convenient locations. There is no word on when (or if) this design will materialize.

    Source: Expreview

    Chevalr1c and cadaveca say thanks.
  2. cadaveca

    cadaveca My name is Dave

    Joined:
    Apr 10, 2006
    Messages:
    14,049 (4.51/day)
    Thanks Received:
    7,205
    Location:
    Edmonton, Alberta
    Woah. Far out. Would love to try!

  3. xaira

    Joined:
    Jul 20, 2009
    Messages:
    209 (0.11/day)
    Thanks Received:
    19
    could fi some hge ram heatsinks under those

    SK-1 says thanks.
  4. entropy13

    entropy13

    Joined:
    Mar 2, 2009
    Messages:
    4,946 (2.40/day)
    Thanks Received:
    1,212
    The first one could be quite weird, unless they're planning on using one 200mm fan? LOL

    For the 2nd, 4 FANS SETUP IS POSSIBLE! :laugh:

  5. badtaylorx

    badtaylorx

    Joined:
    Aug 19, 2011
    Messages:
    481 (0.41/day)
    Thanks Received:
    152
    5 actually!!!

  6. Easy Rhino

    Easy Rhino Linux Advocate

    Joined:
    Nov 13, 2006
    Messages:
    13,460 (4.64/day)
    Thanks Received:
    3,264
    the sammy 17 does an incredible job cooling the q9650 in a tight space. i will buy all the prolimatech products.

  7. Chevalr1c

    Chevalr1c

    Joined:
    Sep 3, 2010
    Messages:
    3,246 (2.15/day)
    Thanks Received:
    1,424
    Location:
    NL, Europe
    Those 2 pictures on the left show a cooler that is an awesome way to cool the CPU VRM's (MOSFETs are they called, aren't they?) as it seems.

    Crunching for Team TPU
  8. D4S4

    D4S4

    Joined:
    Mar 27, 2008
    Messages:
    697 (0.29/day)
    Thanks Received:
    75
    Location:
    Zagreb, Croatia
    the two fan one looks terribly efficient at wasting airflow.

  9. pantherx12

    pantherx12 New Member

    Joined:
    Jan 2, 2009
    Messages:
    9,714 (4.58/day)
    Thanks Received:
    1,699
    Location:
    ENGLAND-LAND-LAND
    From the looks of things will be 2 x 120 mm with one fan "wasting" a bit of it's airflow.

    Should keep VRM area super cool though.

  10. Beertintedgoggles

    Beertintedgoggles

    Joined:
    Nov 15, 2005
    Messages:
    721 (0.22/day)
    Thanks Received:
    194
    Makes me want to take my SI-128 out of retirement and mod a backplate to mount it to my 2500k just to see where it stands today.

  11. DigitalUK

    DigitalUK New Member

    Joined:
    Oct 16, 2009
    Messages:
    503 (0.27/day)
    Thanks Received:
    68
    Location:
    UK South
    nice to see something new and abit different for a cooler.

  12. Bjorn_Of_Iceland

    Bjorn_Of_Iceland

    Joined:
    Jan 2, 2008
    Messages:
    3,175 (1.28/day)
    Thanks Received:
    375
    looks inefficient.

  13. m1dg3t

    m1dg3t

    Joined:
    May 22, 2010
    Messages:
    2,247 (1.39/day)
    Thanks Received:
    513
    Location:
    Canada
    The first option look's like a winner, the 2nd look's like it may have compatibility issues with a lot of setup's :eek:

  14. radarblade New Member

    Joined:
    Feb 8, 2012
    Messages:
    48 (0.05/day)
    Thanks Received:
    1
    Location:
    In the middle of Nowhere
    Is it me or did they just stick two car radiators to it upside down? :lol:

  15. FordGT90Concept

    FordGT90Concept "I go fast!1!11!1!"

    Joined:
    Oct 13, 2008
    Messages:
    13,781 (6.26/day)
    Thanks Received:
    3,668
    Location:
    IA, USA
    The prototype one looks useless. Look how long the heat pipes are and how little actual surface area there is. I would be shocked if it ever got to stores because I definitely can't see the thermal performance of it being any good.

    The first looks decent so long as it doesn't block anything.
